dashboard RENAULT ESPACE 2012 J81 / 4.G Owners Manual

JauneNoirNoir texte
1.21
ENG_UD25537_5
Ceintures de sécurité (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
sea T BeLTs (2/3)
fastening
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull -
ing on buckle 3). If the belt jams, allow
it to return slightly before attempting to
unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
çf ront seat belt reminder
warning light
If this warning light on the instrument
panel or the dashboard goes out, the
front seat belts have been correctly fas-
tened.
Unfastening
Press button 4 on buckle 5 and the seat
belt will be rewound by the inertia reel.
Guide the buckle to help the operation.
1
5
34
5
adjusting the height of the
front seat belts
Press button 6 to adjust the seat belt
height so that the shoulder strap is
worn as shown previously;
Press button 6 and raise or lower the
seat belt.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
6

1.24
ENG_UD20337_1
Dispositifs de retenue complémentaires à la ceinture (X81 - J81 -\
Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
MeTHOds Of resTraInT In addITIOn TO THe frOnT sea T BeLTs (2/4)
force limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
B a
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener -
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
In a situation where an air bag is
required, it will inflate immediately
and this may cause some minor, su-
perficial grazing to the skin or other
problems.
air bags for driver A and
front passenger B
An air bag may be provided for both the
driver and the front passenger.
An “Air bag” marking on the steering
wheel, dashboard and, depending on
the vehicle, the lower section of the
windscreen inform you of the presence
of additional means of restraint (air
bags, pretensioners, etc.) in the pas -
senger compartment. Each air bag system consists of:
–
an air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
– a shared electronic unit which in -
cludes the impact detector and a
monitoring system which controls
the ignition module for the gas gen-
erator;
– a single
å warning light on the
instrument panel.

JauneNoirNoir texte
1.25
ENG_UD20337_1
Dispositifs de retenue complémentaires à la ceinture (X81 - J81 -\
Renault)
ENG_NU_932-3_X81ph3_Renault_1
Operation
This system is only operational when
the ignition is switched on.
If a severe frontal impact occurs, the
air bag(s) inflate(s) rapidly, cushion -
ing the impact of the driver’s head and
chest against the steering wheel and
the front passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers are
not impeded in any way when they get
out of the vehicle.
special feature of the front air
bag
There are two volumes of operation de-
pending on the severity of the impact:
– low volume air bag, this is the first
stage of operation;
– large volume air bag, the air bag
seams rip so that a larger volume of
gas is released into the bag (for the
most severe impacts).
MeTHOds Of resTraInT In addITIOn TO THe frOnT sea T BeLTs (3/4)
Operating faults
åThis warning light will light up
on the instrument panel when
the ignition is switched on and then go
out after a few seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system.
Contact your approved dealer as soon
as possible. Your protection will be re-
duced until this fault is rectified.

1.26
ENG_UD20337_1
Dispositifs de retenue complémentaires à la ceinture (X81 - J81 -\
Renault)
ENG_NU_932-3_X81ph3_Renault_1
MeTHOds Of resTraInT In addITIOn TO THe frOnT sea T BeLTs (4/4)
all of the warnings below are given so that the air bag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when\
the air bag inflates.
Warnings concerning the driver’s air bag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.
– Do not attach any objects (badge, logo, clock, telephone cradle, etc.) to the steering wheel boss.
– The steering wheel must not be removed (except by qualified personnel from our Network).
– Do not sit too close to the steering wheel when driving: sit with your arms slightly bent (see Section 1 “Adjusting your driving
position”). This will allow sufficient space for the air bag to deploy correctly and be fully effective.
Warnings concerning the passenger air bag
– Do not attach or glue any objects (badge, logo, clock, telephone cradle, etc.) to the dashboard in the air bag zone.
– Do not place anything between the dashboard and the passenger (animal, umbrella, walking stick, parcels, etc.).
– The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. As a
general rule, keep all body parts (knees, hands, head, etc.) away from\
the dashboard.
– The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
a rear-facInG cHILd sea T MUsT nOT Be fITTed TO THe frOnT P assenGer seaT UnLess
THe addITIOnaL resTraInT sYsTeMs, I.e. THe P assenGer aIr BaG, are deacTIV aTed.
(Refer to the information on “Child safety: deactivating/activating \
the front passenger air bag” in Section 1).

air bagactivating the front passenger air bags ............ (current page)
Jaune NoirNoir texte
1.39
ENG_UD20343_1
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
cHILd safeTY : deactivating/activating the front passenger air bag (2/3)
3
a
danGer
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, neVer
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: label shown above)
remind you of these instructions.

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.42
ENG_UD24086_2
Poste de conduite à gauche (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
Driving position

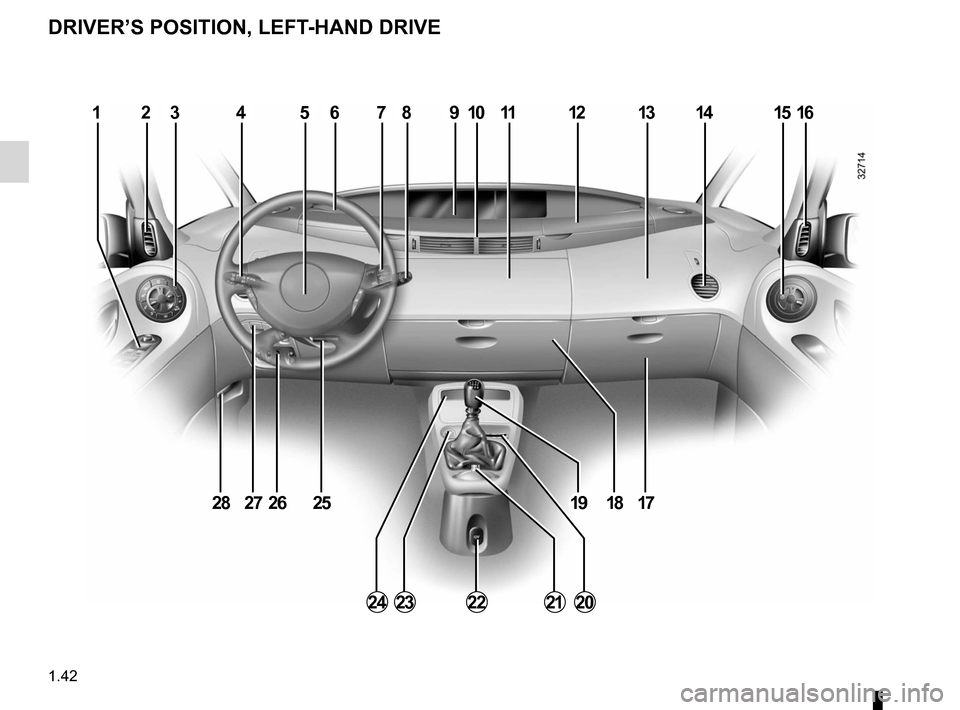

drIVer’s POsITIOn, LefT-Hand drIVe
1234789101112131415165
28272625191817
2223242120
6

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.44
ENG_UD24087_2
Poste de conduite à droite (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte

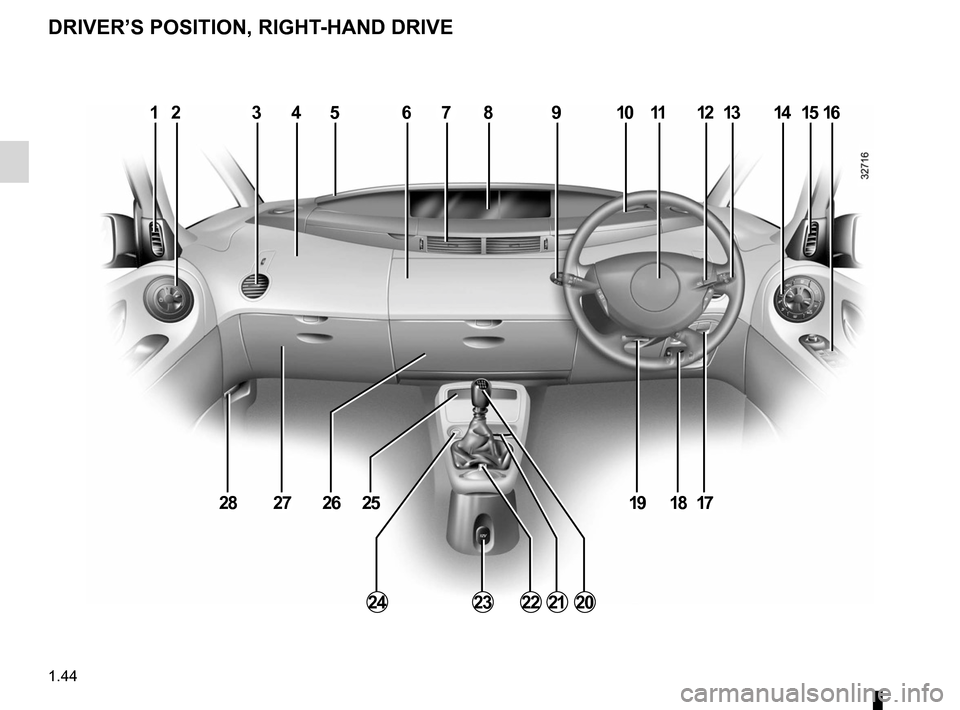

drIVer’s POsITIOn, rIGHT-Hand drIVe
123678910111214154
282726
23242220
51316
25
21
191817

parking brake ........................................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.8
ENG_UD20366_1
Frein de parking assisté (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
Jaune NoirNoir texte
Electronic parking brake
ASSISTED PARKING BRAKE
Applying the assisted
parking brake
Manual mode
Pull out and release handle 1.
Automatic mode
(depending on country)
The electronic parking brake ensures
automatic vehicle immobilisation when
the engine is stopped by pressing
the engine start/stop button.
In all other instances, e.g. engine stall-
ing, the assisted parking brake is not
applied automatically. Manual mode
must be used.
Indicator light 2 on the dashboard and
indicator light 3 on the instrument panel
light up to confirm that the assisted
parking brake is applied. Indicator
lights 3 and 2 go out when the doors
are locked. Depending on the vehicle,
the “parking brake applied” message
may appear on the instrument panel.
Note:
When the driver’s door is opened, if the
assisted parking brake is not applied,
a beep will sound and, depending on
the vehicle, the message “apply park -
ing brake” appears on the instrument
panel, in this case, to immobilise the ve-
hicle; you must then release handle 1.
For some country-specific versions, the
automatic application function is not
activated. Refer to the information on
“manual mode”.
Releasing the assisted
parking brake
Manual mode
To release the assisted parking brake:
with the engine running, pull handle 1
while pressing unlocking button 4 and
release. Indicator lights 3 and 2 go out.
Automatic mode
The brake will be released automati -
cally as soon as the vehicle starts and
accelerates.
Before leaving the vehi -
cle, check that the assisted
parking brake is fully ap -
plied.
Indicator lights 2 on the dashboard
and 3 on the instrument panel light
up to confirm that it has been ap -
plied.
1
22
4
3

JauneNoirNoir texte
2.9
ENG_UD20366_1
Frein de parking assisté (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
ASSISTED PARKING BRAKE (continued)
Special cases
If you have to park on a slope or are
towing a trailer, keep handle 1 pulled
out for a few seconds to obtain the
maximum braking effect.
Temporary stop
The assisted parking brake is not ap -
plied automatically when the engine is
running.
In all cases, the assisted parking brake
can be applied manually, e.g. when
stopping at a red light or on a slope.
To do this, pull out and release handle 1.
The brake will be released automati -
cally as soon as the vehicle starts again
and accelerates.
When the engine is running,
and if you leave the vehicle,
you must apply the assisted
parking brake manually.
Indicator lights 2 on the dashboard
and 3 on the instrument panel light
up to confirm that it has been ap -
plied.
To park the vehicle without applying the
assisted parking brake (if there is a risk
of freezing, for example):
– with the engine running, insert the
RENAULT card into the reader or
check that it is present in the reader;
– stop the engine by pressing the
engine Start/Stop button;
– select a gear (manual gearbox) or
position P (automatic gearbox);
– pull handle 1 while pressing unlock-
ing button 4 and then release;
– remove the RENAULT card from the
card reader.
2
41
23

JauneNoirNoir texte
3.3
ENG_UD20380_1
Aérateurs (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3

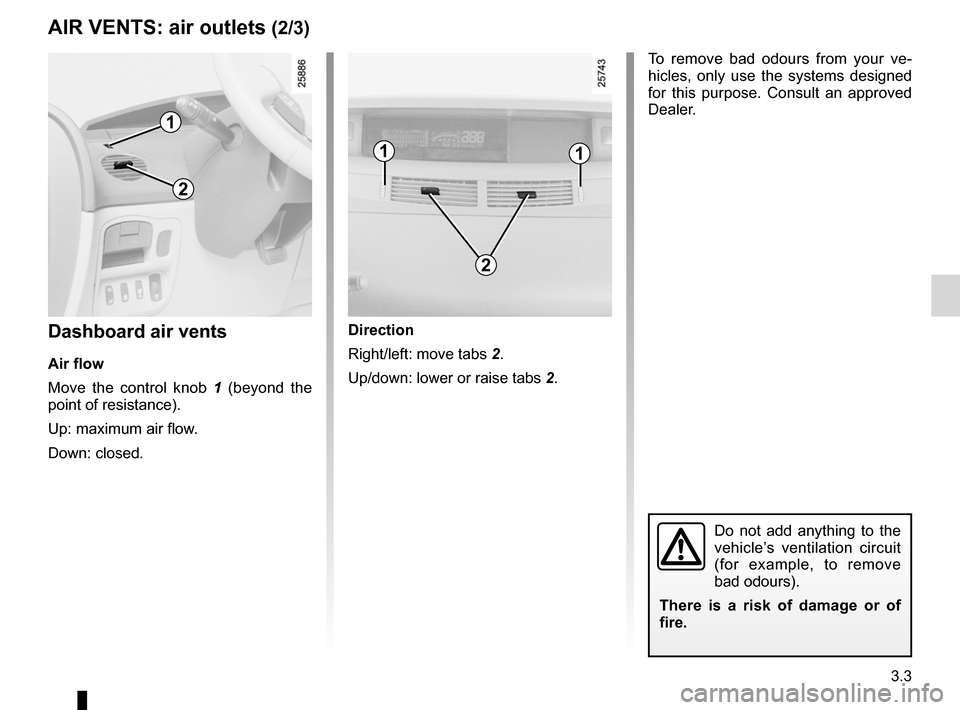

AIR VENTS: air outlets (2/3)
Dashboard air vents
Air flow
Move the control knob 1 (beyond the
point of resistance).
Up: maximum air flow.
Down: closed. Direction
Right/left: move tabs 2.
Up/down: lower or raise tabs
2.
1
2
11
2
To remove bad odours from your ve -
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.
