Page 8 of 267
RENAULT carduse .................................................. (up to the end of the DU)
1.2
ENG_UD20320_1
Cartes RENAULT : généralités (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
RENAULT card: general information, use, deadlocking
“Hands-free” renaULT card: general information (1/3)
1 Unlocking the doors and tailgate.
2 Locking all doors and tailgate.
3 Integrated key.
4 Switching on the lighting remotely.
5 Locking/unlocking the luggage com-
partment.
The renaULT card is used
for:
– locking/unlocking the doors and lug-
gage compartment (doors, luggage
compartment) and the fuel filler flap
(see the following pages);
– depending on the vehicle, automatic
closing of windows and sunroof
(refer to the information on the “One-
touch electric windows: remote con-
trol closing” and “Electric sunroof:
remote control closing” in Section 3);
– operation of certain devices (e.g.:
radio, electrically controlled seats,
etc.);
– starting the engine (see the infor -
mation on “Starting the engine” in
Section 2);
– switching off the “See-me-home
lighting” function (refer to the infor -
mation on “Exterior lighting and sig-
nals” in Section 1).1
2
4
5
Battery life
RENAULT cards are powered by a
battery which must be replaced when
battery tell-tale light 4 no longer lights
up (refer to the information on the
“RENAULT card: battery" in Section 5).
s pecial note: for some vehicles, the
RENAULT card records the settings se-
lected by the card user: the choice of
settings for the automatic climate con -
trol, some radios, electric seats (if this
is stored), the rear view mirror position-
ing, etc. It is therefore advisable always
to keep the same RENAULT card so
that you can recall your personal set -
tings.
3

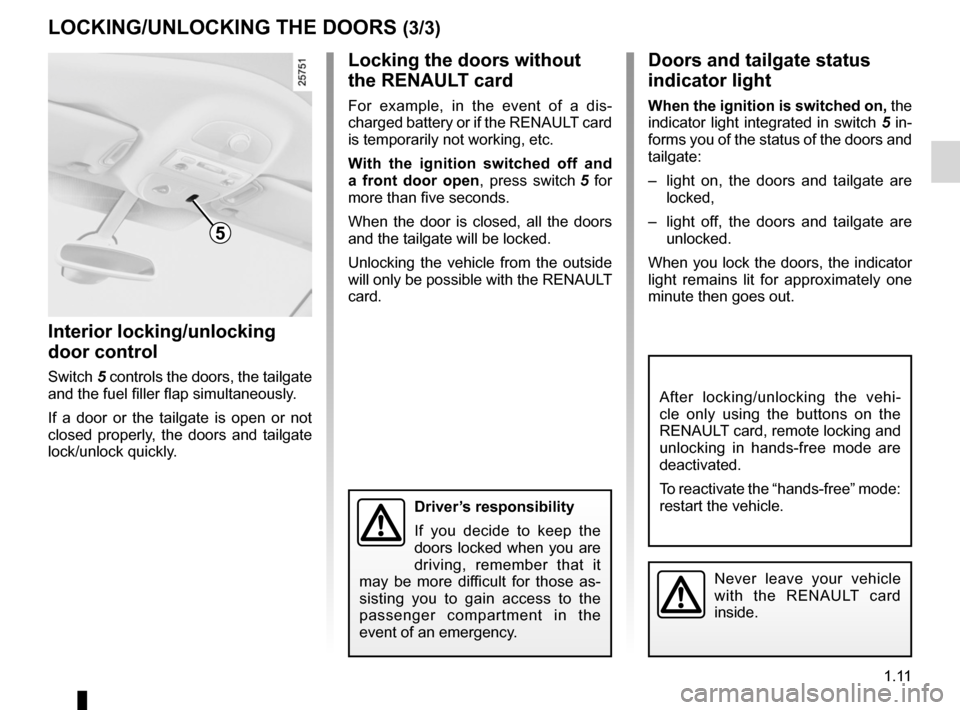

Page 17 of 267
JauneNoirNoir texte
1.11
ENG_UD20325_1
Verrouillage/Déverouillage des portes (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
LOcKInG/UnLOcKInG THe dOOrs (3/3)
Interior locking/unlocking
door control
Switch 5 controls the doors, the tailgate
and the fuel filler flap simultaneously.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
Locking the doors without
the renaULT card
For example, in the event of a dis -
charged battery or if the RENAULT card
is temporarily not working, etc.
With the ignition switched off and
a front door open , press switch 5 for
more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
will only be possible with the RENAULT
card.
doors and tailgate status
indicator light
When the ignition is switched on, the
indicator light integrated in switch 5 in-
forms you of the status of the doors and
tailgate:
– light on, the doors and tailgate are
locked,
– light off, the doors and tailgate are
unlocked.
When you lock the doors, the indicator
light remains lit for approximately one
minute then goes out.
Never leave your vehicle
with the RENAULT card
inside.
5
driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.
After locking/unlocking the vehi -
cle only using the buttons on the
RENAULT card, remote locking and
unlocking in hands-free mode are
deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
Page 49 of 267
JauneNoirNoir texte
1.43
ENG_UD24086_2
Poste de conduite à gauche (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
drIVer’s POsITIOn, LefT-Hand drIVe (continued)
1 Electric controls for:
– windows;
– door mirrors.
2 Side air vent.
3 Heating and ventilation controls.
4 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
5 Horn.
Location for driver’s air bag.
6 Left-hand upper storage compart -
ment;
location of fuses.
7 Radio remote control.
8 Controls for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
9 Instrument panel.
10 Centre air vents.
11 Upper centre storage compartment
(split into one or several compart-
ments, depending on the vehicle,
integrating the audio system and
the audio connection sockets).
12 Right-hand upper storage com -
partment.
13 Passenger air bag location.
14 Air vent.
15 Heating and ventilation controls.
16 Side air vent.
17 Passenger glove box.
18 Lower centre storage compart -
ment.
19 Gear lever.
20 RENAULT card reader. 21 Multimedia equipment controls
(depending on the vehicle).
22 Cigar lighter.
23 Engine Start/Stop button.
24 Location for cup holder and/or ash-
tray.
25 Control for adjusting steering
wheel height and reach.
26 Controls for:
– electric beam height adjust -
ment;
– lighting dimmer for control in -
struments;
– Electronic Stability Program
(ESP);
– parking distance control;
– cruise control and speed limiter.
27 Assisted parking brake.
28 Bonnet release control.
The equipment fitted, described below, depends on the version, the vehicle options and the country.
Page 51 of 267
accessories socket ................................................ (current page)
JauneNoirNoir texte
1.45
ENG_UD24087_2
Poste de conduite à droite (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
drIVer’s POsITIOn, rIGHT-Hand drIVe (continued)
1 Side air vent.
2 Heating and ventilation controls.
3 Air vent.
4 Location for passenger air bag.
5 Left-hand upper storage compart -
ment; fuse location.
6 Upper central storage compart -
ment (one or more compartments
depending on the vehicle, incorpo -
rating the audio system and audio
connection sockets).
7 Centre air vents.
8 Instrument panel.
9 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
10 Right-hand upper storage com -
partment.
11 Horn.
Location for driver’s air bag.
12 Radio remote control.
13 Controls for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
14 Heating and ventilation controls.
15 Side air vent.
16 Electric controls for windows and
door mirrors.
17 Assisted parking brake.
18 Controls for:
– electric beam height adjust -
ment;
– lighting dimmer for control in -
struments;
– Electronic Stability Program
(E.S.P.);
– parking distance control.
– Cruise control and speed limiter. 19 Control for adjusting steering
wheel height and reach.
20 Gear lever.
21 RENAULT card reader.
22 Multimedia equipment controls
(depending on vehicle).
23 Cigar lighter.
24 Engine Start/Stop button.
25 Location for cup holder and/or ash-
tray.
26 Lower centre storage compart -
ment.
27 Passenger glove box.
28 Bonnet release control.
The equipment fitted, described below, depends on the version, the vehicle options and the country.
Page 150 of 267
children .................................................................. (current page)
child safety ............................................................. (current page)
electric windows ................................... (up to the end of the DU)
3.28
ENG_UD11569_2
Lève-vitres électriques impulsionnels (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Jaune NoirNoir texte
ONE-TOUCH ELECTRIC WINDOWS
The one-touch mode works in addition
to the operation of the electric windows
described previously.
If it is fitted to the vehicle, it may be
fitted: to the driver’s window or to all
four windows.
Press switches 1, 2, 3, 5, 6 or 7.
The system operates:
– with the ignition on;
– with the ignition off until one of the
front doors is opened (limited to ap-
proximately 20 minutes).
15
2
34
6
7
Safety of rear occupants
The driver can authorise operation of the rear doors and, depending on
the vehicle, the rear electric windows by pressing switch 4 . The inte -
grated indicator on the switch confirms this.
Driver’s responsibility
Never leave your vehicle with the RENAULT card or remote control inside and
never leave a child (or a pet) unsupervised, even for a short while. The reason
for this is that the child may endanger himself or others by starting the vehicle,
activating equipment such as the windows, or locking the doors. If a body part
gets trapped, reverse the direction of travel of the window as soon as possible by
pressing the relevant switch.
Risk of serious injury.
Page 154 of 267
children .................................................................. (current page)
child safety ............................................................. (current page)
3.32
ENG_UD20387_1
Toit ouvrant électrique (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
ELECTRIC SUNROOF (continued)
Closing the sunroof by
remote control
(vehicles with one-touch electric win -
dows).
When locking the doors, pressing and
holding the RENAULT card’s lock -
ing button for more than 2 seconds
will close the windows and sunroof au-
tomatically.
Special features
If the sunroof panel encounters resist -
ance whilst closing, (somebody’s fin -
gers, an animal’s paw or the branch of
a tree), it stops and then moves back
several centimetres.
It is recommended that the user only
operates the system when the vehi -
cle can be seen clearly and no one
is inside. After closing the sunroof
by remote control, pressing button 2
allows the sunroof to return to its previ-
ous position.
Closing the sunroof can
cause severe injuries.
Sunroof closing operating
fault
If the sunroof does not close, press
switch 2, positioned at 0, until the sun-
roof is fully closed: consult an approved
Dealer.
Screen operating faultIf the screen does not close, press
switch 2 , positioned at 0 , until the
screen is fully closed: consult an ap -
proved Dealer.
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
If something gets trapped, reverse
the direction of travel as soon as
possible by turning button 2 fully to
the right (position B).
Risk of serious injury.
– Never operate the sunroof with
the blind closed.
– Never drive with the sunroof open
and the sun blind closed.
2
A
0
B
