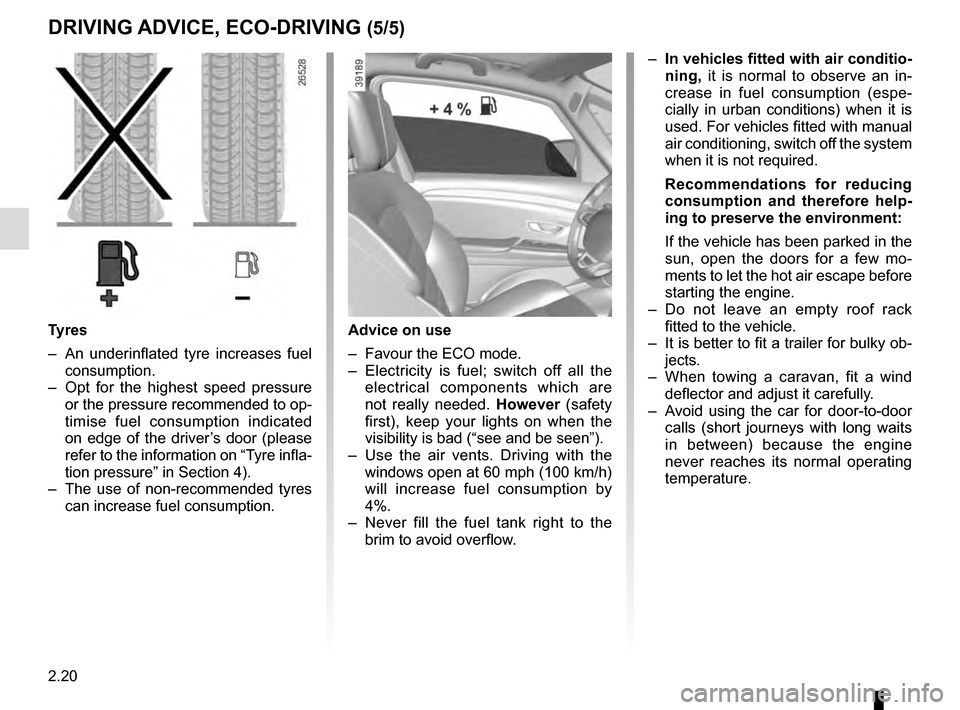

Page 128 of 318
2.20
DRIVING ADVICE, ECO-DRIVING (5/5)
Advice on use
– Favour the ECO mode.
– Electricity is fuel; switch off all the electrical components which are
not really needed. However (safety
first), keep your lights on when the
visibility is bad (“see and be seen”).
– Use the air vents. Driving with the windows open at 60 mph (100 km/h)
will increase fuel consumption by
4%.
– Never fill the fuel tank right to the brim to avoid overflow.
– In vehicles fitted with air conditio-
ning, it is normal to observe an in-
crease in fuel consumption (espe-
cially in urban conditions) when it is
used. For vehicles fitted with manual
air conditioning, switch off the system
when it is not required.
Recommendations for reducing
consumption and therefore help-
ing to preserve the environment:
If the vehicle has been parked in the
sun, open the doors for a few mo-
ments to let the hot air escape before
starting the engine.
– Do not leave an empty roof rack fitted to the vehicle.
– It is better to fit a trailer for bulky ob- jects.
– When towing a caravan, fit a wind deflector and adjust it carefully.
– Avoid using the car for door-to-door calls (short journeys with long waits
in between) because the engine
never reaches its normal operating
temperature.
Tyres
– An underinflated tyre increases fuel consumption.
– Opt for the highest speed pressure or the pressure recommended to op-
timise fuel consumption indicated
on edge of the driver’s door (please
refer to the information on “Tyre infla-
tion pressure” in Section 4).
– The use of non-recommended tyres can increase fuel consumption.
Page 207 of 318
3.19
ELECTRIC SUNROOF (2/3)Closing the sunroof by
remote control
(depending on the vehicle)
If you press the locking button on
the card twice in quick succession
RENAULT,, the windows and the elec-
tric sunroof will close automatically.
It is recommended that the user only
operates the system when the vehi-
cle can be seen clearly and no one is
inside.
Precautions during use
– Vehicle with loaded roof bars.
As a general rule, if there is a load
on the roof, use of the sunroof is not
recommended.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be pro-
perly arranged and secured and
should not interfere with the opera-
tion of the sunroof.
Contact an approved dealer for de-
tails of possible conversions;
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months using products recommended by our
Technical Department;
– do not open the sunroof immedia-
tely after it has rained or immediately
after washing the vehicle.
When closing the sunroof,
ensure that no part of the
body (arm, hand, etc.) is
protruding from the vehicle.
Risk of serious injury.
Special features
Your vehicle is fitted with an anti-pinch
facility: when the sunroof encounters
resistance whilst closing (arm, tree
branch etc.), it stops and then moves
back a few centimetres.
After closing the sunroof by remote
control, pressing button 2 allows the
sunroof to return to its previous posi-
tion.

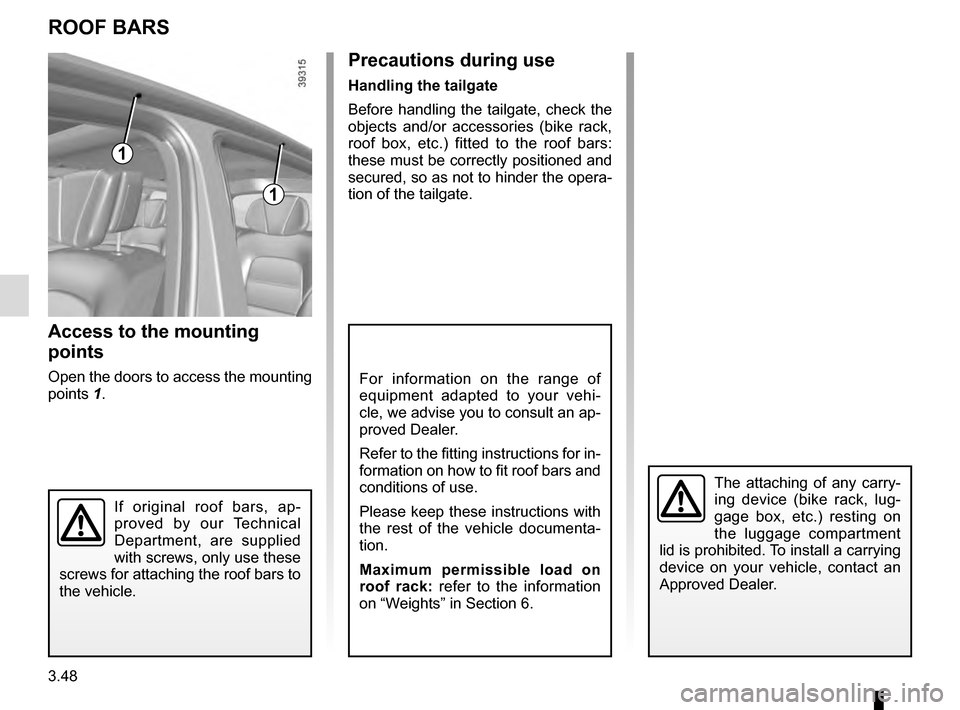

Page 236 of 318
3.48
ROOF BARS
Access to the mounting
points
Open the doors to access the mounting
points 1.For information on the range of
equipment adapted to your vehi-
cle, we advise you to consult an ap-
proved Dealer.
Refer to the fitting instructions for in-
formation on how to fit roof bars and
conditions of use.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
Maximum permissible load on
roof rack: refer to the information
on “Weights” in Section 6.
1
1
If original roof bars, ap-
proved by our Technical
Department, are supplied
with screws, only use these
screws for attaching the roof bars to
the vehicle.
The attaching of any carry-
ing device (bike rack, lug-
gage box, etc.) resting on
the luggage compartment
lid is prohibited. To install a carrying
device on your vehicle, contact an
Approved Dealer.
Precautions during use
Handling the tailgate
Before handling the tailgate, check the
objects and/or accessories (bike rack,
roof box, etc.) fitted to the roof bars:
these must be correctly positioned and
secured, so as not to hinder the opera-
tion of the tailgate.
Page 314 of 318
7.4
ALPHABETICAL INDEX (4/5)
Multi-Sense.............................................................\
.... 3.2 – 3.3
N
navigation ............................................................... 3.49 – 3.50
navigation system ................................................... 3.49 – 3.50
O
oil change ..................................................................... 4.4, 4.6
opening the doors ....................................................1.8 → 1.13
operating faults ......................................................5.31 → 5.36
overspeed warning .......................................1.66, 2.49 → 2.51
P
paintwork maintenance ..................................................... 4.14 – 4.15
parking assistance: assisted parking 2.63 → 2.66, 2.69 → 2.72
parking distance control.........................................2.63 → 2.66
power-assisted steering.................................................\
.... 1.34
powered tailgate ....................................................3.37 → 3.41
puncture................................................. 5.2 → 5.4, 5.8 → 5.11
R
radio...................................................................\
..... 3.49 – 3.50
rear drive wheels ..........................................2.26 → 2.37, 2.37
rear parcel shelf ........................................................ 3.28, 3.42
rear screen de-icing/demisting .......................................... 3.11
rear seats functions ..........................................................3.31\
→ 3.35
rear view camera .................................................... 2.67 – 2.68
rear view mirrors ....................................................1.82 → 1.84
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.14
RENAULT card battery ................................................................\
.......... 5.25
use ....................................................................\
...1.2 → 1.7
RENAULT card battery ...................................................... 5.25
replacement parts ................................................................ 6.7 reverse gear
selecting ..................................................2.12, 2.74 → 2.79
reversing sensor ....................................................2.63 → 2.66
roof bars ........................................................................\
.... 3.48
roof rack roof bars ....................................................................... 3.48
running in ........................................................................\
..... 2.2
S
safety distance warning .......................................... 2.44 – 2.45
safety distances ...................................................... 2.44 – 2.45
screen fold-away screen .......................................................... 1.68
navigation display .................................. 1.67, 3.49 – 3.50
navigation screen ..................................... 1.67, 3.49 – 3.50
screen wash/wipe ................................................... 1.97 – 1.98
seat belt pretensioners ..........................................1.27 → 1.30
seat belts ................................ 1.23 → 1.25, 1.27 → 1.30, 1.33
see-me-home lighting ........................................................ 1.89
service sheets..........................................................\
6.8 → 6.13
shock absorbers ................................................................ 2.73
side indicator lights changing bulbs ............................................................. 5.18
sign detection: overspeed warning ........................2.49 → 2.51
signals and lights ...................................................1.86 → 1.90
special features of diesel versions.....................................\
2.11
special features of petrol vehicles ..................................... 2.10
speed limiter ..........................................................2.46 → 2.48
starting the engine .....................................................2.3 → 2.5
steering wheel adjustment .............................................................\
...... 1.34
Stop & Start ...............................................................2.6 → 2.9
Stop & Start function..................................................2.6 → 2.9
storage compartment.............................................3.24 → 3.28
storage compartments ..................................3.24 →
3.28, 3.43
sun blinds ........................................................................\
.. 3.23
