display RENAULT FLUENCE 2012 1.G User Guide

1.56
ENG_UD27176_4
Afficheurs et indicateurs (L38 - X38 - Renault)
ENG_NU_891_892-7_L38-B32_Renault_1
Jaune NoirNoir texte
DIspLAYs AND INDICATORs (3/4)
Instrument panel C
Rev counter 15 (rpm × 1,000) Fuel gauge
19
If the minimum level is reached, warn-
ing light 20 comes on and a beep
sounds. Fill up as soon as possible.
There is only approximately 30 miles
(50 km) worth of fuel left after the warn-
ing light first comes on.
Coolant temperature indicator 18
In normal use, indicator 18 should be
before area D . Under severe condi -
tions, the needle may enter this area.
This is not serious unless the
®
warning light comes on, accompanied
by a message on the instrument panel
and a beep.
Trip computer and warning system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Engine oil level low warning
When the engine is started, display 17
alerts the driver when the oil level is at
its minimum. Refer to the information
on the “Engine oil level” in Section 4.
The first time the warning appears, it
can be cleared by pressing one of the
buttons on the end of stalk 16.
Subsequent warnings will disappear
automatically after 30 seconds.
1516
192018
D
17
C
C

JauneNoirNoir texte
1.57
ENG_UD27176_4
Afficheurs et indicateurs (L38 - X38 - Renault)
ENG_NU_891_892-7_L38-B32_Renault_1
Instrument panel in miles
(option to switch to km/h)
– With the ignition off, press one of
the buttons 23 or 24 at the end of
stalk 16 and start button 22;
– the speedometer unit indicator
flashes for approximately ten sec -
onds, then the new unit is displayed:
release button 23 or 24 when the unit
stops flashing.
To return to the previous mode, repeat
the same operation.
Note: once the battery is switched off,
the trip computer and warning system
automatically returns to the original unit
of measurement.
DIspLAYs AND INDICATORs (4/4)
23
24
16
16
22
speedometer 21 (kph or mph)
Overspeed buzzer
Depending on the vehicle and coun -
try, a buzzer sounds for approximately
10 seconds every 40 seconds, as long
as the vehicle is travelling in excess of
72 mph (120 km/h).
21
23
24
16

JauneNoirNoir texte
1.59
ENG_UD25556_5
Ordinateur de bord : généralités (L38 - X38 - X32 - B32 - Ren\
ault)
ENG_NU_891_892-7_L38-B32_Renault_1
Display selection keys 4
and 5
Scroll through the following information
upwards (key 4) or downwards (key 5)
by pressing briefly and successively
(the display depends on the vehicle
equipment and country).
a) total mileage and trip mileage re -
corder;
b) journey parameters:
– fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed; c)
oil change interval;
d) tyre pressure monitor;
e) vehicle settings customisation menu;
f) trip log, operating faults and informa-
tion message readout.
5
4
TRIp COMpUTER: general information (2/3)
4
5

1.60
ENG_UD25556_5
Ordinateur de bord : généralités (L38 - X38 - X32 - B32 - Ren\
ault)
ENG_NU_891_892-7_L38-B32_Renault_1
TRIp COMpUTER: general information (3/3)
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 4 or 5 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With the display showing one of the
journey parameters, press button 4 or 5
until the display is reset.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
5
4
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.
5
4

1.61
ENG_UD25557_2
Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - R\
enault)
ENG_NU_891_892-7_L38-B32_Renault_1
TRIp COMpUTER: trip settings (1/5)
The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.
Examples of selections Interpreting the display selected
101668 KM 112. 4 KM
a) Total mileage and trip mileage recorder.
FUEL USED Fuel used
b) Journey parameters.
Fuel used.
Fuel consumed since the last reset.
8.5 L
20 L
AVERAGE Average
Average fuel consumption since the last reset.
The value is displayed after having travelled at least
400 metres since the last reset.
7.2 L/100
7.2 L/100

1.62
ENG_UD25557_2
Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - R\
enault)
ENG_NU_891_892-7_L38-B32_Renault_1
Jaune NoirNoir texte
TRIp COMpUTER: trip settings (2/5)
The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.
Examples of selections Interpreting the display selected
CURRENT Current
Current fuel consumption.
This value is displayed above a speed of approximately
18 mph (30 km/h).
9.4 L/100
9.4 L/100
Estimated range with remaining fuel.
This range takes into account the average fuel consumption
since the last time the reset button was pressed. The value
is displayed after driving 400 metres.
RANGE
Range
541 km
541 km
Distance travelled since the last reset.
DISTANCE
Distance
52.2 km
359 km
Average speed since the last reset.
The value is displayed after driving 400 metres.
AVERAGE
Average
89.6 km/h
89.6 km/h

JauneNoirNoir texte
1.63
ENG_UD25557_2
Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - R\
enault)
ENG_NU_891_892-7_L38-B32_Renault_1
TRIp COMpUTER: trip settings (3/5)
The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.
Examples of selections Interpreting the display selected
c) Oil change interval
Distance remaining until the next service (displayed in
miles/kilometres and months), then when the service
nears, several scenarios are possible:
– distance/time remaining less than 900 miles
(1,500 km) or one month: the message “Service due
in” is displayed accompanied by the nearest term (dis-
tance or time);
– distance/time remaining 0 km/miles or service date
reached: the message “Service required ” is displayed
accompanied by warning light
©.
The vehicle requires an oil change as soon as possible.
Service in
30000km /24 MONTHS Service due in
100km
Service due in 10 days
NB: depending on the vehicle, the service interval varies according to the driving style (frequent driving at low speed, door-to-
door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next oil change can therefore
decrease more quickly in some cases than the actual distance travelled.
The oil change intervals are independent of the vehicle’s maintenance schedule: please refer to your vehicle’s Maintenance
Service Booklet.
Resetting: to reset the oil change interval, press and hold one of the display reset buttons for approximately 10 seconds until
the display shows the interval permanently.

1.64
ENG_UD25557_2
Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - R\
enault)
ENG_NU_891_892-7_L38-B32_Renault_1
Jaune NoirNoir texte

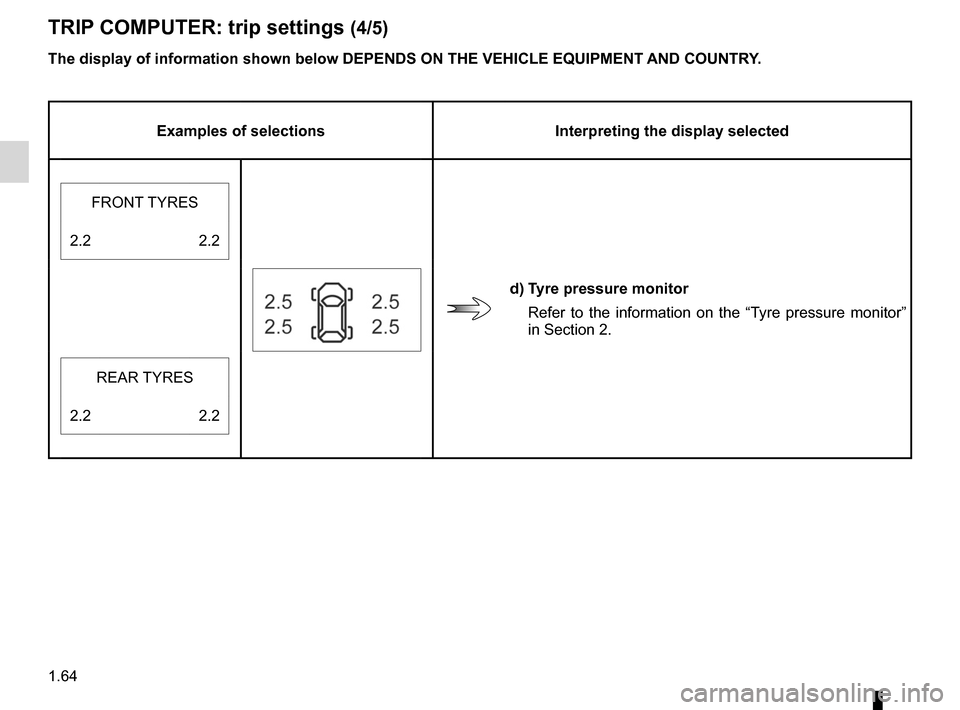

TRIp COMpUTER: trip settings (4/5)
The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.
Examples of selections Interpreting the display selected
d) Tyre pressure monitor
Refer to the information on the “Tyre pressure monitor”
in Section 2.
FRONT TYRES
2.2 2.2
REAR TYRES
2.2 2.2

JauneNoirNoir texte
1.65
ENG_UD25557_2
Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - R\
enault)
ENG_NU_891_892-7_L38-B32_Renault_1
TRIp COMpUTER: trip settings (5/5)
The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.
Examples of selections Interpreting the display selected
e) Vehicle settings customisation menu.
Enables certain vehicle functions to be set (instrument panel language, parking
distance control, etc.). Refer to the information on “Vehicle settings customisation
menu” in Section 1.
Settings menu:
press and hold
f) Trip log.
Successive display:
– information messages (passenger airbag OFF etc.),
– operating fault messages (check the injection system, etc.).
No message available

1.66
ENG_UD23767_1
Ordinateur de bord : messages d’information (L38 - X38 - X32 - B32 -\
Renault)
ENG_NU_891_892-7_L38-B32_Renault_1
TRIp COMpUTER AND WARNINg sYsTEM: information messages
Examples of messages Interpreting the display selected
“Battery low start engine” Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been
switched off for some time whilst listening to the radio).
“please remove keycard ”Request to remove the RENAULT card from the reader when you leave the vehicle.
“Checking control functions ” Displayed with the ignition on when the vehicle is running self-diagnost\
ics.
“Traction control off ”Indicates that you have deactivated the ASR function.
“Turn steering
wheel + sTART” Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering
column.
“No message available” No warning is stored.
“steering wheel not locked ”Indicates that the steering column has not been locked.
“stop vehicle” Indicates an electronic parking brake fault. Apply the electronic parking brake manually and
ensure that the vehicle is immobilised using a chock.
These can help in the vehicle starting phase, or give information about \
a selection or a driving status.
Examples of information messages are given in the following pages.
