1.82
ENG_UD23758_4
Réservoir à carburant (L38 - X38 - Renault)
ENG_NU_891_892-7_L38-B32_Renault_1
Jaune NoirNoir texte
Five door version
Valve D is integrated into the filler pipe.
For details on filling the fuel tank, refer
to the information on “Filling with fuel”.
To close it, press on the fuel filler flap by
hand, as far as it will go.
Fuel gradeUse a good quality fuel that complies
with current standards in the relevant
country. The fuel must conform to the
specifications indicated on cover B .
Refer to the information on “engine
specifications” in Section 6.
Diesel versions
It is essential to use diesel fuel that
conforms with the information given on
the label inside cover B.
petrol versions
It is essential to use unleaded petrol.
The octane rating (RON) must conform
to the specifications on the label inside
fuel filler flap B. Refer to the information
on “Engine specifications” in Section 6.
Fuel tank (filling with fuel)
Never press valve D with
your fingers.
Do not wash the filler
area with a high-pressure
washer.
FUEL TANK (1/3)
BC
Useable fuel tank capacity:
59 litres approximately.
With the vehicle unlocked, to open the
compartment B , place your finger into
the recess C.
Four-door version
Remove cap A.
For details on filling the fuel tank, refer
to the information on “Filling with fuel”.
To close it, press on the fuel filler flap by
hand, as far as it will go.
BAD
After filling, check that the cap and
cover are closed.
C

6.6
ENG_UD13712_1
Caractéristiques moteurs (L38 - X38 - Renault)
ENG_NU_891_892-7_L38-B32_Renault_6

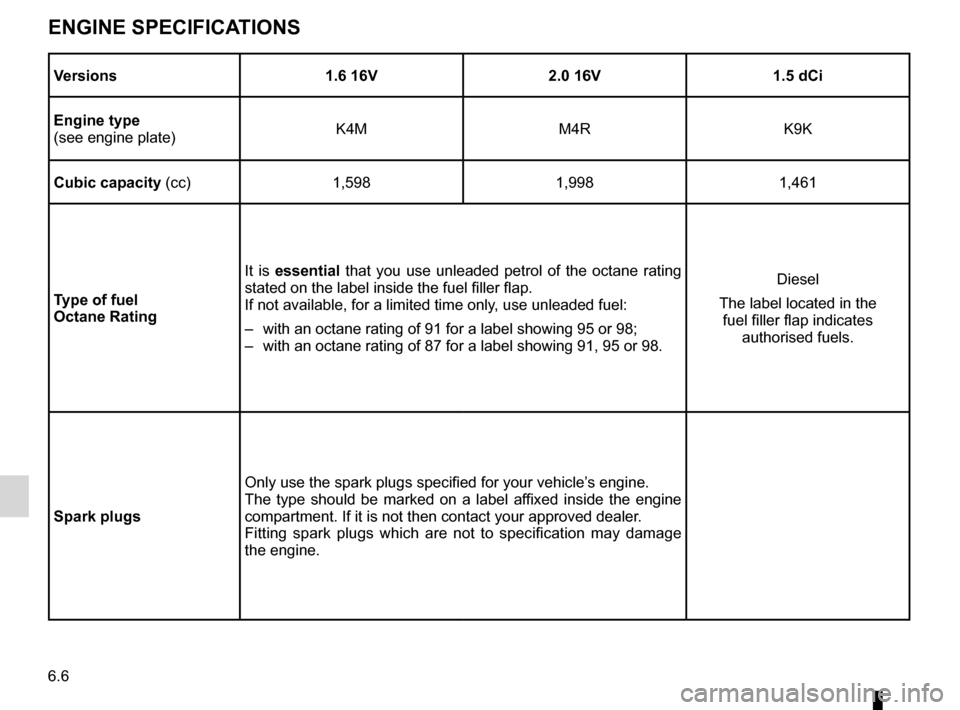

Engine specifications
Versions 1.6 16V2.0 16V 1.5 dci
engine type
(see engine plate) K4M
M4R K9K
cubic capacity (cc) 1,5981,9981,461
t ype of fuel
octane Rating It is
essential that you use unleaded petrol of the octane rating
stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label showing 95 or 98;
– with an octane rating of 87 for a label showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine
compartment. If it is not then contact your approved dealer.
Fitting spark plugs which are not to specification may damage
the engine.
engine specifications
