P ASSENgER comPARTmENT ST oRAgE, FITTINgS (3/3)
Rear armrest storage
Pull down the armrest 8.
8
10
9
grab handle 9
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
clothes hooks 10
W h e n t u r n i n g c o r n e r s ,
accelerating or braking,
ensure that the recepta -
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
11
Front seat storage pockets 11

ashtray .................................................. (up to the end of the DU)
cigar lighter ........................................... (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.19
ENG_UD23701_2
Cendriers (L38 - X38 - Renault)
ENG_NU_914-4_L38e_Renault_3
Ashtray 1
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re -
leased from its housing.
Accessories socket
Ashtray – Cigarette lighter
cigarette lighter 2
With the ignition on, push in cigarette
lighter 2 - it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.
AShTRA y, cIgAR lIghTER, AccESSoRIES SockET
Accessories sockets
You may use cigarette lighter recess 2
or socket 3 (depending on the vehicle).
They are designed for connecting ac -
cessories with a maximum power rating
of 120 Watts (voltage: 12V) which
have been approved by our Technical
Department.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-
tained from an approved Dealer.
2
1
3
Connect accessories with
a maximum power of 120
Watts only.
Fire hazard.

tailgate .................................................. (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
transporting objects in the luggage compartment ............................ (current page)
3.20
ENG_UD19267_1
Coffre à bagages (L38 - X38 - Renault)
ENG_NU_914-4_L38e_Renault_3
Boot
T AIlgATE
opening
Press button 1 and lift the boot lid
closing
Lower the boot lid using handle 3 inside
the boot (depending on the vehicle) to
assist you.
1
Transporting objects
lashing hook
Hook 2 enables loads to be secured. Storage tray
Situated under the luggage compart
-
ment carpet - “lift the carpet using
strap 3”
2
3
Always position the heavi -
est items directly on the
floor. The luggage should
be loaded in such a way
that no items will be thrown forward
and strike the occupants if the driver
has to brake suddenly.

roof bars ............................................... (up to the end of the DU)
roof rack roof bars .......................................... (up to the end of the DU)
3.21
ENG_UD23696_2
Barres de toit (L38 - X38 - Renault)
ENG_NU_914-4_L38e_Renault_3
Roof bars

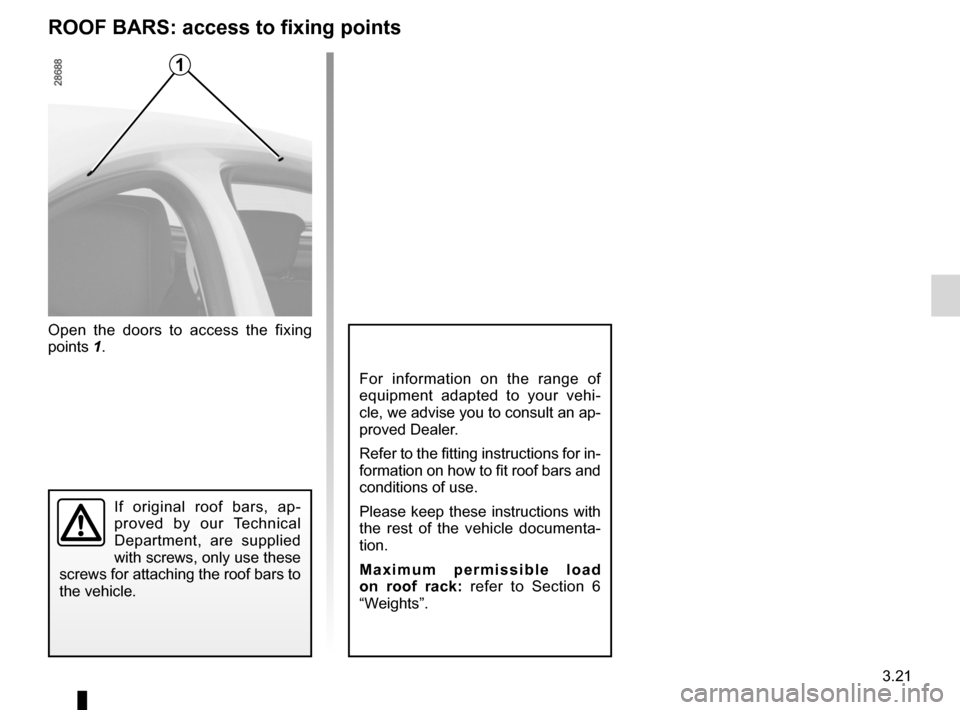

RooF BARS: access to fixing points
