Page 61 of 270

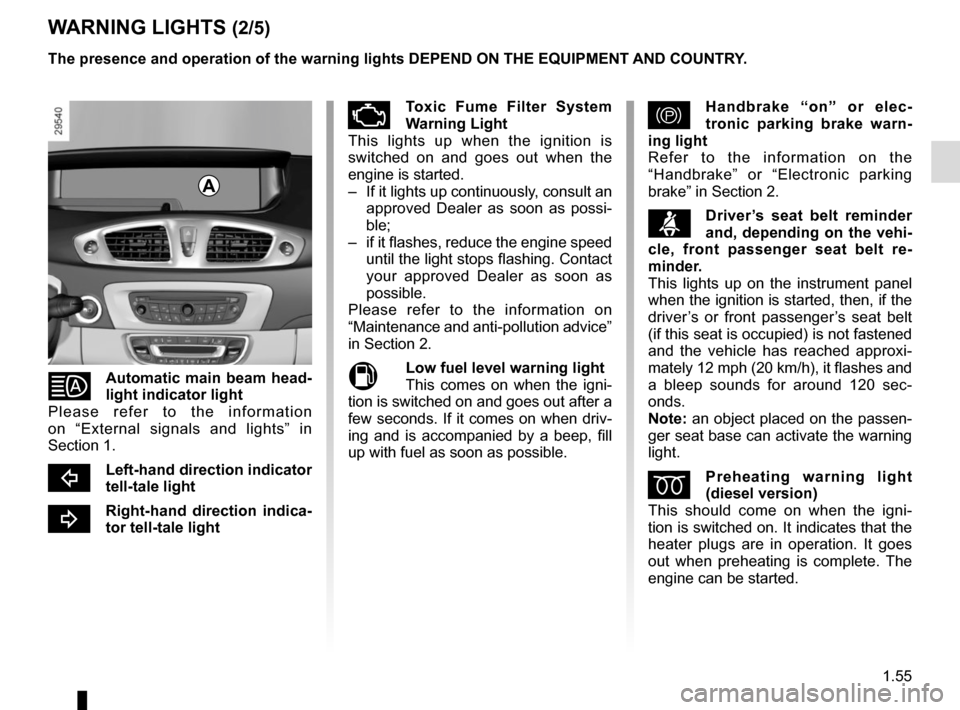

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.55
WARNING LIGHTS (2/5)
Automatic main beam head-
light indicator light
Please refer to the information
on “External signals and lights” in
Section 1.
cLeft-hand direction indicator
tell-tal

Page 62 of 270

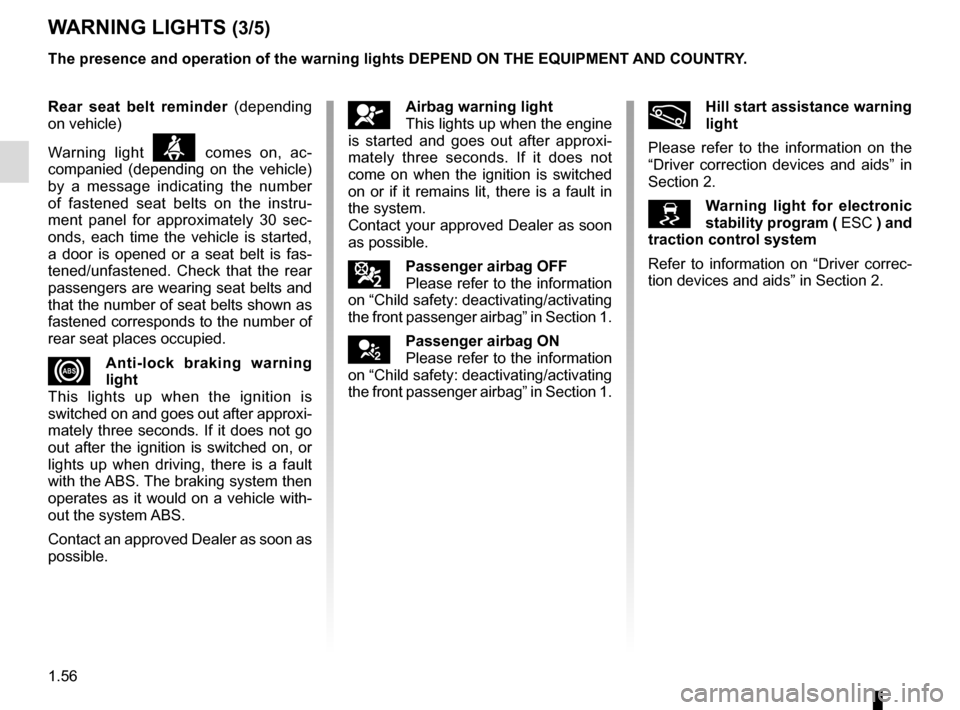

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.56
WARNING LIGHTS (3/5)
åAirbag warning light
This lights up when the engine
is started and goes out after approxi-
mately three seconds. If it does not
come on when the ignition is switched
on

Page 63 of 270

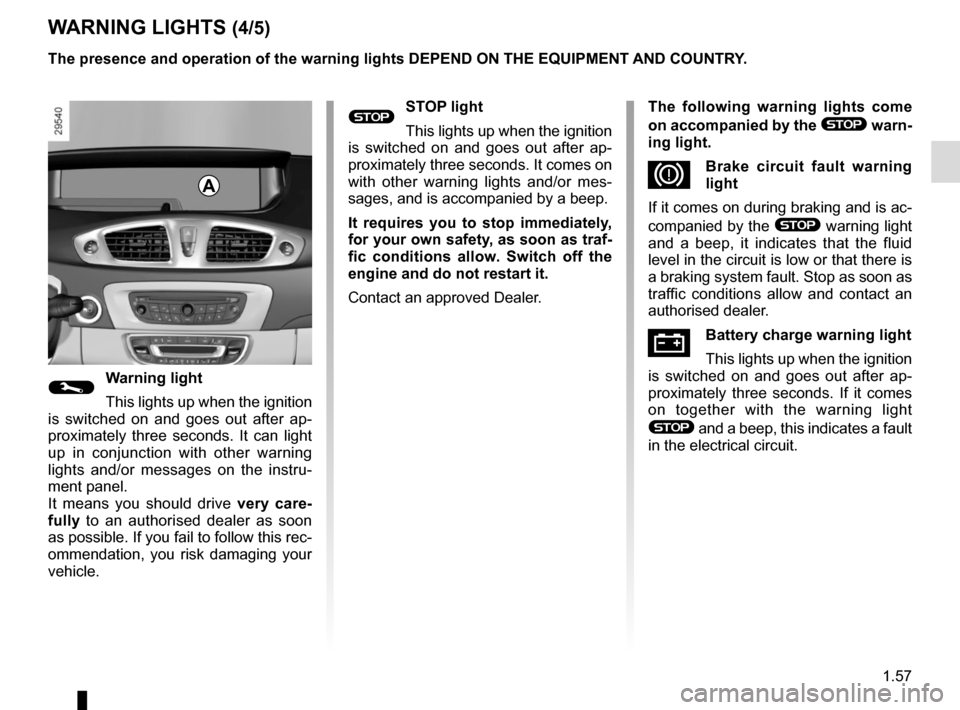

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.57
®STOP light
This lights up when the ignition
is switched on and goes out after ap-
proximately three seconds. It comes on
with other warning lights and/or mes-
sages, and is accompanied by a b

Page 64 of 270

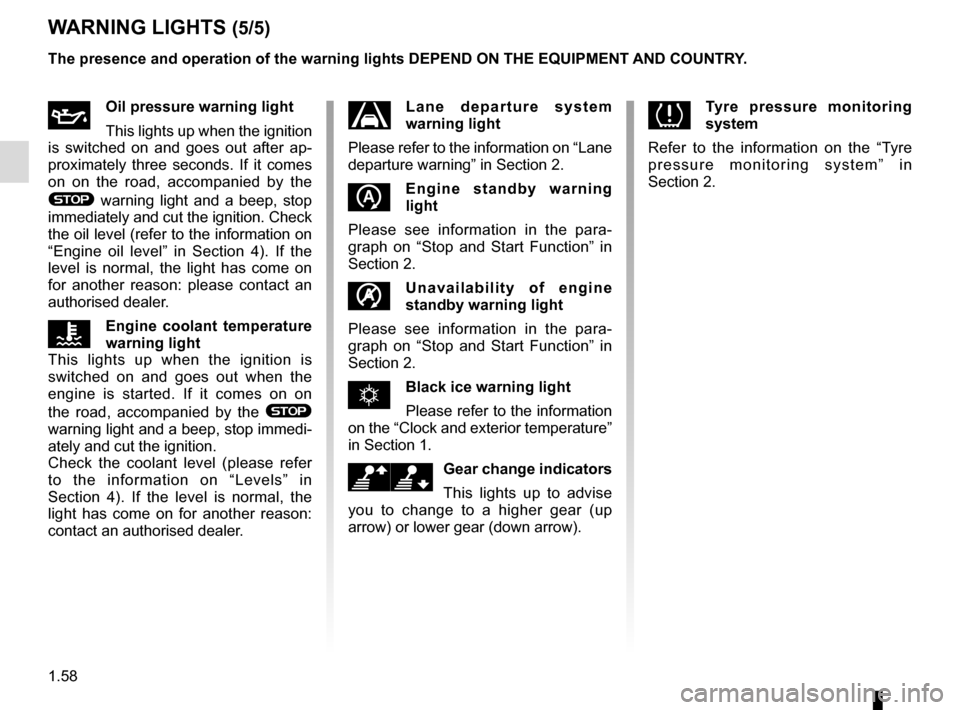

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.58
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after ap-
proximately three seconds. If it comes
on on the road, accompanied by the
® warning light a

Page 65 of 270

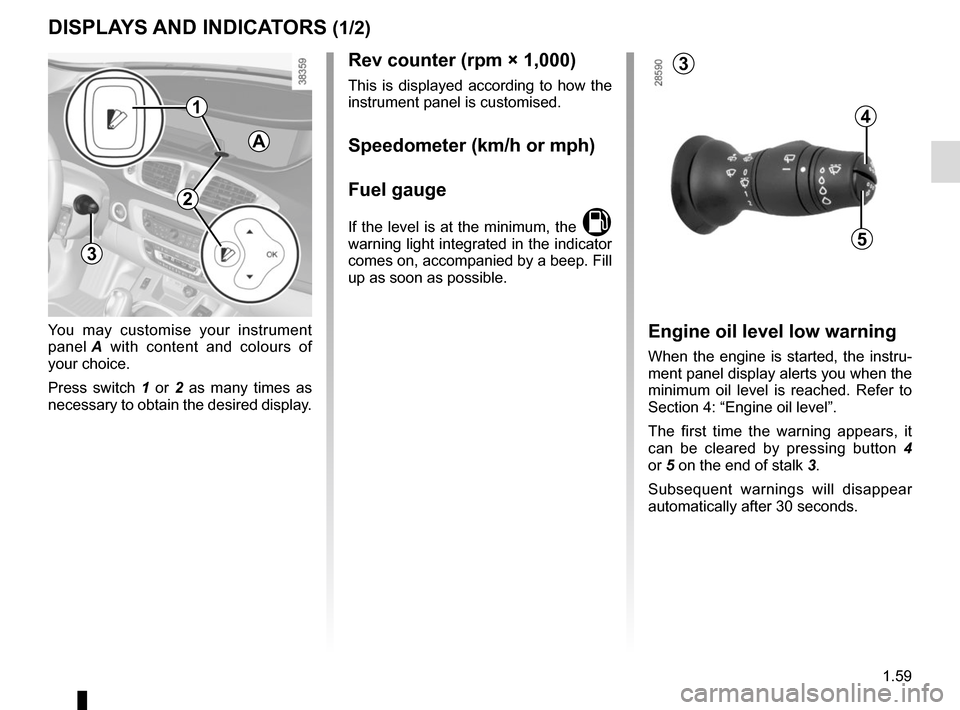

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.59
DISPLAYS AND INDICATORS (1/2)
You may customise your instrument
panel A with content and colours of
your choice.
Press switch 1  or 2 as many times as
necessary to obtain the desired display.

Page 66 of 270

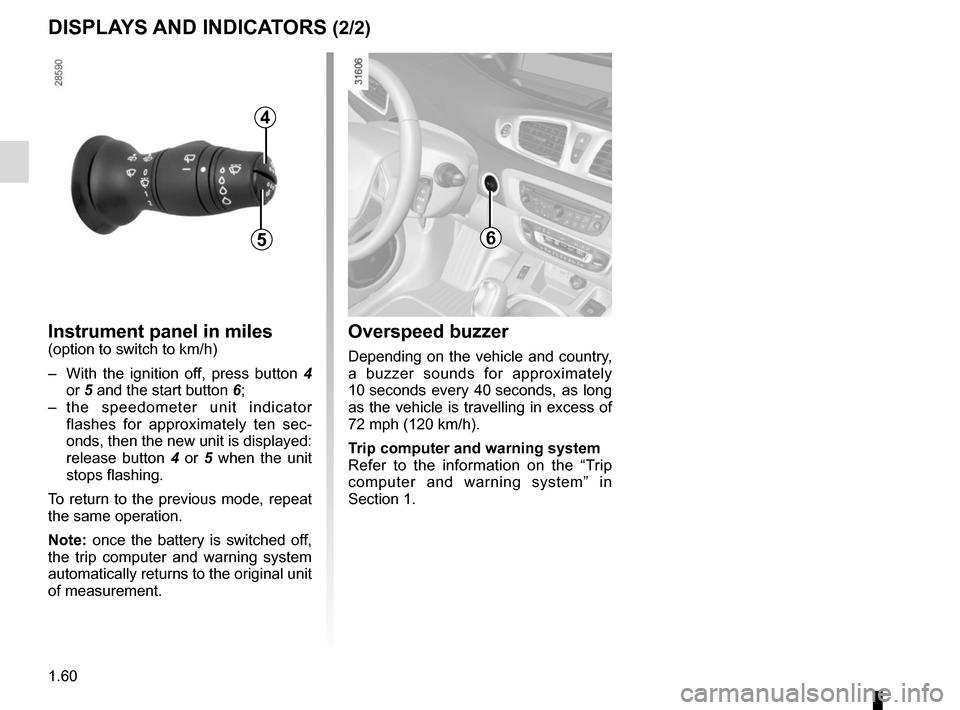

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.60
DISPLAYS AND INDICATORS (2/2)
Instrument panel in miles
(option to switch to km/h)
–  With the ignition off, press button 4  or 5 and the start button 6;
– the speedometer unit indicator  fla

Page 67 of 270

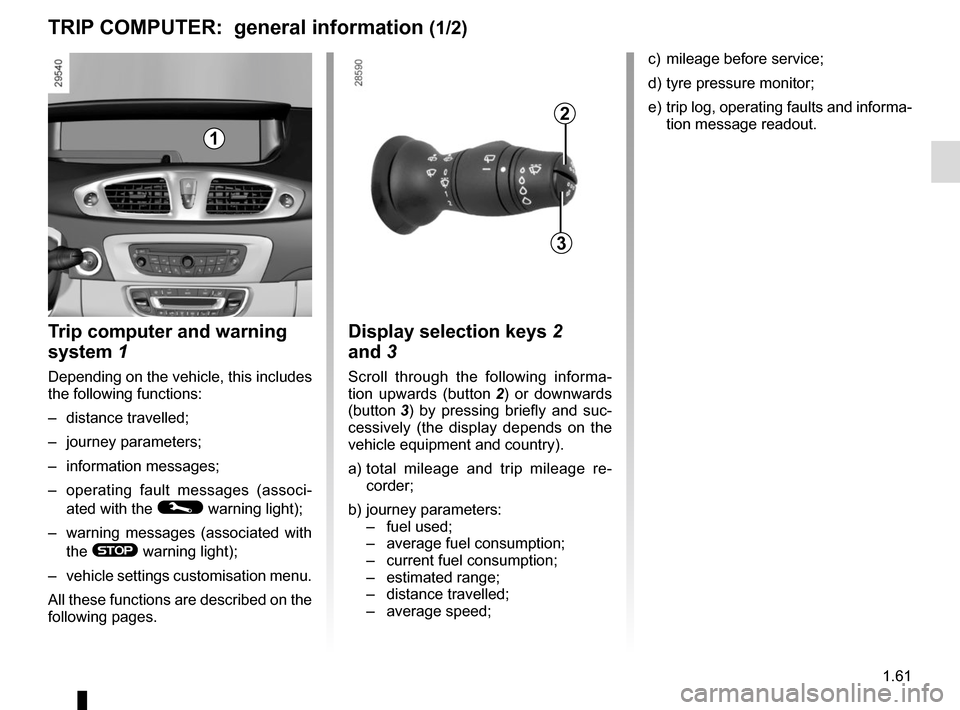

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.61
2
3
c)  mileage before service;
d) tyre pressure monitor;
e)  trip log, operating faults and informa-tion message readout.
Display selection keys 2
and 3
Scroll through the following informa-
ti

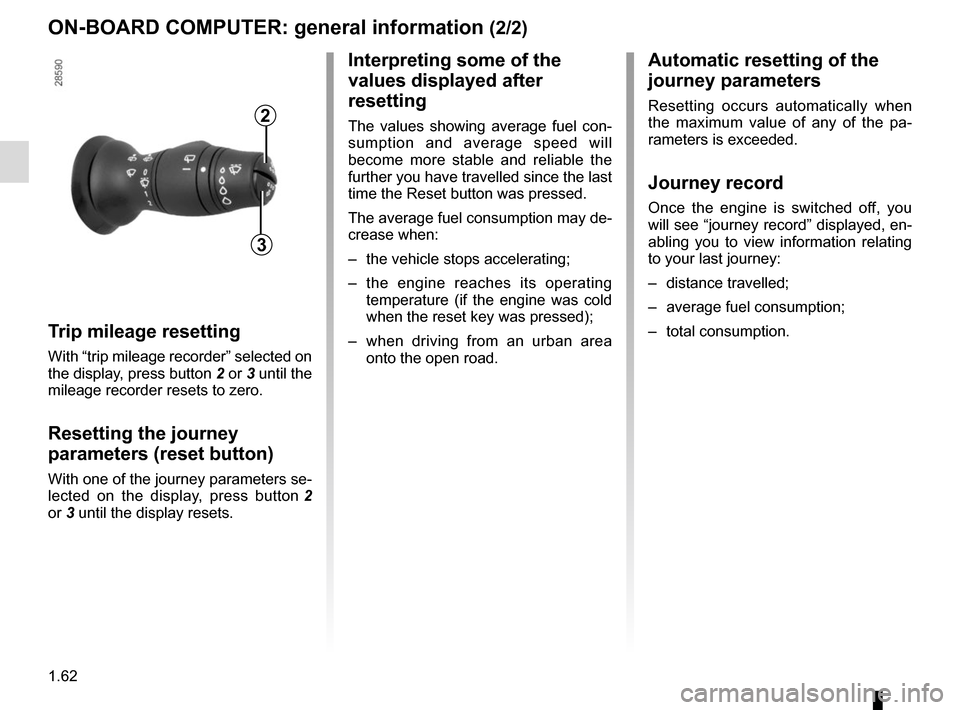

Page 68 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.62
3
2
ON-BOARD COMPUTER: general information (2/2)Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa-
rameters is exceeded.
Journ

Page 69 of 270

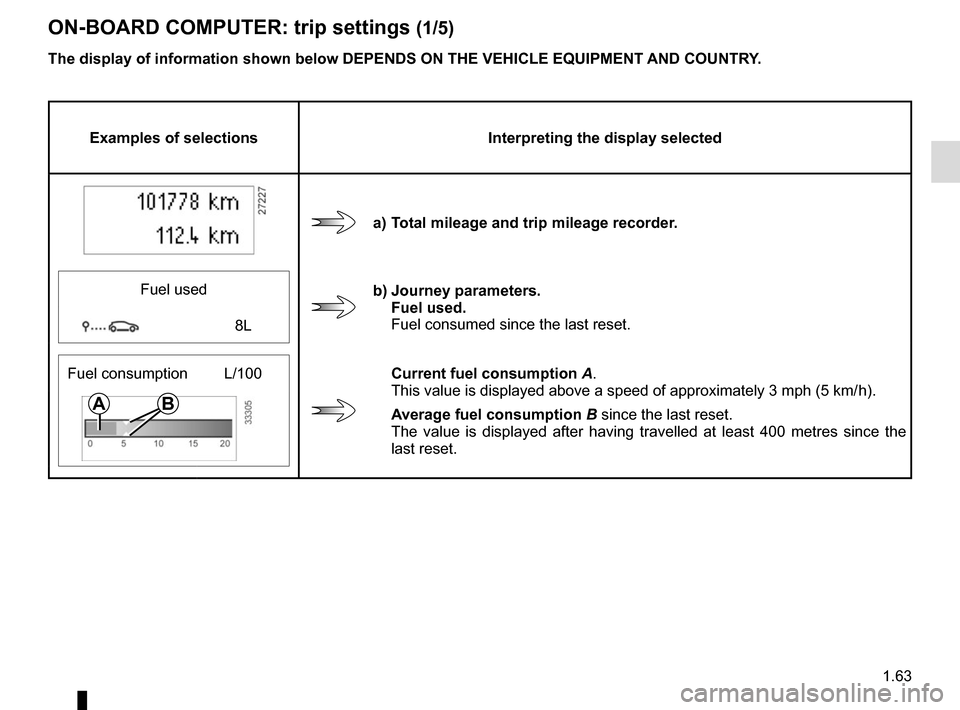

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.63
ON-BOARD COMPUTER: trip settings (1/5)
Examples of selectionsInterpreting the display selected
a) Total mileage and trip mileage recorder.
Fuel used
b) Journey parameters. Fuel used.
Fuel consume

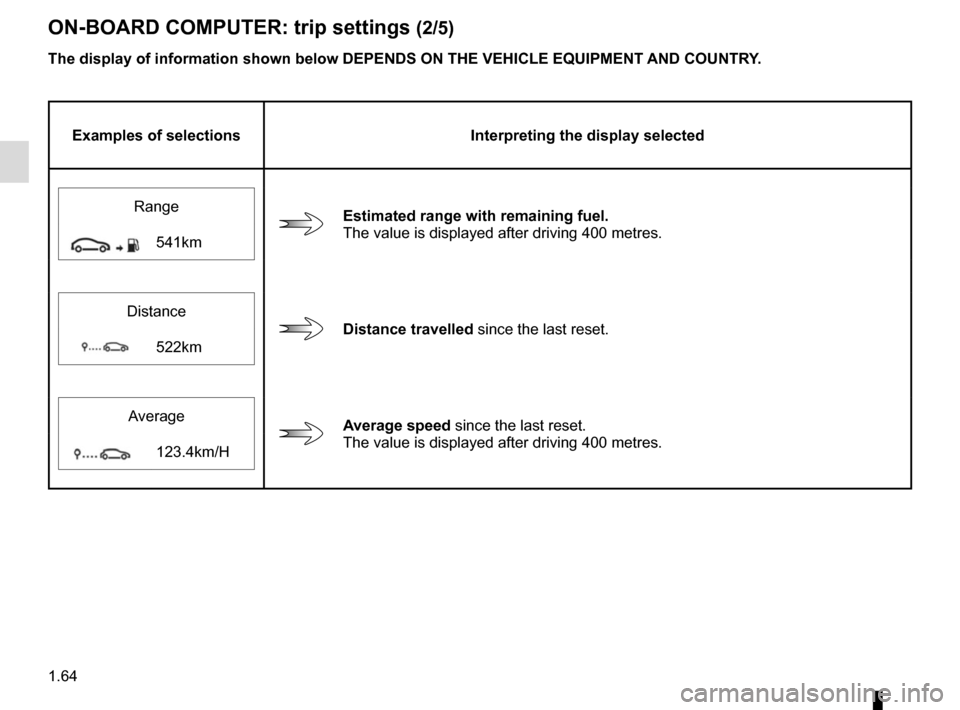

Page 70 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Repair Manual 1.64
ON-BOARD COMPUTER: trip settings (2/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of selectionsInterpreting the display selected
Range
Estimat
