Page 171 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.31

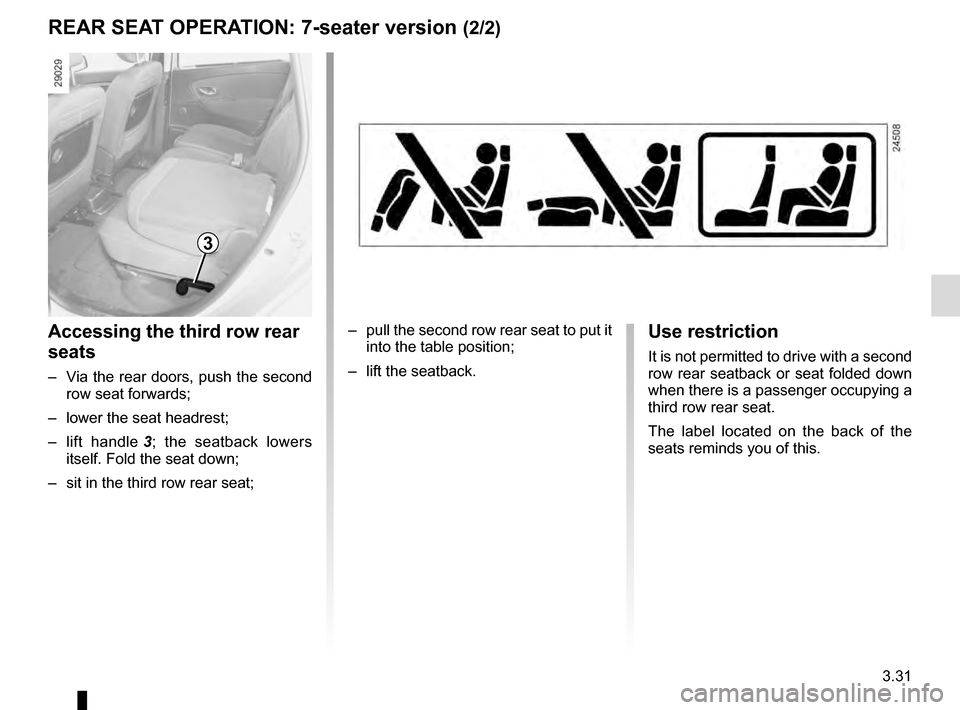

REAR SEAT OPERATION: 7-seater version (2/2)
Accessing the third row rear
seats
–  Via the rear doors, push the second  row seat forwards;
–  lower the seat headrest;
– lift handle  3; the

Page 172 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.32

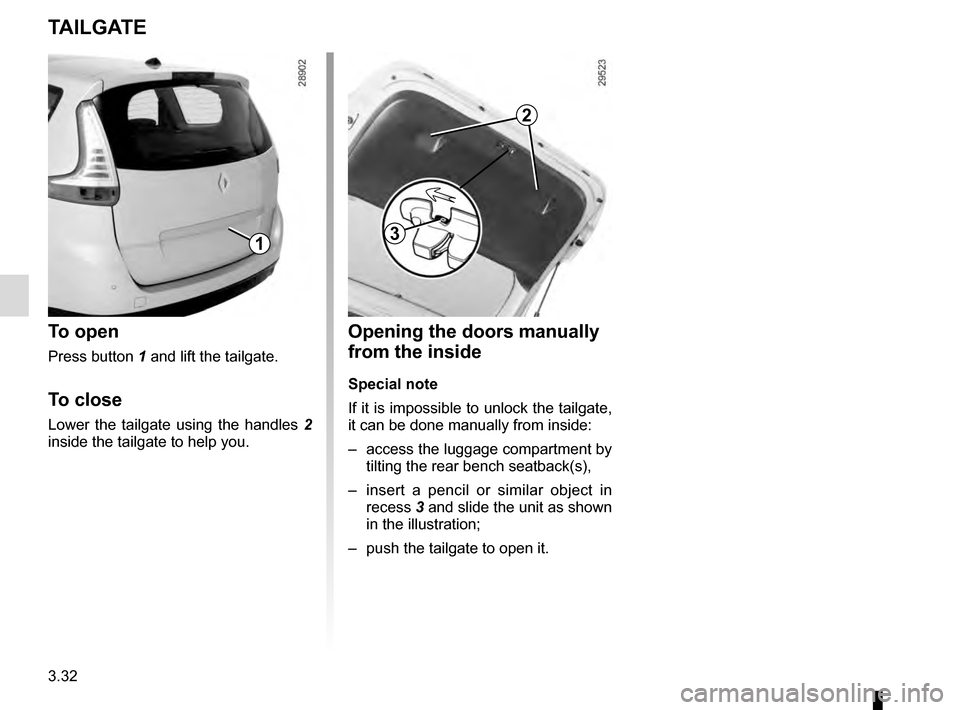

TAILGATE
13
To open
Press button 1 and lift the tailgate.
To close
Lower the tailgate using the handles 2
inside the tailgate to help you.
Opening the doors manually
from the inside
Special not

Page 173 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.33

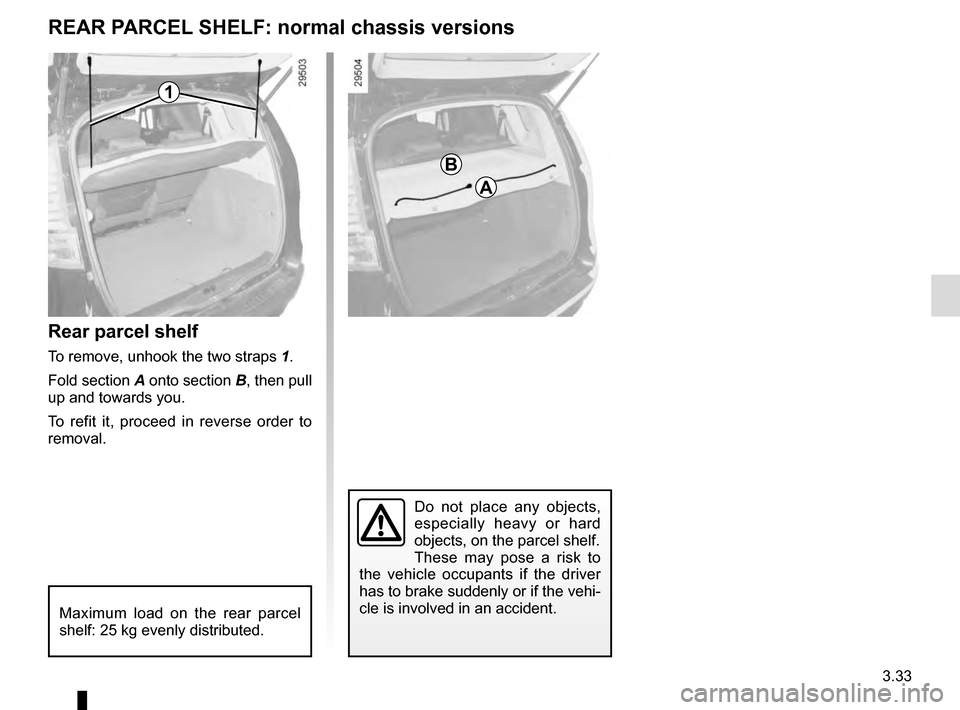

Rear parcel shelf
To remove, unhook the two straps 1.
Fold section A onto section  B, then pull
up and towards you.
To refit it, proceed in reverse order to
removal.
REAR PARCEL SHELF: normal c

Page 174 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.34

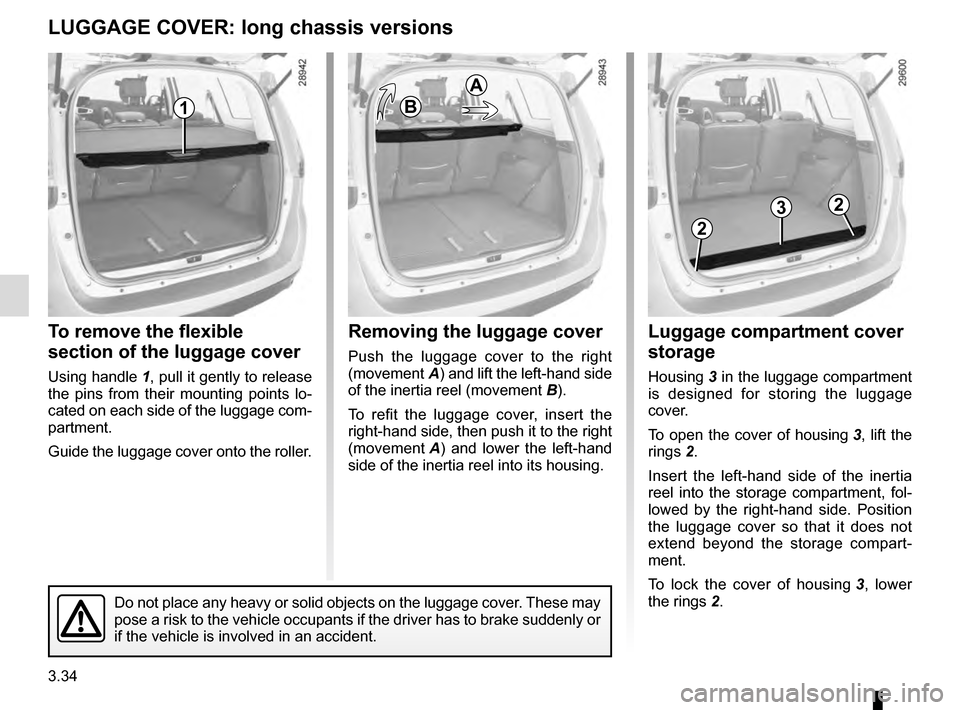

Removing the luggage cover
Push the luggage cover to the right
(movement A) and lift the left-hand side
of the inertia reel (movement B).
To refit the luggage cover, insert the
right-hand side

Page 175 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.35

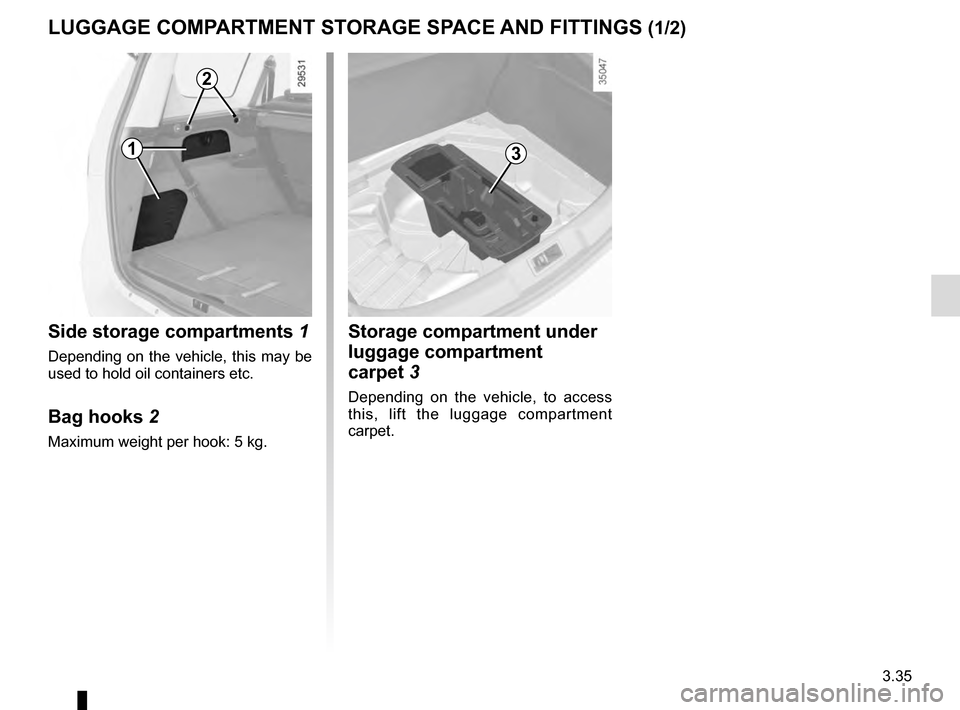

Side storage compartments 1
Depending on the vehicle, this may be
used to hold oil containers etc.
Bag hooks 2
Maximum weight per hook: 5 kg.
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS (1/2)

Page 176 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.36
Always place objects being trans-
ported so that the heaviest items
are resting against the back of the
rear bench seat.

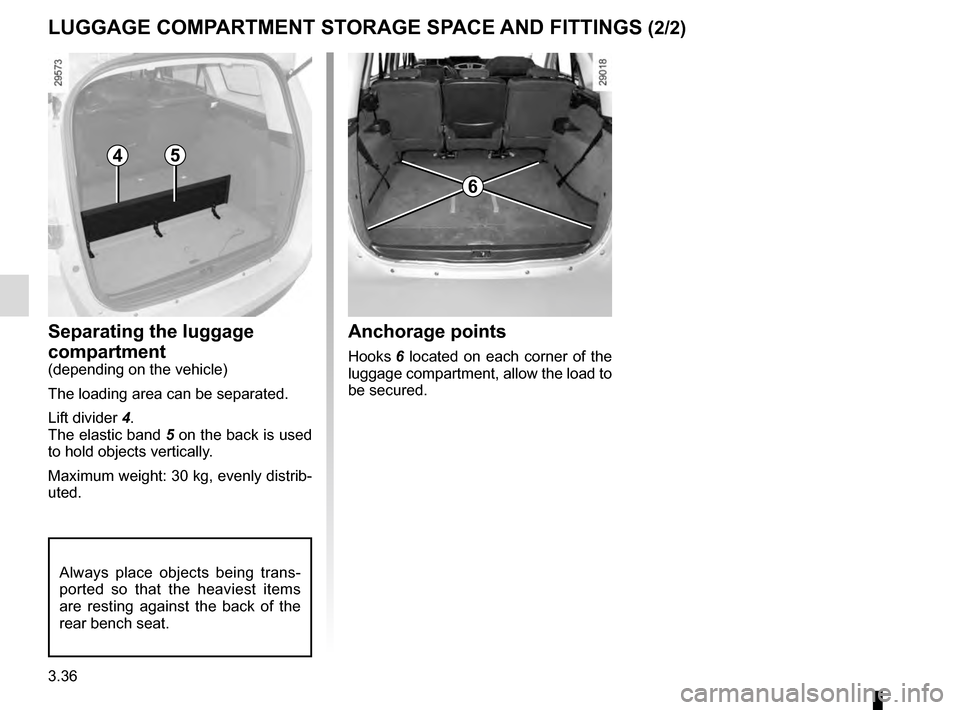

Separating the luggage
compartment
(depending on the vehicle)
The loadi

Page 177 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.37
Always place the objects to be trans-
ported so that their largest side rests
against the back of the rear bench seat,
for normal loads (example A)  or against
the back of the front seats  B w

Page 178 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.38

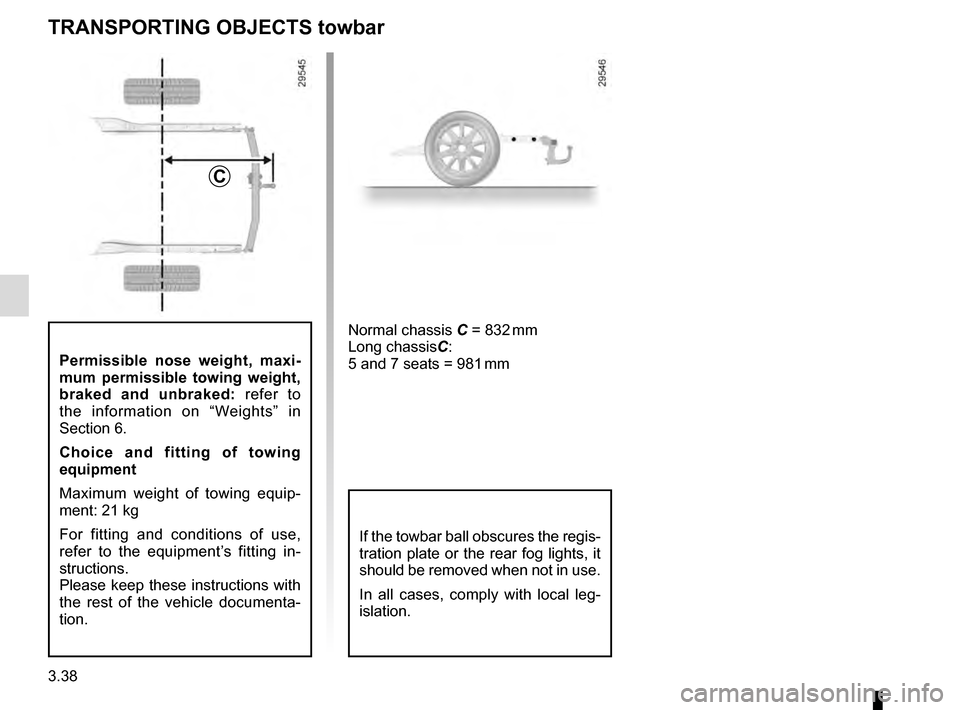

Permissible nose weight, maxi-
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
Choice and fitting of towing
equipment
Maximum weigh

Page 179 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.39

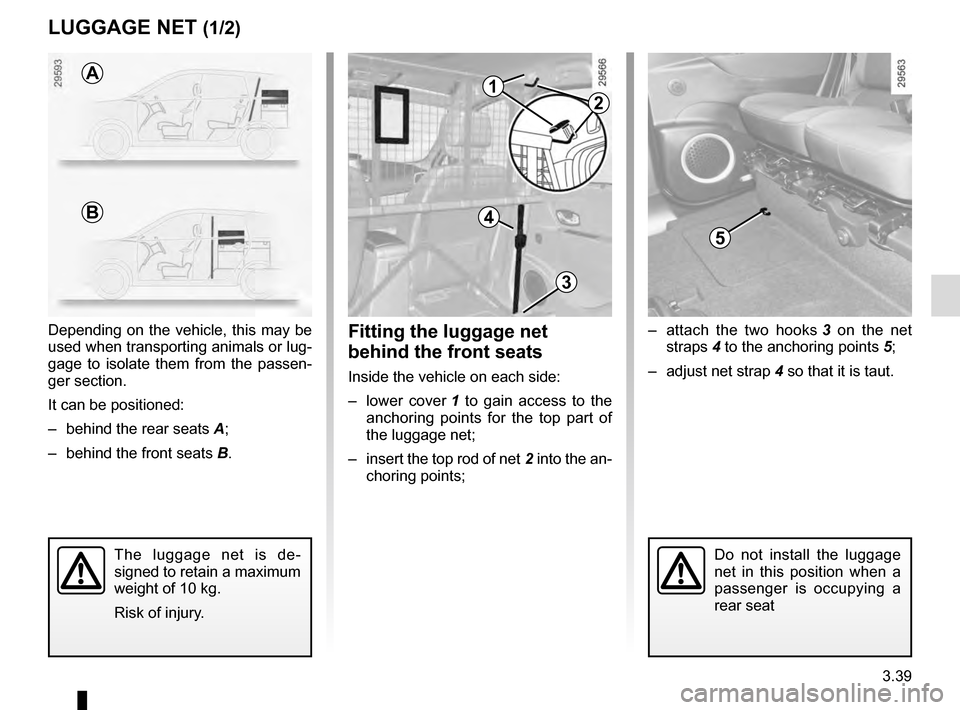

LUGGAGE NET (1/2)
3
5
–  attach the two hooks 3 on the net
straps 4 to the anchoring points  5;
–  adjust net strap 4 so that it is taut.Fitting the luggage net
behind the front seats
Insid

Page 180 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 3.40

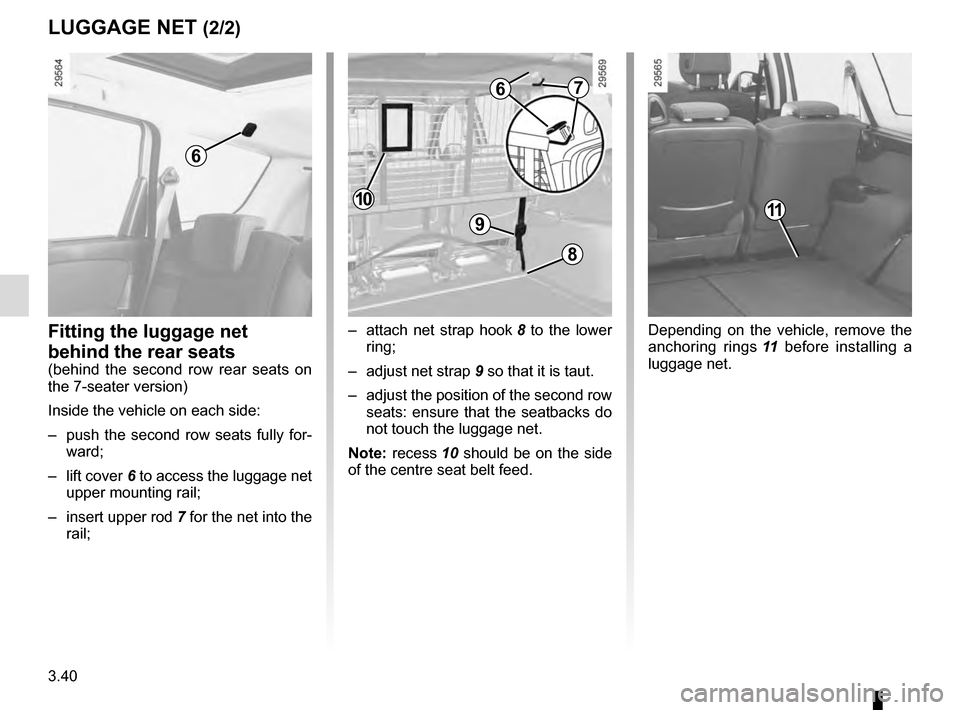

LUGGAGE NET (2/2)
11
6
Depending on the vehicle, remove the
anchoring rings 11 before installing a
luggage net.
–  attach net strap hook
8 to the lower
ring;
–  adjust net strap 9 so that
