Page 81 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.75
áMain beam headlightsWith the dipped beam head-
lights lit, pull stalk  1 towards you. This
indicator light on the instrument panel
comes on.
To return to the dipped headlight posi-
tion, pull

Page 82 of 270

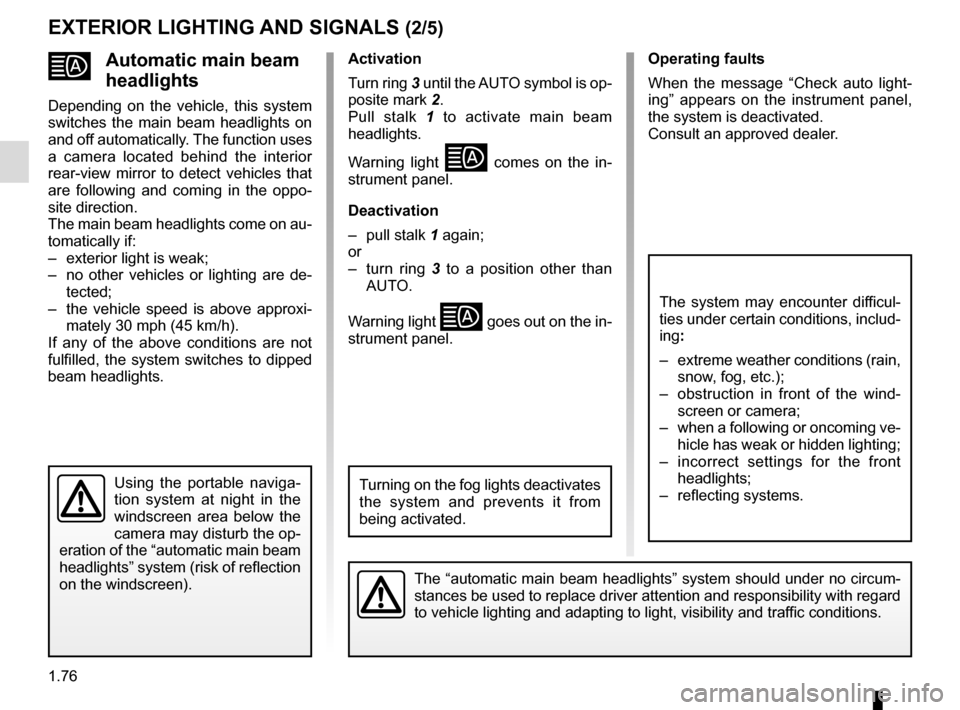

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.76
Automatic main beam
headlights
Depending on the vehicle, this system
switches the main beam headlights on
and off automatically. The function uses
a camera located behind the interior
rear-

Page 83 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.77
EXTERIOR LIGHTING AND SIGNALS (3/5)
Operating faults
Depending on the vehicle, when the
message “Check lighting” appears on
the instrument panel along with the
© warning light, this indic

Page 84 of 270

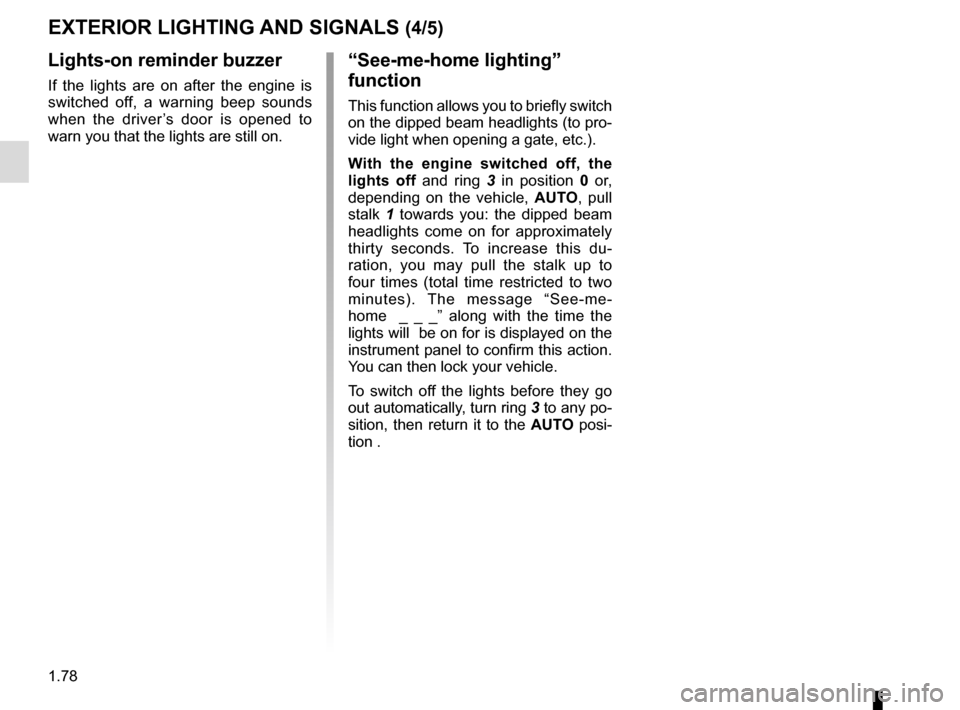

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.78
EXTERIOR LIGHTING AND SIGNALS (4/5)
Lights-on reminder buzzer
If the lights are on after the engine is
switched off, a warning beep sounds
when the driver’s door is opened to
warn you that t

Page 85 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.79
EXTERIOR LIGHTING AND SIGNALS (5/5)
gFront fog lights
Turn centre ring 5 on stalk  1
until the symbol faces mark  4, then re-
lease it.
Operation of the fog lights depends on
the exterior light

Page 86 of 270

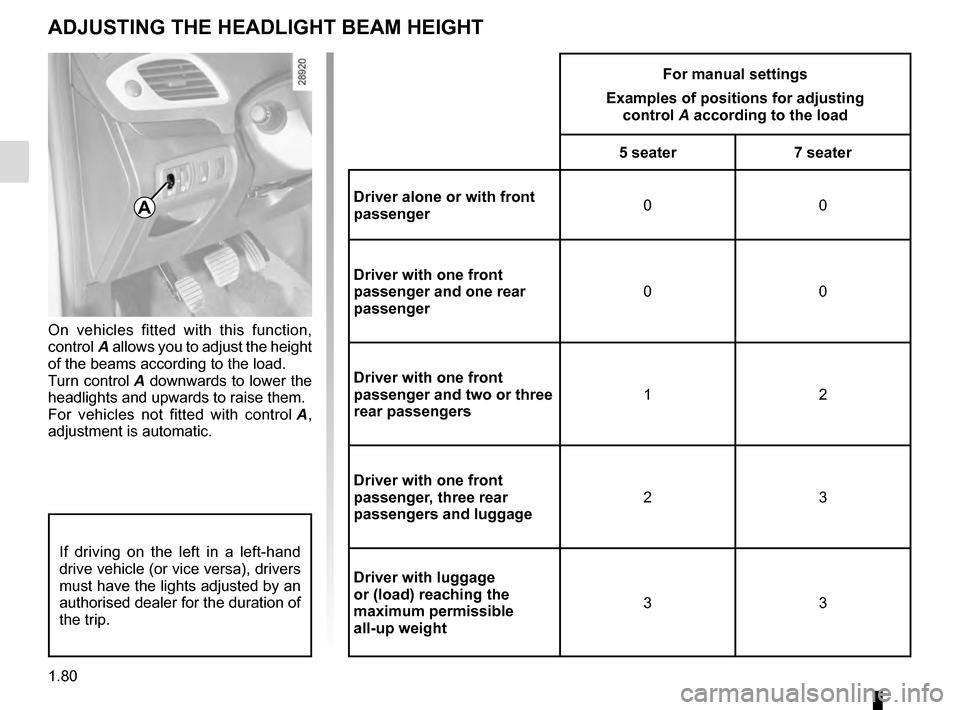

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.80
On vehicles fitted with this function,
control A allows you to adjust the height
of the beams according to the load.
Turn control A downwards to lower the
headlights and upwards to raise them.

Page 87 of 270

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.81
Special note
When driving the vehicle, the wiping
speed slows down whenever the vehi-
cle stops. For example, fast wiping
speed will slow to normal wiping speed.
As soon as the vehicle moves o

Page 88 of 270

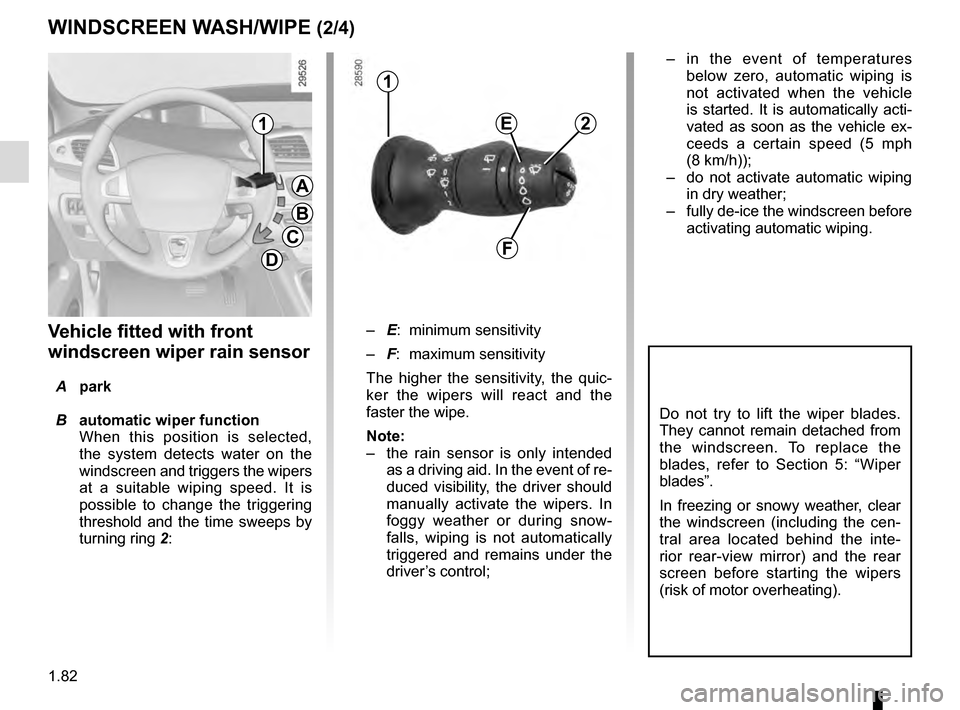

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.82
– E: minimum sensitivity
–  F: maximum sensitivity
The higher the sensitivity, the quic-
ker the wipers will react and the
faster the wipe.
Note:
–   the rain sensor is only intended
as

Page 89 of 270

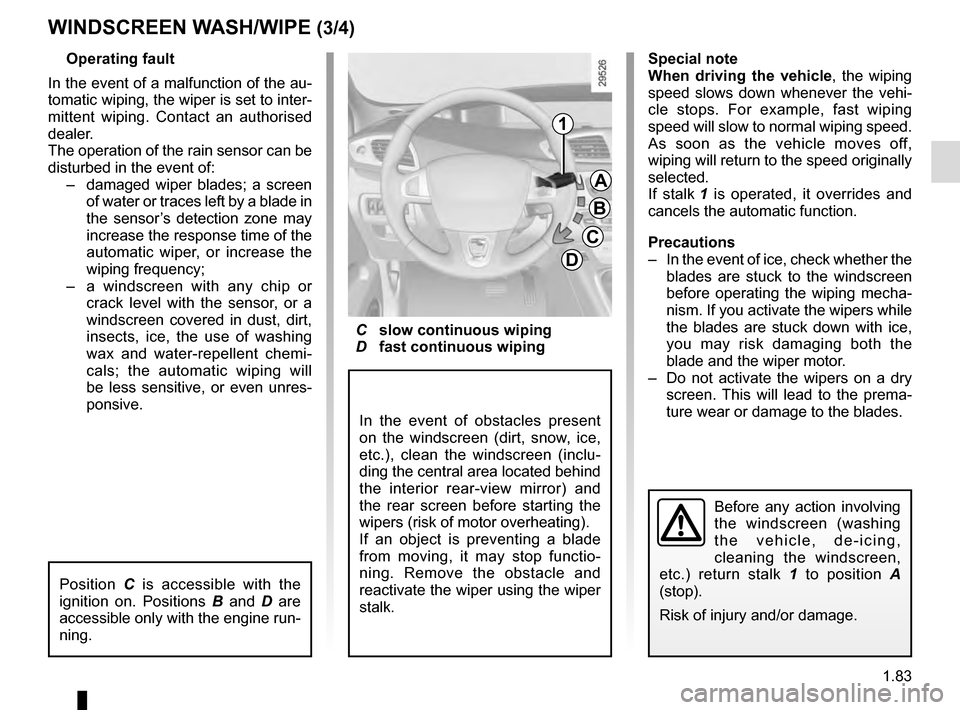

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.83
WINDSCREEN WASH/WIPE (3/4)
Operating fault
In the event of a malfunction of the au-
tomatic wiping, the wiper is set to inter-
mittent wiping. Contact an authorised
dealer.
The operation of the

Page 90 of 270

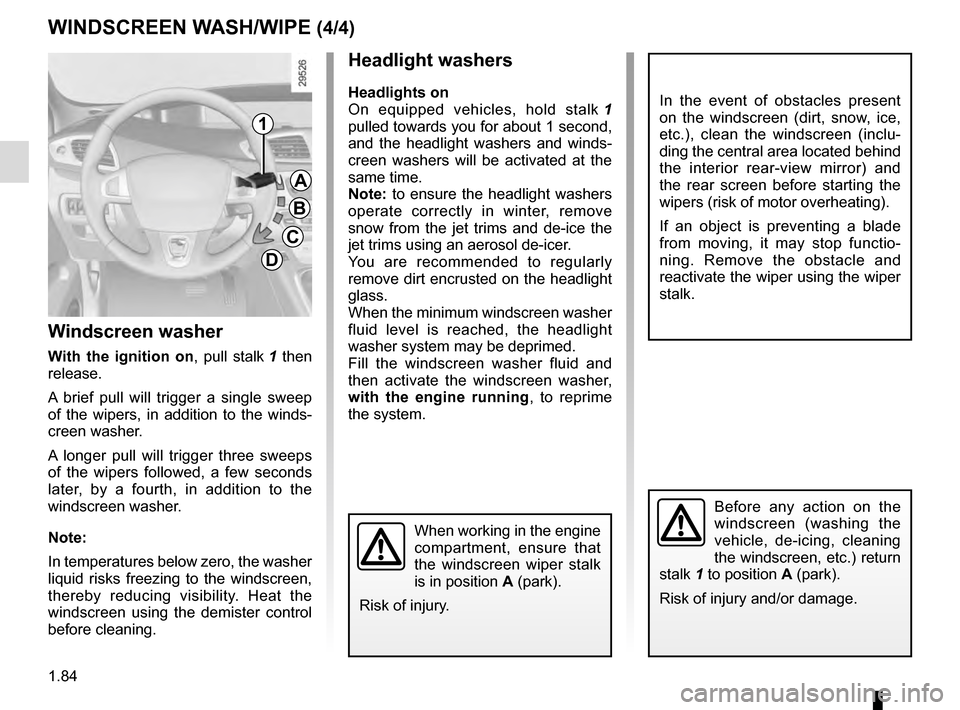

RENAULT GRAND SCENIC 2016 J95 / 3.G Manual Online 1.84
WINDSCREEN WASH/WIPE (4/4)
1
A
B
C
D
Windscreen washer
With the ignition on, pull stalk 1 then
release.
A brief pull will trigger a single sweep
of the wipers, in addition to the winds-
creen w
