WARNING LIGHTS (2/5)
Automatic main beam head-
light indicator light
Please refer to the information
on “External signals and lights” in
Section 1.
cLeft-hand direction indicator
tell-tale light
bRight-hand direction indica-
tor tell-tale light
ÄToxic Fume Filter System
Warning Light
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult an approved Dealer as soon as possi-
ble;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and anti-pollution advice”
in Section 2.
MLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing and is accompanied by a beep, fill
up with fuel as soon as possible.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
}Handbrake “on” or elec-
tronic parking brake warn-
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.
ßDriver’s seat belt reminder
and, depending on the vehi-
cle, front passenger seat belt re-
minder.
This lights up on the instrument panel
when the ignition is started, then, if the
driver’s or front passenger’s seat belt
(if this seat is occupied) is not fastened
and the vehicle has reached approxi-
mately 12 mph (20 km/h), it flashes and
a bleep sounds for around 120 sec-
onds.
Note: an object placed on the passen-
ger seat base can activate the warning
light.
ÉPreheating warning light
(diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out when preheating is complete. The
engine can be started.
A

1.56
WARNING LIGHTS (3/5)
åAirbag warning light
This lights up when the engine
is started and goes out after approxi-
mately three seconds. If it does not
come on when the ignition is switched
on or if it remains lit, there is a fault in
the system.
Contact your approved Dealer as soon
as possible.
¹Passenger airbag OFF
Please refer to the information
on “Child safety: deactivating/activating
the front passenger airbag” in Section 1.
›Passenger airbag ON
Please refer to the information
on “Child safety: deactivating/activating
the front passenger airbag” in Section 1.
Rear seat belt reminder
(depending
on vehicle)
Warning light
ß comes on, ac-
companied (depending on the vehicle)
by a message indicating the number
of fastened seat belts on the instru-
ment panel for approximately 30 sec-
onds, each time the vehicle is started,
a door is opened or a seat belt is fas-
tened/unfastened. Check that the rear
passengers are wearing seat belts and
that the number of seat belts shown as
fastened corresponds to the number of
rear seat places occupied.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after approxi-
mately three seconds. If it does not go
out after the ignition is switched on, or
lights up when driving, there is a fault
with the ABS. The braking system then
operates as it would on a vehicle with-
out the system ABS.
Contact an approved Dealer as soon as
possible. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
Hill start assistance warning
light
Please refer to the information on the
“Driver correction devices and aids” in
Section 2.
Warning light for electronic
stability program ( ESC ) and
traction control system
Refer to information on “Driver correc-
tion devices and aids” in Section 2.

1.57
®STOP light
This lights up when the ignition
is switched on and goes out after ap-
proximately three seconds. It comes on
with other warning lights and/or mes-
sages, and is accompanied by a beep.
It requires you to stop immediately,
for your own safety, as soon as traf-
fic conditions allow. Switch off the
engine and do not restart it.
Contact an approved Dealer.
WARNING LIGHTS (4/5)
©Warning light
This lights up when the ignition
is switched on and goes out after ap-
proximately three seconds. It can light
up in conjunction with other warning
lights and/or messages on the instru-
ment panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
The following warning lights come
on accompanied by the
® warn-
ing light.
DBrake circuit fault warning
light
If it comes on during braking and is ac-
companied by the
® warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault. Stop as soon as
traffic conditions allow and contact an
authorised dealer.
ÚBattery charge warning light
This lights up when the ignition
is switched on and goes out after ap-
proximately three seconds. If it comes
on together with the warning light
® and a beep, this indicates a fault
in the electrical circuit.
A

1.58
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after ap-
proximately three seconds. If it comes
on on the road, accompanied by the
® warning light and a beep, stop
immediately and cut the ignition. Check
the oil level (refer to the information on
“Engine oil level” in Section 4). If the
level is normal, the light has come on
for another reason: please contact an
authorised dealer.
ÔEngine coolant temperature
warning light
This lights up when the ignition is
switched on and goes out when the
engine is started. If it comes on on
the road, accompanied by the
®
warning light and a beep, stop immedi-
ately and cut the ignition.
Check the coolant level (please refer
to the information on “Levels” in
Section 4). If the level is normal, the
light has come on for another reason:
contact an authorised dealer.

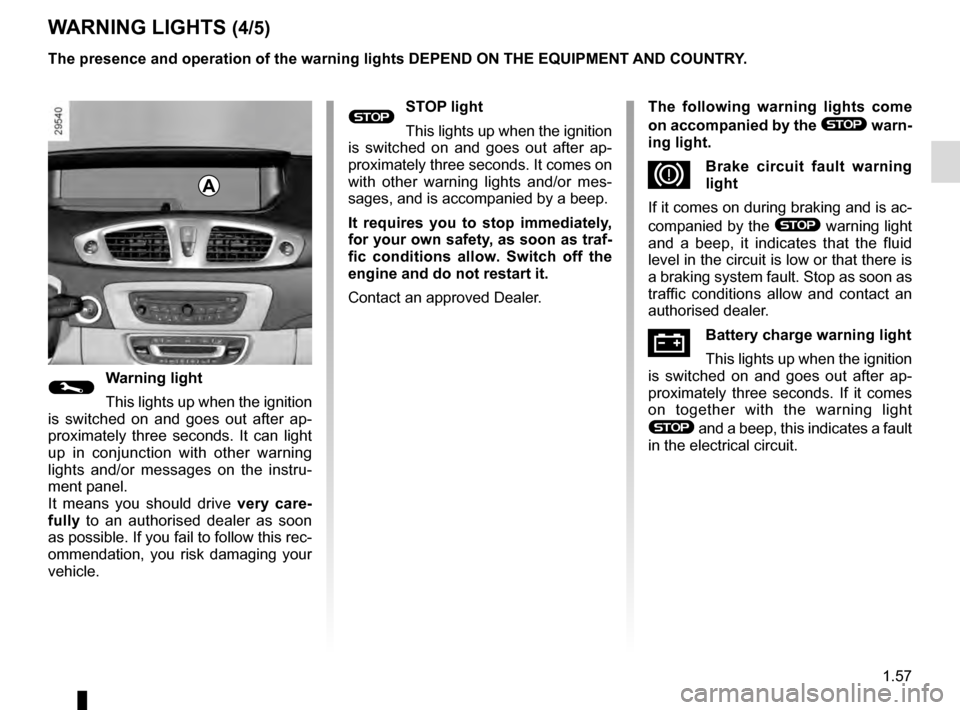

WARNING LIGHTS (5/5)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
Lane departure system
warning light
Please refer to the information on “Lane
departure warning” in Section 2.
Engine standby warning
light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
Unavailability of engine
standby warning light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
ÑBlack ice warning light
Please refer to the information
on the “Clock and exterior temperature”
in Section 1.
\[Gear change indicators
This lights up to advise
you to change to a higher gear (up
arrow) or lower gear (down arrow).
\bTyre pressure monitoring
system
Refer to the information on the “Tyre
pressure monitoring system” in
Section 2.

1.59

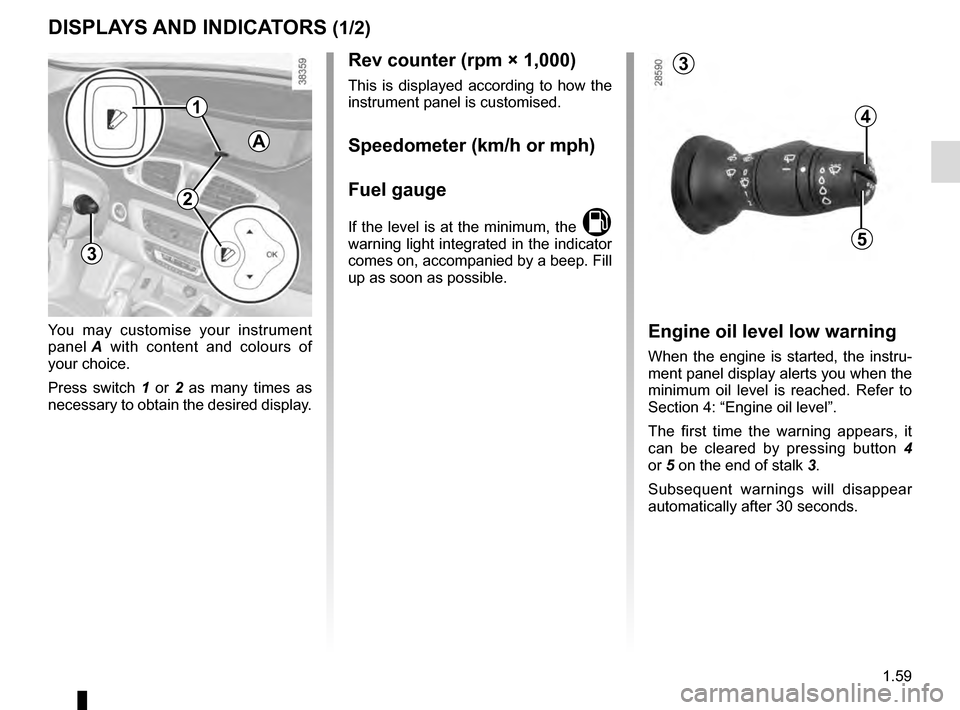

DISPLAYS AND INDICATORS (1/2)
You may customise your instrument
panel A with content and colours of
your choice.
Press switch 1 or 2 as many times as
necessary to obtain the desired display.
Rev counter (rpm × 1,000)
This is displayed according to how the
instrument panel is customised.
Speedometer (km/h or mph)
Fuel gauge
If the level is at the minimum, the M
warning light integrated in the indicator
comes on, accompanied by a beep. Fill
up as soon as possible.
Engine oil level low warning
When the engine is started, the instru-
ment panel display alerts you when the
minimum oil level is reached. Refer to
Section 4: “Engine oil level”.
The first time the warning appears, it
can be cleared by pressing button 4
or 5 on the end of stalk 3.
Subsequent warnings will disappear
automatically after 30 seconds.
4
5
3
A
3
1
2

1.60

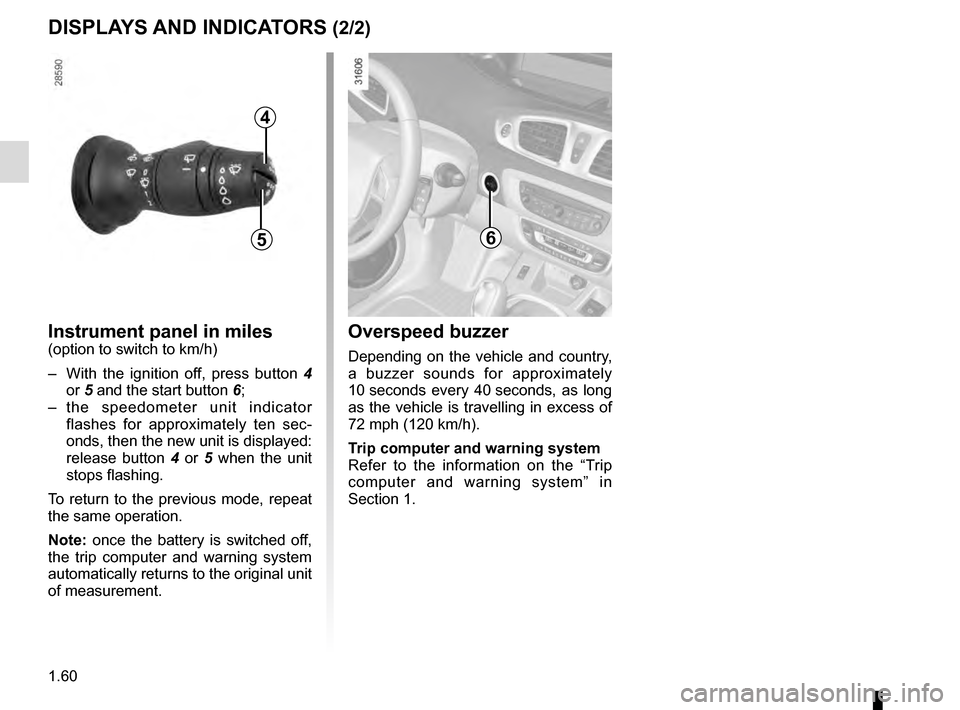

DISPLAYS AND INDICATORS (2/2)
Instrument panel in miles
(option to switch to km/h)
– With the ignition off, press button 4 or 5 and the start button 6;
– the speedometer unit indicator flashes for approximately ten sec-
onds, then the new unit is displayed:
release button 4 or 5 when the unit
stops flashing.
To return to the previous mode, repeat
the same operation.
Note: once the battery is switched off,
the trip computer and warning system
automatically returns to the original unit
of measurement.Overspeed buzzer
Depending on the vehicle and country,
a buzzer sounds for approximately
10 seconds every 40 seconds, as long
as the vehicle is travelling in excess of
72 mph (120 km/h).
Trip computer and warning system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
4
56

1.61
2
3
c) mileage before service;
d) tyre pressure monitor;
e) trip log, operating faults and informa-tion message readout.
Display selection keys 2
and 3
Scroll through the following informa-
tion upwards (button 2) or downwards
(button 3 ) by pressing briefly and suc-
cessively (the display depends on the
vehicle equipment and country).
a) total mileage and trip mileage re-
corder;
b) journey parameters: – fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed;
Trip computer and warning
system 1
Depending on the vehicle, this includes
the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ-
ated with the
© warning light);
– warning messages (associated with the
® warning light);
– vehicle settings customisation menu.
All these functions are described on the
following pages.

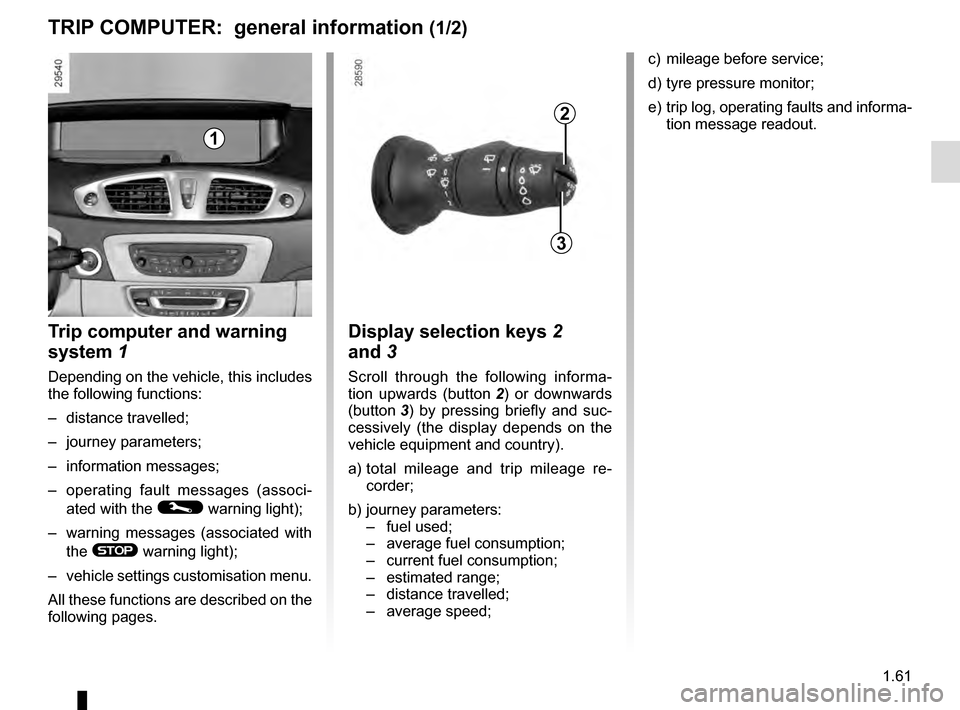

TRIP COMPUTER: general information (1/2)
1

1.62
3
2

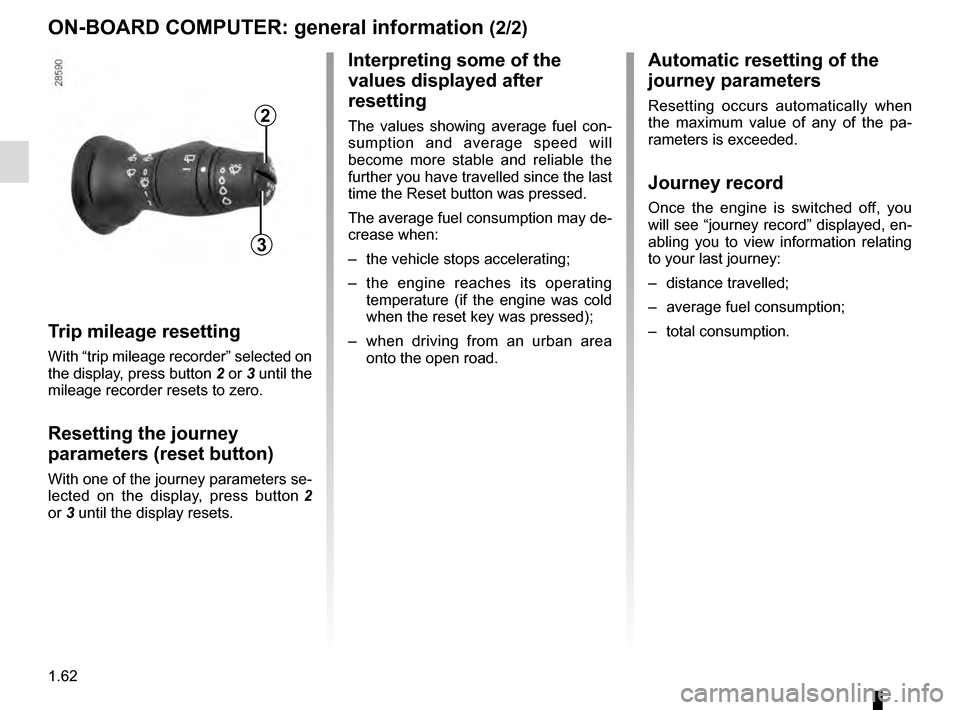

ON-BOARD COMPUTER: general information (2/2)Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa-
rameters is exceeded.
Journey record
Once the engine is switched off, you
will see “journey record” displayed, en-
abling you to view information relating
to your last journey:
– distance travelled;
– average fuel consumption;
– total consumption.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption and average speed will
become more stable and reliable the
further you have travelled since the last
time the Reset button was pressed.
The average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 2 or 3 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 2
or 3 until the display resets.

1.63

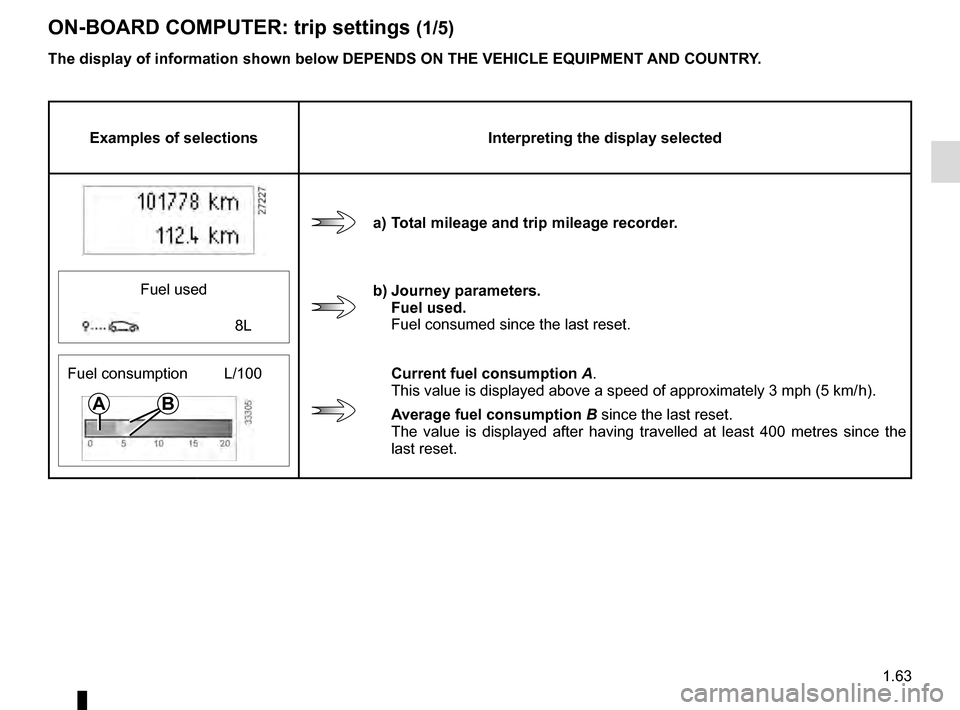

ON-BOARD COMPUTER: trip settings (1/5)
Examples of selectionsInterpreting the display selected
a) Total mileage and trip mileage recorder.
Fuel used
b) Journey parameters. Fuel used.
Fuel consumed since the last reset.
8L
Fuel consumption L/100
Current fuel consumption A.
This value is displayed above a speed of approximately 3 mph (5 km/ h).
Average fuel consumption B since the last reset.
The value is displayed after having travelled at least 400 metres since \
the
last reset.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
AB

1.64

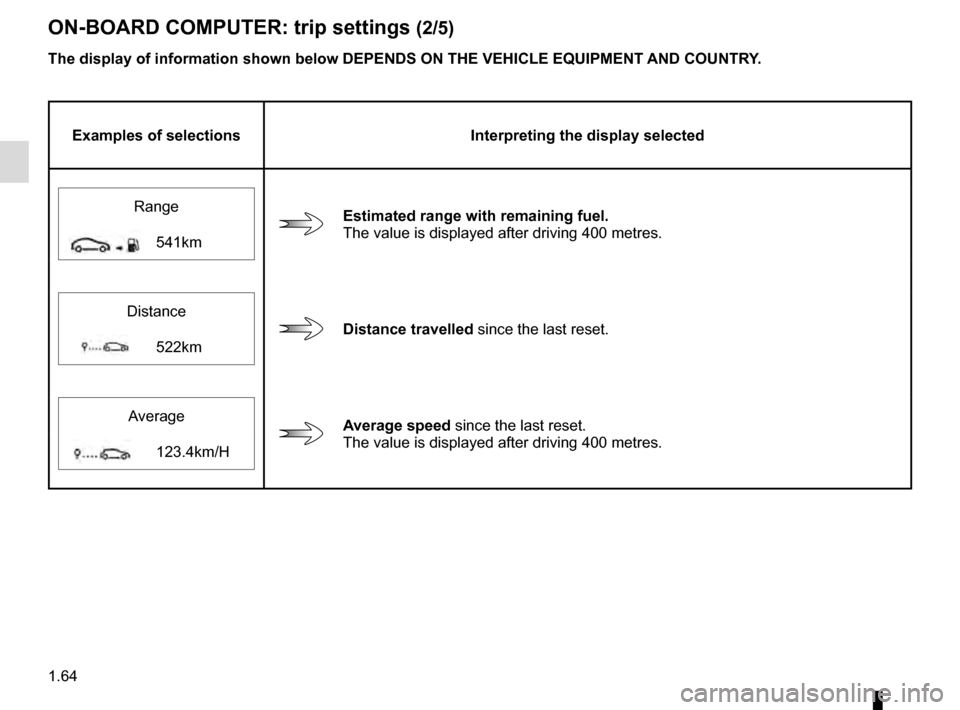

ON-BOARD COMPUTER: trip settings (2/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of selectionsInterpreting the display selected
Range
Estimated range with remaining fuel.
The value is displayed after driving 400 metres.
541km
Distance
Distance travelled since the last reset.
522km
Average
Average speed since the last reset.
The value is displayed after driving 400 metres.
123.4km/H
