RENAULT KADJAR 2015 1.G Workshop Manual 1.45

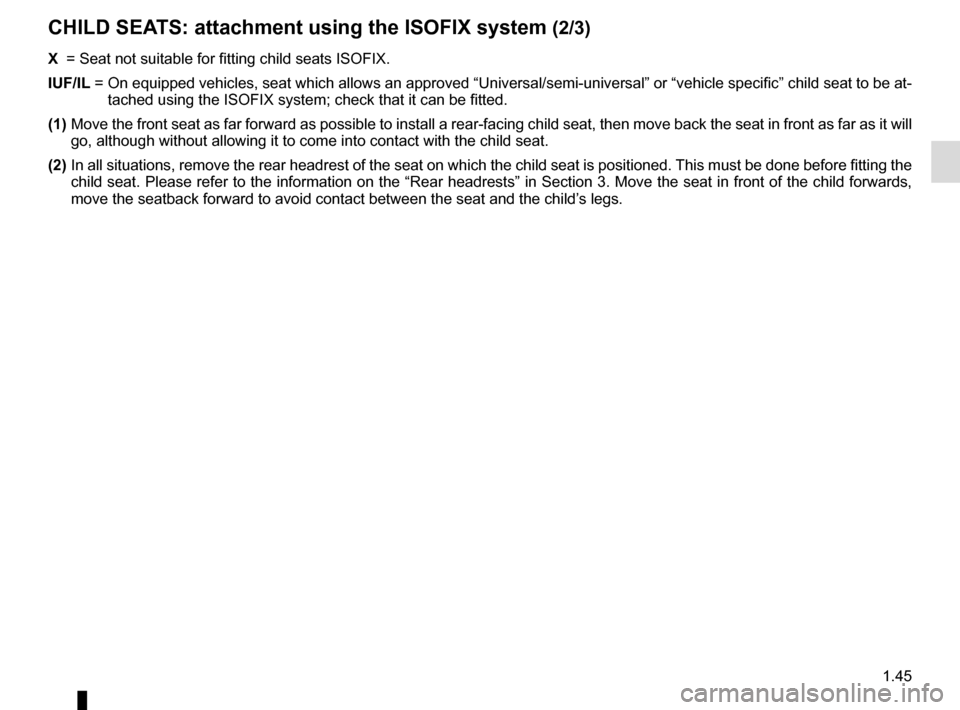

CHILD SEATS: attachment using the ISOFIX system (2/3)
X =  Seat not suitable for fitting child seats ISOFIX.
IUF/IL  =   On equipped vehicles, seat which allows an approved “Universal/semi-u\
n

Page 52 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.46
CHILD SEATS: attachment using the ISOFIX system (3/3)

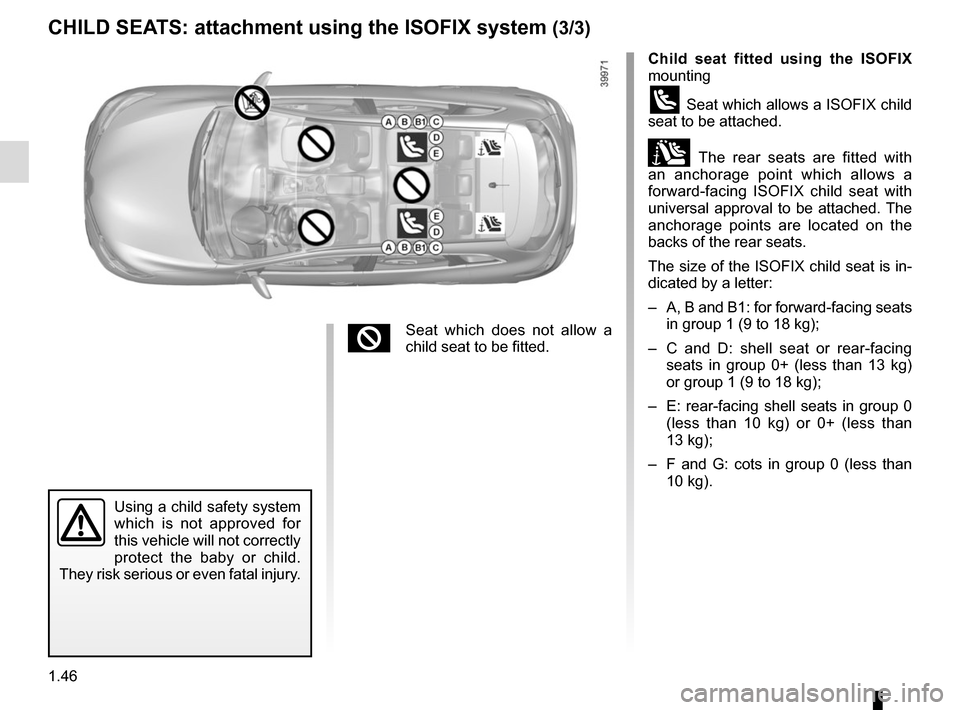

Child seat fitted using the ISOFIX
mounting
ü Seat which allows a ISOFIX child
seat to be attached.
± The rear seats are fitted with
an

Page 53 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.47

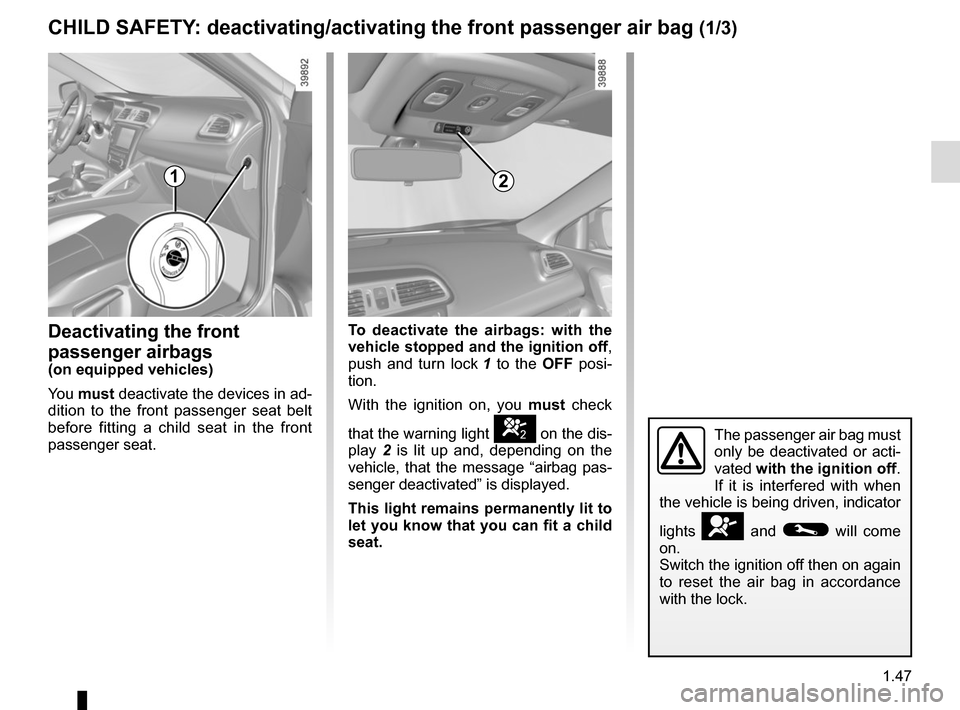

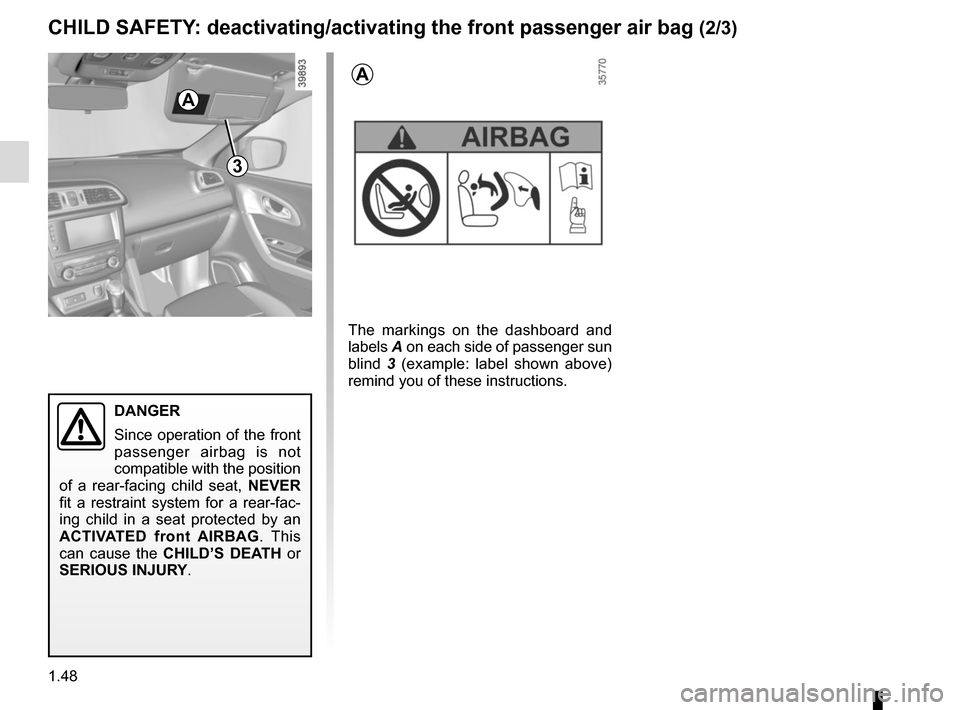

CHILD SAFETY: deactivating/activating the front passenger air bag (1/3)
Deactivating the front
passenger airbags
(on equipped vehicles)
You must  deactivate the devices in ad-
dition to the fron

Page 54 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.48
3
DANGER
Since operation of the front
passenger airbag is not
compatible with the position
of a rear-facing child seat,  NEVER
fit a restraint system for a rear-fac-
ing child in a seat prote

Page 55 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.49
CHILD SAFETY: deactivating/activating the front passenger air bag (3/3)
The passenger airbag must
only be deactivated or acti-
vated when the vehicle is
stationary.
If it is interfered with whe

Page 56 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.50

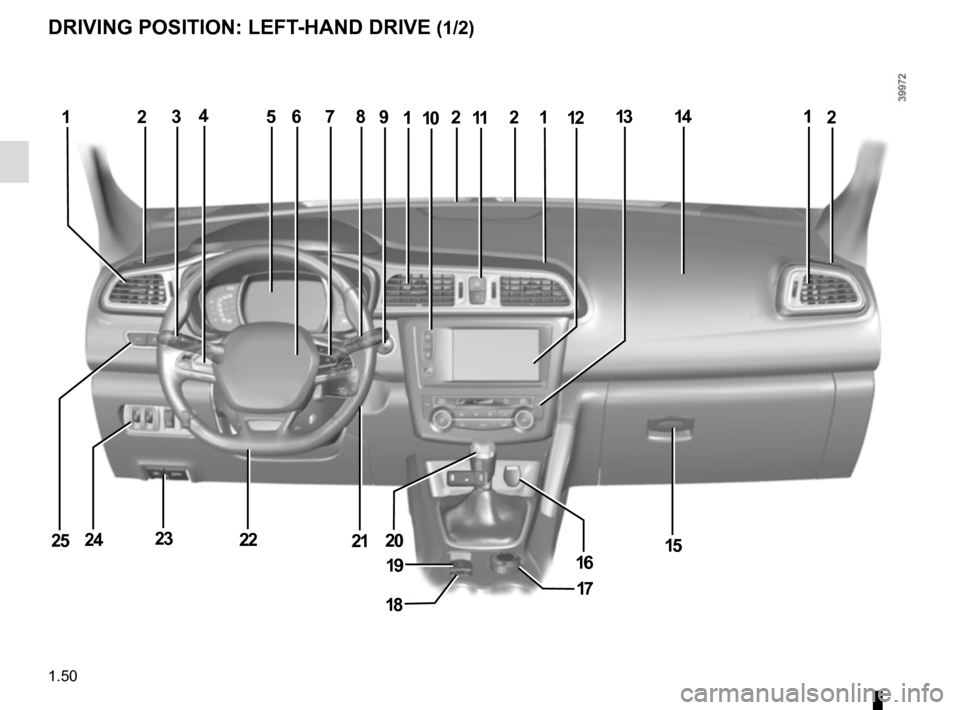

DRIVING POSITION: LEFT-HAND DRIVE (1/2)
23568212131
1516
25
17
1114
18
71141210
19
21222324
92
20

Page 57 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.51
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY. 19  Assisted parking or handbrake
control.
  20 Gear lever.
  21  Ignition swit

Page 58 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.52

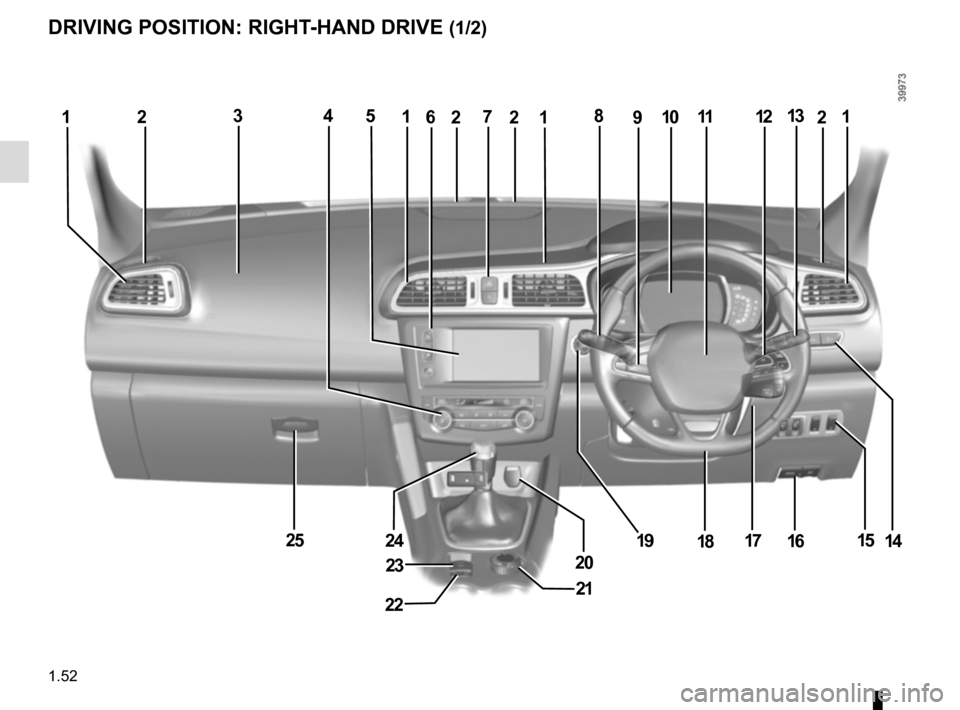

DRIVING POSITION: RIGHT-HAND DRIVE (1/2)
2810111321
25
20
14
21
73
22
12119126
23
17181615
2
24
54
19

Page 59 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.53
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
 16 Unlocking controls:
– bonnet,
–  fuel filler flap.
  17  Ignition switc

Page 60 of 298

RENAULT KADJAR 2015 1.G Workshop Manual 1.54
šSide light warning light
áMain beam headlight tell-
tale
kDipped beam headlight tell-
tale
gFront fog light tell-tale
fRear fog light telltale
Automatic main beam head-
light indic
