1.1
ENG_UD29618_11
Sommaire 1 (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
Section 1: Getting to know your vehicle
Key, radio frequency remote control: general information, use, deadlocking . . . . . . . . . . . . . . . . . . 1.2
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6
Locking and unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.13
Headrests/Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.18
Roof flap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.21
Swivelling partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.24
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.29
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.32
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.34
Choosing a child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.37
Fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.39
Deactivating/activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.44
Door mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.47
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.48
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.52
Displays and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.56
On-board computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.59
Clock and exterior temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.68
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.69
External lighting and signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.70
Electric beam height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.73
Windscreen wipers/washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.74
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.77
Page 50 of 237
air bagdeactivating the front passenger air bags
(up to the end of the DU)
air bag activating the front passenger air bags
(up to the end of the DU)
child safety ............................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
front passenger air bag deactivation .... (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
1.44
ENG_UD29619_5
Sécurité enfants : désactivation/activation airbag passager avant (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
Jaune NoirNoir texte

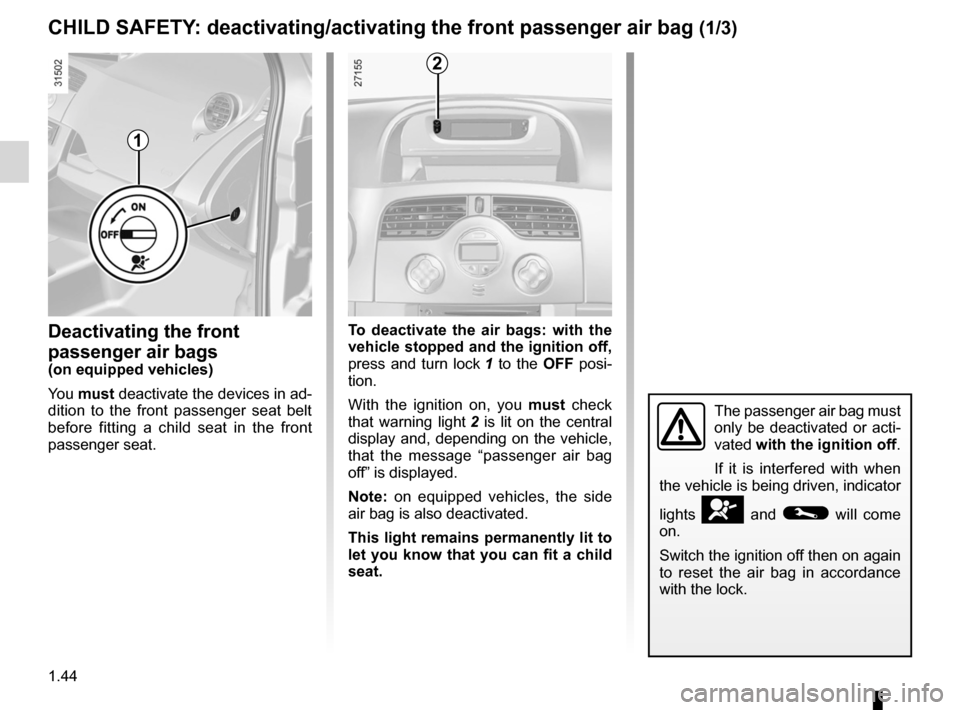

Deactivating/activating the front passenger airbag
Deactivating the front
passenger air bags
(on equipped vehicles)
You must deactivate the devices in ad-
dition to the front passenger seat belt
before fitting a child seat in the front
passenger seat. To deactivate the air bags: with the
vehicle stopped and the ignition off,
press and turn lock 1 to the
OFF posi-
tion.
With the ignition on, you must check
that warning light 2 is lit on the central
display and, depending on the vehicle,
that the message “passenger air bag
off” is displayed.
Note: on equipped vehicles, the side
air bag is also deactivated.
This light remains permanently lit to
let you know that you can fit a child
seat.
CHILD SAFeTy: deactivating/activating the front passenger air bag (1/3)
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
1
2
Page 55 of 237
JauneNoirNoir texte
1.49
ENG_UD26237_5
Poste de conduite direction à gauche (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
22 Gear lever.
23 Remote control/location for radio,
navigation system.
24 Cruise control/speed limiter con -
trols.
25 Bonnet release control.
26 Controls for:
– headlight beam adjustment;
– activating/deactivating the trac -
tion control system;
– deactivating/activating the Stop
and Start function.
27 Parking distance control, cruise
control/speed limiter control.
1 Stalk for:
– direction indicators,
– exterior lights,
– front fog lights,
– rear fog lights.
2 – Horn,
– location for driver’s air bag.
3 Instrument panel.
4 Stalk for:
– wipers,
– windscreen washer,
– trip computer and warning
system.
5 Ignition switch.
6 Central display:
– seat belt reminder warning light,
– air bag deactivation warning
light,
– navigation,
– clock,
– exterior temperature.
7 Centre air vent.
8 Controls for ventilation, heating
and de-icing. 9 Windscreen demister outlet.
10 Location for passenger air bag.
11 Speaker.
12 Side air vent.
13 Side window demister outlet.
14 Glove box.
15 Storage space or accessories
socket.
16 Hazard warning lights switch.
17 Central door locking/unlocking
switch.
18 Cigar lighter/12V socket.
19 Cup holder.
20 Central storage compartment.
21 Handbrake.
DRIvING pOSITION: LeFT -HAND DRIve (2/2)
The equipment fitted, described below, DepeNDS ON THe veRSION AND COUNTR y.
Page 57 of 237
JauneNoirNoir texte
1.51
ENG_UD26238_3
Poste de conduite direction à droite (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
DRIvING pOSITION: RIGHT -HAND DRIve (2/2)
16 Location for radio, navigation
system.
17 Gear lever.
18 Cigarette lighter/12 V socket.
19 Central storage compartment.
20 Cup holder.
21 Handbrake.
22 Door electric locking/unlocking
switch.
23 Hazard warning lights switch.
24 Storage space or accessories
socket.
25 Glovebox
26 Bonnet release control.
10 – Horn.
– Location for driver’s air bag.
11 Instrument panel.
12 Ignition switch.
13 Stalk for:
– wipers,
– windscreen washer,
– trip computer and warning
system.
14 Controls for:
– cruise control/speed limiter;
– parking distance;
– deactivating/activating the Stop
and Start function;
– activating/deactivating the trac -
tion control system.
– headlight beam adjustment
15 Cruise control/speed limiter con -
trols.
1 Side window demister outlet.
2 Side air vent.
3 Speaker.
4 Location for passenger air bag.
5 Windscreen demister outlet.
6 Controls for ventilation, heating
and de-icing.
7 Centre air vent.
8 Central display:
– seat belt reminder warning light,
– air bag deactivation warning
light,
– navigation,
– clock,
– exterior temperature.
9 Stalk for:
– direction indicators,
– exterior lights,
– front fog lights,
– rear fog lights.
The equipment fitted, described below, DepeNDS ON THe veRSION AND COUNTR
y.
Page 61 of 237
JauneNoirNoir texte
1.55
ENG_UD24365_6
Tableau de bord : témoins lumineux (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
WARNING LIGHTS (4/4)
çSeat belt reminder light
Depending on the vehicle, it is
displayed on the instrument panel or on
the central display of the dashboard. It
remains on when the engine is started
if your seat belt is not fastened. A beep
sounds at a low volume for 30 seconds,
then at a high volume for 90 seconds.
A
The presence and operation of the warning lights DepeND ON THe eQUIpMeNT AND COUNTR y.
Üparticle filter warning light
Refer to the information on
“Special features of diesel vehicles with
particle filter” in Section 2.
ÚBattery charge warning light
If it comes on when you are
driving, it indicates that the circuit is
overcharged or has discharged. Stop
and consult an approved Dealer as
soon as possible.
2 Door status warning light
If it lights up when the ignition is
switched on, it indicates that a door is
not properly closed.
e ngine standby warning
light
Please refer to the information on the
“Stop and Start Function” in Section 2.
Ð ÏCruise control and
speed limiter indica -
tor lights
Refer to the information on the “Speed
limiter” and “Cruise control” in Section 2.
Driving correction device
warning light
Please refer to the information on
“Driver correction devices and aids” in
Section 2.
Page 62 of 237
instrument panel ................................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
1.56
ENG_UD26557_3
Tableau de bord : afficheurs et indicateurs (X85 - X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
Jaune NoirNoir texte
Displays and indicators
DISpLA yS AND INDICATORS (1/3)
Rev counter 2(graduations x 1000)
The engine speed must not be ex -
ceeded in intermediate gears in order to
ensure economical driving: 3,000 revs
(or 2,500 revs for the diesel version).Speedometer 1
Overspeed buzzer
Depending on the vehicle, a beep
sounds for 10 seconds approximately
every 40 seconds as long as the ve -
hicle is travelling at over 72 miles per
hour (120 km/h).
Note: depending on the vehicle, the de-
sired speed may be programmed; con-
sult an approved Dealer.
1
The presence and operation of the display and indicators DepeNDS ON THe LeveL OF eQUIpMeNT AND THe COUNTRy.
2
Page 63 of 237
levels:fuel ................................................................... (current page)
levels: coolant ............................................................. (current page)
JauneNoirNoir texte
1.57
ENG_UD26557_3
Tableau de bord : afficheurs et indicateurs (X85 - X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
DISpLA yS AND INDICATORS (2/3)
Fuel gauge A
The number of squares lit shows the
fuel level. When it is at the minimum
level, the last square comes on, accom-
panied by a beep. A warning light also
lights up on the instrument panel.
Fill up as soon as possible. There is
only approximately 30 miles (50 km)
worth of fuel left after the warning light
first comes on.
3
4
B
A
Coolant temperature indicator 4
or A
In normal use, the needle should be po-
sitioned before zone B . Under “inten -
sive” operating conditions, the needle
may approach this zone. The only
warning is if the indicator light comes
on or the message “engine overheat -
ing” appears.
The presence and operation of the display and indicators DepeNDS ON THe LeveL OF
eQUIpMeNT AND THe COUNTRy.
Fuel gauge 3
The needle shows the fuel level. When
it is at the minimum level, the fuel warn-
ing light comes on, accompanied by a
beep.
Fill up as soon as possible. There is
only approximately 30 miles (50 km)
worth of fuel left after the warning light
first comes on.
Page 64 of 237
1.58
ENG_UD26557_3
Tableau de bord : afficheurs et indicateurs (X85 - X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
DISpLA yS AND INDICATORS (3/3)
Low engine oil level warning
Depending on the vehicle, when the
engine is started and for 30 seconds,
display A alerts the driver when the
minimum engine oil level is reached.
Refer to the information on the “Engine
oil level” in Section 4.
Display selection keys 5 or 6
Depending on the vehicle, pressing the
button repeatedly enables the informa-
tion on the display to be selected and
the trip mileage recorder to be reset (for
this, the trip mileage must be selected
on the display). –
Display selection
Press briefly to move from the total
mileage to the trip mileage and vice
versa.
– Resetting the trip mileage recorder
Once trip mileage has been selected on
the display, press and hold the button.
Multifunction display
Total mileage recorder.
Trip mileage recorder.
Setting the time.
OR
Trip computer and warning system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
A
The presence and operation of the display and indicators DepeNDS ON THe LeveL OF eQUIpMeNT AND THe COUNTRy.
5
6
Page 65 of 237
trip computer and warning system........(up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.59
ENG_UD21416_1
Ordinateur de bord : généralités (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
Trip computer
TRIp COMpUTeR: general information (1/2)
Trip computer and warning
system A
Depending on the vehicle, this includes
the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ -
ated with the
© warning light);
– warning messages (connected to the
warning light
®).
All these functions are described on the
following pages.
Display selection keys 1
and 2
Scroll through the following informa -
tion upwards (button 1 ) or downwards
(button 2 ) by pressing briefly and suc -
cessively (the display depends on the
vehicle equipment and country).
a) Total mileage and trip mileage re -
corder;
b) journey parameters:
– fuel consumed;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed; c)
mileage before service;
d) cruise control and speed limiter pro-
grammed speed;
e) trip log, operating faults and informa-
tion message readout.
A
1
2
Page 66 of 237
1.60
ENG_UD21416_1
Ordinateur de bord : généralités (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_1
TRIp COMpUTeR: general information (2/2)
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 1 or 2 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 1
or 2 until the display resets.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing the
reset button you may notice:
– that the range increases as you
travel. This range takes into account
the average fuel consumption since
the last time the reset button was
pressed. Therefore, the average fuel
consumption may decrease when:
– the vehicle is no longer accelerat-
ing;
– the engine reaches its operating
temperature (engine cold when
reset button pressed);
– driving from a built-up area onto
the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.1
2
