Page 57 of 260
1.51
21 Gear lever.
22 Remote control/location for radio,
navigation system.
23 Cruise control/speed limiter
controls.
24 Bonnet release control.
25 Controls for:
– parking distance;
– headlight vertical beam adjust-
ment.
26 Controls for:
– cruise control/speed limiter.
– deactivating/activating the Stop
and Start function.
– activation/deactivation of the trac-
tion control or grip system.
1 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights.
2 – Horn,
– location for driver’s air bag.
3 Instrument panel.
4 Stalk for:
– wipers,
– windscreen washer,
– trip computer and warning system.
5 Ignition switch.
6 Multimedia display or touchscreen:
– seat belt reminder warning light,
– air bag deactivation warning light,
– navigation,
– clock,
– exterior temperature.
7 Centre air vent.
8 Controls for ventilation, heating
and de-icing. 9 Windscreen demister outlet.
10 Location for passenger air bag.
11 Side air vent.
12 Side window demister outlet.
13 Glovebox.
14 Storage space or accessories
socket.
15 Hazard warning lights switch.
16 Door electric locking/unlocking
switch.
17 ECO mode switch.
18 Cigarette lighter/12 V socket.
19 Central storage compartment.
20 Handbrake.
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
Page 59 of 260
1.53
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
15 Location for radio, navigation
system.
16 Gear lever.
17 Handbrake.
18 Central storage compartment.
19 ECO mode switch.
20 Cigarette lighter/12 V socket.
21 Door electric locking/unlocking
switch.
22 Hazard warning lights switch.
23 Storage space or accessories
socket.
24 Glovebox.
25 Bonnet release control.
9 – Horn.
– Location for driver’s air bag.
10 Instrument panel.
11 Stalk for:
– wipers,
– windscreen washer,
– trip computer and warning system.
12 Controls for:
– cruise control/speed limiter;
– activating/deactivating the trac-
tion control or grip system;
– deactivating/activating the Stop
and Start function;
– parking distance control;
– headlight beam adjustment.
13 Ignition switch.
14 Cruise control/speed limiter con-
trols.
1 Side window demister outlet.
2 Side air vent.
3 Location for passenger airbag.
4 Windscreen demister outlet.
5 Controls for ventilation, heating
and de-icing.
6 Centre air vent.
7 Multimedia display or touchscreen:
– seat belt reminder warning light,
– air bag deactivation warning light,
– navigation,
– clock,
– exterior temperature.
8 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights.
The equipment fitted, described below, DEPENDS ON THE VERSION
AND COUNTRY.

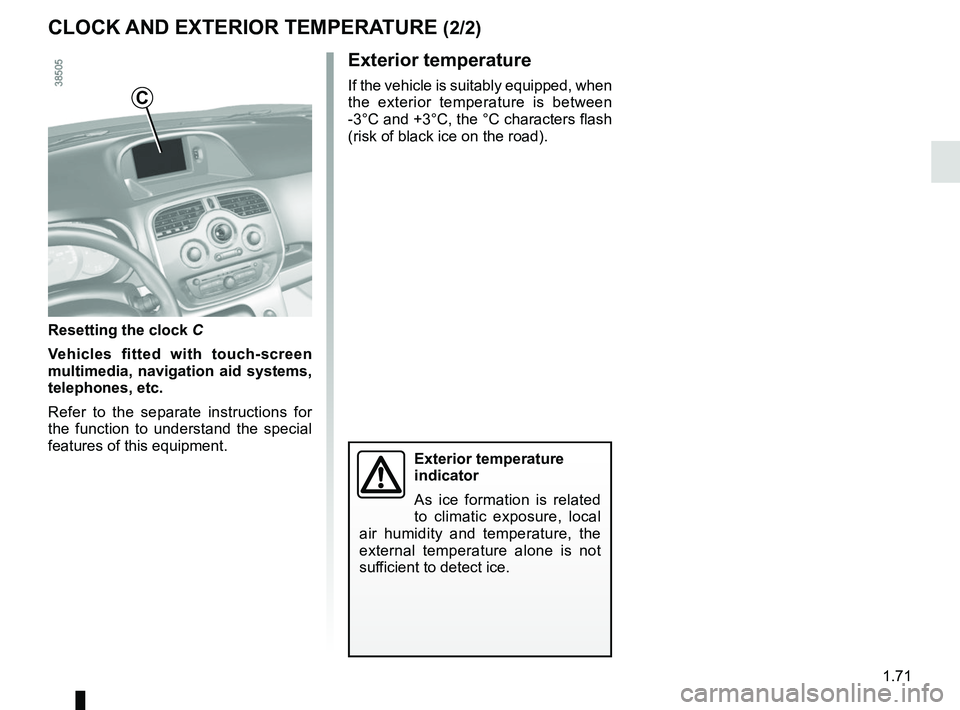

Page 77 of 260
1.71
Resetting the clock C
Vehicles fitted with touch-screen
multimedia, navigation aid systems,
telephones, etc.
Refer to the separate instructions for
the function to understand the special
features of this equipment.
CLOCK AND EXTERIOR TEMPERATURE (2/2)
Exterior temperature
If the vehicle is suitably equipped, when
the exterior temperature is between
-3°C and +3°C, the °C characters flash
(risk of black ice on the road).
Exterior temperature
indicator
As ice formation is related
to climatic exposure, local
air humidity and temperature, the
external temperature alone is not
sufficient to detect ice.
C
Page 103 of 260
2.11
DRIVING ADVICE, ECO-DRIVING (1/4)
Fuel consumption is accredited in ac-
cordance with a standard regulatory
method. Identical for all manufactu-
rers, this enables vehicles to be com-
pared with one another. Consumption
in real time depends on vehicle usage
conditions, the equipment fitted and the
user’s driving style. To optimise fuel
consumption, please refer to the fol-
lowing advice.
Depending on the vehicle, you will have
various functions which enable you to
lower your fuel consumption:
– the ECO zone of the rev counter;
– gear change indicator;
– the journey record and eco-driving advice via the multimedia display;
– ECO mode – activated by the ECO button.
If fitted on the vehicle, the navigation
system provides additional information.Gear change indicator 2
Depending on the vehicle, to obtain op-
timum consumption levels, a warning
light on the instrument panel lets you
know the best time to move up or down
a gear:
Š move up a gear;
‰ move down a gear.
2
The ECO zone of the rev
counter 1
Driving in the ECO zone helps you opti-
mise fuel consumption.
1
Page 220 of 260
5.28
FUSES (2/2)
Number Allocation
1 Fuel pump
2 Not used
3 Passenger compartment
engine cooling fan
4 Passenger compartment
engine cooling fan
5 Rear windscreen wiper
6 Horn, diagnostic socket
7 Heated seats
8 Electric rear windows
9 Passenger compartment
ECU
10 Windscreen washer
11 Brake lights
12 Passenger compartment
unit, ABS, ESP
13 Electric windows, child
safety, heating and air
conditioning system, ECO
mode
14 Not used
15 StarterNumber Allocation
16 Brake lights, additional
equipment, navigation,
ABS, ESP, boot light, tyre
pressure warning light,
interior lights, rain and light
sensor
17 Radio, navigation system,
display, alarm
18 Additional equipment
19 Heated door mirrors
20 Hazard lights, rear fog lights
21 Central locking of opening
elements
22 Instrument panel
23 Rear accessories socket
24 ESC, radio, heating and air
conditioning system, heated
seats, stop lights
25 Front accessories socket
26 Towbar
27 Electric front windows
28 Rear-view mirror control
29 De-icing the rear screen and
rear view mirror
12
3456
78910
11121314
15161718
19202122
23242526
27
28
29
Allocation of fusesThe presence of certain fuses de-
pends on the vehicle equipment
level.
Page 255 of 260
7.3
ALPHABETICAL INDEX (3/5)
interior trimmaintenance ..................................................... 4.17 – 4.18
Isofix .................................................................\
.....1.37 → 1.45
J
jack ...................................................................\
.......... 5.8, 5.11
L
levels .................................................................\
......4.8 → 4.10
levels: brake fluid ...................................................................... 4.8
coolant ................................................................\
.. 1.59, 4.9
fuel ...................................................................\
............ 1.59
windscreen washer reservoir ....................................... 4.10
lifting the vehicle changing a wheel .............................................. 5.11 – 5.12
lighting: interior ............................................................... 3.17 – 3.18
lights adjustment ........................................................ 1.78 – 1.79
changing bulbs .................................................. 5.16 – 5.17
fog lights ...................................................................... 5.18
front ................................................................... 5.16 – 5.17
lights: brake lights .................................................................. 5.19
dipped beam headlights ............................. 1.54, 1.75, 5.16
direction indicators ..................................... 1.54, 1.74, 5.19
fog lights .................................................... 1.54, 1.77, 5.18
hazard warning ............................................................ 1.74
main beam headlights .............................. 1.54, 1.75 – 1.76
number plate lights ...................................................... 5.21
reversing lights ............................................................. 5.19
side lights ..................................................................... 1.75
lights-on warning buzzer............................................. 1.7, 1.76
locking the doors ............................................. 1.6, 1.12 – 1.13
luggage compartment cover .............................................. 3.33 luggage retaining net ......................................................... 3.34
M
maintenance ............................................................\
.......... 2.15
maintenance: bodywork .......................................................... 4.15 – 4.16
interior trim ........................................................ 4.17 – 4.18
mechanical ....................................... 4.2 → 4.5, 6.9 → 6.14
map reading lights .................................................. 3.17 – 3.18
methods of restraint in addition to the front seat belts ..............
1.29 → 1.31
methods of restraint in addition to the seat belts ...1.29 → 1.33
multimedia equipment ................................... 3.37, 5.33 – 5.34
N
navigation .............................................................\
............. 3.37
navigation system .............................................................. 3.37
O
oil change ................................................................... 4.6 – 4.7
opening the doors .................................................... 1.7 → 1.11
operating faults ................................ 1.54 → 1.57, 5.37 → 5.40
P
paintwork maintenance ..................................................... 4.15 – 4.16
reference ..............................................................\
.......... 6.2
parking distance control.......................................... 2.38 – 2.39
partition ..............................................................\
................ 1.24
power-assisted steering....................................................... 2.8
practical advice .................................................................. 5.34
pretensioners ..........................................................\
........... 1.29
puncture...................................................................... 5.8, 5.11
R
radio............................................................... 3.37, 5.33 – 5.34
