3.13
AIR CONDITIONING: information and operating instructions (2/2)
The refrigerant circuit may contain
fluorinated greenhouse gases.
Depending on the vehicle, you will find
the following information on label A af-
fixed inside the engine compartment.
The presence and location of the infor-
mation on label A depends on the ve-
hicle.
AAA
Do not open the refrigerant
fluid circuit. The fluid may
damage eyes or skin.
ÑType of refrigerant fluid
Type of oil in the air condi-
tioning circuit
Inflammable product
Consult the driver’s hand-
book
Maintenance
Quantity of refrigerant
fluid present in the ve-
hicle.
x.xxx kg
Global Warming
Potential (CO2 equi-
valent).
GWP xxxxx
Quantity in weight and
in CO2 equivalent.
CO2 eq
x.xx t
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).

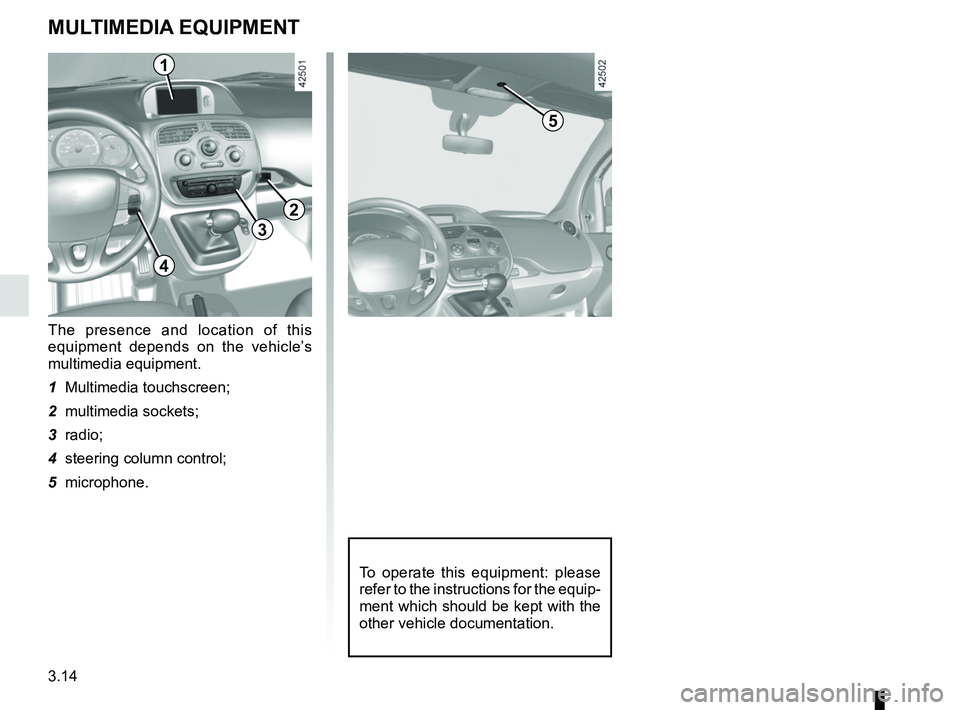

3.14
MULTIMEDIA EQUIPMENT
The presence and location of this
equipment depends on the vehicle’s
multimedia equipment.
1 Multimedia touchscreen;
2 multimedia sockets;
3 radio;
4 steering column control;
5 microphone.
To operate this equipment: please
refer to the instructions for the equip-
ment which should be kept with the
other vehicle documentation.
1
3
2
4
5

3.15
Luggage compartment light 2Tilt the switch 2 for permanent lighting.
INTERIOR LIGHTING
1
Courtesy lights
Pressing switch 1 gives:
– permanent lighting;
– intermittent lighting, which comes on when a door is opened. It goes out
when the doors concerned are prop-
erly closed;
– immediate switching off.
2
Special features
Depending on the vehicle, remote un-
locking of the doors triggers timed light-
ing of the passenger compartment. If
one of the front or rear doors is opened,
the period for which the light is switched
on will start again.
Then the courtesy light and the luggage
compartment light dim and go out.
The lighting timer will cut out for vari-
ous reasons:
– if a door has been open for 15 min- utes;
– if all the doors have been closed for 15 seconds or 5 minutes, depending
on the vehicle;
– when the ignition is switched on.

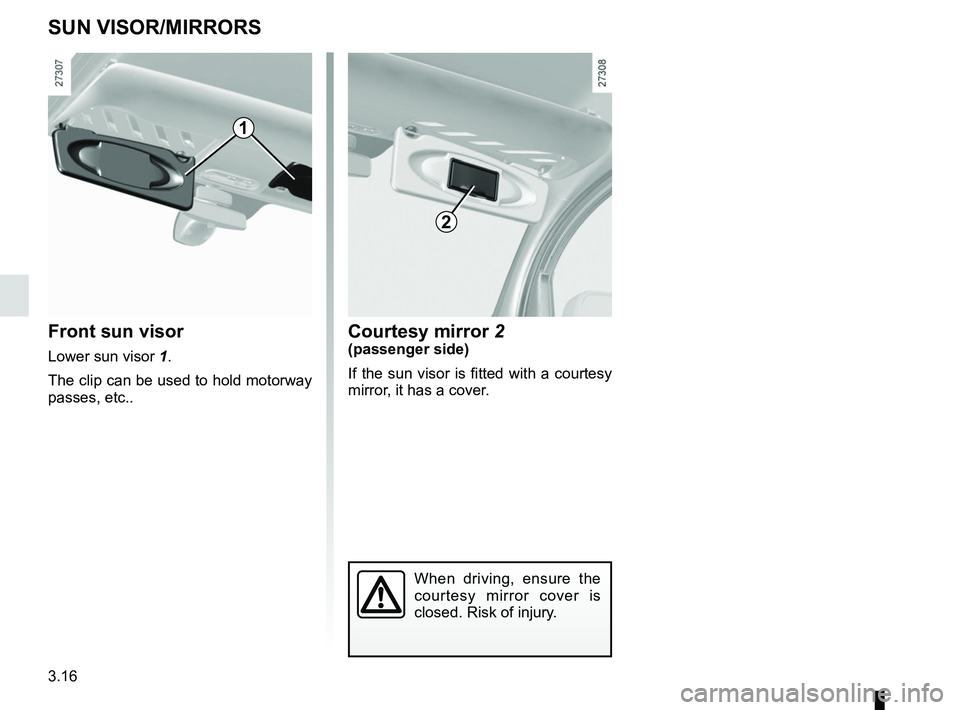

3.16
Front sun visor
Lower sun visor 1.
The clip can be used to hold motorway
passes, etc..
SUN VISOR/MIRRORS
Courtesy mirror 2(passenger side)
If the sun visor is fitted with a courtesy
mirror, it has a cover.
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
2
1

3.17
Electric windows
With the ignition on:
– press the switch for the window concerned to lower it to the desired
height;
– lift the switch for the window con- cerned to raise it to the desired
height.
From the driver’s seat
Operate the switches as follows:
– 1 for the driver’s side;
– 2 for the front passenger side.
ELECTRIC WINDOWS
From the front passenger seat
Operate switch 3.
1
23
Driver’s responsibility
Never leave your vehicle with the key inside, and with a child, adult wh\
o
is not self-sufficient or a pet, even for a short while. They may pose a risk
to themselves or to others by starting the engine or activating equipmen\
t
(such as the gear lever or electric windows). If any part of the body \
becomes
trapped, reverse the direction of the window immediately by pressing the\
relevant
switch.
Risk of serious injury.
One-touch electric window(depending on vehicle)
The one-touch mode works in addition
to the operation of the electric windows
described previously.
It is fitted to the driver’s window and
is used for lowering only.
Briefly press switch 1: the window will
open completely.
Pressing the switch again while the
window is moving will stop its move-
ment.
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.

3.18
Removable ashtray 1
This is a removable ashtray which can
be placed in the cup holders.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.
ASHTRAYS, CIGARETTE LIGHTER, ACCESSORIES SOCKETS
1
Cigarette lighter 2
With the ignition on, press it in. It will
spring back with a click when it is ready.
Pull it out to use.
After use, replace it without pushing it
all the way in.
Accessories sockets
You can use the cigarette lighter
socket2. It is provided for connecting
accessories approved by the Technical
Department with a maximum power of
120 Watts (voltage 12 V).
Depending on the 12V battery charge,
the accessories socket may stop work-
ing.
2
Connect accessories
with a maximum power of
120 Watts only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.

3.19
Dashboard storage
compartment 2
Centre console storage
compartment 3
To open, lift cover 4. It will store a
1.5 litre bottle.
Glovebox
To open the glovebox, lift catch 1.
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/3)
1
2
4
3
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.

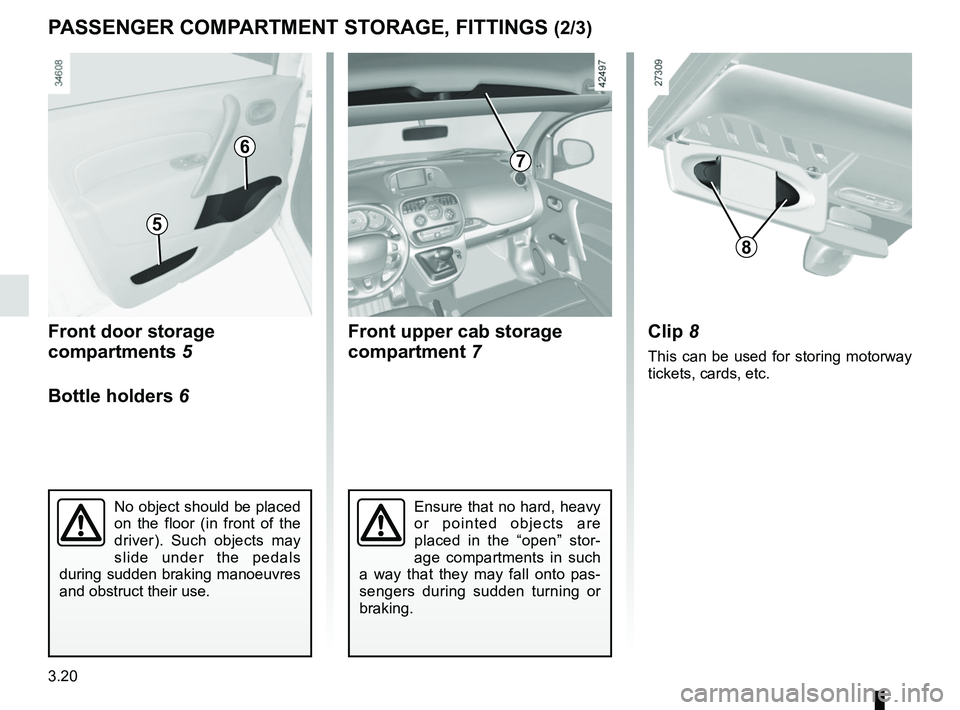

3.20
Front upper cab storage
compartment 7
Front door storage
compartments 5
Bottle holders
6
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/3)
No object should be placed
on the floor (in front of the
driver). Such objects may
slide under the pedals
during sudden braking manoeuvres
and obstruct their use.
Clip 8
This can be used for storing motorway
tickets, cards, etc.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
5
67
8

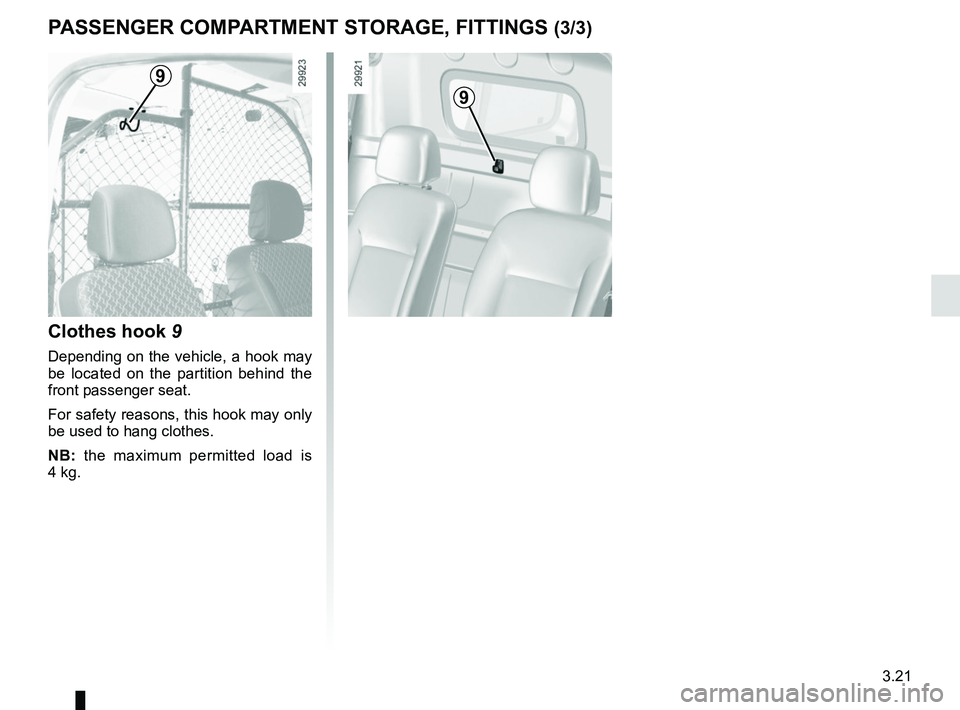

3.21
PASSENGER COMPARTMENT STORAGE, FITTINGS (3/3)
Clothes hook 9
Depending on the vehicle, a hook may
be located on the partition behind the
front passenger seat.
For safety reasons, this hook may only
be used to hang clothes.
NB: the maximum permitted load is
4 kg.
9
9

3.22
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition.
Storage position 2Pull it towards you and lower it com-
pletely.
The fully lowered headrest position
is a storage position: it should not be
in this position when a seat is occupied.To raise itSlide it to the required height.
To lower itPull it towards you and slide it to the re-
quired height.
To remove itRaise the headrest then press tabs 1 to
release it.
To refit itPress tab 1 and insert the rods into the holes, with the notches facing forwards.
REAR HEADRESTS
Child’s convertible headrest
If fitted to the vehicle, the child head-
rest and booster cushion can only be
installed on the rear side seats.
For fitting and use, refer to the equip-
ment instructions.
