Rear-view mirrors
interior rear view mirror
The interior rear view mirror is adjusta-
ble. When driving at night, tilt lever 1 to
avoid being dazzled by the headlights
of the vehicle behind.
reAr-vieW mirrOrS
1
heated door mirrors
When the engine is started, mirror de-
icing is activated with the rear screen
de-icing/demisting.
Folding door mirrors
Move button 2 to position D to fold the
door mirrors in. To reset them for driv-
ing, return to position B.
If you fold the door mirrors in manually
before resetting them to driving posi -
tion B , you must first turn button 2 to
position D.
Door mirrors with electrical
adjustment
With the ignition on, turn button 2:
– position A to adjust the left-hand
door mirror;
– position C to adjust the right-hand
door mirror.
B is the inactive position.
2
B
c
D
A
Page 123 of 213
lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.12
ENG_UD25343_2
Eclairage intérieur (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_3
Jaune NoirNoir texte
Interior lighting
interior liGHtinG (1/2)
1
luggage compartment light A(depending on vehicle)
Tilt the switch 2 for permanent lighting.
A
2
Unlocking and opening the doors or
luggage compartment switches on
the timed courtesy lights.
Courtesy lights
Pressing switch 1 gives:
– permanent lighting;
– intermittent lighting, which comes on
when a door is opened. It goes out
when the doors concerned are prop-
erly closed;
– immediate switching off.
B
luggage compartment light B(depending on vehicle)
Page 150 of 213
5.1
ENG_UD29096_4
Sommaire 5 (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Section 5: Practical advice
Puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Emergency spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3
Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8
Wheels, trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.10
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.12
Headlights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.15
Fog lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17
Rear lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.18
Indicator lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21
Interior lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22
12 volt battery: breakdowns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.24
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.26
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28
Towing/breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.30
Fitted audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.33
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.35
Radio frequency remote control unit: batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.36
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.37
Page 171 of 213
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
interior lighting: changing bulbs ................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.22
ENG_UD25345_2
Eclairage intérieur : remplacement des lampes (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Jaune NoirNoir texte
Interior lighting: changing bulbs
Passenger compartment
lights
Remove the lens 1 using a tool such as
a flat-blade screwdriver.
InterIOr lIghts: changing bulbs (1/2)
1
Pull the bulb 2 to remove it from its
housing.
Bulb type 2: w6w
rear courtesy light bulb type: w6w
Replace the bulbs and replace the lens.
2
Page 172 of 213
JauneNoirNoir texte
5.23
ENG_UD25345_2
Eclairage intérieur : remplacement des lampes (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5
InterIOr lIghts: changing bulbs (2/2)
light A
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type a: w5w
Replace the bulb and refit the lens.
light B or C
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type B or C : w6w
Replace the bulb and refit the lens.
a
B
c
Page 176 of 213
JauneNoirNoir texte
5.27
ENG_UD23043_4
Fusibles (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Fuses (2/2)
Some functions are protected by fuses
located in the engine compartment.
However, because of their reduced ac-
cessibility, you are advised to have
these fuses replaced by an approved
Dealer.symbol allocation symbolallocation
Z
Interior lighting, electric
door mirrors, rain/light sen-
sors, heating and air con -
ditioning system.
î
Radio, display, heating and
air conditioning system,
heated seat
ÌHornInstrument panel
DRear fog lights, warningëAccessories socket, cigar
lighter
Electric windowsö
Consumer cut-out (radio,
navigation system, display,
alarm)
ñHeated seatsgHeated door mirrors
fRear screen wiperHFront/rear windscreen wash-
ers
xPassenger compartment
heating systemNCentral door locking
aDaPt Location reserved for addi
-
tional equipment.
nABS
ßBrake lights
allocation of fuses (the presence of fuses DePenDs On the eQuIPment leVel
OF the VehIcle)
Page 210 of 213
JauneNoirNoir texte
7.3
FRA_UD29098_4
Index (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_7

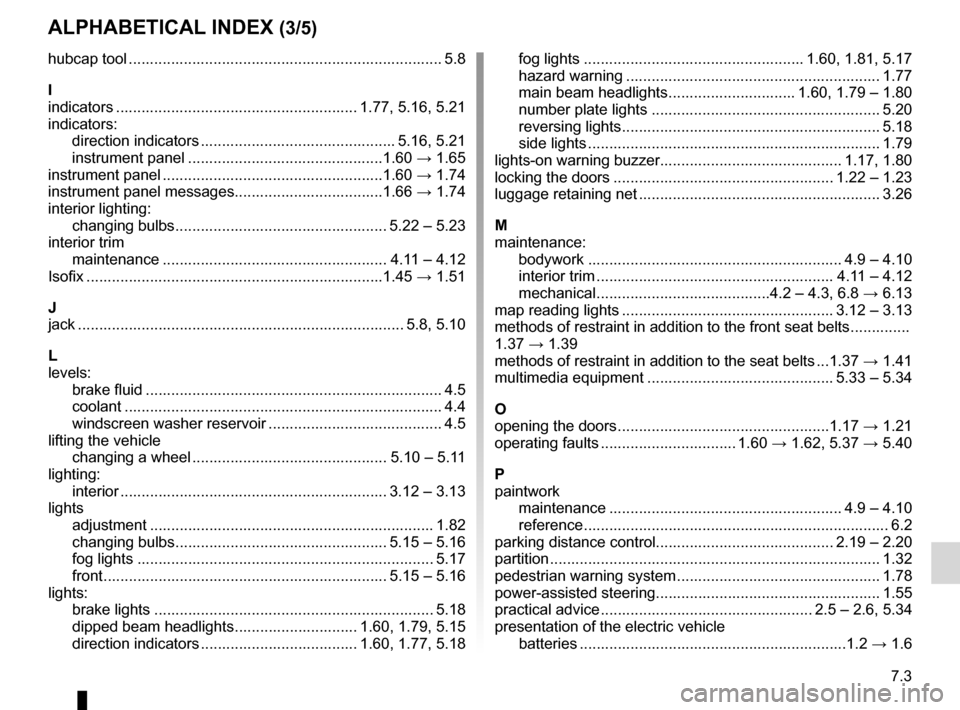

AlphAbeticAl index (3/5)
hubcap tool .......................................................................... 5.8
i
indicators ......................................................... 1.77, 5.16, 5.21
indicators: direction indicators .............................................. 5.16, 5.21
instrument panel .............................................. 1.60 → 1.65
instrument panel .................................................... 1.60 → 1.74
instrument panel messages ...................................1.66 → 1.74
interior lighting: changing bulbs .................................................. 5.22 – 5.23
interior trim maintenance ..................................................... 4.11 – 4.12
Isofix ...................................................................... 1.45 → 1.51
J
jack ............................................................................. 5.8, 5.10
l
levels: brake fluid ...................................................................... 4.5
coolant ........................................................................... 4.4
windscreen washer reservoir ......................................... 4.5
lifting the vehicle changing a wheel .............................................. 5.10 – 5.11
lighting: interior ............................................................... 3.12 – 3.13
lights adjustment ................................................................... 1.82
changing bulbs .................................................. 5.15 – 5.16
fog lights ...................................................................... 5.17
front ................................................................... 5.15 – 5.16
lights: brake lights .................................................................. 5.18
dipped beam headlights ............................. 1.60, 1.79, 5.15
direction indicators ..................................... 1.60, 1.77, 5.18fog lights
.................................................... 1.60, 1.81, 5.17
hazard warning ............................................................ 1.77
main beam headlights .............................. 1.60, 1.79 – 1.80
number plate lights ...................................................... 5.20
reversing lights ............................................................. 5.18
side lights ..................................................................... 1.79
lights-on warning buzzer ........................................... 1.17, 1.80
locking the doors .................................................... 1.22 – 1.23
luggage retaining net ......................................................... 3.26
M
maintenance: bodywork ............................................................ 4.9 – 4.10
interior trim ........................................................ 4.11 – 4.12
mechanical .........................................4.2 – 4.3, 6.8 → 6.13
map reading lights .................................................. 3.12 – 3.13
methods of restraint in addition to the front seat belts ..............
1.37 → 1.39
methods of restraint in addition to the seat belts ... 1.37 → 1.41
multimedia equipment ............................................ 5.33 – 5.34
O
opening the doors .................................................. 1.17 → 1.21
operating faults ................................ 1.60 → 1.62, 5.37 → 5.40
p
paintwork maintenance ....................................................... 4.9 – 4.10
reference ........................................................................ 6.2
parking distance control .......................................... 2.19 – 2.20
partition .............................................................................. 1.32
pedestrian warning system ................................................ 1.78
power-assisted steering ..................................................... 1.55
practical advice .................................................. 2.5 – 2.6, 5.34
presentation of the electric vehicle batteries ............................................................... 1.2 → 1.6
