overheating RENAULT KANGOO ZERO EMISSION 2012 X61 / 2.G Owners Manual

instrument panel messages..................(up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.74
ENG_UD25280_2
Ordinateur de bord : messages d’alerte (X61 électrique - Renault)\
ENG_NU_911-4_F61e_Renault_1
these appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. Stop your engine and do not restart it. contact an approved Dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and \
may be accompanied by a warning light and/or a beep.
examples of messages interpretation of messages
« eNgiNe OverheA tiNg »Indicates that the engine is overheating.
« SteeriNg FAUlt » Indicates a fault in the vehicle’s power assisted steering.
« electrical fault danger » Indicates a fault in the electrical system.
« electrical motor fault » Indicates that the vehicle is losing power.
« BrAKiNg SYStem FAUlt » Indicates a fault in the braking system.
triP cOmPUter AND WArNiNg SYStem: warning message

JauneNoirNoir texte
5.29
ENG_UD21481_4
Balais d’essuie-vitres (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_5
wInDscreen wIPer BlaDes (2/2)
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
replacing the rear screen
wiper blade
hinged door versions B
– with the ignition off, lift the wiper
arm 6.
– Turn blade 4.
– Press tab 5.
– Pull the blade to release it (arrow).
For refitting, proceed in the reverse
order and ensure that the blade is cor-
rectly clipped on.
B4
6
t ailgate versions C
– with the ignition off, lift wiper
arm 7.
– Pivot blade 8 until some resistance
is met.
– Pull the blade to release it (arrow).
For refitting, proceed in the reverse
order and ensure that the blade is cor-
rectly clipped on.
c
7
8
5

JauneNoirNoir texte
5.39
ENG_UD28909_3
Anomalie de fonctionnement (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_5

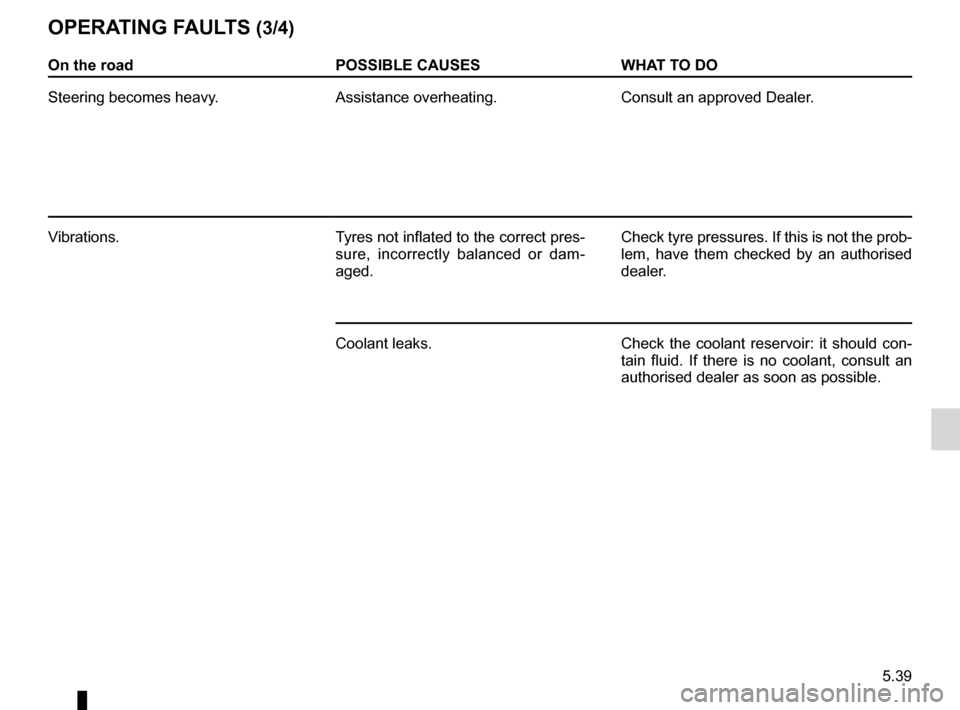

On the road POssIBle causeswhat tO DO
Steering becomes heavy. Assistance overheating.Consult an approved Dealer.
Vibrations. Tyres not inflated to the correct pres-
sure, incorrectly balanced or dam-
aged. Check tyre pressures. If this is not the prob-
lem, have them checked by an authorised
dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
authorised dealer as soon as possible.
OPeratIng Faults (3/4)
