RENAULT KOLEOS 2018 Owners Manual

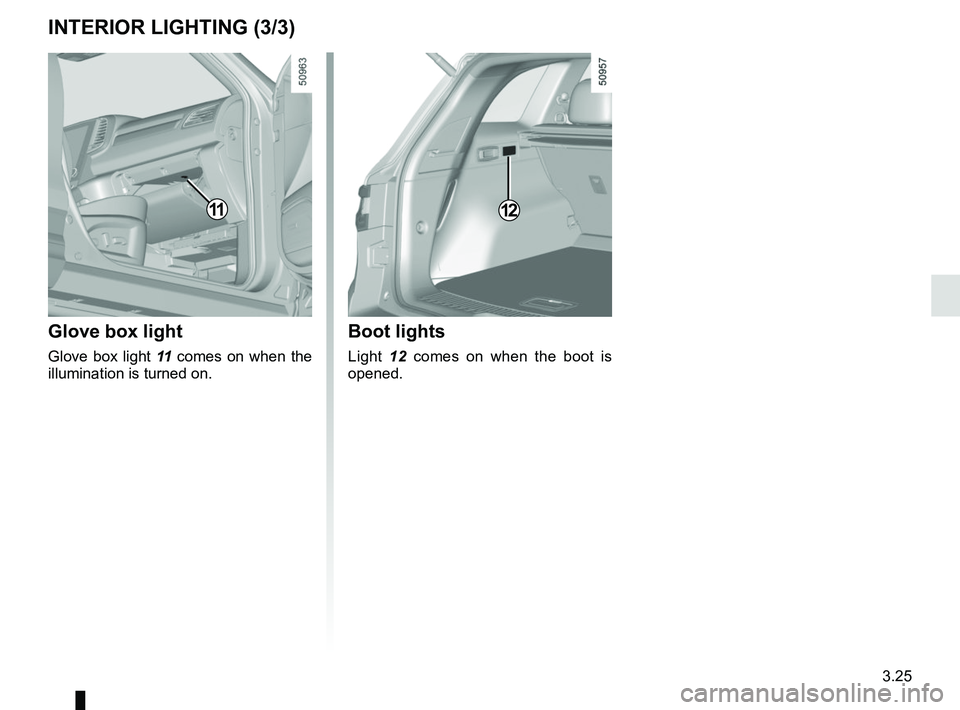

3.25
INTERIOR LIGHTING (3/3)
Glove box light
Glove box light 11 comes on when the
illumination is turned on.
12
Boot lights
Light 12 comes on when the boot is
opened.
11

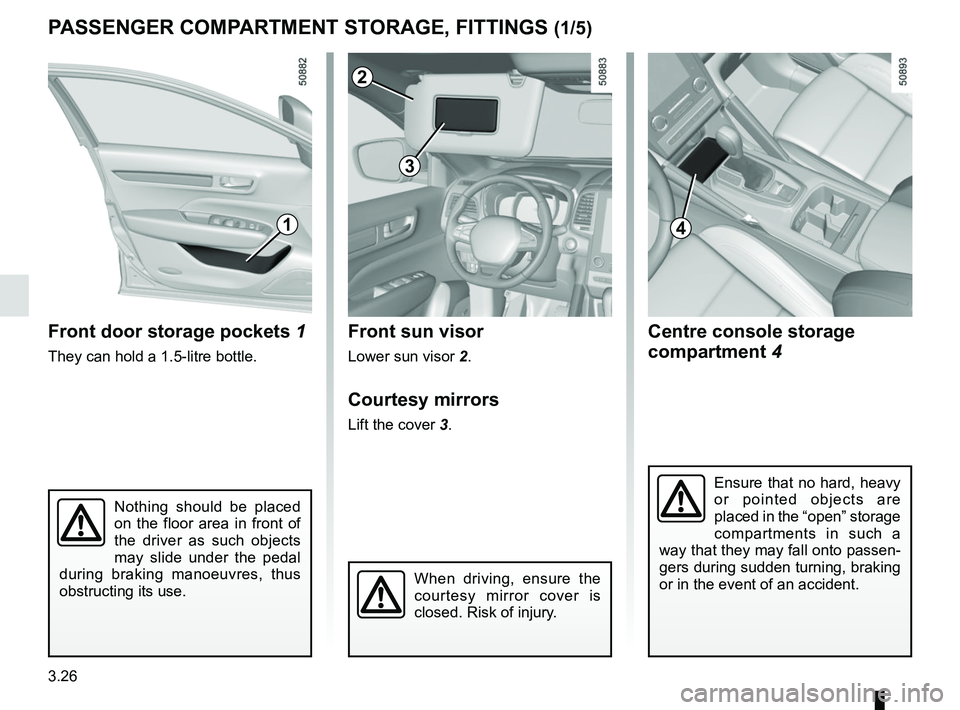

3.26
Centre console storage
compartment 4
Front sun visor
Lower sun visor
2.
Courtesy mirrors
Lift the cover 3.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Front door storage pockets 1
They can hold a 1.5-litre bottle.
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/5)
1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
4
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
3
2

3.27
Front centre armrest storage
compartment 10
With the sliding armrest 8 in its rear-
most position, lifting the control 9 and
raise the armrest.
Cup holders 5
This can be used for storing a mobile
ashtray, cup holder, etc.
Slide the curtain 6 to open the storage
compartment.
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.

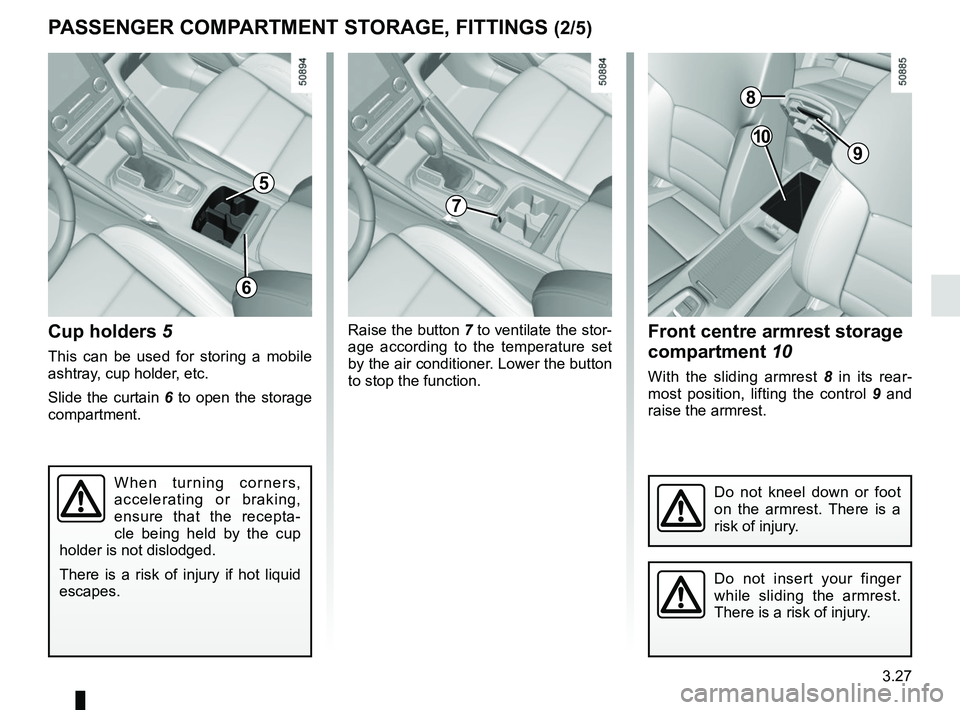

PASSENGER COMPARTMENT STORAGE, FITTINGS (2/5)
5
Raise the button 7 to ventilate the stor-
age according to the temperature set
by the air conditioner. Lower the button
to stop the function.
8
9
10
7
6
Do not kneel down or foot
on the armrest. There is a
risk of injury.
Do not insert your finger
while sliding the armrest.
There is a risk of injury.

3.28

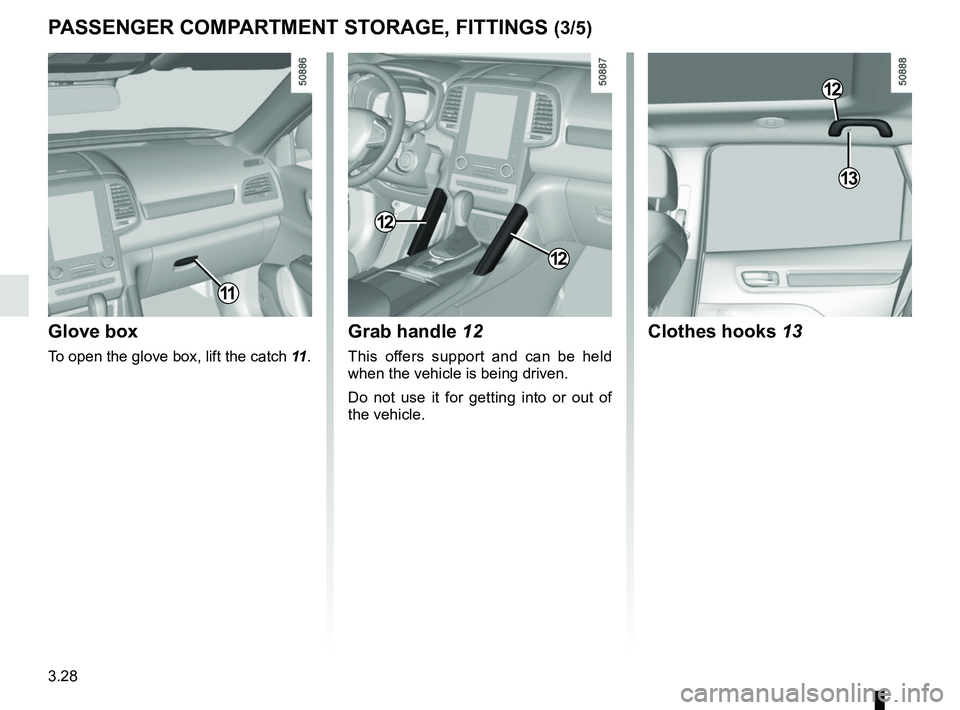

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/5)
Glove box
To open the glove box, lift the catch 11.
11
12
Grab handle 12
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
13
12
Clothes hooks 13
12

3.29

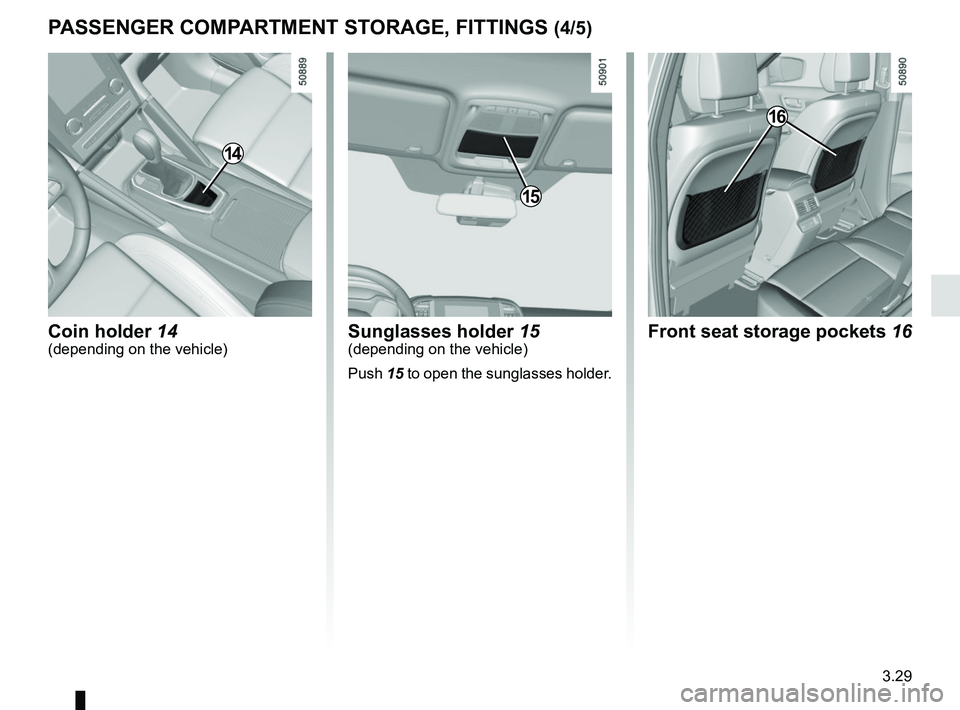

PASSENGER COMPARTMENT STORAGE, FITTINGS (4/5)
Sunglasses holder 15(depending on the vehicle)
Push 15 to open the sunglasses holder.
16
Front seat storage pockets 16
15
Coin holder 14(depending on the vehicle)
14

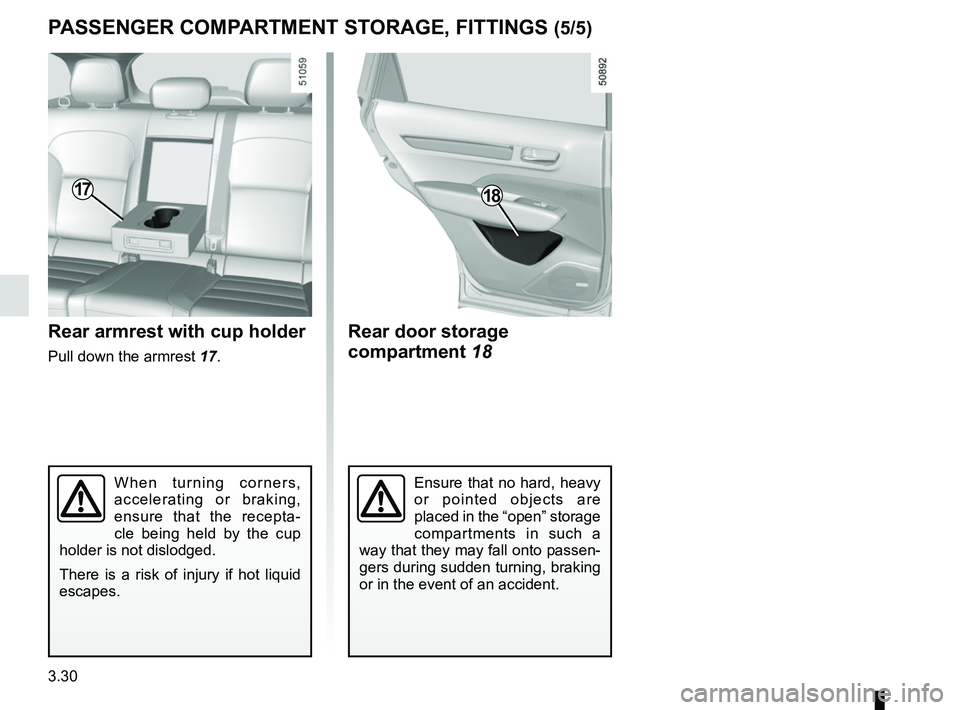

3.30
Rear door storage
compartment 18
PASSENGER COMPARTMENT STORAGE, FITTINGS (5/5)
18
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Rear armrest with cup holder
Pull down the armrest 17.
17
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.

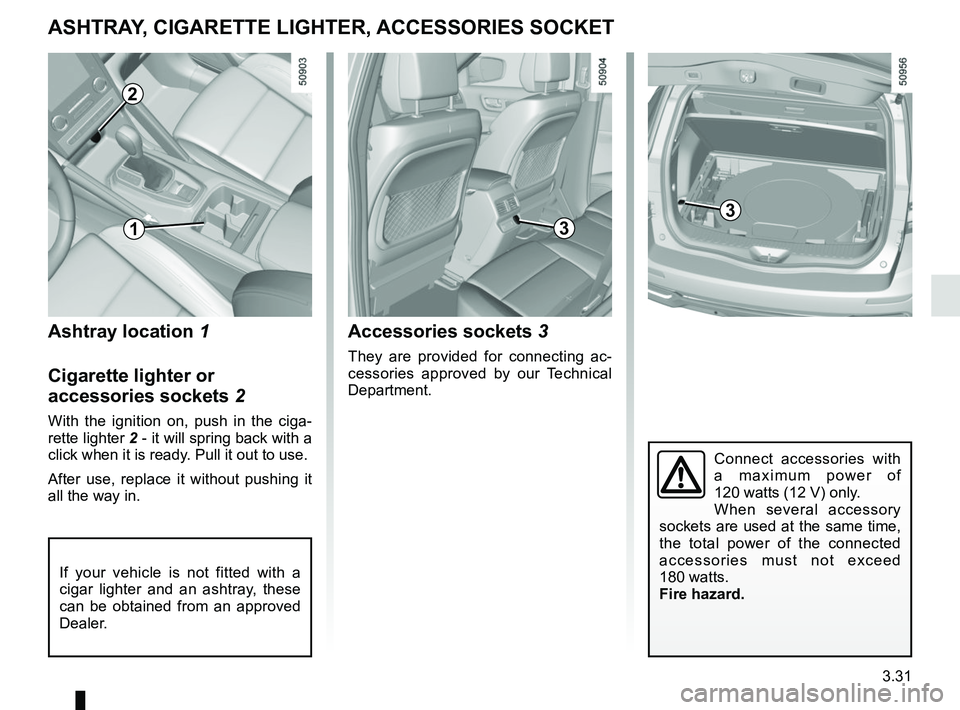

3.31
Ashtray location 1
Cigarette lighter or
accessories sockets 2
With the ignition on, push in the ciga-
rette lighter 2 - it will spring back with a
click when it is ready. Pull it out to use.
After use, replace it without pushing it
all the way in.
Accessories sockets 3
They are provided for connecting ac-
cessories approved by our Technical
Department.
ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
2
13
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
3

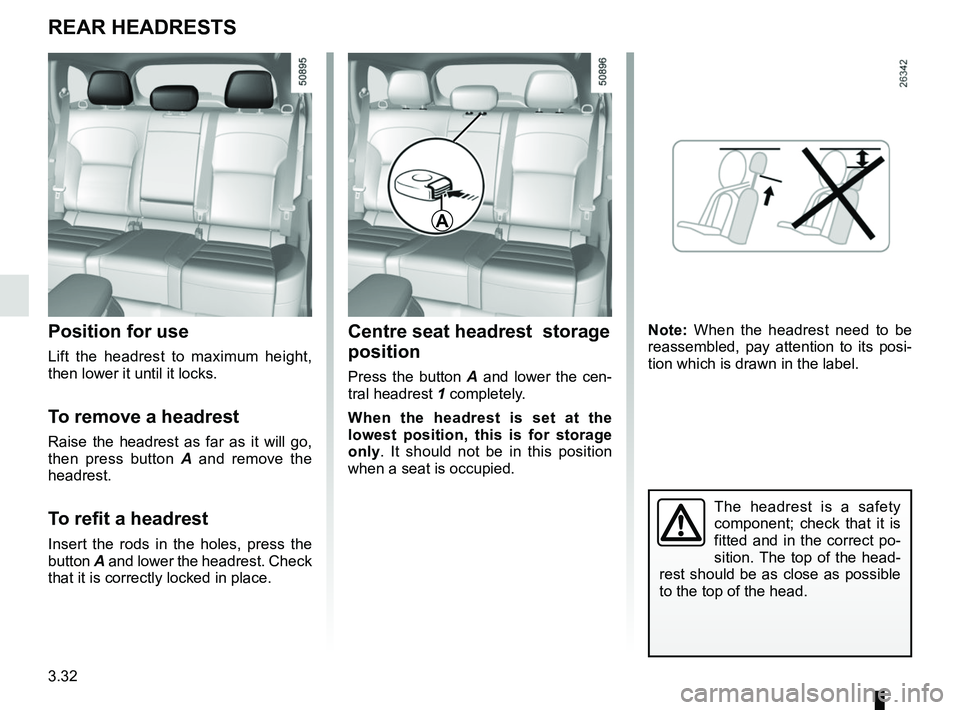

3.32
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
Centre seat headrest storage
position
Press the button A and lower the cen-
tral headrest 1 completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
Position for use
Lift the headrest to maximum height,
then lower it until it locks.
To remove a headrest
Raise the headrest as far as it will go,
then press button A and remove the
headrest.
To refit a headrest
Insert the rods in the holes, press the
button A and lower the headrest. Check
that it is correctly locked in place.
REAR HEADRESTS
A
Note: When the headrest need to be
reassembled, pay attention to its posi-
tion which is drawn in the label.

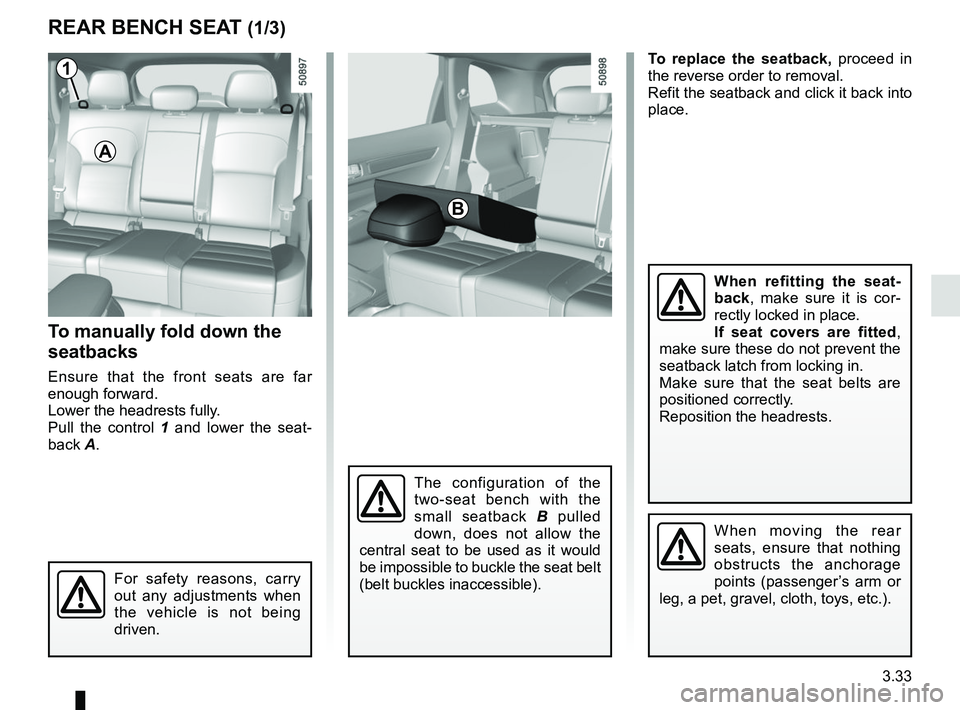

3.33
To replace the seatback, proceed in
the reverse order to removal.
Refit the seatback and click it back into
place.
REAR BENCH SEAT (1/3)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
A
1
The configuration of the
two-seat bench with the
small seatback B pulled
down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
To manually fold down the
seatbacks
Ensure that the front seats are far
enough forward.
Lower the headrests fully.
Pull the control 1 and lower the seat-
back A.
B

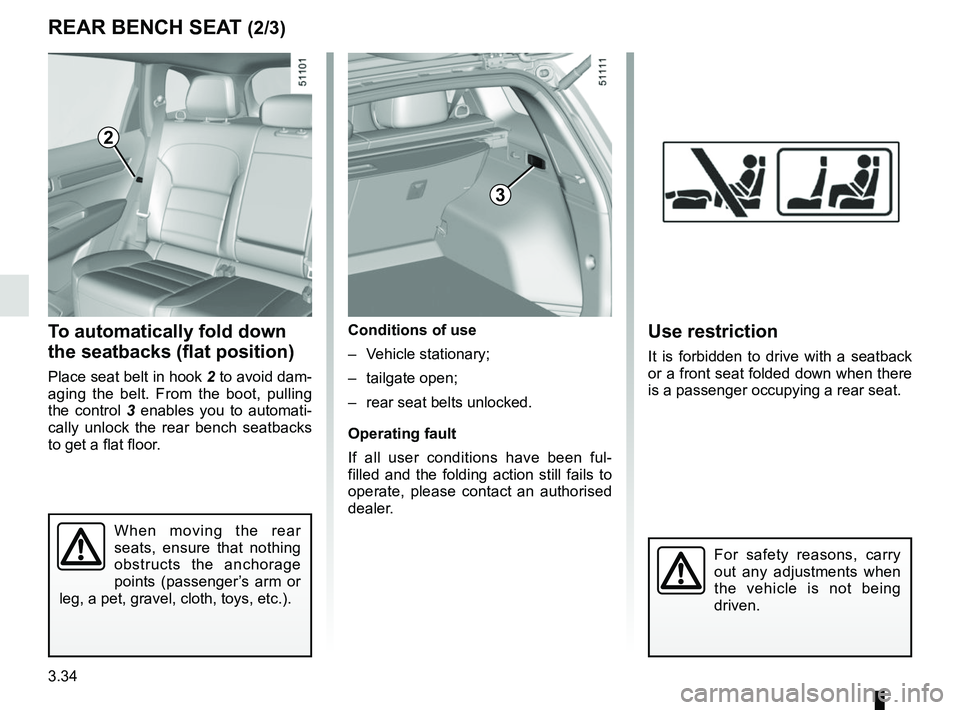

3.34
To automatically fold down
the seatbacks (flat position)
Place seat belt in hook 2 to avoid dam-
aging the belt. From the boot, pulling
the control 3 enables you to automati-
cally unlock the rear bench seatbacks
to get a flat floor.
Conditions of use
– Vehicle stationary;
– tailgate open;
– rear seat belts unlocked.
Operating fault
If all user conditions have been ful-
filled and the folding action still fails to
operate, please contact an authorised
dealer.
REAR BENCH SEAT (2/3)
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
Use restriction
It is forbidden to drive with a seatback
or a front seat folded down when there
is a passenger occupying a rear seat.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
2
3
