Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

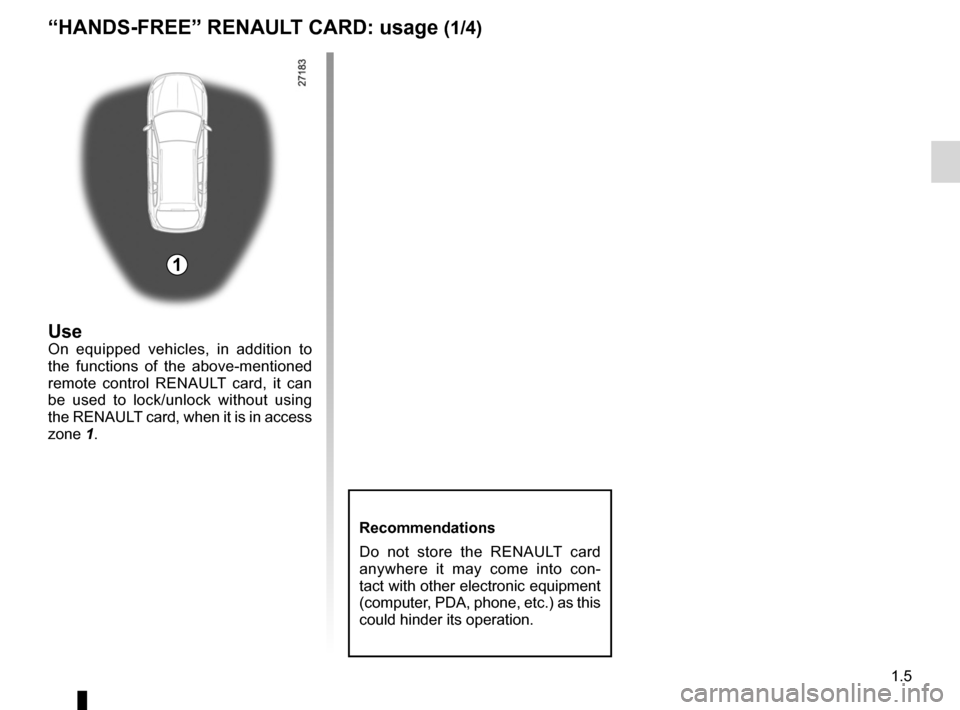

“HANds-fREE” RENAULT cARd: usage (1/4)
UseOn equipped vehicles, in addition to
the functions of the above-mentioned
remote control RENAULT card, it can
be used to lock/unlock without using
the RENAULT card, when it is in access
zone 1.
1
Recommendations
Do not store the RENAULT card
anywhere it may come into con -
tact with other electronic equipment
(computer, PDA, phone, etc.) as this
could hinder its operation.

1.6
ENG_UD29078_7
Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
Jaune NoirNoir texte
“HANds-fREE” RENAULT cARd: usage (2/4)
2
3
3
4

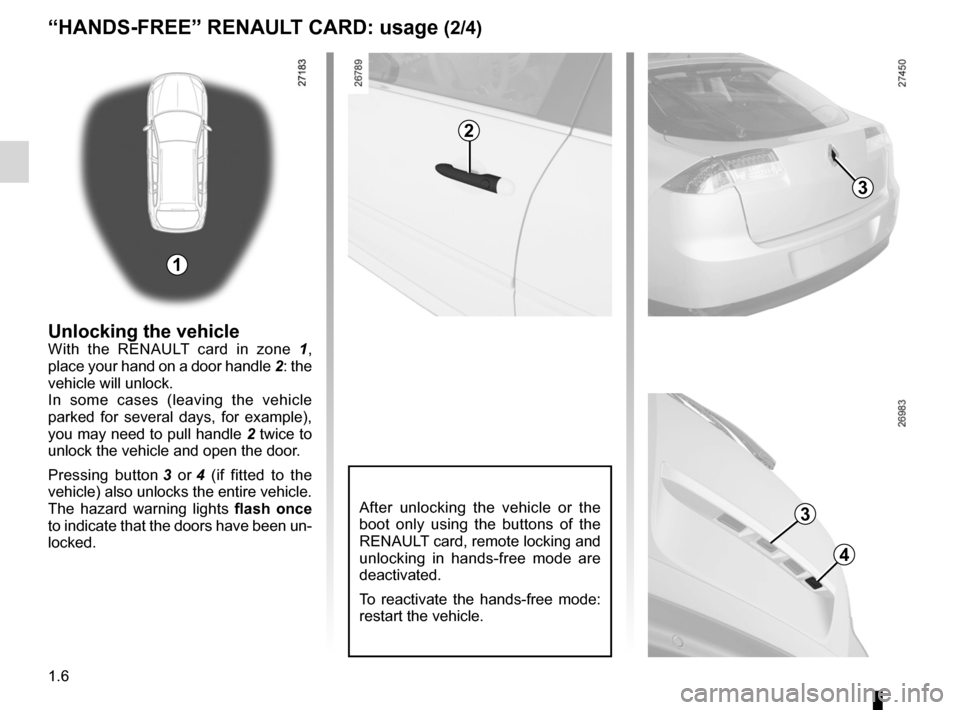

Unlocking the vehicleWith the RENAULT card in zone 1 ,
place your hand on a door handle 2: the
vehicle will unlock.
In some cases (leaving the vehicle
parked for several days, for example),
you may need to pull handle 2 twice to
unlock the vehicle and open the door.
Pressing button 3 or 4 (if fitted to the
vehicle) also unlocks the entire vehicle.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
After unlocking the vehicle or the
boot only using the buttons of the
RENAULT card, remote locking and
unlocking in hands-free mode are
deactivated.
To reactivate the hands-free mode:
restart the vehicle.
1

child safety............................................................. (current page)
children (safety) ..................................................... (current page)
JauneNoirNoir texte
1.7
ENG_UD29078_7
Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

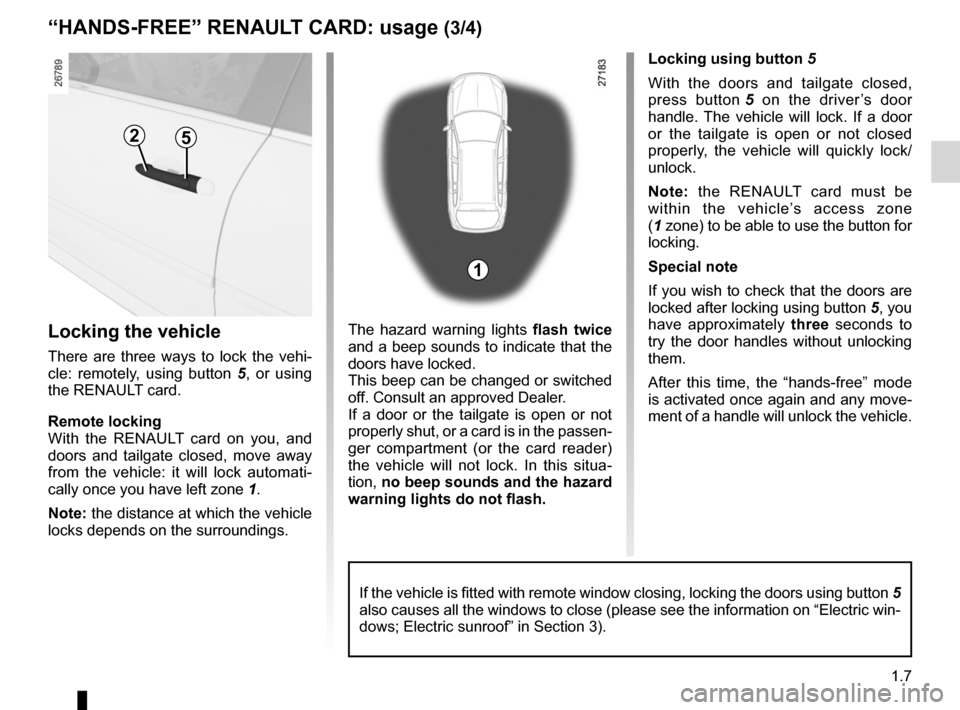

Locking the vehicle
There are three ways to lock the vehi-
cle: remotely, using button 5 , or using
the RENAULT card.
Remote locking
With the RENAULT card on you, and
doors and tailgate closed, move away
from the vehicle: it will lock automati -
cally once you have left zone 1.
Note: the distance at which the vehicle
locks depends on the surroundings. The hazard warning lights
flash twice
and a beep sounds to indicate that the
doors have locked.
This beep can be changed or switched
off. Consult an approved Dealer.
If a door or the tailgate is open or not
properly shut, or a card is in the passen-
ger compartment (or the card reader)
the vehicle will not lock. In this situa -
tion, no beep sounds and the hazard
warning lights do not flash.
25
Locking using button 5
With the doors and tailgate closed,
press button 5 on the driver ’s door
handle. The vehicle will lock. If a door
or the tailgate is open or not closed
properly, the vehicle will quickly lock/
unlock.
Note: the RENAULT card must be
within the vehicle’s access zone
(1 zone) to be able to use the button for
locking.
special note
If you wish to check that the doors are
locked after locking using button 5, you
have approximately three seconds to
try the door handles without unlocking
them.
After this time, the “hands-free” mode
is activated once again and any move-
ment of a handle will unlock the vehicle.
1
“HANds-fREE” RENAULT cARd: usage (3/4)
If the vehicle is fitted with remote window closing, locking the doors using button 5
also causes all the windows to close (please see the information on “Electric win-
dows; Electric sunroof” in Section 3).

1.8
ENG_UD29078_7
Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

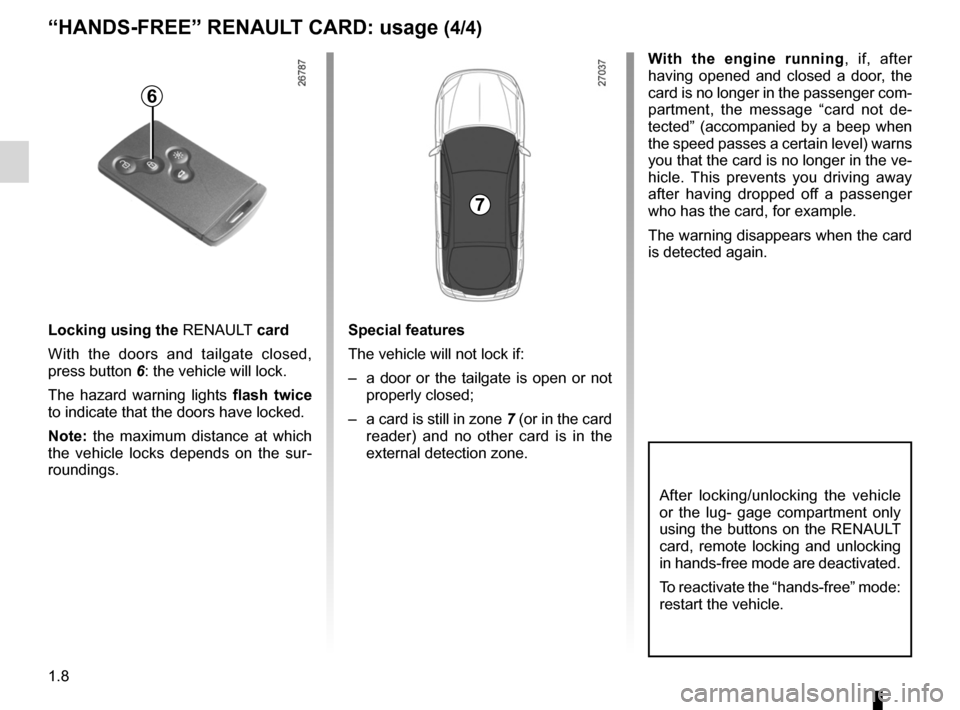

With the engine running , if, after
having opened and closed a door, the
card is no longer in the passenger com-
partment, the message “card not de -
tected” (accompanied by a beep when
the speed passes a certain level) warns
you that the card is no longer in the ve-
hicle. This prevents you driving away
after having dropped off a passenger
who has the card, for example.
The warning disappears when the card
is detected again.
Locking using the RENAULT card
With the doors and tailgate closed,
press button 6: the vehicle will lock.
The hazard warning lights flash twice
to indicate that the doors have locked.
Note: the maximum distance at which
the vehicle locks depends on the sur -
roundings. special features
The vehicle will not lock if:
–
a door or the tailgate is open or not
properly closed;
– a card is still in zone 7 (or in the card
reader) and no other card is in the
external detection zone.
6
7
After locking/unlocking the vehicle
or the lug- gage compartment only
using the buttons on the RENAULT
card, remote locking and unlocking
in hands-free mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
“HANds-fREE” RENAULT cARd: usage (4/4)

central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
deadlocking the doors ........................................... (current page)
1.9
ENG_UD9623_2
Cartes RENAULT : super-condamnation (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
To deactivate deadlocking
Unlock the vehicle using button 1 on
the RENAULT card.
The hazard warning lights flash once to
indicate that the doors have been un -
locked.
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
You can choose between two deadlock -
ing activation modes:
– press button 2 twice in quick succes-
sion;
– or, press the button on the driver’s
door handle 3 twice in quick succes-
sion.
The hazard warning lights flash five
times to indicate locking.
If the vehicle is equipped with a dead
-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).

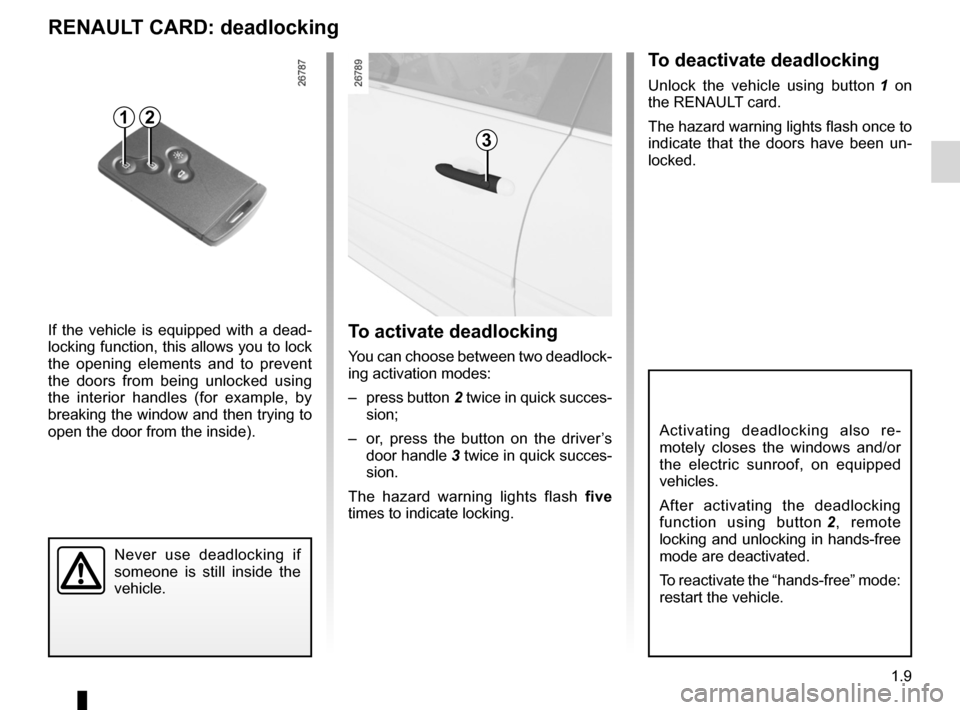

RENAULT cARd: deadlocking
2
Activating deadlocking also re -
motely closes the windows and/or
the electric sunroof, on equipped
vehicles.
After activating the deadlocking
function using button 2 , remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
3
1

locking the doors .................................. (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
1.10
ENG_UD20589_4
Carte RENAULT en mode restreint (X91 - B91 - K91 - D91 - Renault)
ENG_NU_936-5_BK91_Renault_1

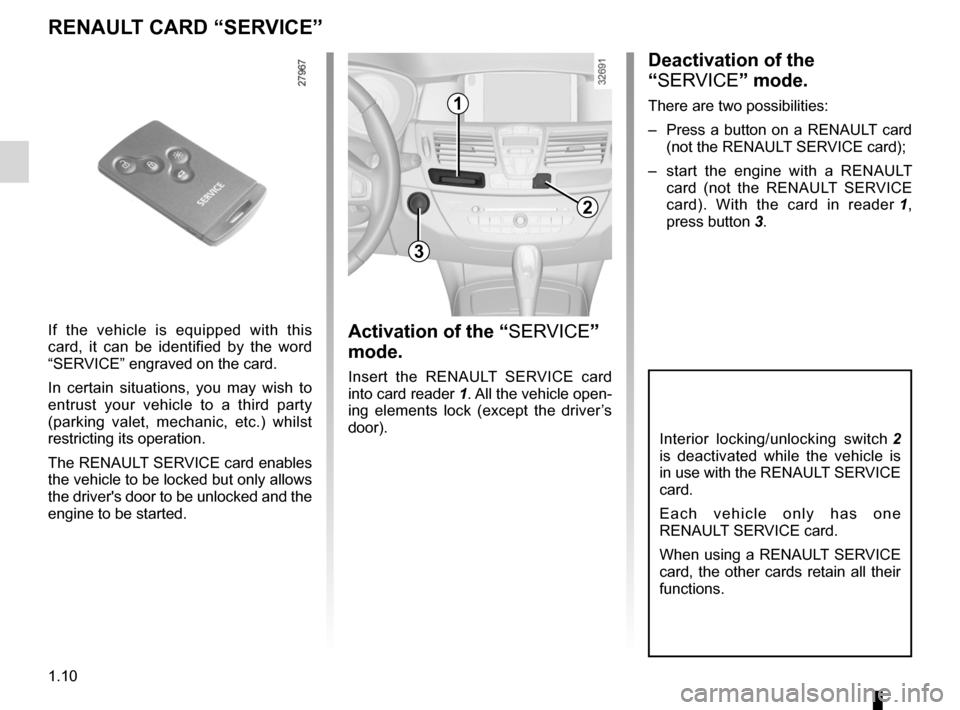

RENAULT cARd “sER vIcE”
If the vehicle is equipped with this
card, it can be identified by the word
“SERVICE” engraved on the card.
In certain situations, you may wish to
entrust your vehicle to a third party
(parking valet, mechanic, etc.) whilst
restricting its operation.
The RENAULT SERVICE card enables
the vehicle to be locked but only allows
the driver's door to be unlocked and the
engine to be started.Activation of the “SERVICE”
mode.
Insert the RENAULT SERVICE card
into card reader 1. All the vehicle open -
ing elements lock (except the driver’s
door).
Interior locking/unlocking switch 2
is deactivated while the vehicle is
in use with the RENAULT SERVICE
card.
E a c h v e h i c l e o n l y h a s o n e
RENAULT SERVICE card.
When using a RENAULT SERVICE
card, the other cards retain all their
functions.
1
3
deactivation of the
“SERVICE” mode.
There are two possibilities:
– Press a button on a RENAULT card
(not the RENAULT SERVICE card);
– start the engine with a RENAULT
card (not the RENAULT SERVICE
card). With the card in reader 1 ,
press button 3.
2

warning buzzer ...................................................... (current page)
doors ..................................................... (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
1.11
ENG_UD20084_1
Ouverture et fermeture des portes (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
card reminder buzzer
A beep will let you know if you have left
the card in the reader when you open
the driver ’s door, and the “Remove
card” message will appear on the in -
strument panel.
door/tailgate open buzzer
If a door (or tailgate) is open or not
properly closed, as soon as the vehi -
cle reaches a speed of approximately
6 mph (10 km/h), the message “tailgate
open” or “door open” (depending on
which is open) will appear on the instru-
ment panel accompanied by a warning
light.

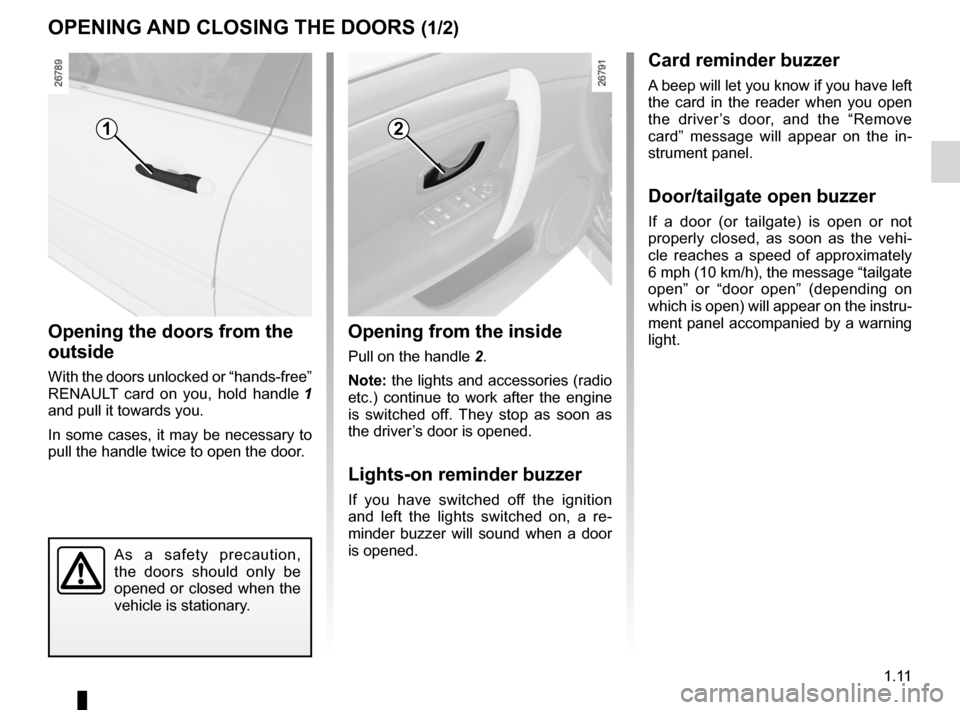

Doors
OpENINg ANd cLOsINg THE dOORs (1/2)
Opening the doors from the
outside
With the doors unlocked or “hands-free”
RENAULT card on you, hold handle 1
and pull it towards you.
In some cases, it may be necessary to
pull the handle twice to open the door.
Opening from the inside
Pull on the handle 2.
Note: the lights and accessories (radio
etc.) continue to work after the engine
is switched off. They stop as soon as
the driver’s door is opened.
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re -
minder buzzer will sound when a door
is opened.
12
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

1.12
ENG_UD20084_1
Ouverture et fermeture des portes (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

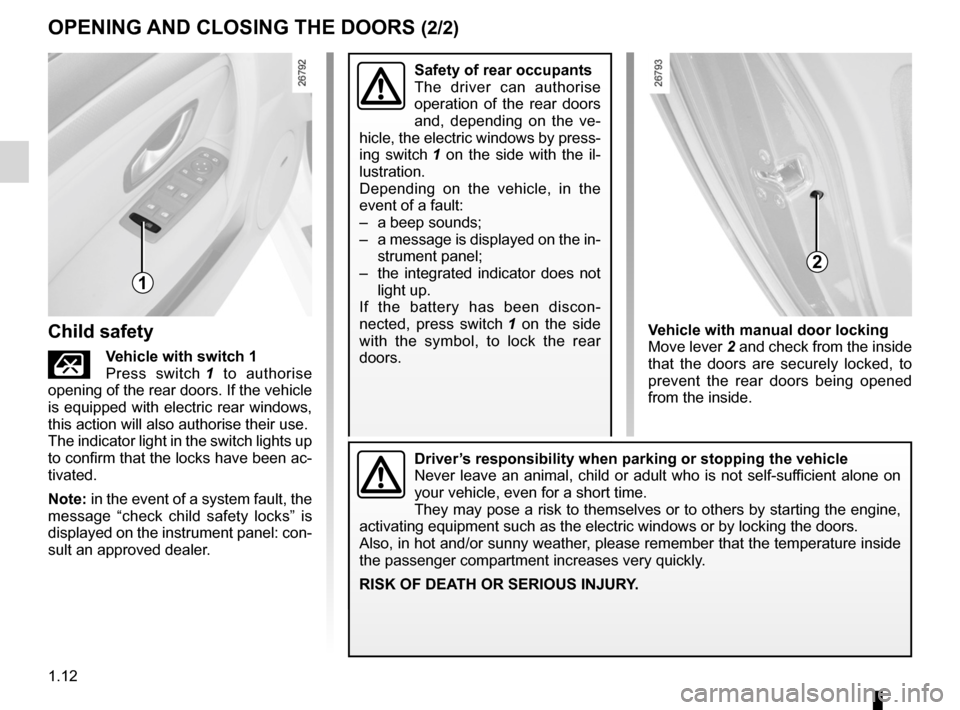

OpENINg ANd cLOsINg THE dOORs (2/2)
child safety
Çv ehicle with switch 1
Press switch 1 to authorise
opening of the rear doors. If the vehicle
is equipped with electric rear windows,
this action will also authorise their use.
The indicator light in the switch lights up
to confirm that the locks have been ac-
tivated.
Note: in the event of a system fault, the
message “check child safety locks” is
displayed on the instrument panel: con-
sult an approved dealer.
v ehicle with manual door locking
Move lever 2 and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
safety of rear occupants
The driver can authorise
operation of the rear doors
and, depending on the ve -
hicle, the electric windows by press-
ing switch 1 on the side with the il -
lustration.
Depending on the vehicle, in the
event of a fault:
– a beep sounds;
– a message is displayed on the in-
strument panel;
– the integrated indicator does not
light up.
If the battery has been discon -
nected, press switch 1 on the side
with the symbol, to lock the rear
doors.
driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the doors.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RIsK Of dEATH OR sERIOUs INJURY.
1
2

opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
unlocking the doors .............................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
1.13
ENG_UD20085_1
Verrouillage/déverrouillage des ouvrants (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

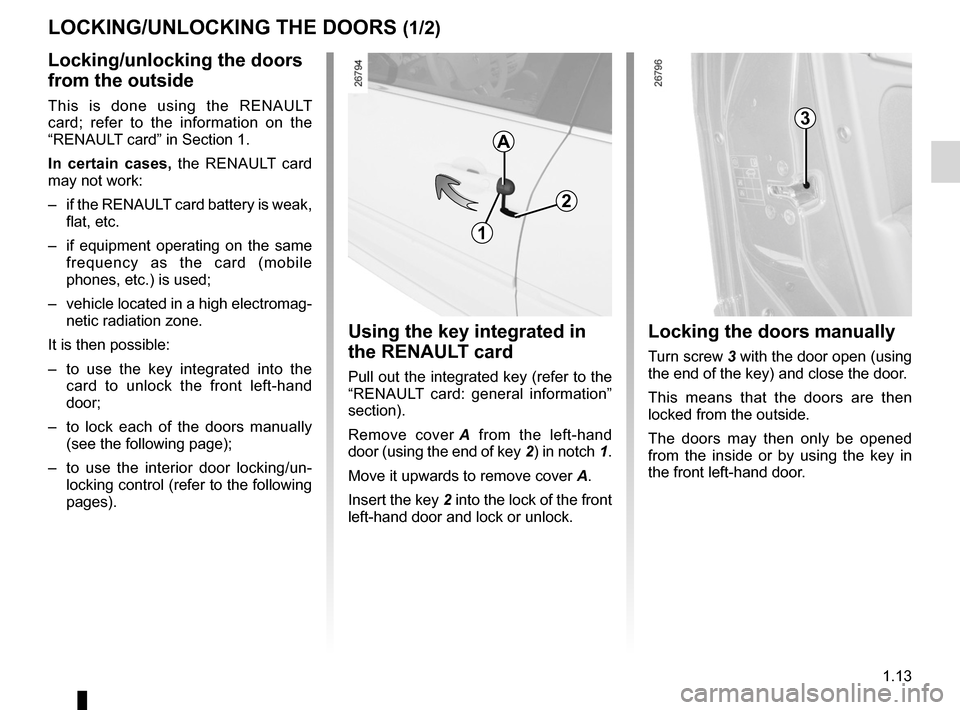

LOcKINg/UNLOcKINg THE dOORs (1/2)
Locking/unlocking the doors
from the outside
This is done using the RENAULT
card; refer to the information on the
“RENAULT card” in Section 1.
In certain cases, the RENAULT card
may not work:
– if the RENAULT card battery is weak,
flat, etc.
– if equipment operating on the same
frequency as the card (mobile
phones, etc.) is used;
– vehicle located in a high electromag-
netic radiation zone.
It is then possible:
– to use the key integrated into the
card to unlock the front left-hand
door;
– to lock each of the doors manually
(see the following page);
– to use the interior door locking/un -
locking control (refer to the following
pages).
Using the key integrated in
the RENAULT card
Pull out the integrated key (refer to the
“RENAULT card: general information”
section).
Remove cover A from the left-hand
door (using the end of key 2) in notch 1.
Move it upwards to remove cover A.
Insert the key 2 into the lock of the front
left-hand door and lock or unlock.
Locking the doors manually
Turn screw 3 with the door open (using
the end of the key) and close the door.
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the front left-hand door.
A
2
1
A
3

1.14
ENG_UD20085_1
Verrouillage/déverrouillage des ouvrants (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

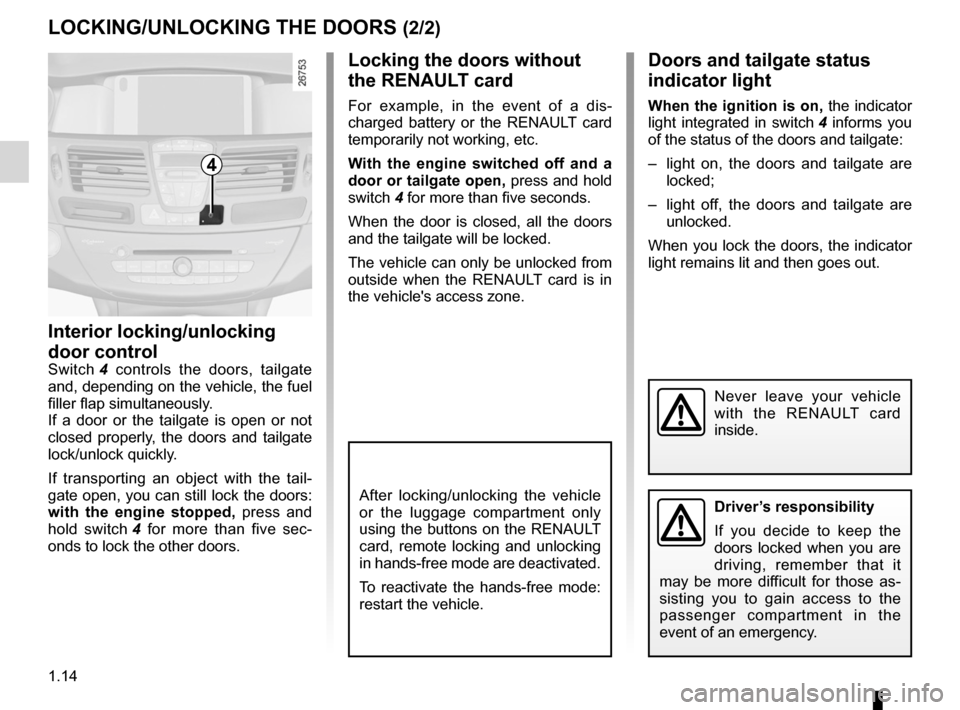

Locking the doors without
the RENAULT card
For example, in the event of a dis -
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or tailgate open, press and hold
switch 4 for more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
The vehicle can only be unlocked from
outside when the RENAULT card is in
the vehicle's access zone.
doors and tailgate status
indicator light
When the ignition is on, the indicator
light integrated in switch 4 informs you
of the status of the doors and tailgate:
– light on, the doors and tailgate are
locked;
– light off, the doors and tailgate are
unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
LOcKINg/UNLOcKINg THE dOORs (2/2)
Interior locking/unlocking
door control
Switch 4 controls the doors, tailgate
and, depending on the vehicle, the fuel
filler flap simultaneously.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
If transporting an object with the tail -
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch 4 for more than five sec -
onds to lock the other doors.
Never leave your vehicle
with the RENAULT card
inside.
After locking/unlocking the vehicle
or the luggage compartment only
using the buttons on the RENAULT
card, remote locking and unlocking
in hands-free mode are deactivated.
To reactivate the hands-free mode:
restart the vehicle.
4
driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.
