Poste de conduite direction à droite (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

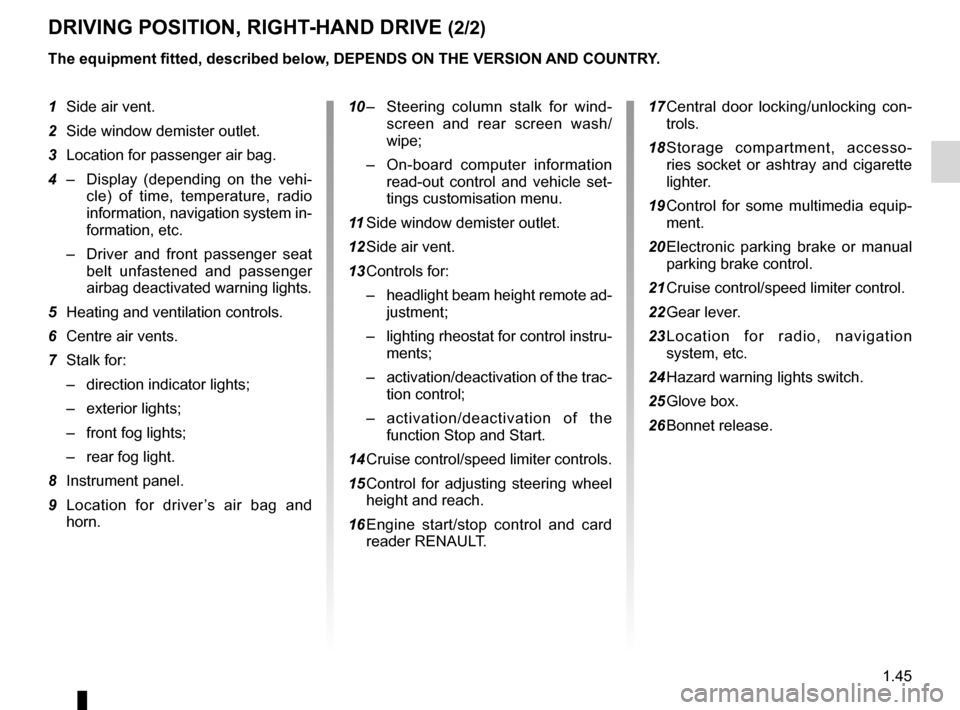

dRIvINg pOsITION, RIgHT -HANd dRIvE (2/2)
The equipment fitted, described below, dEpENds ON THE vERsION ANd cOUNTRY.
1 Side air vent.
2 Side window demister outlet.
3 Location for passenger air bag.
4 – Display (depending on the vehi -
cle) of time, temperature, radio
information, navigation system in-
formation, etc.
– Driver and front passenger seat
belt unfastened and passenger
airbag deactivated warning lights.
5 Heating and ventilation controls.
6 Centre air vents.
7 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog light.
8 Instrument panel.
9 Location for driver ’s air bag and
horn.
17 Central door locking/unlocking con -
trols.
18 Storage compartment, accesso -
ries socket or ashtray and cigarette
lighter.
19 Control for some multimedia equip -
ment.
20 Electronic parking brake or manual
parking brake control.
21 Cruise control/speed limiter control.
22 Gear lever.
23 L o c a t i o n f o r r a d i o , n a v i g a t i o n
system, etc.
24 Hazard warning lights switch.
25 Glove box.
26 Bonnet release.
10
– Steering column stalk for wind -
screen and rear screen wash/
wipe;
– On-board computer information
read-out control and vehicle set -
tings customisation menu.
11 Side window demister outlet.
12 Side air vent.
13 Controls for:
– headlight beam height remote ad-
justment;
– lighting rheostat for control instru-
ments;
– activation/deactivation of the trac-
tion control;
– activation/deactivation of the
function Stop and Start.
14 Cruise control/speed limiter controls.
15 Control for adjusting steering wheel
height and reach.
16 Engine start/stop control and card
reader RENAULT.

instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
operating faults ..................................... (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
indicators ............................................................... (current page)
lights: fog lights .......................................................... (current page)
lights: dipped beam headlights ................................... (current page)
lights: direction indicators ........................................... (current page)
lights: main beam headlights ...................................... (current page)
1.46
ENG_UD27624_4
Témoins lumineux (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
Jaune NoirNoir texte

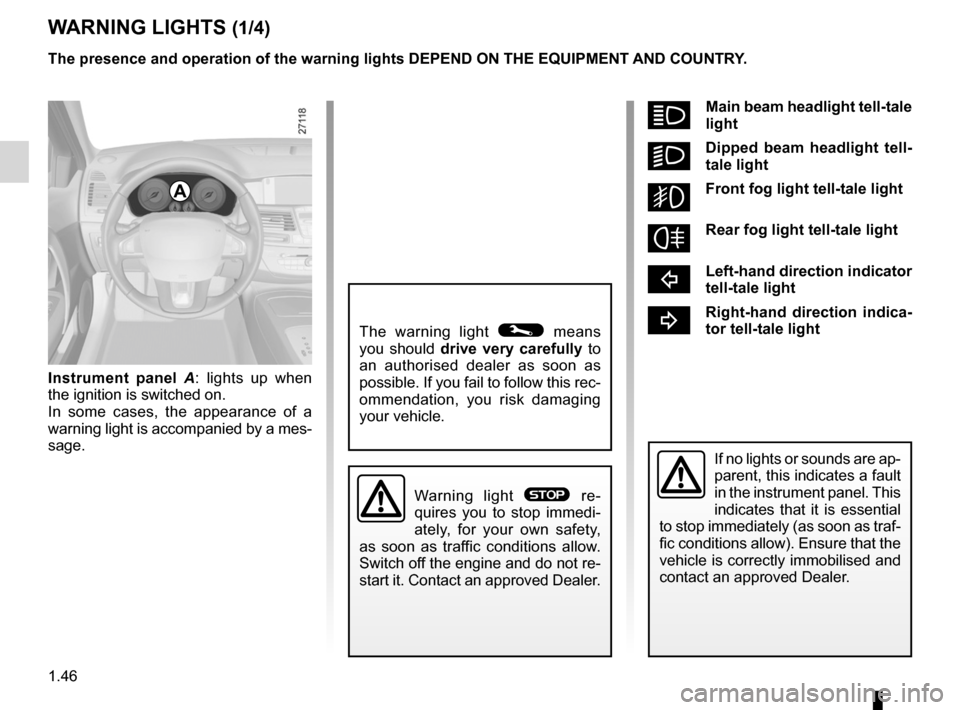

ámain beam headlight tell-tale
light
kdipped beam headlight tell -
tale light
gfront fog light tell-tale light
fRear fog light tell-tale light
cLeft-hand direction indicator
tell-tale light
bRight-hand direction indica -
tor tell-tale light
Control instruments
W ARNINg LIgHTs (1/4)
A
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Instrument panel A: lights up when
the ignition is switched on.
In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
The warning light © means
you should drive very carefully to
an authorised dealer as soon as
possible. If you fail to follow this rec-
ommendation, you risk damaging
your vehicle.
Warning light ® re -
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.

handbrake.............................................................. (current page)
warning buzzer ...................................................... (current page)
battery .................................................................... (current page)
engine oil ............................................................... (current page)
electronic parking brake ........................................ (current page)
JauneNoirNoir texte
1.47
ENG_UD27624_4
Témoins lumineux (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

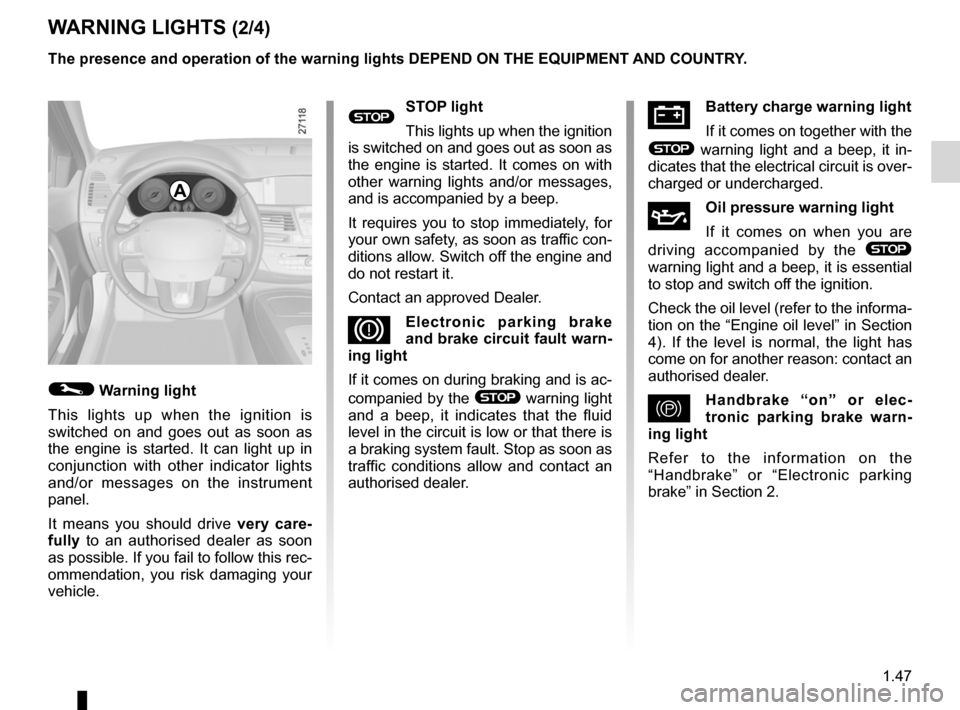

®sTOp light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
DElectronic parking brake
and brake circuit fault warn-
ing light
If it comes on during braking and is ac-
companied by the
® warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault. Stop as soon as
traffic conditions allow and contact an
authorised dealer.
W ARNINg LIgHTs (2/4)
\fBattery charge warning light
If it comes on together with the
® warning light and a beep, it in-
dicates that the electrical circuit is over-
charged or undercharged.
ÀOil pressure warning light
If it comes on when you are
driving accompanied by the
®
warning light and a beep, it is essential
to stop and switch off the ignition.
Check the oil level (refer to the informa-
tion on the “Engine oil level” in Section
4). If the level is normal, the light has
come on for another reason: contact an
authorised dealer.
}Handbrake “on” or elec -
tronic parking brake warn -
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.© Warning light
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle. The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.
A

speed limiter .......................................................... (current page)
cruise control ......................................................... (current page)
air bag .................................................................... (current page)
seat belts ............................................................... (current page)
fuel filling ................................................................. (current page)
1.48
ENG_UD27624_4
Témoins lumineux (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
Jaune NoirNoir texte
™front seat belt reminder
warning light
This comes on when starting the engine
then, if the driver’s or front passenger’s
seat belt (if this seat is occupied) is not
fastened and the vehicle has reached
approximately 12 mph (20 km/h), it
flashes and a bleep sounds for around
120 seconds.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
Rear seat belt reminder
The number of rear seat belts fastened
appears on instrument panel A for ap -
proximately 30 seconds each time:
– the vehicle is started;
– a door is opened;
– a rear seat belt is fastened or unfas-
tened.
Check that the rear passengers are
wearing seat belts and that the number
of seat belt shown as fastened corre -
sponds to the number of rear bench
seat places occupied.
W ARNINg LIgHTs (3/4)
ãpassenger air bag Off
Please refer to the informa -
tion on “Child safety: deactivating/ac -
tivating the front passenger airbag” in
Section 1.
åAir bag warning light
This comes on when the igni -
tion is switched on and goes out after a
few seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system.
Contact your approved Dealer as soon
as possible.
\b¦speed limiter and cruise
control indicator lights
See the information on the “Speed lim-
iter” and “Cruise control” in Section 2.LLow fuel level warning light
This lights up when the ignition
is switched on and goes out after a few
seconds. If it lights up when driving, fill
up with fuel as soon as possible. There
is only approximately 30 miles (50 km)
worth of fuel left after the first indicator
light comes on. The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.
A

filterparticle filter ..................................................... (current page)
heated seats .......................................................... (current page)
ABS ....................................................................... (current page)
JauneNoirNoir texte
1.49
ENG_UD27624_4
Témoins lumineux (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.

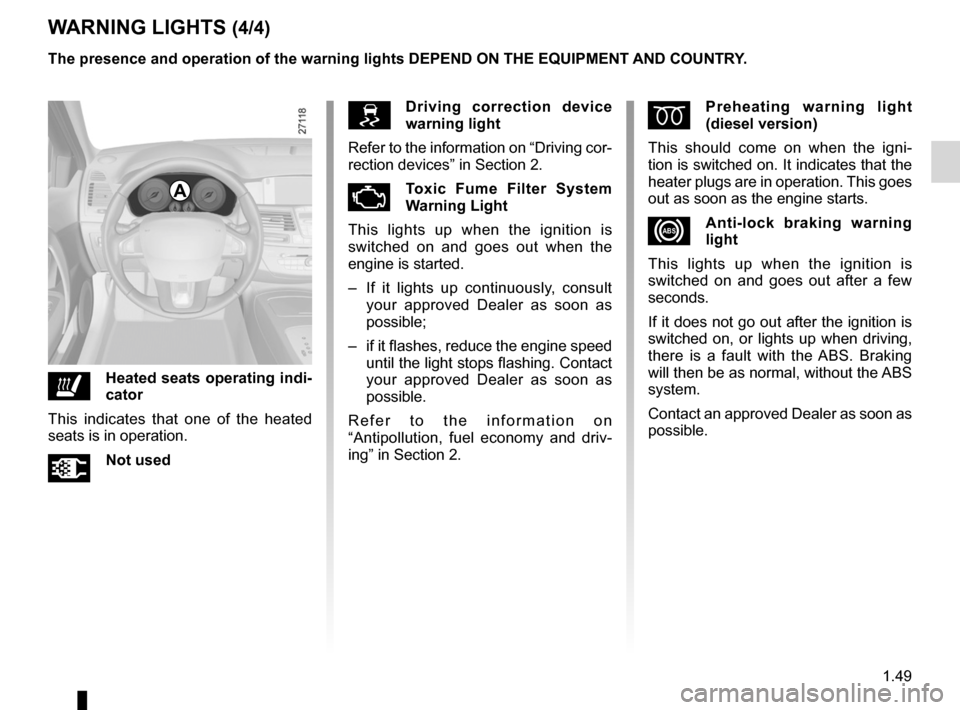

W ARNINg LIgHTs (4/4)
driving correction device
warning light
Refer to the information on “Driving cor-
rection devices” in Section 2.
ÄToxic fume filter system
Warning Light
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult
your approved Dealer as soon as
possible;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv -
ing” in Section 2.
ðHeated seats operating indi -
cator
This indicates that one of the heated
seats is in operation.
ÜNot used
A
Ép reheating warning light
(diesel version)
This should come on when the igni -
tion is switched on. It indicates that the
heater plugs are in operation. This goes
out as soon as the engine starts.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.

indicators:instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
fuel level ................................................................ (current page)
coolant ................................................................... (current page)
1.50
ENG_UD25107_2
Afficheurs et indicateurs (X91 - B91 - K91 - D91 - Renault)
ENG_NU_936-5_BK91_Renault_1

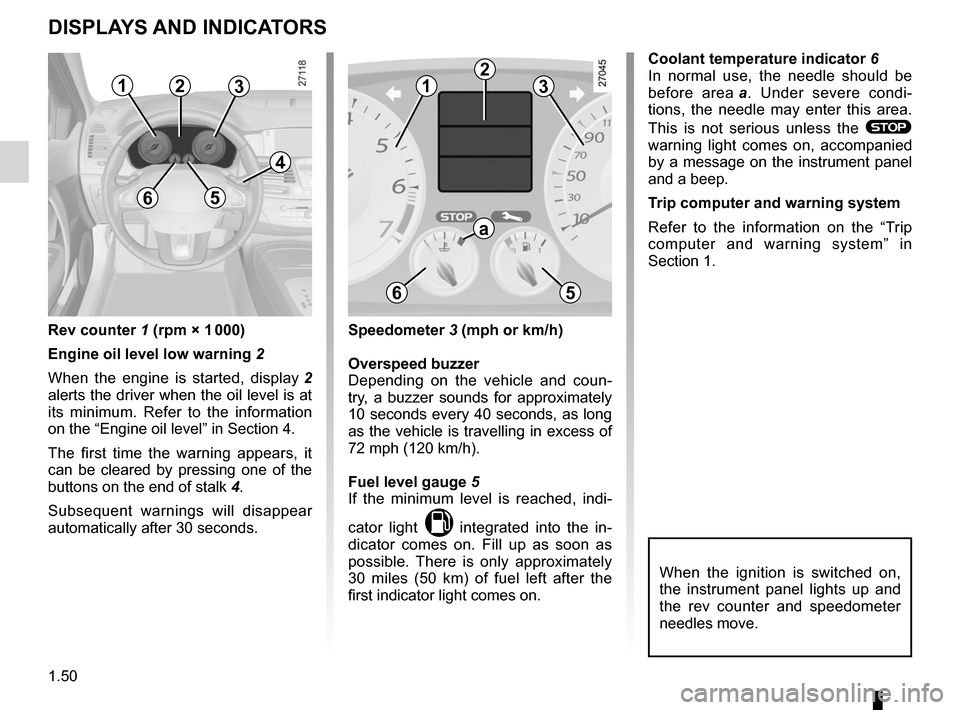

dIspLAYs ANd INdIcATORs
Rev counter 1 (rpm × 1 000)
Engine oil level low warning 2
When the engine is started, display 2
alerts the driver when the oil level is at
its minimum. Refer to the information
on the “Engine oil level” in Section 4.
The first time the warning appears, it
can be cleared by pressing one of the
buttons on the end of stalk 4.
Subsequent warnings will disappear
automatically after 30 seconds. coolant temperature indicator 6
In normal use, the needle should be
before area
a . Under severe condi -
tions, the needle may enter this area.
This is not serious unless the
®
warning light comes on, accompanied
by a message on the instrument panel
and a beep.
Trip computer and warning system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
speedometer 3 (mph or km/h)
Overspeed buzzer
Depending on the vehicle and coun -
try, a buzzer sounds for approximately
10 seconds every 40 seconds, as long
as the vehicle is travelling in excess of
72 mph (120 km/h).
fuel level gauge 5
If the minimum level is reached, indi -
cator light
M integrated into the in -
dicator comes on. Fill up as soon as
possible. There is only approximately
30 miles (50 km) of fuel left after the
first indicator light comes on.
123
65
4
12
3
a
65
When the ignition is switched on,
the instrument panel lights up and
the rev counter and speedometer
needles move.

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.51
ENG_UD23773_2
Ordinateur de bord : généralités (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

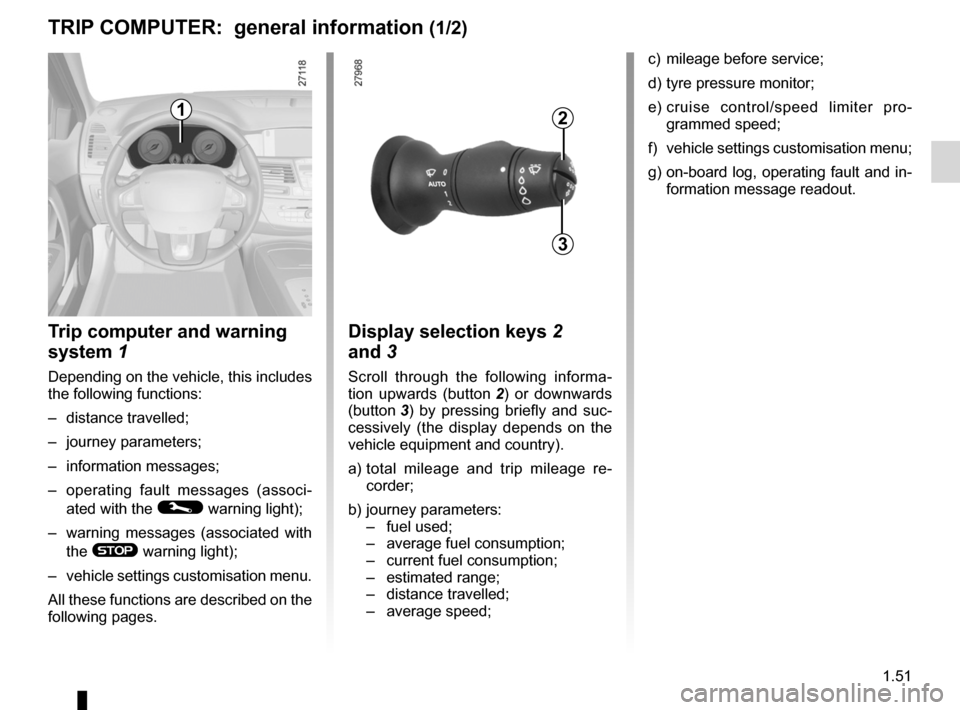

Trip computer
Trip computer and warning
system 1
Depending on the vehicle, this includes
the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ -
ated with the
© warning light);
– warning messages (associated with
the
® warning light);
– vehicle settings customisation menu.
All these functions are described on the
following pages.
display selection keys 2
and 3
Scroll through the following informa -
tion upwards (button 2 ) or downwards
(button 3 ) by pressing briefly and suc -
cessively (the display depends on the
vehicle equipment and country).
a) total mileage and trip mileage re -
corder;
b) journey parameters:
– fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed;
c) mileage before service;
d) tyre pressure monitor;
e) cruise control/speed limiter pro -
grammed speed;
f) vehicle settings customisation menu;
g) on-board log, operating fault and in-
formation message readout.
12
3
TRIp cOmpUTER: general information (1/2)

1.52
ENG_UD23773_2
Ordinateur de bord : généralités (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

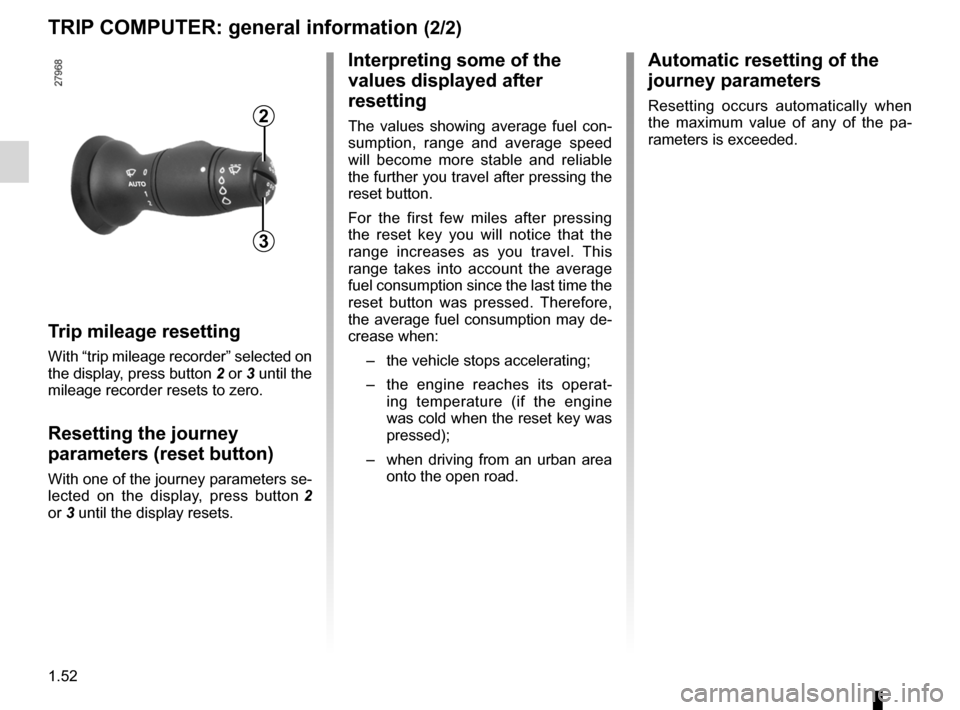

Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 2 or 3 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 2
or 3 until the display resets.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operat -
ing temperature (if the engine
was cold when the reset key was
pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.2
3
TRIp cOmpUTER: general information (2/2)

trip computer and warning system........(up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.53
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1

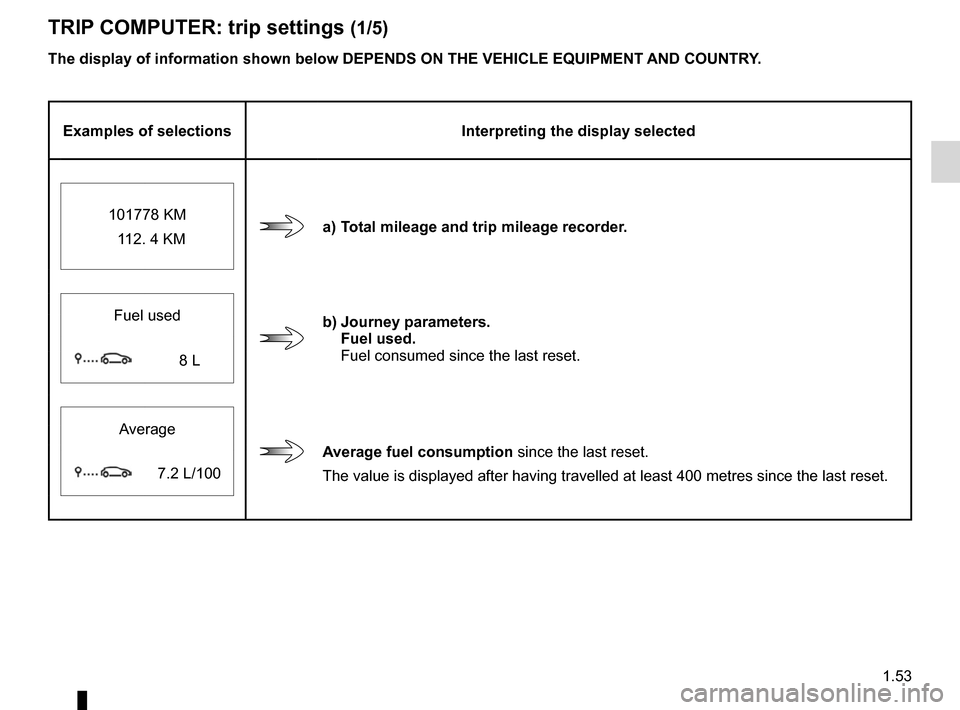

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected
101778 KM 112. 4 KM
a) Total mileage and trip mileage recorder.
Fuel used
b) Journey parameters.
fuel used.
Fuel consumed since the last reset.
8 L
Average
Average fuel consumption since the last reset.
The value is displayed after having travelled at least 400 metres since the last reset.
7.2 L/100
TRIp cOmpUTER: trip settings (1/5)

1.54
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_1
Jaune NoirNoir texte

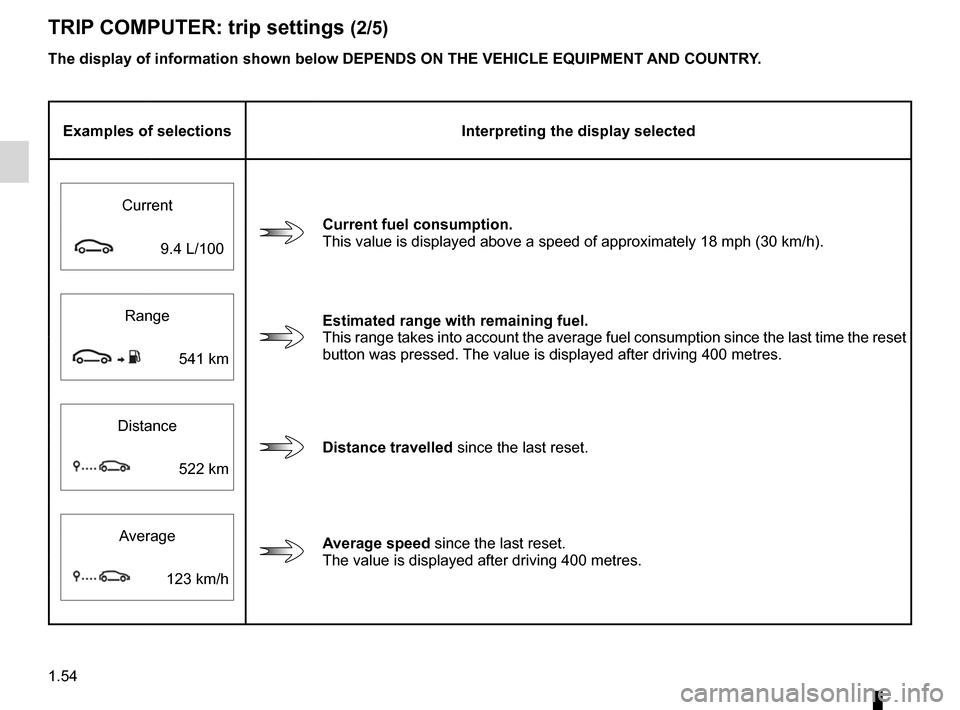

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected
Current
current fuel consumption.
This value is displayed above a speed of approximately 18 mph (30 km/h).
9.4 L/100
Estimated range with remaining fuel.
This range takes into account the average fuel consumption since the last time the reset
button was pressed. The value is displayed after driving 400 metres.
Range
541 km
distance travelled
since the last reset.
Distance
522 km
Average speed since the last reset.
The value is displayed after driving 400 metres.
Average
123 km/h
TRIp
cOmpUTER: trip settings (2/5)
