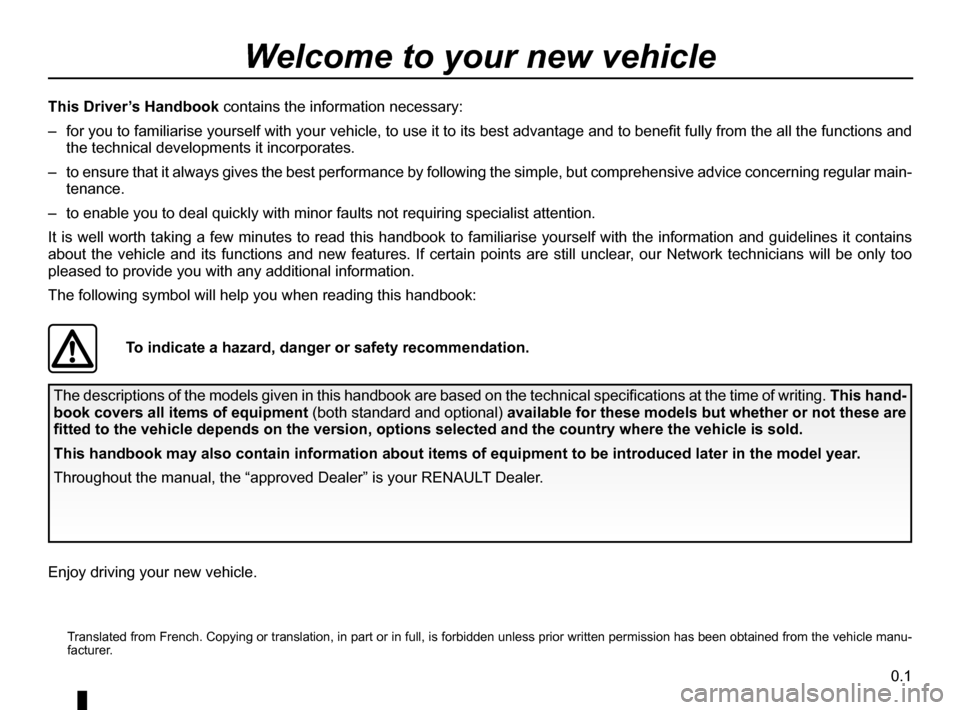

Welcome to your new vehicle
The descriptions of the models given in this handbook are based on the technical specifications at the time of writing. This hand-
book covers all items of equipment (both standard and optional) available for these models but whether or not these are
fitted to the vehicle depends on the version, options selected and the c\
ountry where the vehicle is sold.
This handbook may also contain information about items of equipment to b\
e introduced later in the model year.
Throughout the manual, the “approved Dealer” is your RENAULT Dealer. To indicate a hazard, danger or safety recommendation.
Enjoy driving your new vehicle.

0.2
ENG_UD9525_5
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
ENG_NU_939-3_D91_Renault_0

0.3
ENG_UD10779_7
Sommaire Général (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 -\
X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 -\
F77 - R77 - X81 - J81 - X84 -
ENG_NU_939-3_D91_Renault_0
Getting to know your vehicle ...............................
Driving
...................................................................
Your comfort .........................................................
Maintenance .........................................................
Practical advice ....................................................
Technical specifications ......................................
Alphabetical index ...............................................
Sections
1
C O N T E N T S
2
3
4
5
6
7

0.4
ENG_UD9525_5
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
ENG_NU_939-3_D91_Renault_0

1.1
ENG_UD29927_4
Sommaire 1 (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
Section 1: Getting to know your vehicle
RENAULT cards: general information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
Headrests - Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
Additional methods of restraint: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
to the rear seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27
side protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.30
choosing a child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.35
deactivating, activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.38
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.41
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.41
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.42
Control instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.46
on-board computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.51
Clock and exterior temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.62
Door mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.63
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65
Exterior lighting and signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 1.66
Windscreen washer, wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.69
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.71

locking the doors .................................. (up to the end of the DU)
emergency key ..................................... (up to the end of the DU)
child safety ............................................................. (current page)
children (safety) ..................................................... (current page)
RENAULT card use .................................................. (up to the end of the DU)
1.2
ENG_UD19761_2
Cartes RENAULT : généralités (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
Jaune NoirNoir texte
RENAULT cards: General information, use, deadlocking

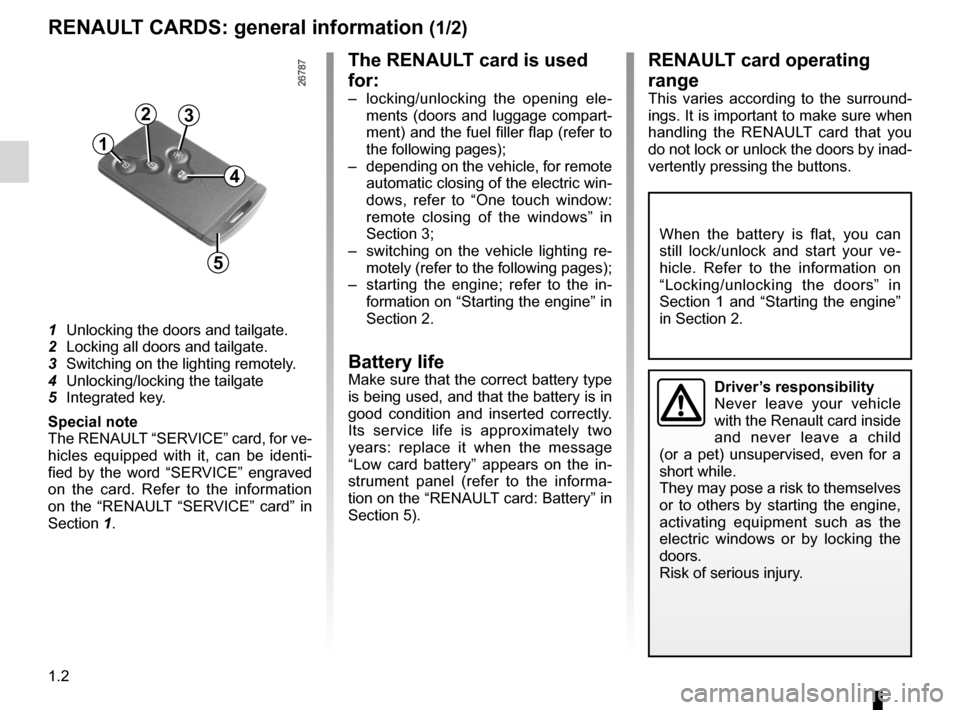

RENAULT cARds: general information (1/2)
1 Unlocking the doors and tailgate.
2 Locking all doors and tailgate.
3 Switching on the lighting remotely.
4 Unlocking/locking the tailgate
5 Integrated key.
special note
The RENAULT “SERVICE” card, for ve-
hicles equipped with it, can be identi -
fied by the word “SERVICE” engraved
on the card. Refer to the information
on the “RENAULT “SERVICE” card” in
Section 1.
The RENAULT card is used
for:
– locking/unlocking the opening ele -
ments (doors and luggage compart-
ment) and the fuel filler flap (refer to
the following pages);
– depending on the vehicle, for remote
automatic closing of the electric win-
dows, refer to “One touch window:
remote closing of the windows” in
Section 3;
– switching on the vehicle lighting re -
motely (refer to the following pages);
– starting the engine; refer to the in -
formation on “Starting the engine” in
Section 2.
Battery lifeMake sure that the correct battery type
is being used, and that the battery is in
good condition and inserted correctly.
Its service life is approximately two
years: replace it when the message
“Low card battery” appears on the in -
strument panel (refer to the informa -
tion on the “RENAULT card: Battery” in
Section 5).driver’s responsibility
Never leave your vehicle
with the Renault card inside
and never leave a child
(or a pet) unsupervised, even for a
short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
4
5
1
2
RENAULT card operating
range
This varies according to the surround -
ings. It is important to make sure when
handling the RENAULT card that you
do not lock or unlock the doors by inad -
vertently pressing the buttons.
3
When the battery is flat, you can
still lock/unlock and start your ve -
hicle. Refer to the information on
“Locking/unlocking the doors” in
Section 1 and “Starting the engine”
in Section 2.

JauneNoirNoir texte
1.3
ENG_UD19761_2
Cartes RENAULT : généralités (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
RENAULT cARds: general information (2/2)
Access to key 5
Press button 6 and pull on key 5 then
release the button.
Using the key
Refer to the information on “Locking/
unlocking the doors”.
Once you have accessed the vehicle
using the integrated key, replace it
in its housing in the RENAULT card,
then insert the RENAULT card into
the card reader to start the vehicle.
Integrated key 5
The integrated key is used to lock
or unlock the left-hand door if the
RENAULT card does not work:
– when the RENAULT card battery is
drained, discharged battery, etc.
– use of devices using the same fre -
quency as the card;
– if the vehicle is located in a zone of
high electromagnetic radiation;
Replacement: need for an
additional RENAULT card
If you lose your RENAULT card or
require another, you can obtain one
from an approved dealer.
If a RENAULT card is replaced, it
will be necessary to take the vehi -
cle and all of its RENAULT cards
to an approved dealer to initialise
the system.
You can use up to four RENAULT
cards per vehicle.
Advice
Avoid leaving the card in hot, cold or
humid areas.
Do not keep the RENAULT card in a
place where it could be bent or dam-
aged accidentally, such as in a back
pocket of a garment.
5
6

locking the doors .................................. (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
1.4
ENG_UD3133_1
Cartes RENAULT à télécommande : utilisation (X91 - B91 - K91 - Renault)
ENG_NU_939-3_D91_Renault_1
REmOTE cONTROL RENAULT cARd: use
Unlocking the doors and fuel
filler flap
Press unlocking button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
special notes (for some countries):
– pressing button 1 unlocks only the
driver’s door and the fuel filler flap;
– pressing button 1 twice unlocks all of
the doors and the tailgate.
The card buttons are deactivated
when the engine is running.
1
2
Locking the doors and fuel
filler flap
Press the locking button 2.
The hazard warning lights flash twice
to indicate that the doors have locked.
If a door or the luggage compartment
is open or not properly shut, or if a
RENAULT card is still in the reader,
the doors and luggage compartment
lock then quickly unlock and the hazard
warning lights do not flash.
Unlocking/locking the
luggage compartment lid
only
Press button 4 to unlock or lock the tail-
gate.
4
distance lighting function
This can, for example, identify the ve -
hicle from a distance when parked in a
car park.
The dipped beam headlights, indicator
lights and interior lights come on for ap-
proximately 30 seconds when button 3
is pressed.
Note: pressing button 3 again switches
off the lighting.
RENAULT card non-detection
alarm
The message “card not detected” and
a beep will warn you if you open a door
with the engine running and the card is
not in the reader. The warning disap -
pears when the card is inserted in the
reader again.
3
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is completely unlocked;
– two flashes indicates that the
vehicle is completely locked;
