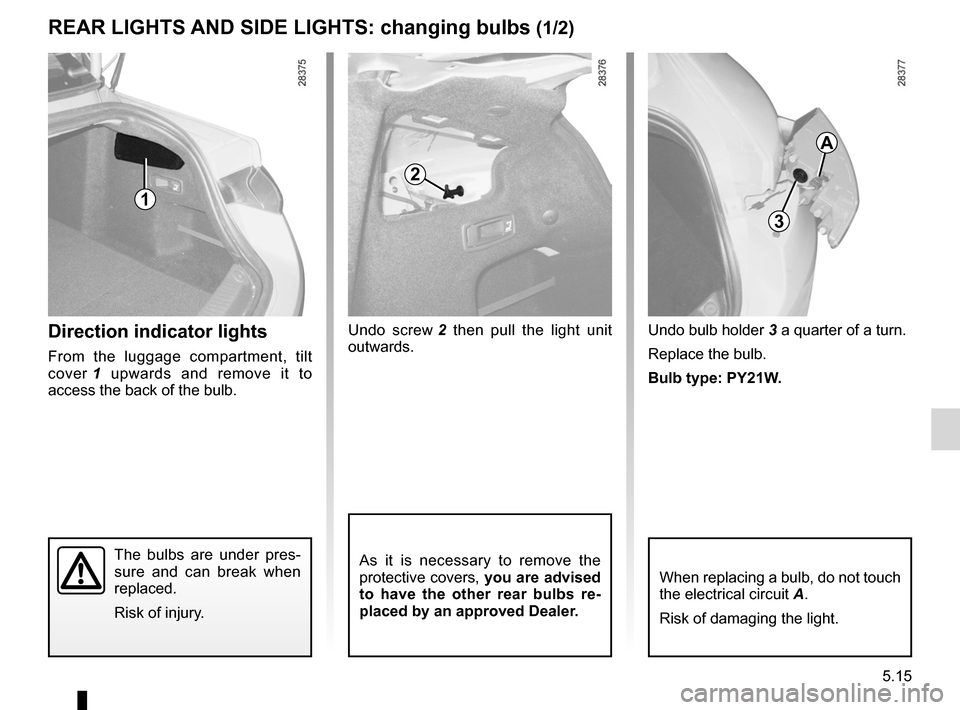

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs (1/2)
2
1
3
Undo screw 2 then pull the light unit
outwards.Direction indicator lights
From the luggage compartment, tilt
cover 1 upwards and remove it to
access the back of the bulb.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.As it is necessary to remove the
protective covers, you are advised
to have the other rear bulbs re -
placed by an approved Dealer.
Undo bulb holder 3 a quarter of a turn.
Replace the bulb.
Bulb type: PY21W.
When replacing a bulb, do not touch
the electrical circuit A.
Risk of damaging the light.
A
Page 178 of 221
lights:main beam headlights ...................................... (current page)
lights: fog lights .......................................................... (current page)
5.16
ENG_UD22250_4
Feux arrière et latéraux : remplacement des lampes (X91 - D91 - R\
enault)
ENG_NU_939-3_D91_Renault_5
Side indicator lights
Unclip indicator light 4 (using a flatb -
lade screwdriver type tool positioned
at A to move the indicator light towards
the front of the vehicle).
Turn the bulb holder a quarter of a turn
and take out the bulb.
Bulb type: W5W.

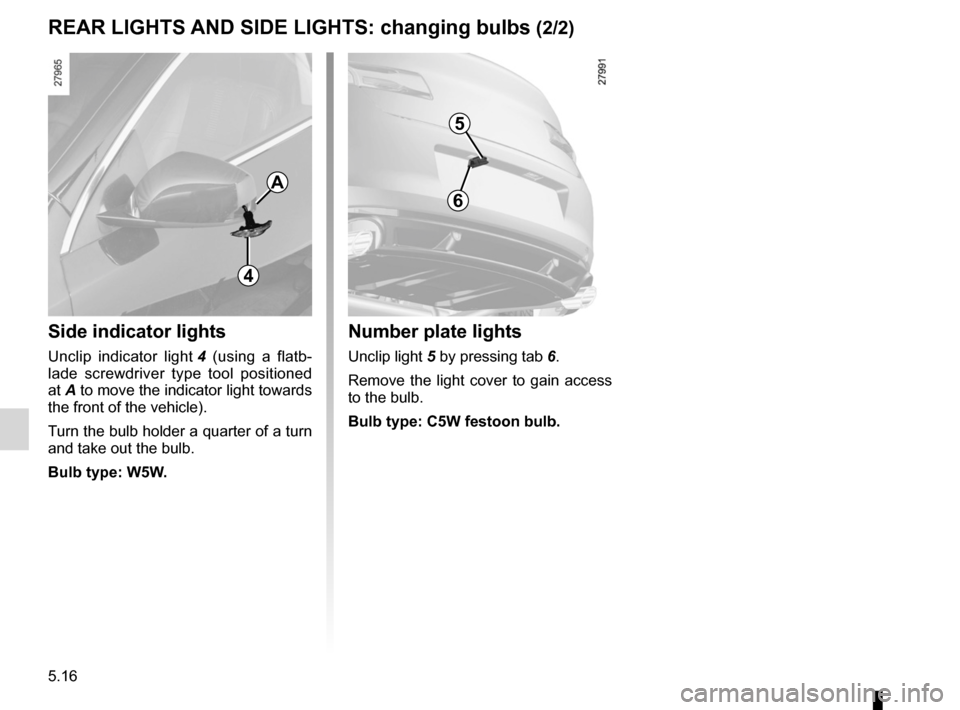

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs (2/2)
5
6
4
A
number plate lights
Unclip light 5 by pressing tab 6.
Remove the light cover to gain access
to the bulb.
Bulb type: c5W festoon bulb.
