check engine light RENAULT LAGUNA TOURER 2012 X91 / 3.G Owner's Manual

JauneNoirNoir texte
5.35
ENG_UD28899_2
Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - \
K95 - J95 - R95 - X98 - Renault)
ENG_NU_936-5_BK91_Renault_5

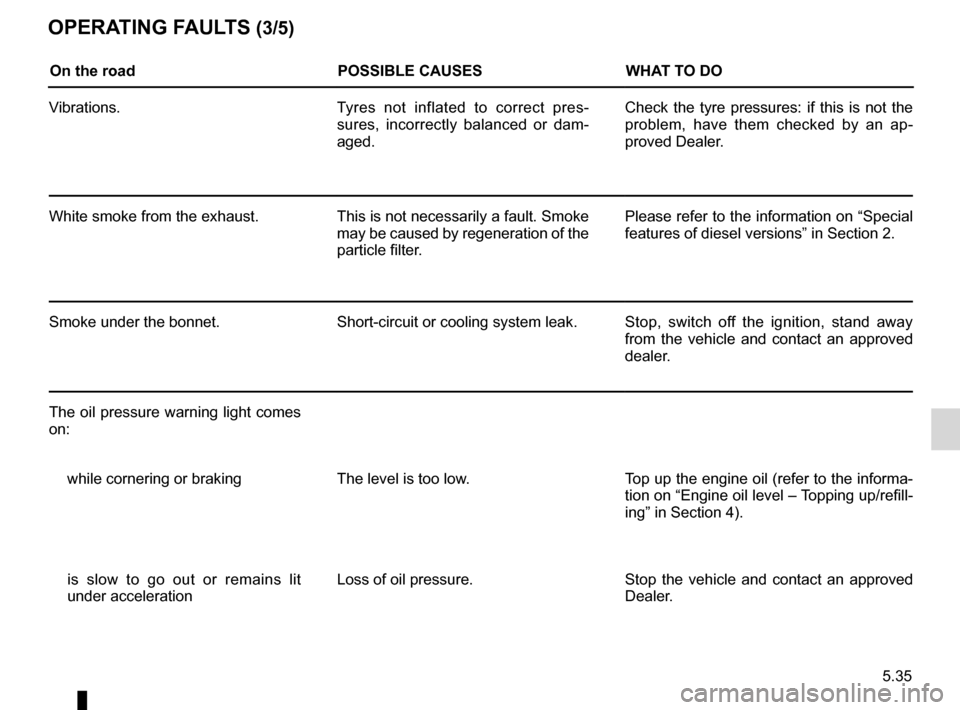

OPerA tInG FAuL tS (3/5)
On the road POSSIBLe cAuSeSWHAt tO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam -
aged. Check the tyre pressures: if this is not the
problem, have them checked by an ap
-
proved Dealer.
White smoke from the exhaust. This is not necessarily a fault. Smoke
may be caused by regeneration of the
particle filter.Please refer to the information on “Special
features of diesel versions” in Section 2.
Smoke under the bonnet. Short-circuit or cooling system leak.Stop, switch off the ignition, stand away
from the vehicle and contact an approved
dealer.
The oil pressure warning light comes
on: while cornering or braking The level is too low. Top up the engine oil (refer to the informa-
tion on “Engine oil level – Topping up/refill-
ing” in Section 4).
is slow to go out or remains lit
under acceleration Loss of oil pressure.
Stop the vehicle and contact an approved
Dealer.

5.36
ENG_UD28899_2
Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - \
K95 - J95 - R95 - X98 - Renault)
ENG_NU_936-5_BK91_Renault_5
Jaune NoirNoir texte

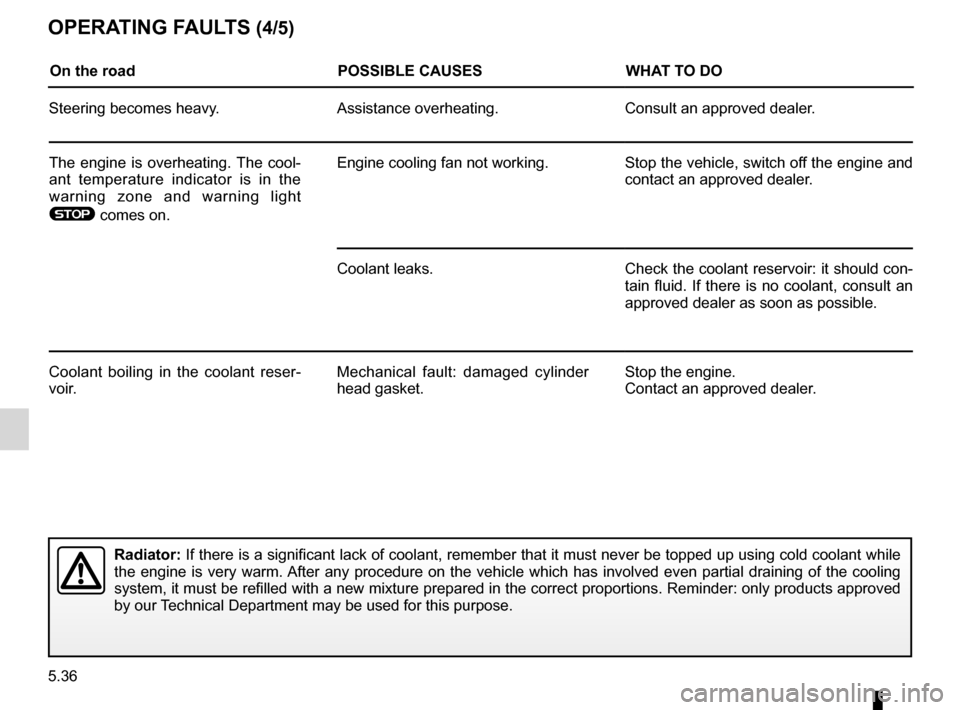

OPerA tInG FAuL tS (4/5)
On the road POSSIBLe cAuSeSWHAt tO DO
Steering becomes heavy. Assistance overheating.Consult an approved dealer.
The engine is overheating. The cool-
ant temperature indicator is in the
warning zone and warning light
® comes on. Engine cooling fan not working.
Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Coolant boiling in the coolant reser -
voir. Mechanical fault: damaged cylinder
head gasket.Stop the engine.
Contact an approved dealer.
radiator:
If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.
