RENAULT MASTER 2018 Owners Manual

6.1

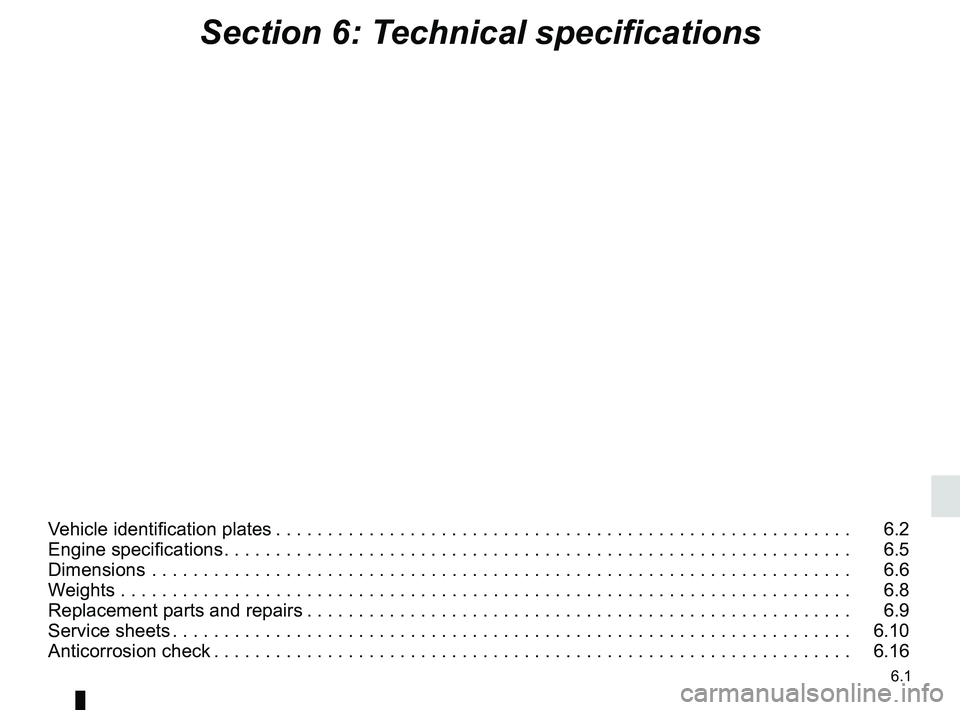

Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.9
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.16

6.2
VEHICLE IDENTIFICATION PLATES (1/2)
A
A
9
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Manufacturer name.
2 EC design number or approval
number.
3 Identification number.
Depending on the vehicle, this
information is also given on
marking B.
4 MAM (Maximum Authorised
Mass).
5 GTW (Gross train weight: vehicle
fully loaded, with trailer).
6 MPAW (Maximim Permissible
Weight) for front axle.
7 MPAW on rear axle.
8 Reserved for related or additional
entries.
9 Diesel exhaust emissions.
10 Paint reference (colour code).
7
8
106
5
4
3
2
1

6.3

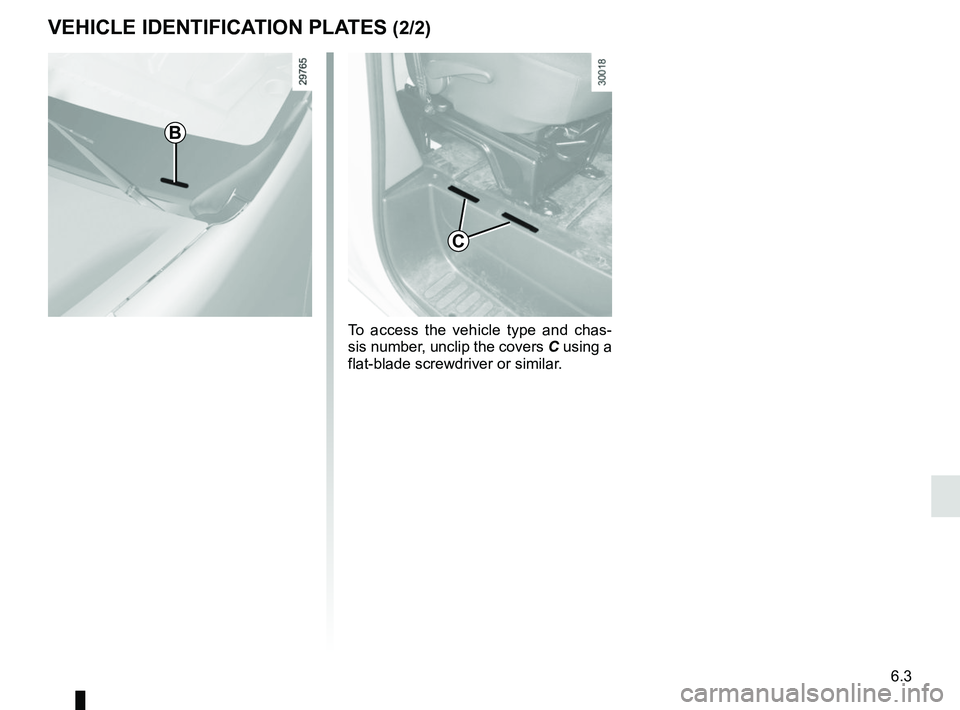

VEHICLE IDENTIFICATION PLATES (2/2)
C
To access the vehicle type and chas-
sis number, unclip the covers C using a
flat-blade screwdriver or similar.
B

6.4

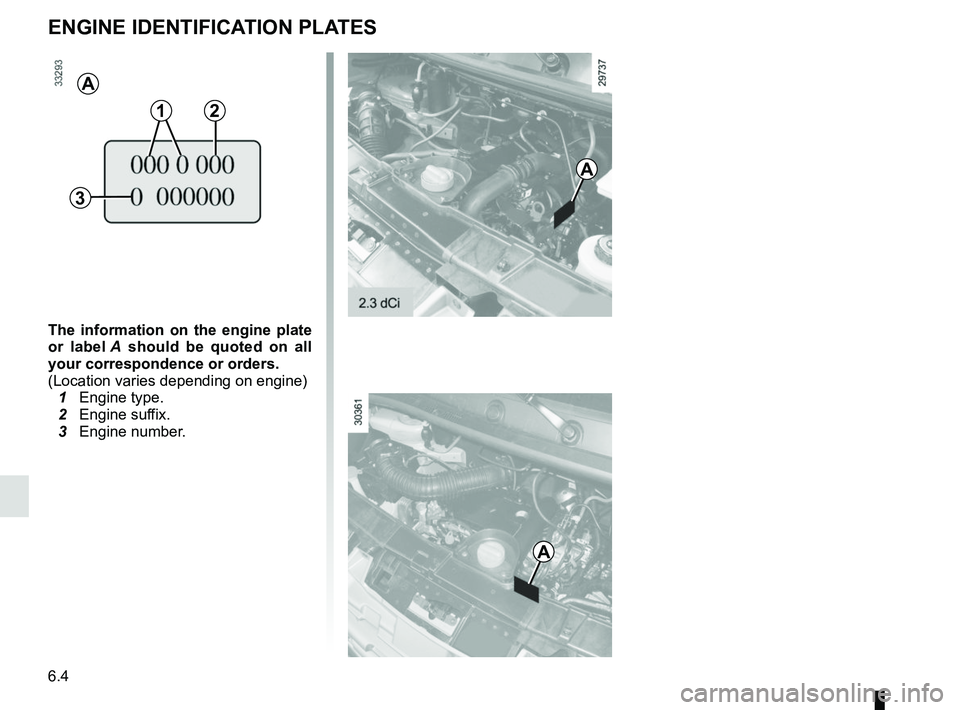

ENGINE IDENTIFICATION PLATES
The information on the engine plate
or label A should be quoted on all
your correspondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
A
A
12
3

6.5

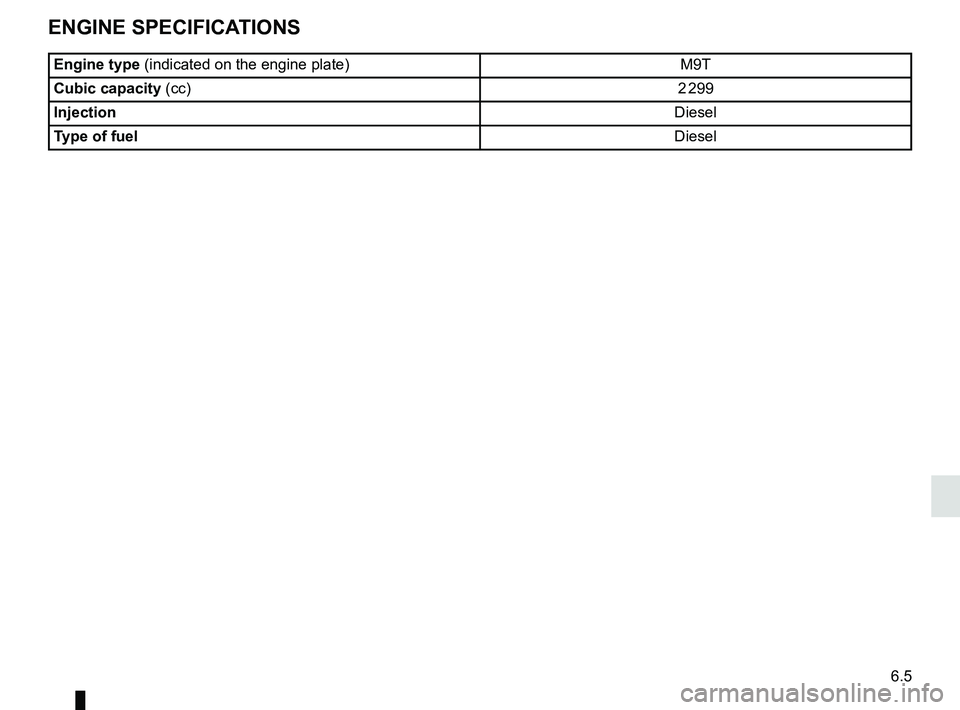

ENGINE SPECIFICATIONS
Engine type (indicated on the engine plate) M9T
Cubic capacity (cc) 2 299
Injection Diesel
Type of fuel Diesel

6.6

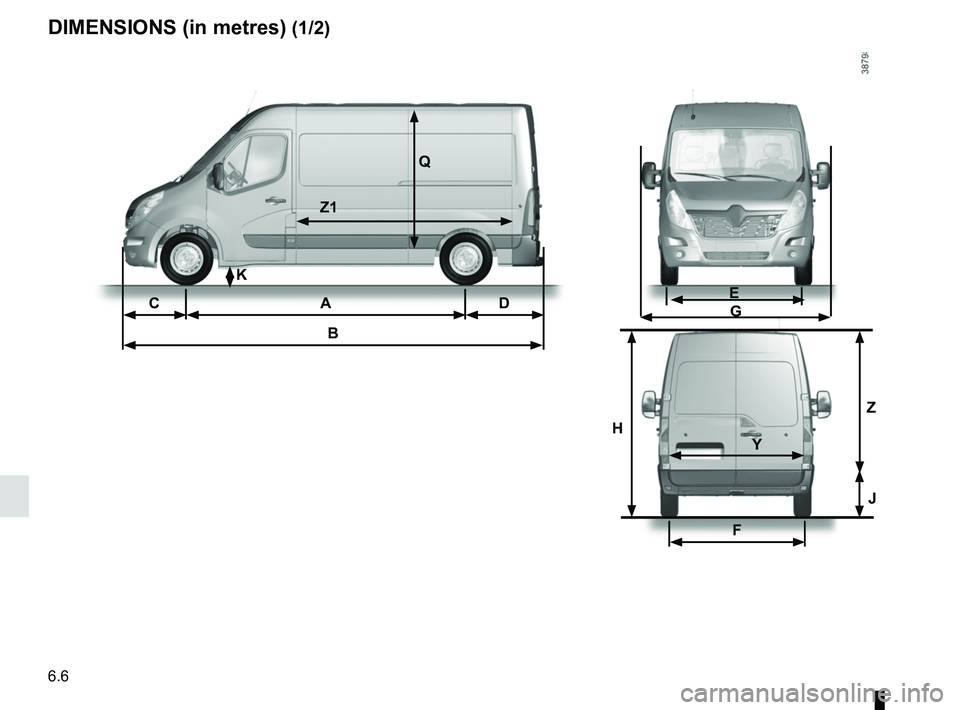

DIMENSIONS (in metres) (1/2)
CA D
B
K
Q
Z1
E G
F
H Z
J
Y

6.7

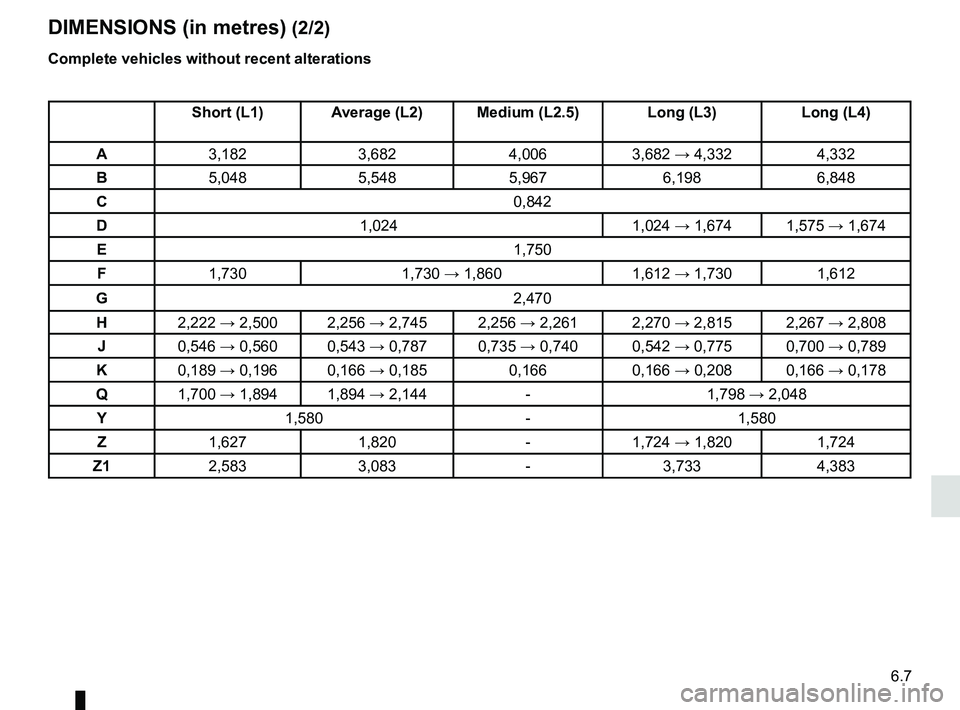

DIMENSIONS (in metres) (2/2)
Complete vehicles without recent alterations
Short (L1) Average (L2) Medium (L2.5) Long (L3)Long (L4)
A 3,182 3,682 4,0063,682 → 4,332 4,332
B 5,048 5,548 5,967 6,1986,848
C 0,842
D 1,024 1,024 → 1,674 1,575 → 1,674
E 1,750
F 1,730 1,730 → 1,860 1,612 → 1,7301,612
G 2,470
H 2,222 → 2,500 2,256 → 2,745 2,256 → 2,261 2,270 → 2,815 2,267 → 2,808
J 0,546 → 0,560 0,543 → 0,787 0,735 → 0,740 0,542 → 0,775 0,700 → 0,789
K 0,189 → 0,196 0,166 → 0,185 0,1660,166 → 0,208 0,166 → 0,178
Q 1,700 → 1,894 1,894 → 2,144 -1,798 → 2,048
Y 1,580 -1,580
Z 1,627 1,820 -1,724 → 1,820 1,724
Z1 2,583 3,083 -3,733 4,383

6.8

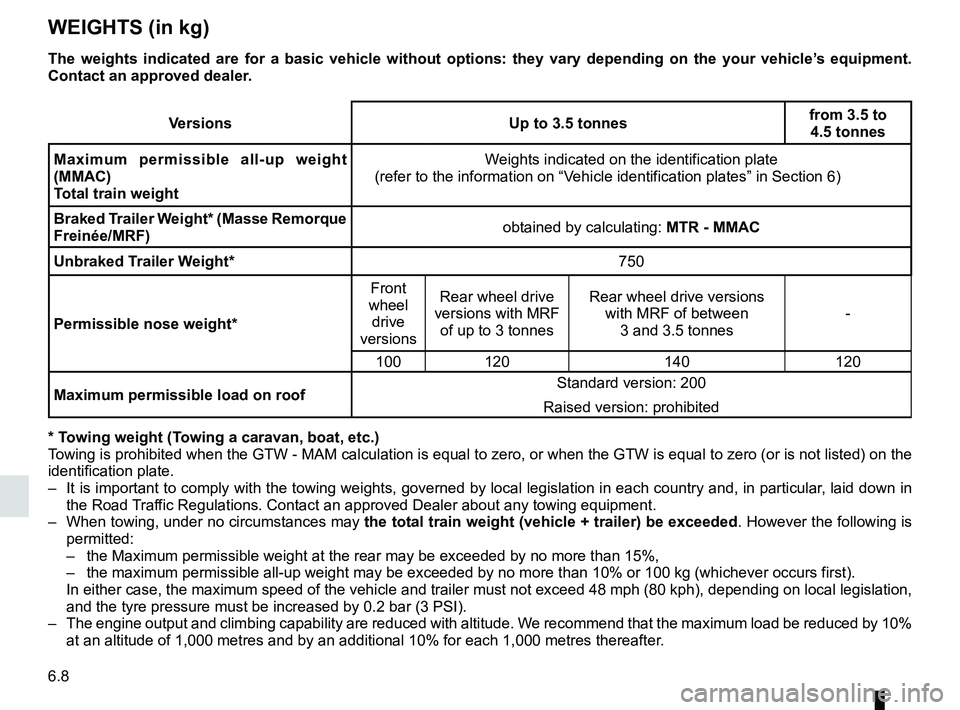

WEIGHTS (in kg)
VersionsUp to 3.5 tonnesfrom 3.5 to
4.5 tonnes
Maximum permissible all-up weight
(MMAC)
Total train weight Weights indicated on the identification plate
(refer to the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* (Masse Remorque
Freinée/MRF) obtained by calculating:
MTR - MMAC
Unbraked Trailer Weight* 750
Permissible nose weight* Front
wheel drive
versions Rear wheel drive
versions with MRF of up to 3 tonnes Rear wheel drive versions
with MRF of between 3 and 3.5 tonnes -
100 120 140120
Maximum permissible load on roof Standard version: 200
Raised version: prohibited
* Towing weight (Towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or \
when the GTW is equal to zero (or is not listed) on th e
identification plate.
– It is important to comply with the towing weights, governed by local leg\
islation in each country and, in particular, laid down in the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more th\
an 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10\
% or 100 kg (whichever occurs first).
In either case, the maximum speed of the vehicle and trailer must not ex\
ceed 48 mph (80 kph), depending on local legislation, and the tyre pressure must be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
The weights indicated are for a basic vehicle without options: they vary\
depending on the your vehicle’s equipment.
Contact an approved dealer.

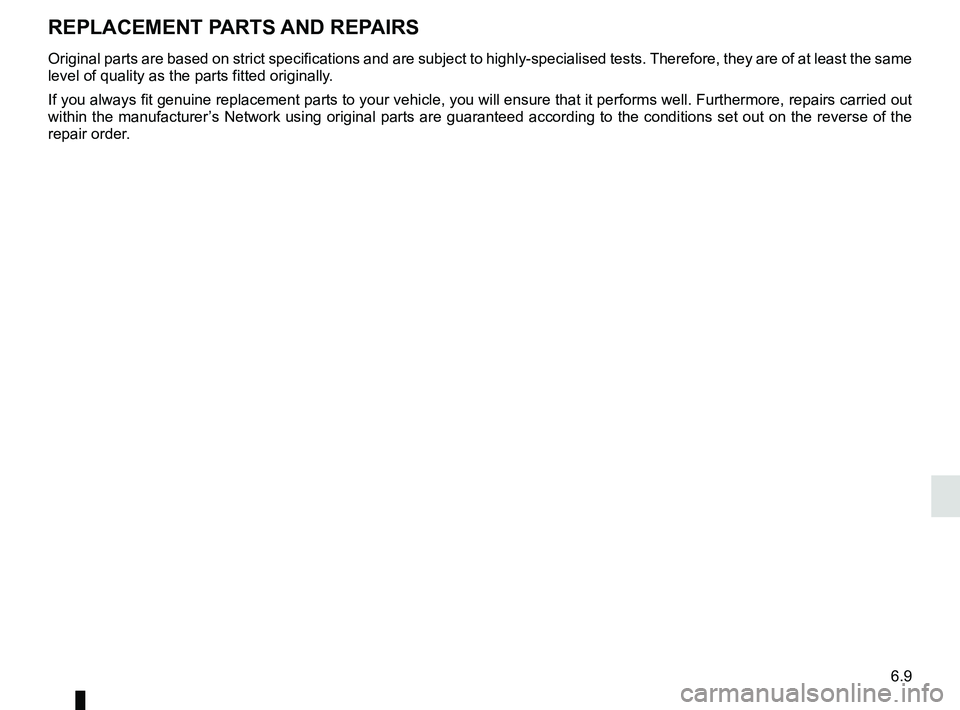

6.9
Original parts are based on strict specifications and are subject to hig\
hly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will en\
sure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the condition\
s set out on the reverse of the
repair order.
REPLACEMENT PARTS AND REPAIRS

6.10

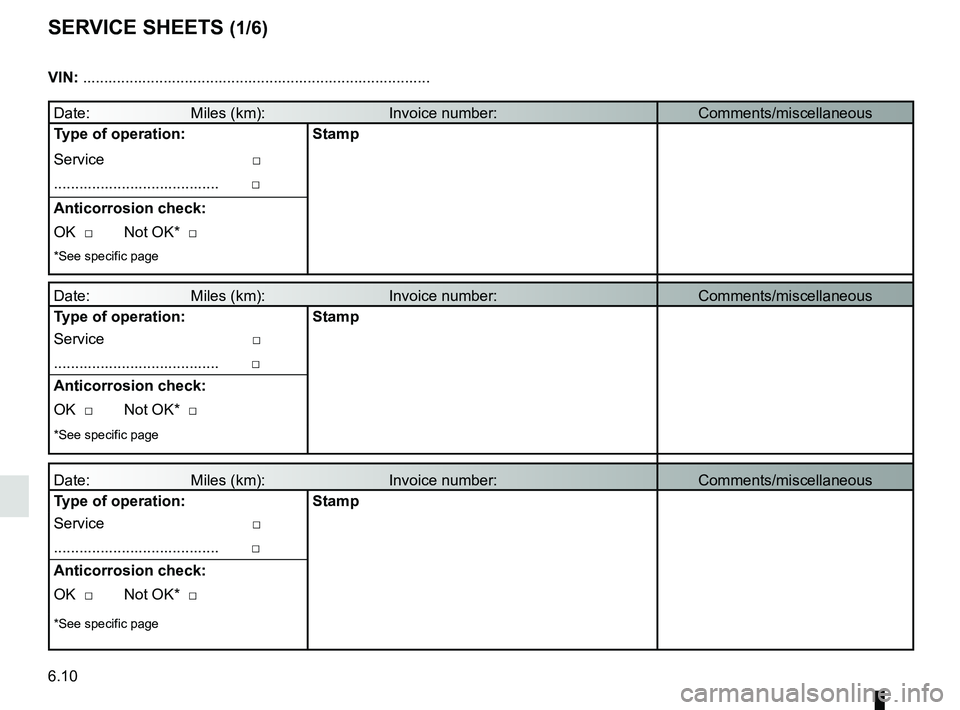

SERVICE SHEETS (1/6)
Date: Miles (km): Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anticorrosion check:
OK □ Not OK* □
*See specific page
VIN: .......................................................................\
...........
