1.55
CHILD SEATS: attachment by seat belt (16/18)
³Check the status of the air bag
before fitting a child seat or al-
lowing a passenger to use the seat.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat on the front passen-
ger seat, check that the air bag has
been deactivated (refer to the infor-
mation on “Deactivating the front
passenger air bag” in Section 1).
Child seat attached using the belt
¬Seat which allows a child seat
with “Universal” approval to be
attached by a seat belt;
²Seat not suitable for fitting
child seats.
Seat which only allows a for-
ward-facing seat with
“Universal” approval to be attached
with a seat belt.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
9-seater Combi version

1.56

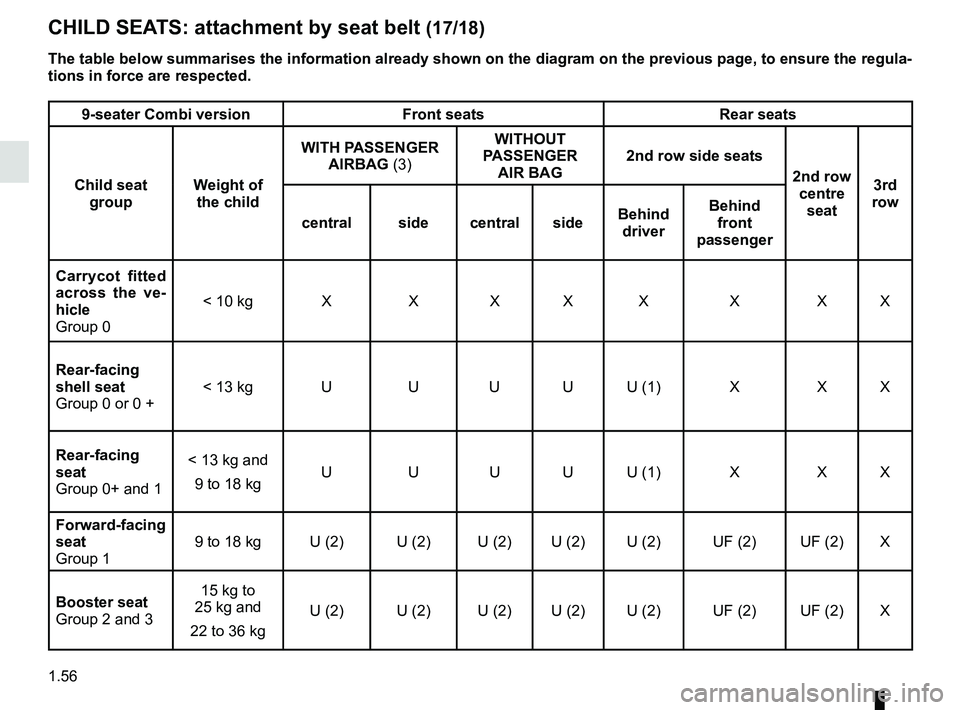

CHILD SEATS: attachment by seat belt (17/18)
9-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child WITH PASSENGER
AIRBAG (3) WITHOUT
PASSENGER AIR BAG 2nd row side seats
2nd row centre seat 3rd
row
central side central side Behind
driver Behind
front
passenger
Carrycot fitted
across the ve-
hicle
Group 0 < 10 kg X X X X X X X X
Rear-facing
shell seat
Group 0 or 0 + < 13 kg U U U U U (1) X X X
Rear-facing
seat
Group 0+ and 1 < 13 kg and
9 to 18 kg U U U U U (1) X X X
Forward-facing
seat
Group 1 9 to 18 kg U (2) U (2) U (2) U (2) U (2) UF (2) UF (2) X
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg U (2) U (2) U (2) U (2) U (2) UF (2) UF (2) X
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.57

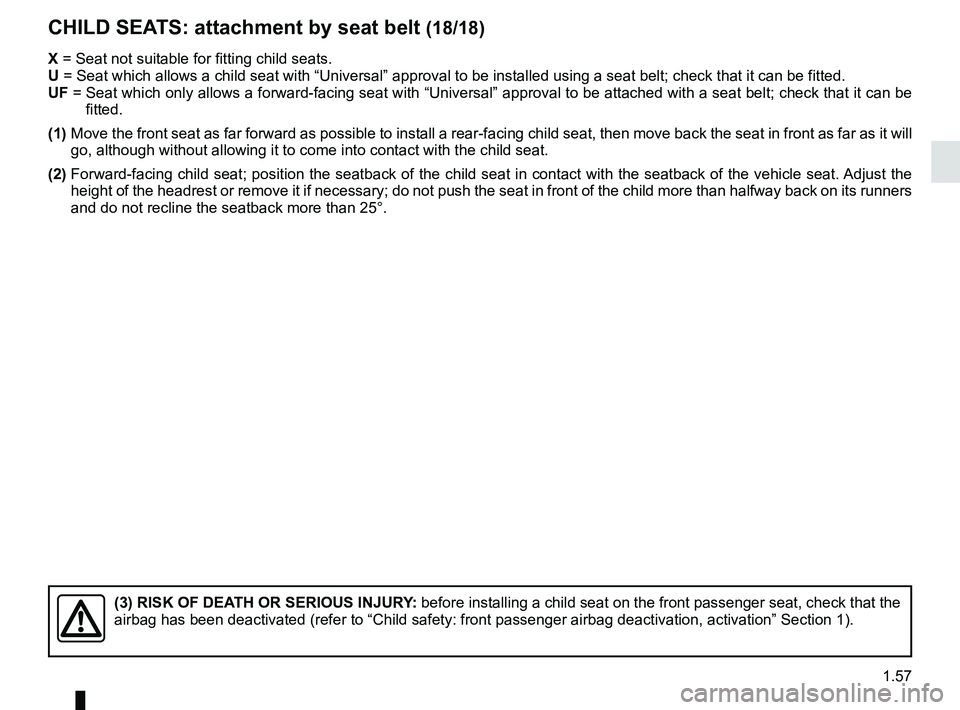

CHILD SEATS: attachment by seat belt (18/18)
(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that \
the
airbag has been deactivated (refer to “Child safety: front passenger\
airbag deactivation, activation” Section 1).
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
UF = Seat which only allows a forward-facing seat with “Universal” appr\
oval to be attached with a seat belt; check that it can be
fitted.
(1) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(2) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat i\
n front of the child more than halfway back on its runn ers
and do not recline the seatback more than 25°.

1.58

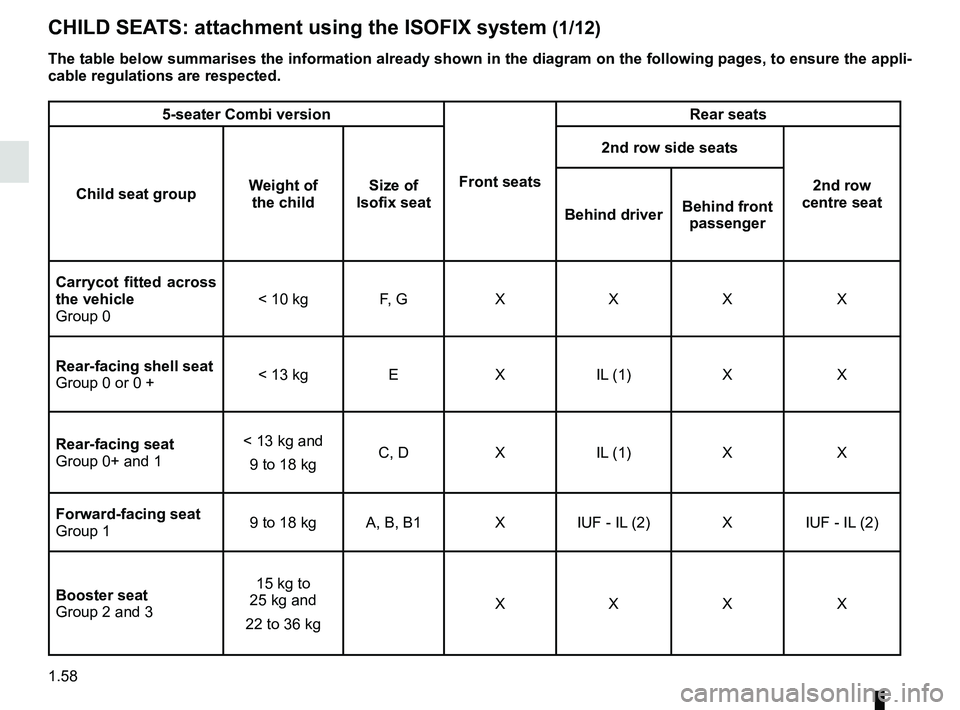

CHILD SEATS: attachment using the ISOFIX system (1/12)
The table below summarises the information already shown in the diagram \
on the following pages, to ensure the appli-
cable regulations are respected.
5-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child Size of
Isofix seat 2nd row side seats
2nd row
centre seat
Behind driver Behind front
passenger
Carrycot fitted across
the vehicle
Group 0 < 10 kg F, G X X X X
Rear-facing shell seat
Group 0 or 0 + < 13 kg E X IL (1) X X
Rear-facing seat
Group 0+ and 1 < 13 kg and
9 to 18 kg C, D X IL (1) X X
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 X IUF - IL (2) X IUF - IL (2)
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg XXX X

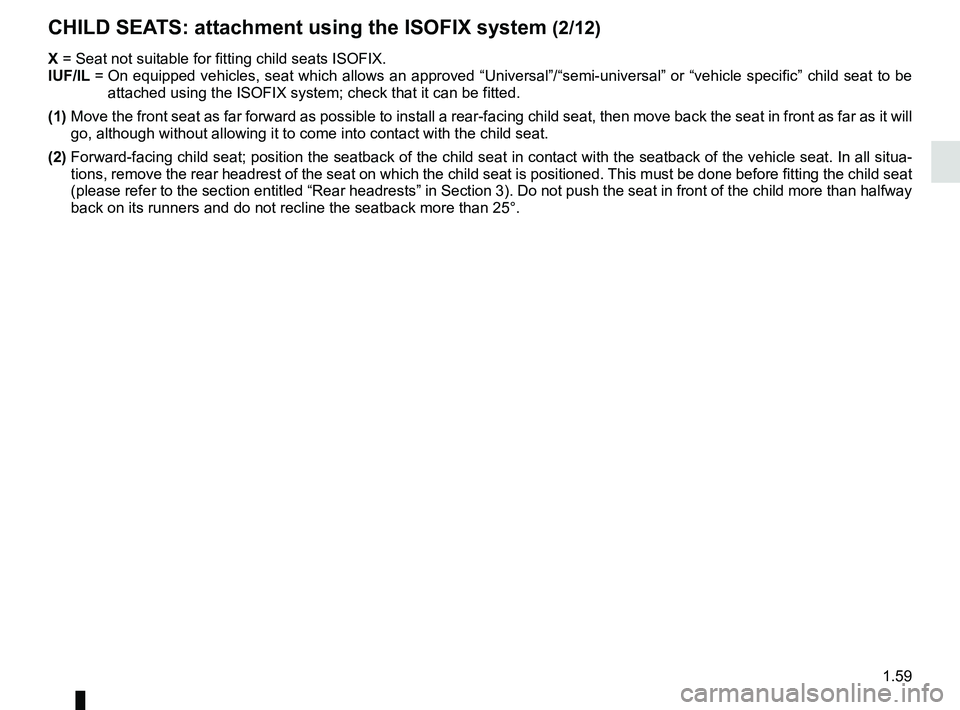

1.59
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“\
semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(2) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. In all sit ua-
tions, remove the rear headrest of the seat on which the child seat is p\
ositioned. This must be done before fitting the child s eat
(please refer to the section entitled “Rear headrests” in Section\
3). Do not push the seat in front of the child more than half way
back on its runners and do not recline the seatback more than 25°.

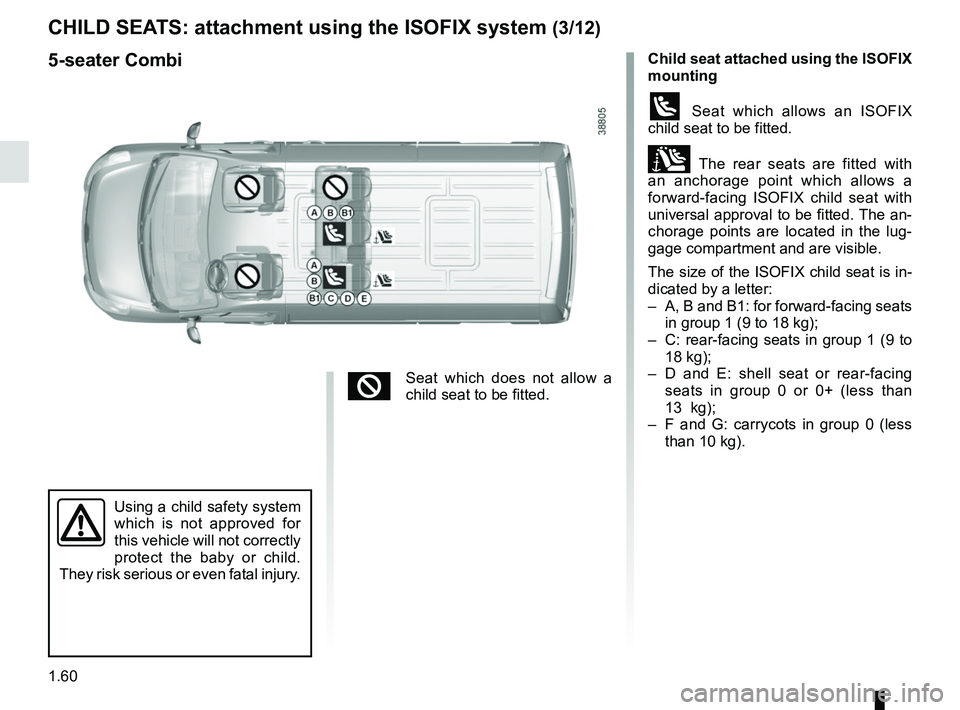

CHILD SEATS: attachment using the ISOFIX system (2/12)

1.60
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located in the lug-
gage compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to 18 kg);
– D and E: shell seat or rear-facing seats in group 0 or 0+ (less than
13 kg);
– F and G: carrycots in group 0 (less than 10 kg).
CHILD SEATS: attachment using the ISOFIX system (3/12)
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
²Seat which does not allow a
child seat to be fitted.
5-seater Combi

1.61

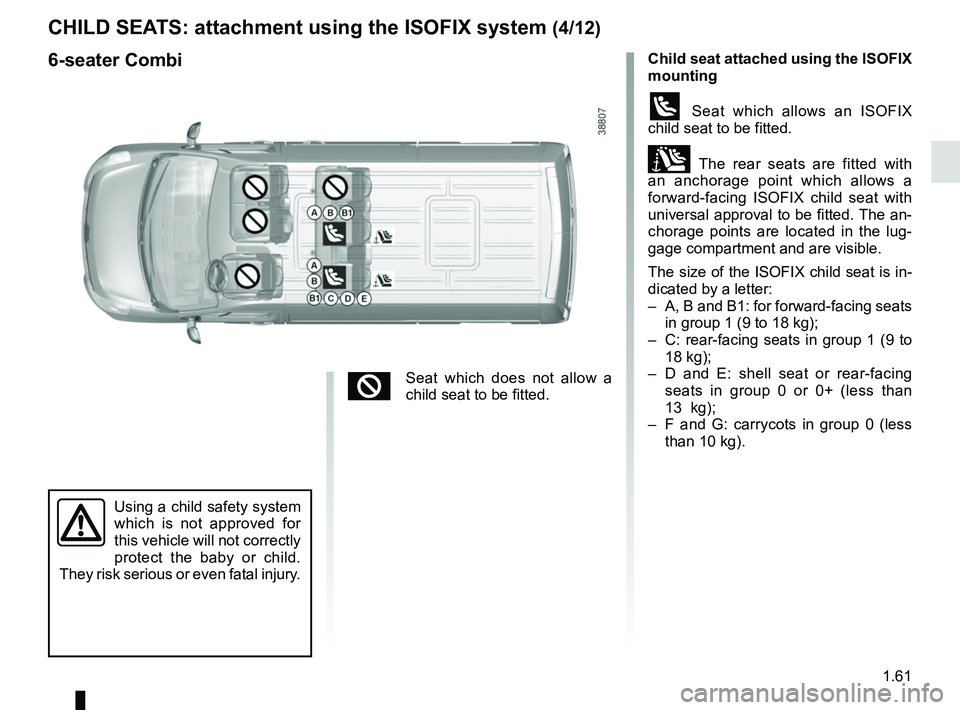

CHILD SEATS: attachment using the ISOFIX system (4/12)
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located in the lug-
gage compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to 18 kg);
– D and E: shell seat or rear-facing seats in group 0 or 0+ (less than
13 kg);
– F and G: carrycots in group 0 (less than 10 kg).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
²Seat which does not allow a
child seat to be fitted.
6-seater Combi

1.62

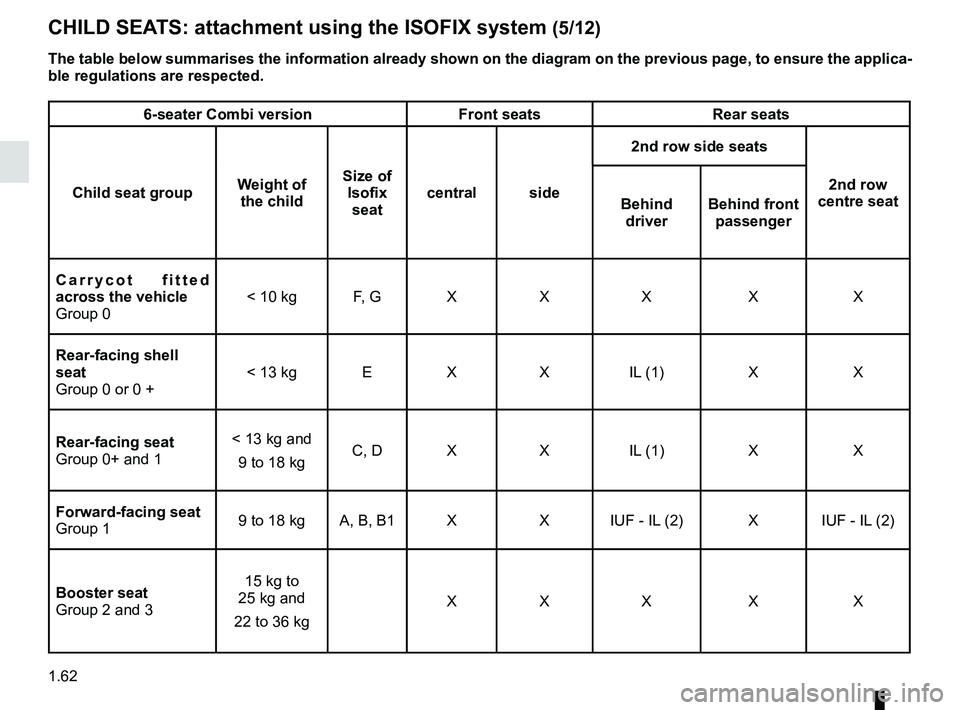

CHILD SEATS: attachment using the ISOFIX system (5/12)
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the applica-
ble regulations are respected.
6-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child Size of
Isofix seat central side 2nd row side seats
2nd row
centre seat
Behind
driver Behind front
passenger
Carrycot fitted
across the vehicle
Group 0 < 10 kg F, G X
XX XX
Rear-facing shell
seat
Group 0 or 0 + < 13 kg E X
XIL (1) XX
Rear-facing seat
Group 0+ and 1 < 13 kg and
9 to 18 kg C, D X
XIL (1) XX
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 X
X IUF - IL (2) X IUF - IL (2)
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg XX X X X

1.63
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“\
semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(2) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. In all sit ua-
tions, remove the rear headrest of the seat on which the child seat is p\
ositioned. This must be done before fitting the child s eat
(please refer to the section entitled “Rear headrests” in Section\
3). Do not push the seat in front of the child more than half way
back on its runners and do not recline the seatback more than 25°.
CHILD SEATS: attachment using the ISOFIX system (6/12)

1.64

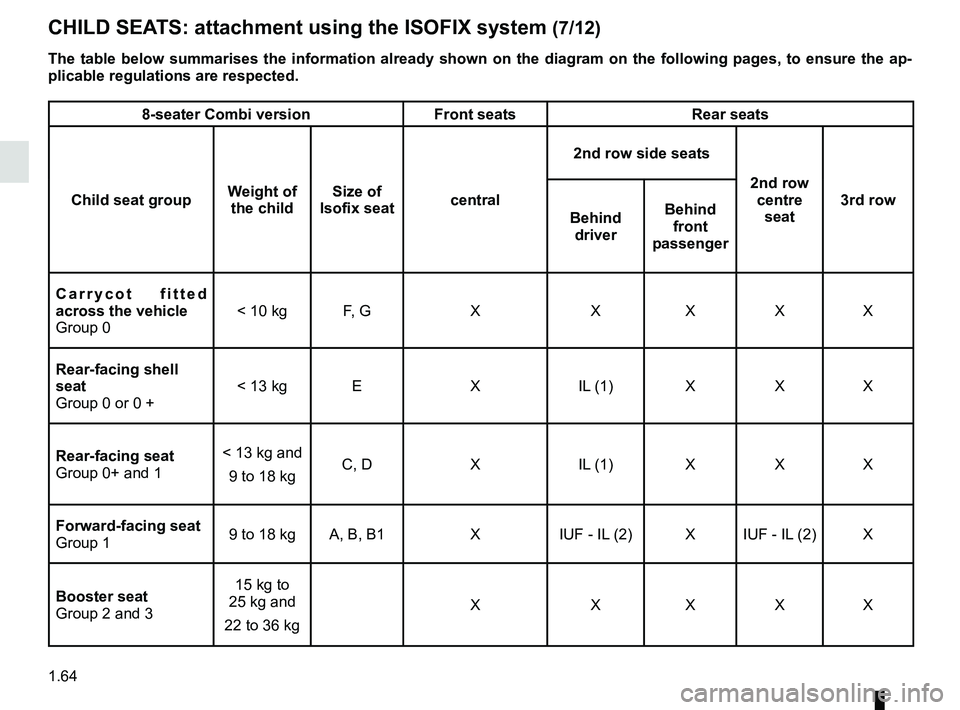

CHILD SEATS: attachment using the ISOFIX system (7/12)
The table below summarises the information already shown on the diagram \
on the following pages, to ensure the ap-
plicable regulations are respected.
8-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child Size of
Isofix seat central2nd row side seats
2nd row centre seat 3rd row
Behind driver Behind
front
passenger
Carrycot fitted
across the vehicle
Group 0 < 10 kg F, G X X X X X
Rear-facing shell
seat
Group 0 or 0 + < 13 kg E X IL (1) X X X
Rear-facing seat
Group 0+ and 1 < 13 kg and
9 to 18 kg C, D X IL (1) X X X
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 X IUF - IL (2) X IUF - IL (2) X
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg XXXXX
