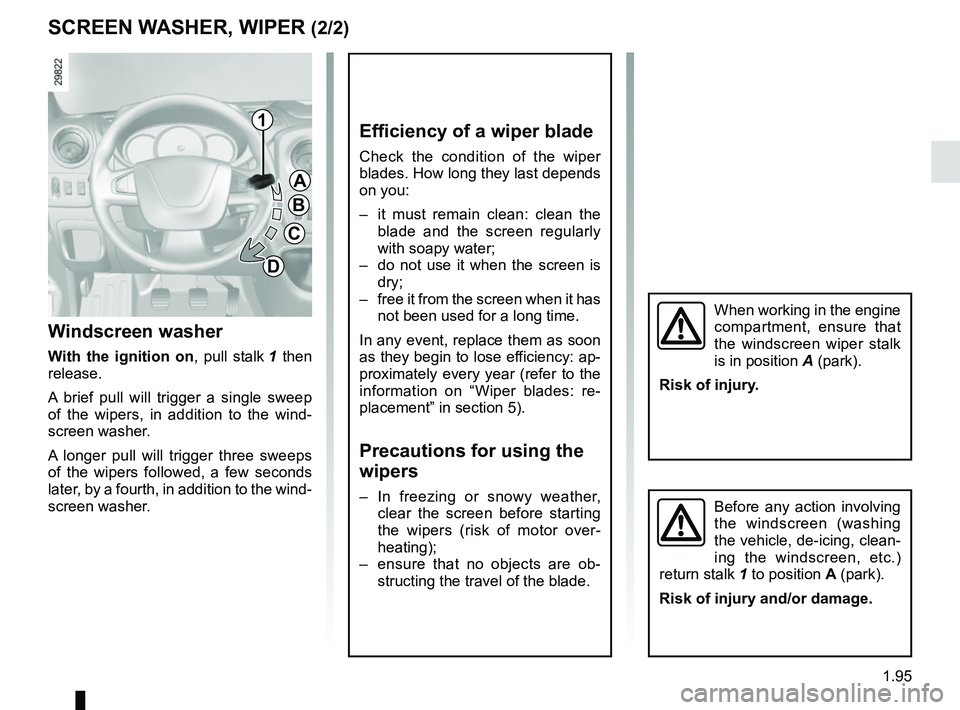

Page 101 of 290

RENAULT MASTER 2018  Owners Manual 1.95
SCREEN WASHER, WIPER (2/2)
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position A (park).
Risk of injury.
Before any action involving
the windscreen (

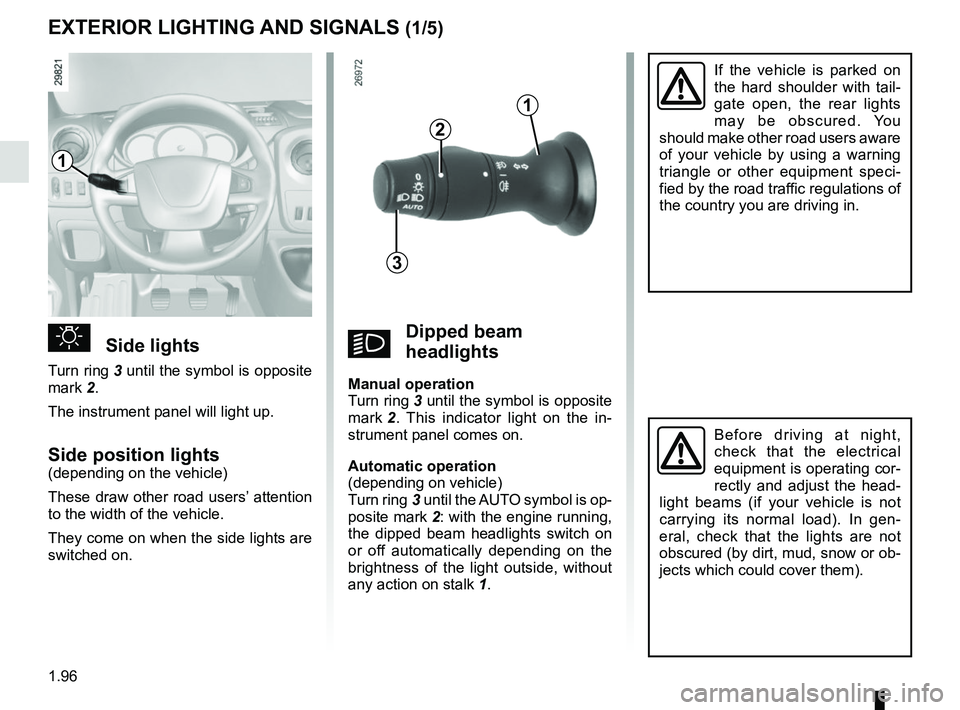

Page 102 of 290

RENAULT MASTER 2018  Owners Manual 1.96
EXTERIOR LIGHTING AND SIGNALS (1/5)
uSide lights
Turn ring 3 until the symbol is opposite
mark 2.
The instrument panel will light up.
Side position lights(depending on the vehicle)
These draw ot

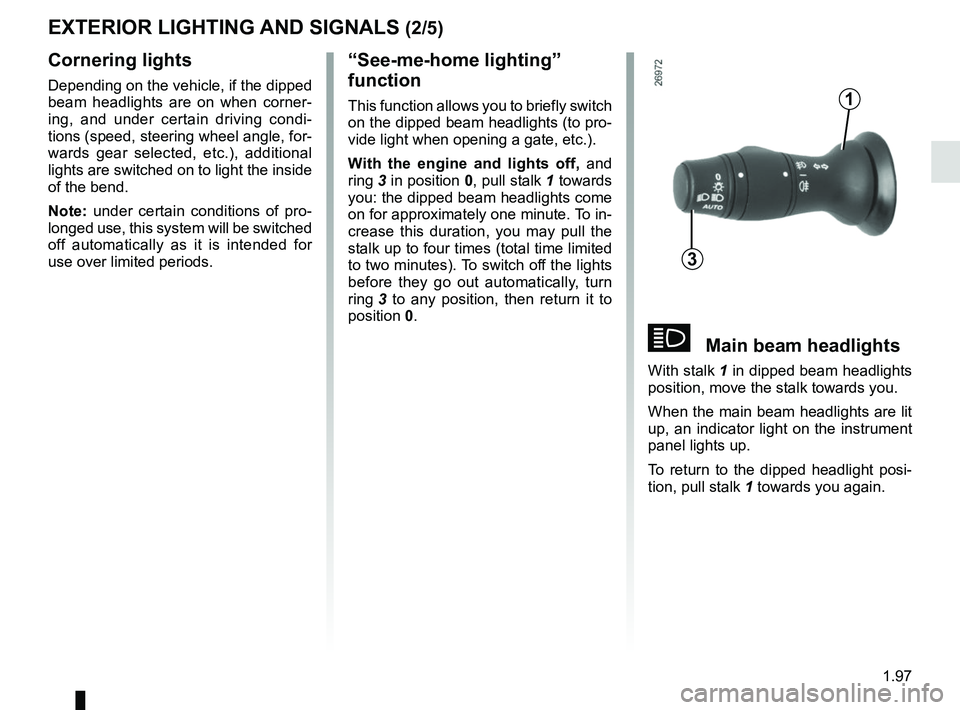

Page 103 of 290

RENAULT MASTER 2018  Owners Manual 1.97
áMain beam headlights
With stalk 1 in dipped beam headlights
position, move the stalk towards you.
When the main beam headlights are lit
up, an indicator light on the instrument
panel lights

Page 104 of 290

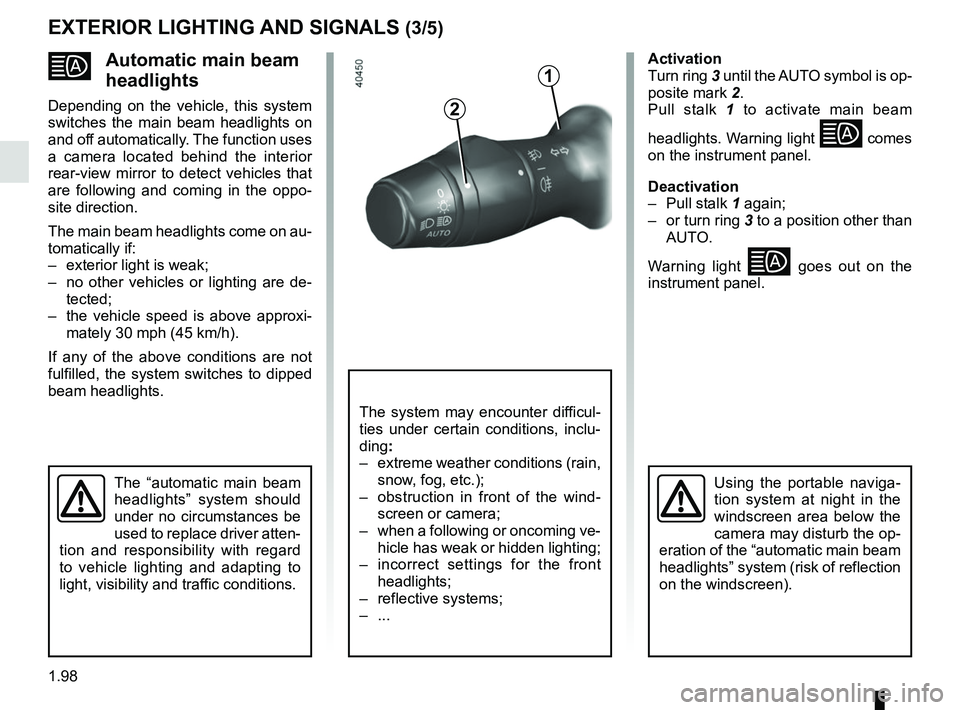

RENAULT MASTER 2018  Owners Manual 1.98
Automatic main beam
headlights
Depending on the vehicle, this system
switches the main beam headlights on
and off automatically. The function uses
a camera located behind the interior
rea

Page 105 of 290

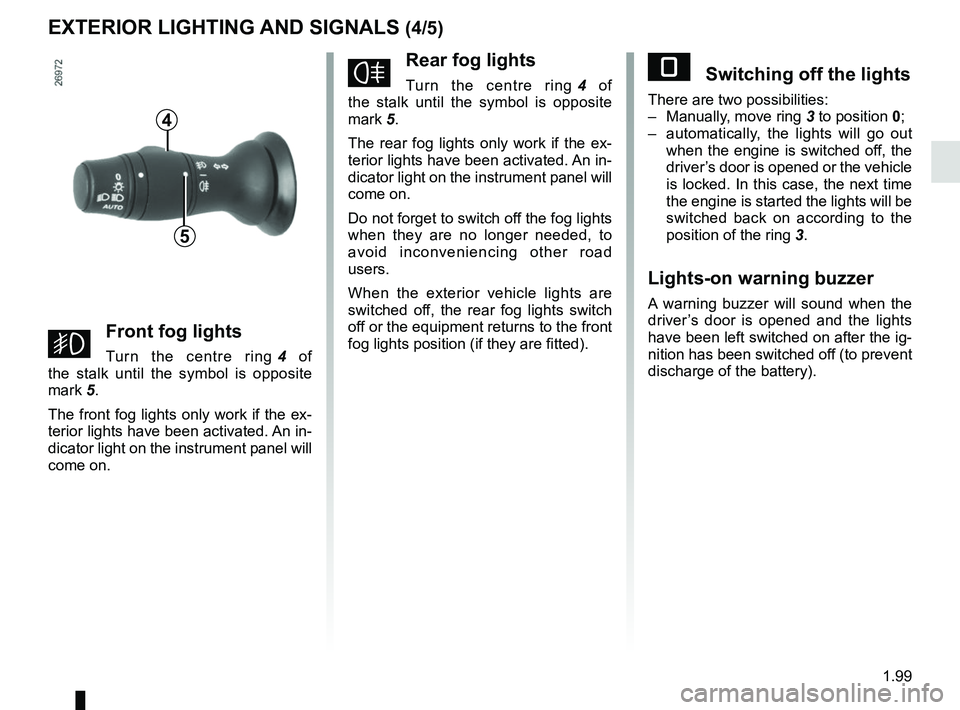

RENAULT MASTER 2018  Owners Manual 1.99
EXTERIOR LIGHTING AND SIGNALS (4/5)
gFront fog lights
Turn the centre ring 4 of
the stalk until the symbol is opposite
mark 5.
The front fog lights only work if the ex-
terior lights have been

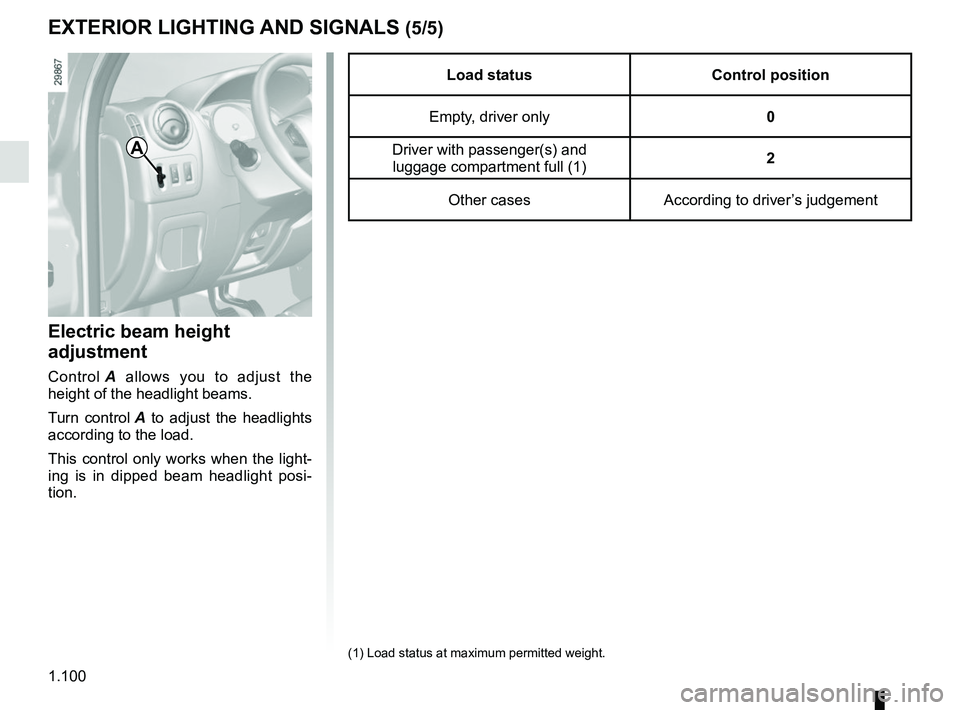

Page 106 of 290

RENAULT MASTER 2018  Owners Manual 1.100
Load statusControl position
Empty, driver only 0
Driver with passenger(s) and  luggage compartment full (1) 2
Other cases According to driver’s judgement
EXTERIOR LIGHTING AND SIGNALS (5/5)
El

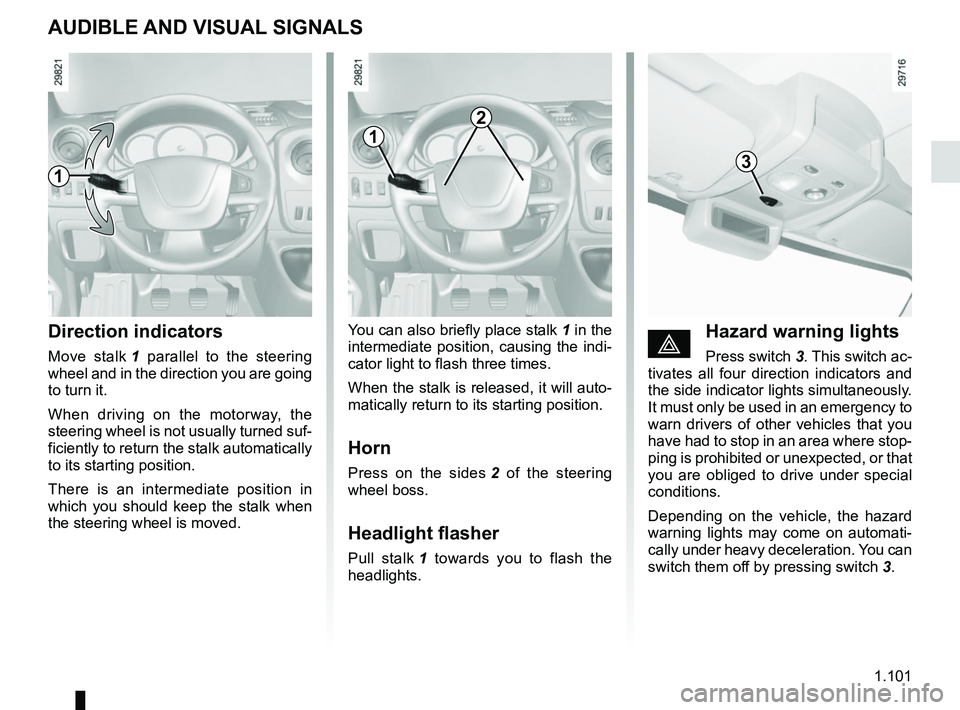

Page 107 of 290

RENAULT MASTER 2018  Owners Manual 1.101
AUDIBLE AND VISUAL SIGNALS
Direction indicators
Move stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
When driving on the motorway, the
steering wheel is

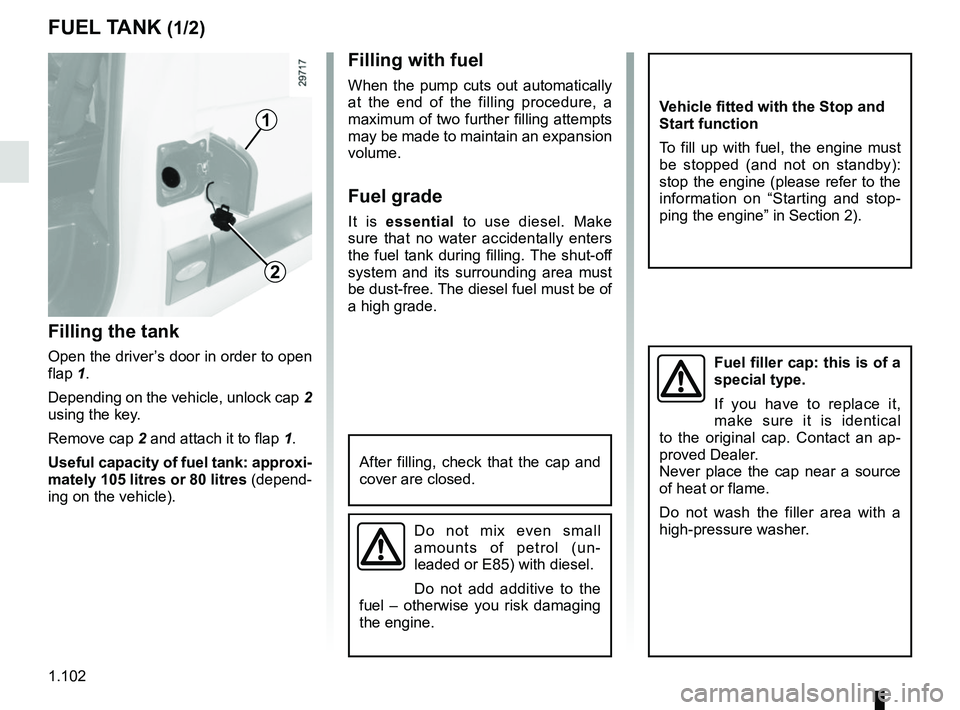

Page 108 of 290

RENAULT MASTER 2018  Owners Manual 1.102
FUEL TANK (1/2)
Filling the tank
Open the driver’s door in order to open
flap 1.
Depending on the vehicle, unlock cap  2
using the key.
Remove cap  2 and attach it to flap 1.
Useful capacity

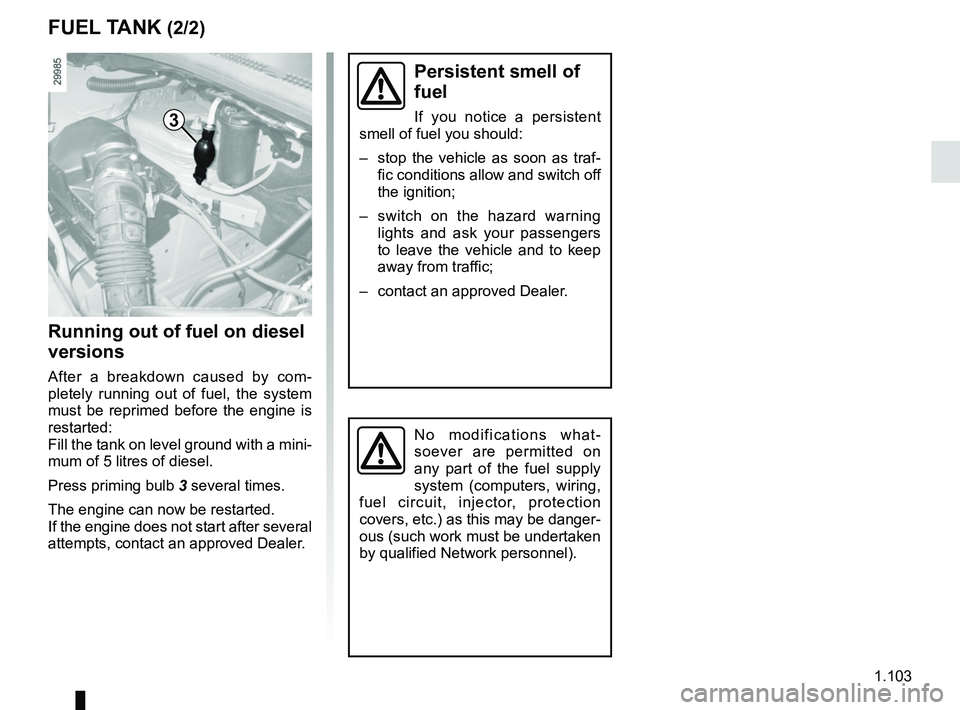

Page 109 of 290

RENAULT MASTER 2018  Owners Manual 1.103
FUEL TANK (2/2)
No modifications what-
soever are permitted on
any part of the fuel supply
system (computers, wiring,
fuel circuit, injector, protection
covers, etc.) as this may be danger-

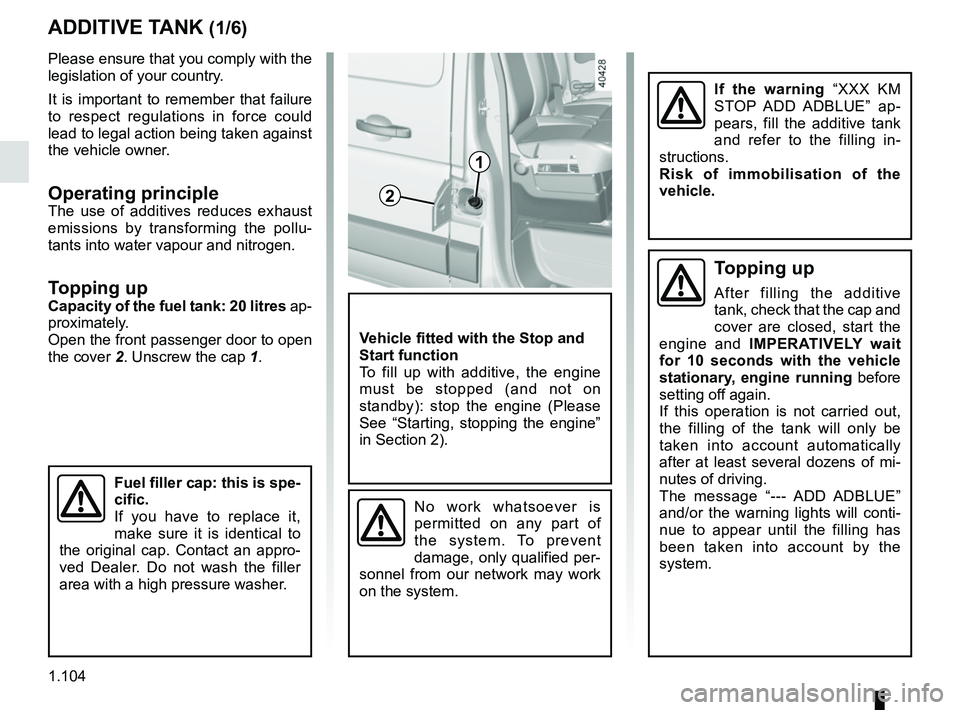

Page 110 of 290

RENAULT MASTER 2018  Owners Manual 1.104
Please ensure that you comply with the
legislation of your country.
It is important to remember that failure
to respect regulations in force could
lead to legal action being taken against
th
