Page 191 of 316

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.3
MULTI-SENSE (2/2)Accessing the menu
You can access Multi-Sense, depend-
ing on the vehicle:
– from the multifunction screen  1.
Select menu “Vehicle” then “Multi-
Sense”;
– using swi

Page 192 of 316

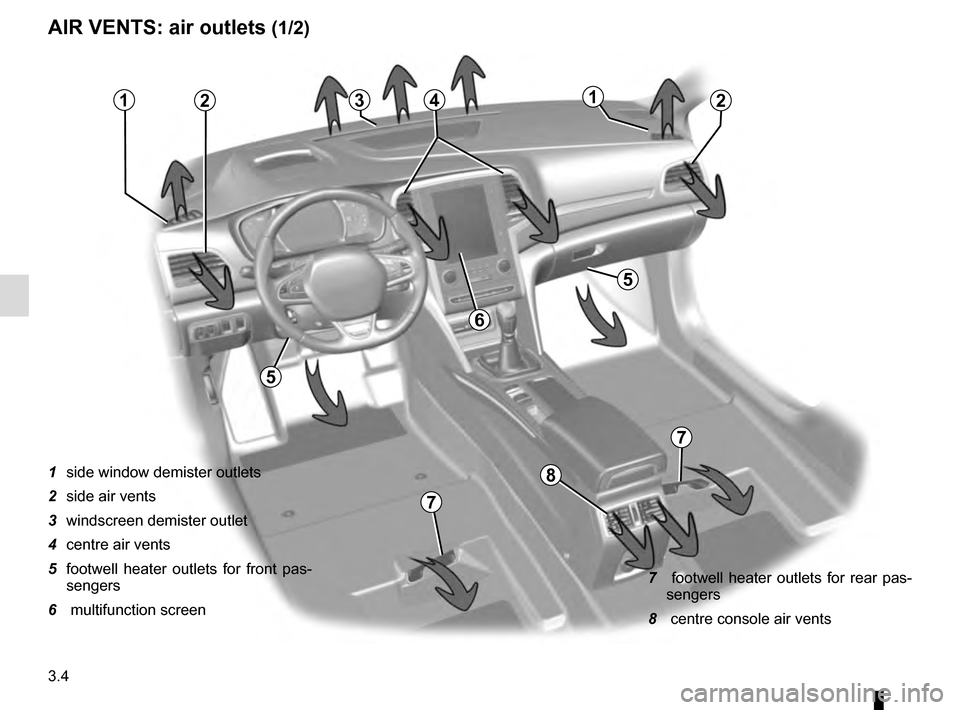

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.4
AIR VENTS: air outlets (1/2)
1  side window demister outlets
2  side air vents
3  windscreen demister outlet
4  centre air vents
5  footwell heater outlets for front pas-sengers
6   multifunction

Page 193 of 316

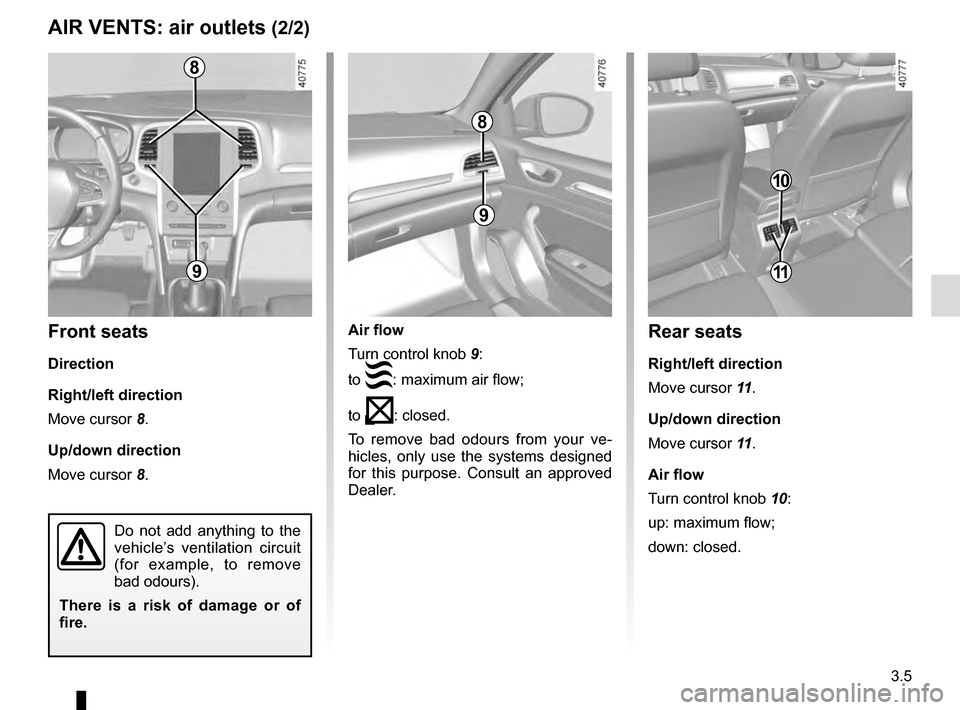

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.5
Air flow
Turn control knob 9:
to
: maximum air flow;
to
: closed.
To remove bad odours from your ve-
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
AIR V

Page 194 of 316

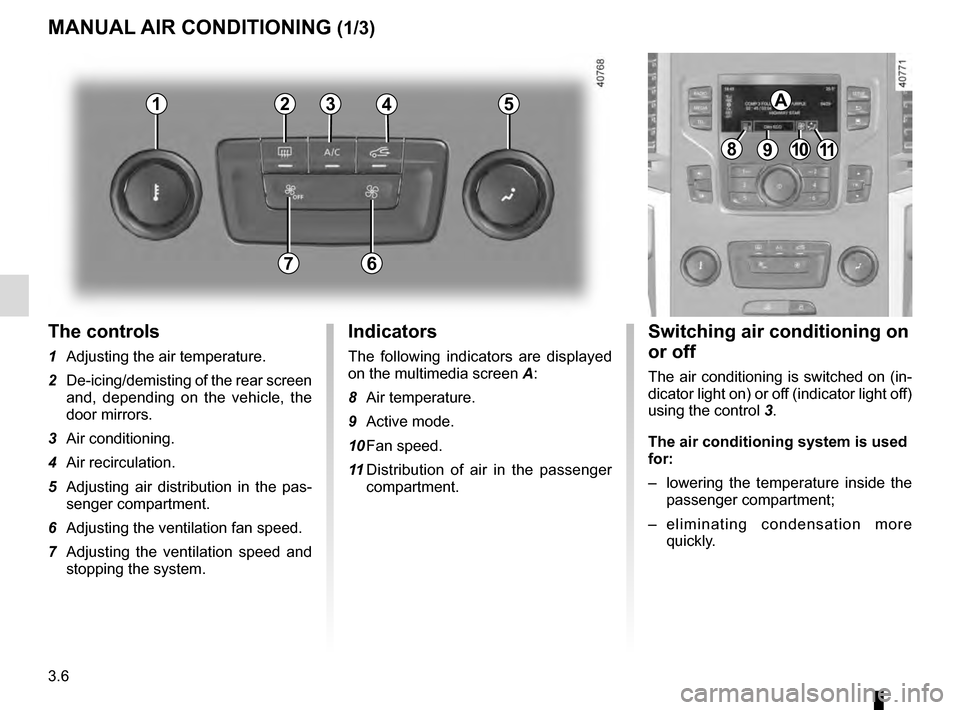

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.6
The controls
1  Adjusting the air temperature.
2  De-icing/demisting of the rear screen and, depending on the vehicle, the
door mirrors.
3 Air conditioning.
4 Air recirculation.
5  Adjusting air

Page 195 of 316

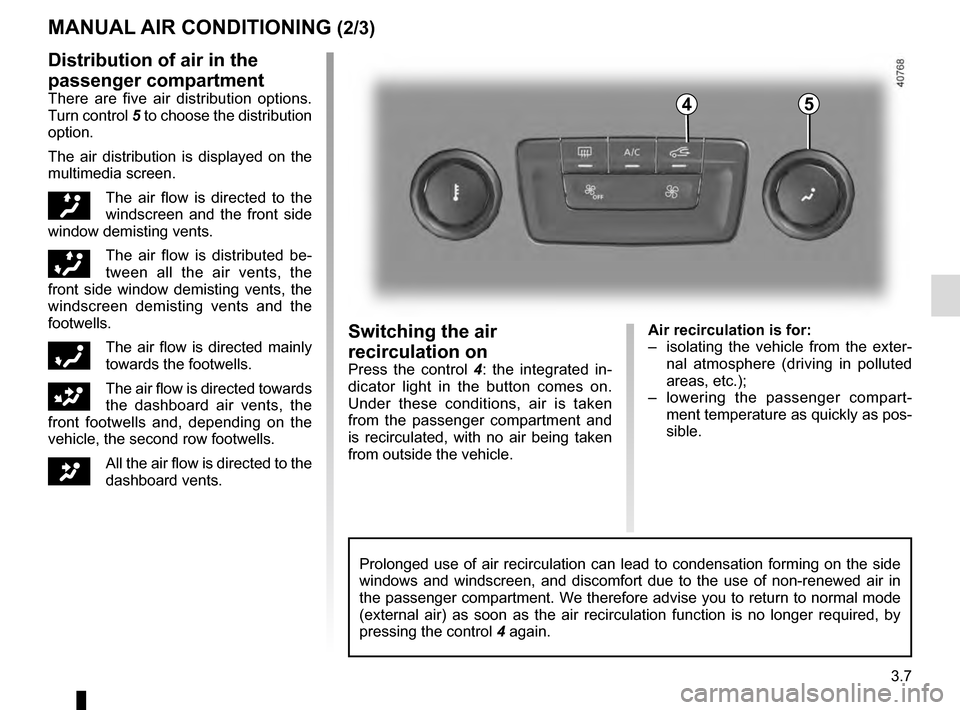

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.7
Air recirculation is for:
–  isolating the vehicle from the exter-nal atmosphere (driving in polluted
areas, etc.);
–  lowering the passenger compart- ment temperature as quickly as pos-
sibl

Page 196 of 316

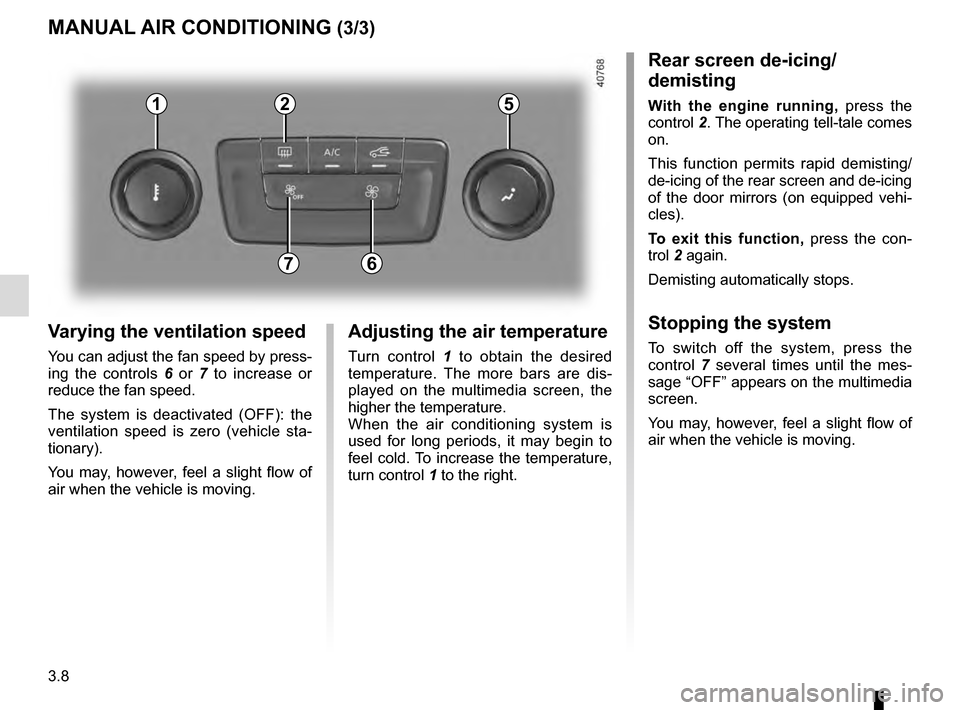

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.8
Varying the ventilation speed
You can adjust the fan speed by press-
ing the controls 6 or 7 to increase or
reduce the fan speed.
The system is deactivated (OFF): the
ventilation speed is zero (

Page 197 of 316

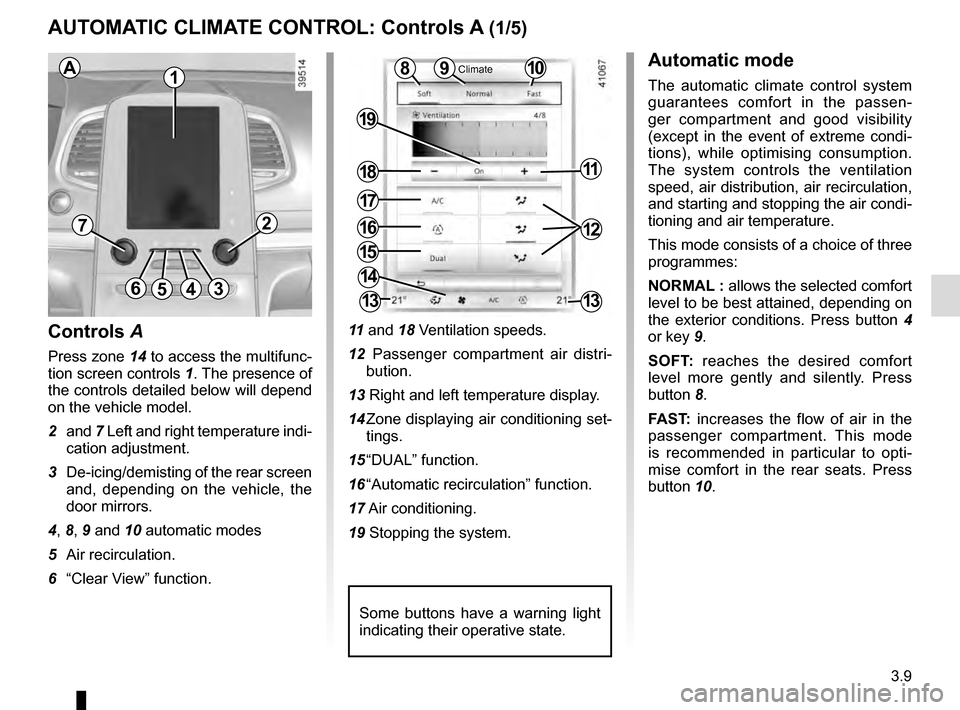

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.9
10
AUTOMATIC CLIMATE CONTROL: Controls A (1/5)
15
6543
9
1216
17
18
19
11
Controls A
Press zone 14 to access the multifunc-
tion screen controls 1. The presence of
the controls detailed below wi

Page 198 of 316

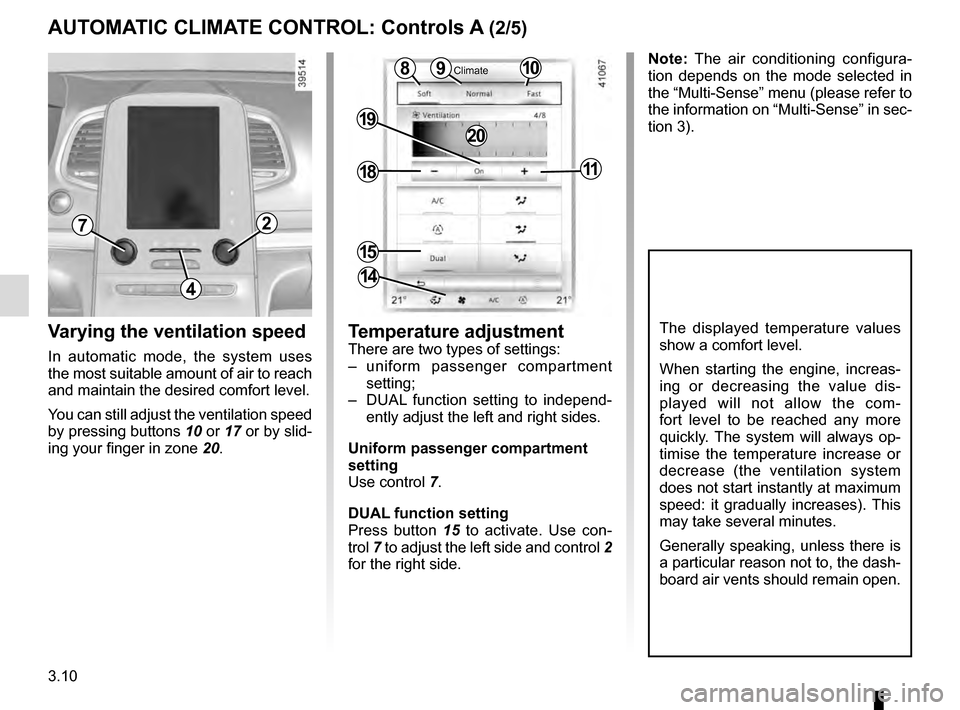

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.10
Varying the ventilation speed
In automatic mode, the system uses
the most suitable amount of air to reach
and maintain the desired comfort level.
You can still adjust the ventilation speed
by

Page 199 of 316

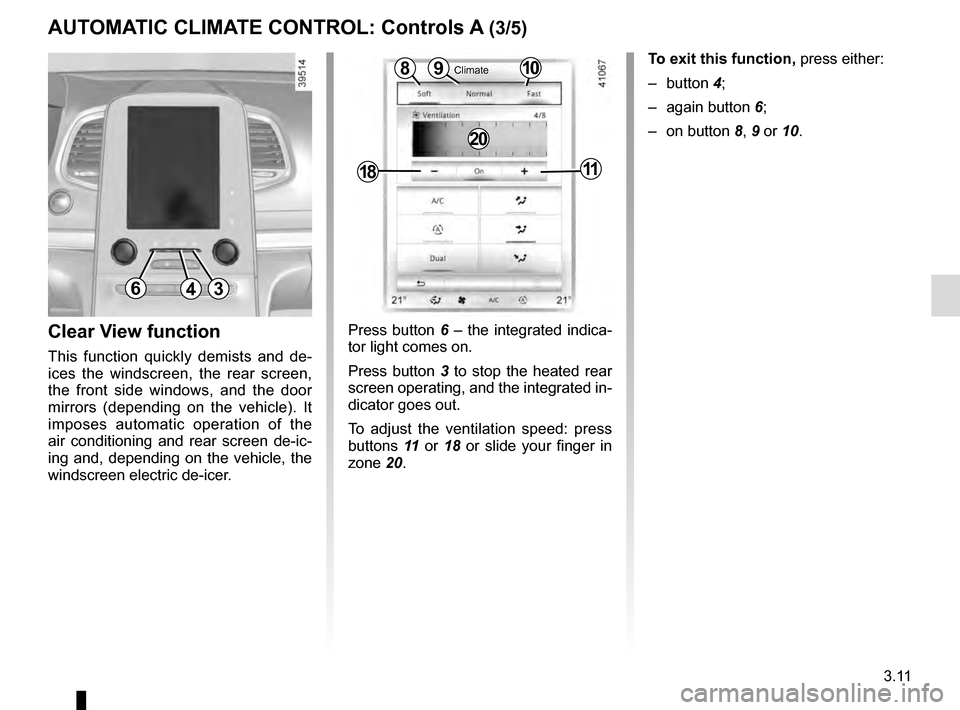

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.11
Press button 6 – the integrated indica-
tor light comes on.
Press button 3 to stop the heated rear
screen operating, and the integrated in-
dicator goes out.
To adjust the ventilation speed: p

Page 200 of 316

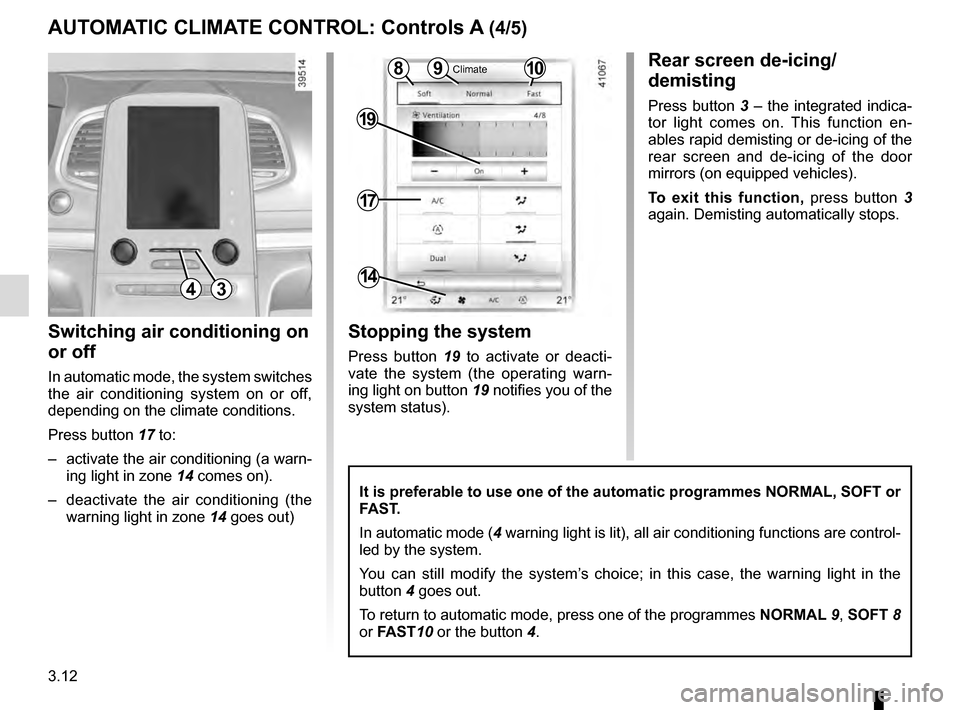

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.12
Switching air conditioning on
or off
In automatic mode, the system switches
the air conditioning system on or off,
depending on the climate conditions.
Press button 17 to:
–  activate the a
