Page 201 of 316

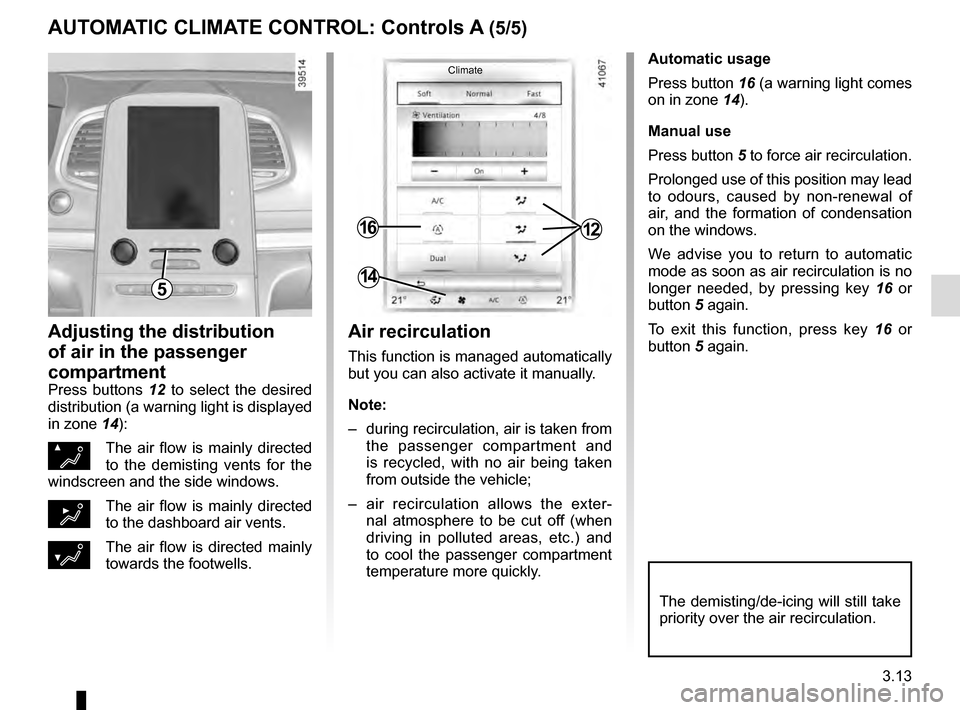

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.13
Automatic usage
Press button 16 (a warning light comes
on in zone 14).
Manual use
Press button 5 to force air recirculation.
Prolonged use of this position may lead
to odours, caused by non-ren

Page 202 of 316

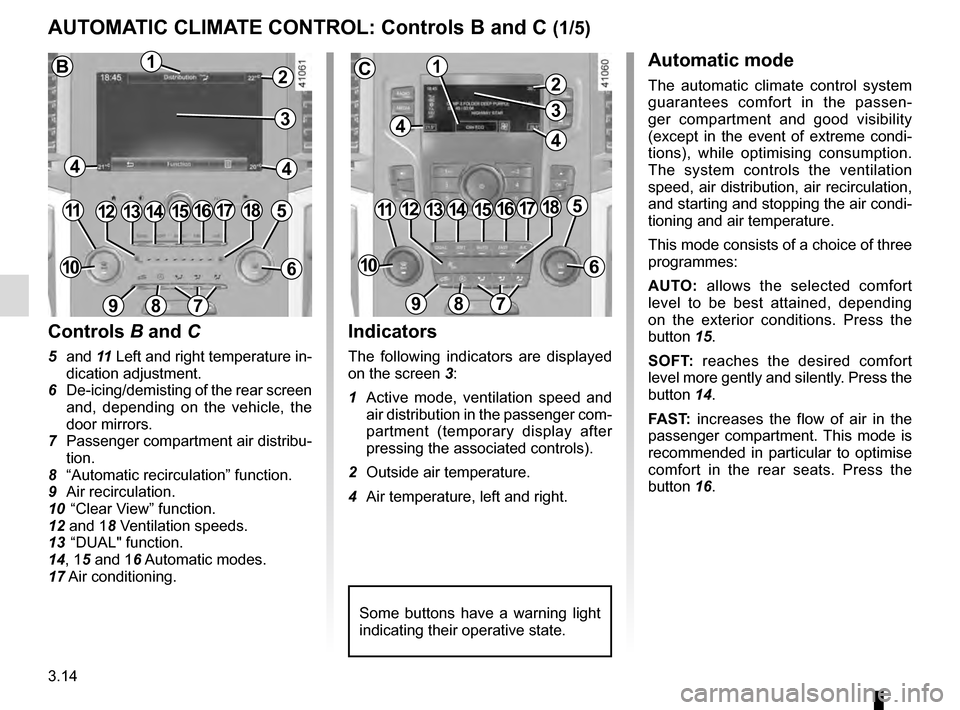

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.14
AUTOMATIC CLIMATE CONTROL: Controls B and C (1/5)
Indicators
The following indicators are displayed
on the screen 3:
1  Active mode, ventilation speed and  air distribution in the passenger com-

Page 203 of 316

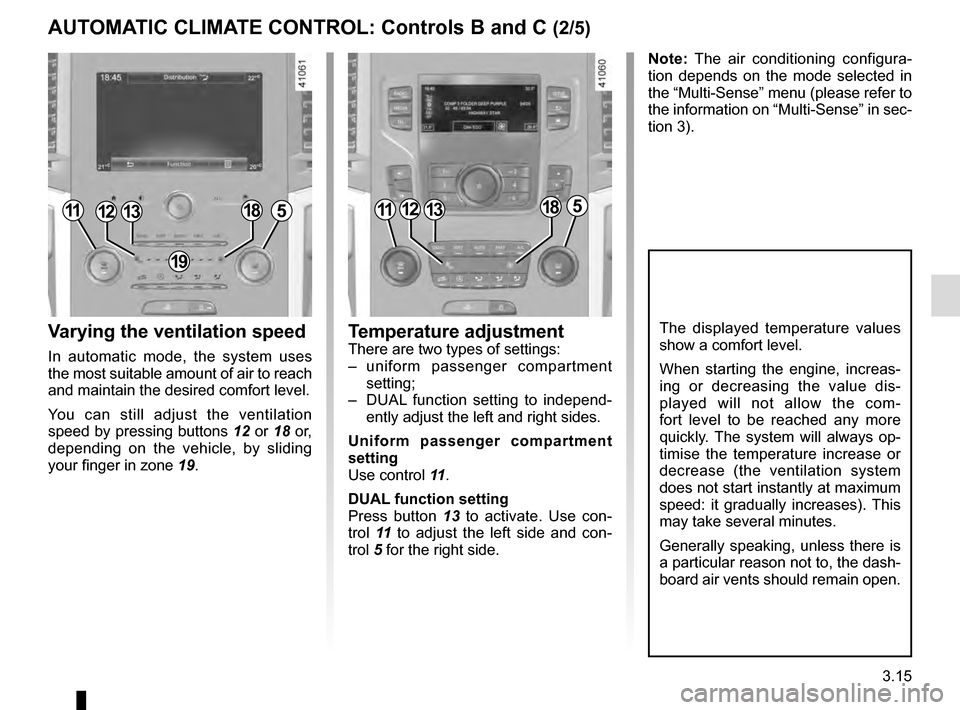

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.15
Varying the ventilation speed
In automatic mode, the system uses
the most suitable amount of air to reach
and maintain the desired comfort level.
You can still adjust the ventilation
speed by

Page 204 of 316

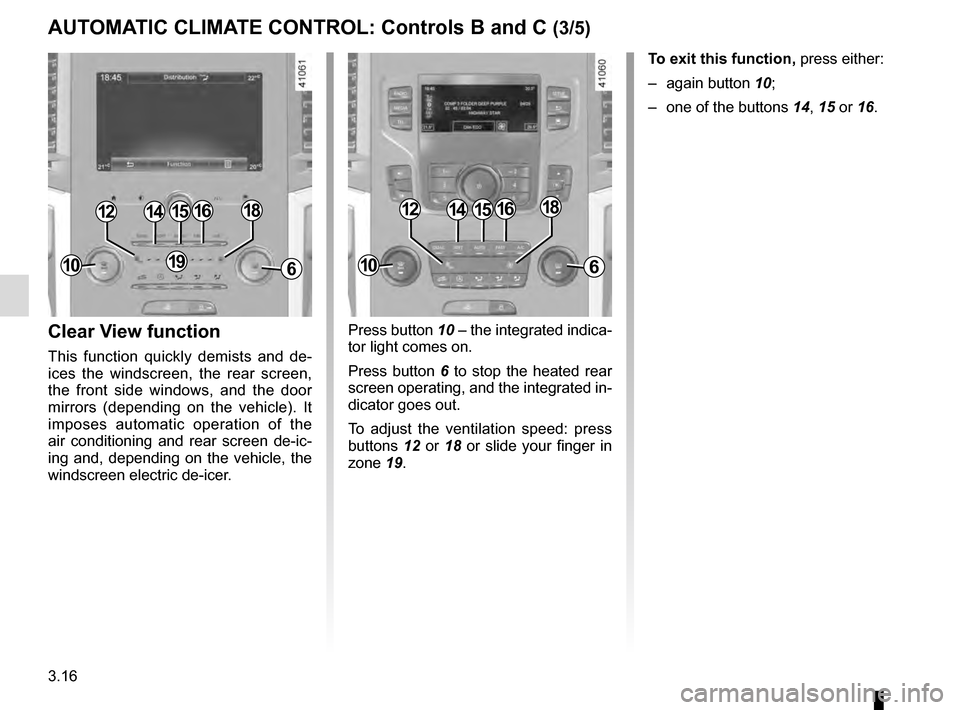

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.16
Press button 10 – the integrated indica-
tor light comes on.
Press button 6 to stop the heated rear
screen operating, and the integrated in-
dicator goes out.
To adjust the ventilation speed:

Page 205 of 316

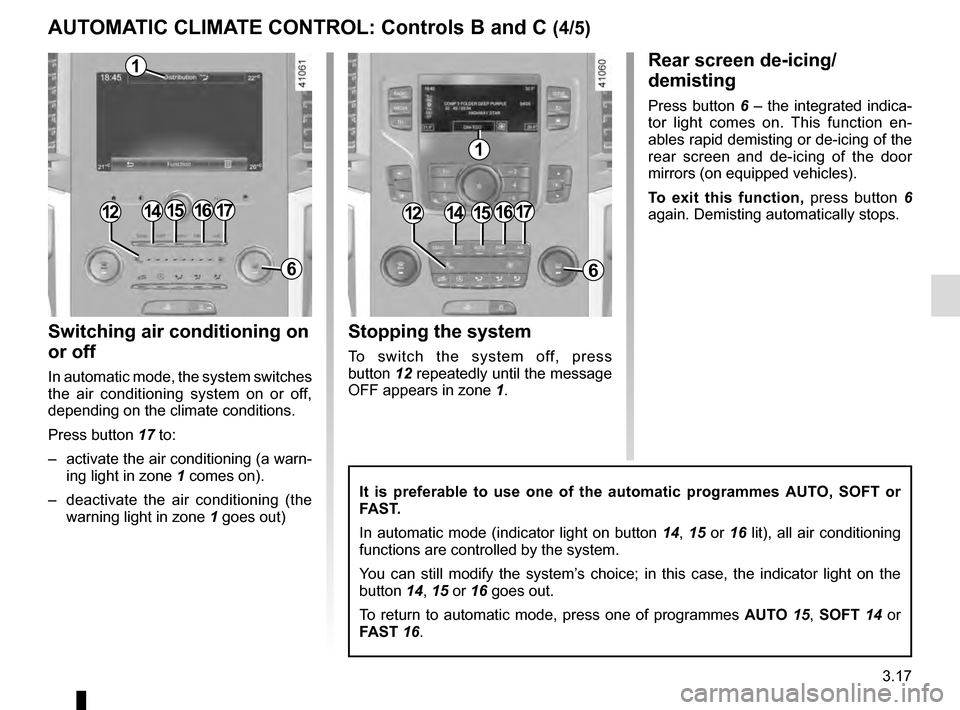

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.17
Switching air conditioning on
or off
In automatic mode, the system switches
the air conditioning system on or off,
depending on the climate conditions.
Press button 17 to:
–  activate the a

Page 206 of 316

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.18
Automatic usage
Press button 8 (a warning light comes
on in zone  1).
Manual use
Press button 9 to force air recirculation.
Prolonged use of this position may lead
to odours, caused by non-rene

Page 207 of 316

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.19
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an oper-
ating fault.
–  Reduction in de-icing, demisting or air conditioning performance.
This may be caused

Page 208 of 316

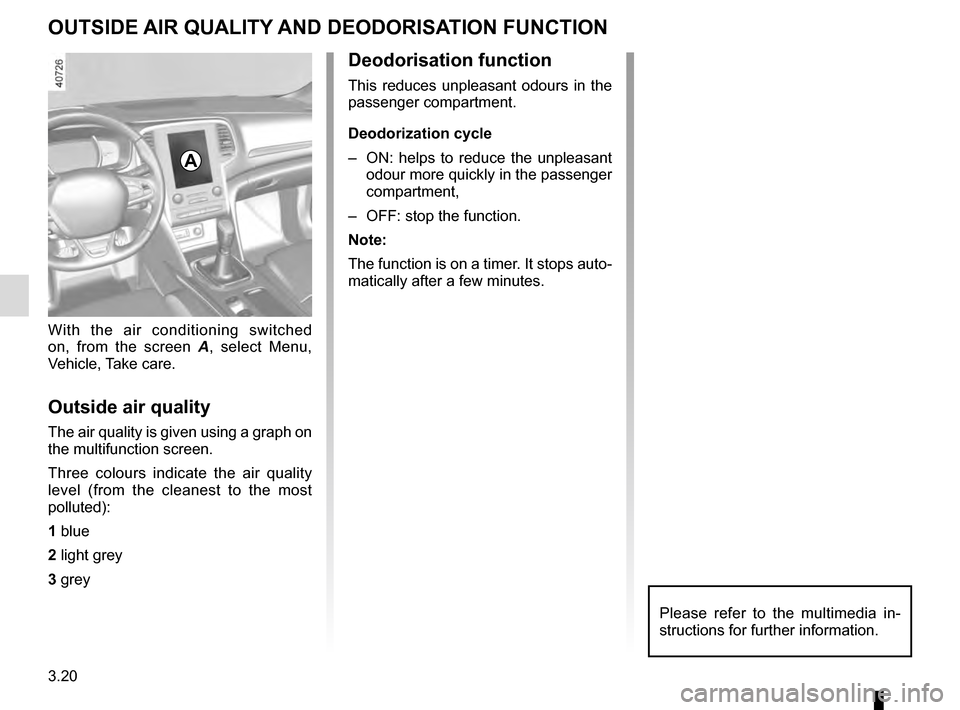

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.20
OUTSIDE AIR QUALITY AND DEODORISATION FUNCTION
With the air conditioning switched
on, from the screen A, select Menu,
Vehicle, Take care.
Outside air quality
The air quality is given using a gr

Page 209 of 316

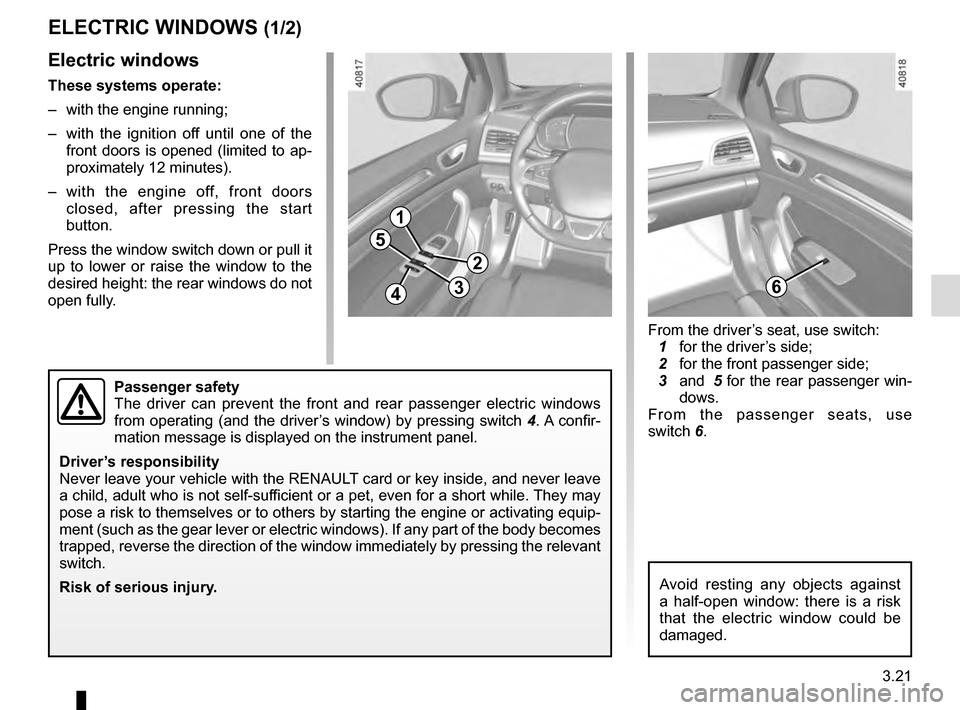

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.21
ELECTRIC WINDOWS (1/2)
1
2
34
5
6
Electric windows
These systems operate:
–  with the engine running;
–  with the ignition off until one of the front doors is opened (limited to ap-
proximate

Page 210 of 316

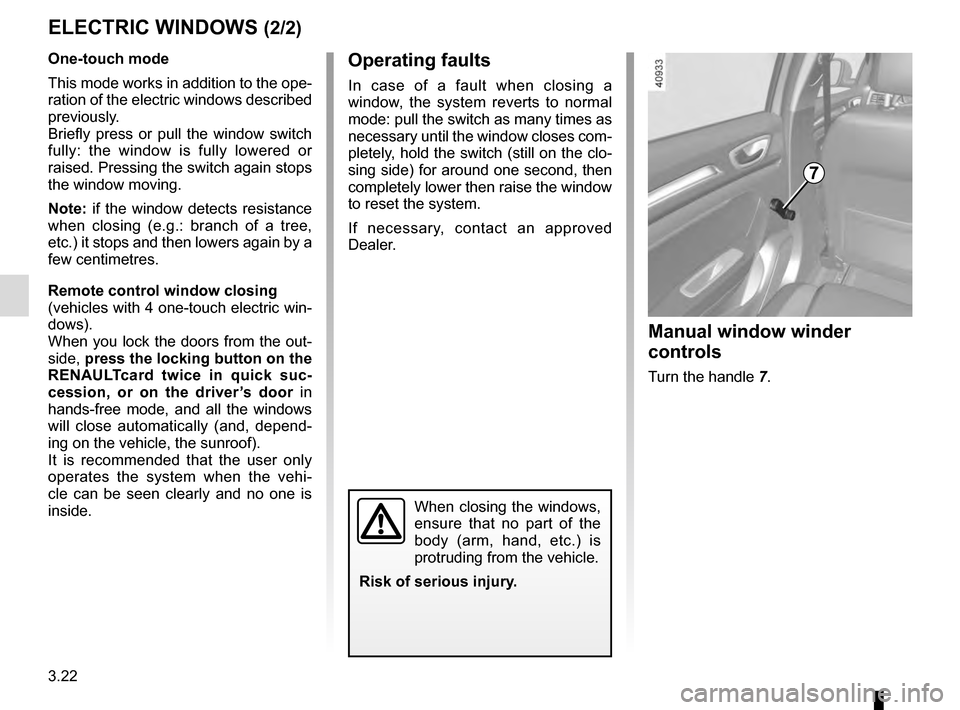

RENAULT MEGANE 2016 X95 / 3.G Owners Manual 3.22
ELECTRIC WINDOWS (2/2)
Operating faults
In case of a fault when closing a
window, the system reverts to normal
mode: pull the switch as many times as
necessary until the window closes com-
ple
