RENAULT MEGANE 2018 Owners Manual

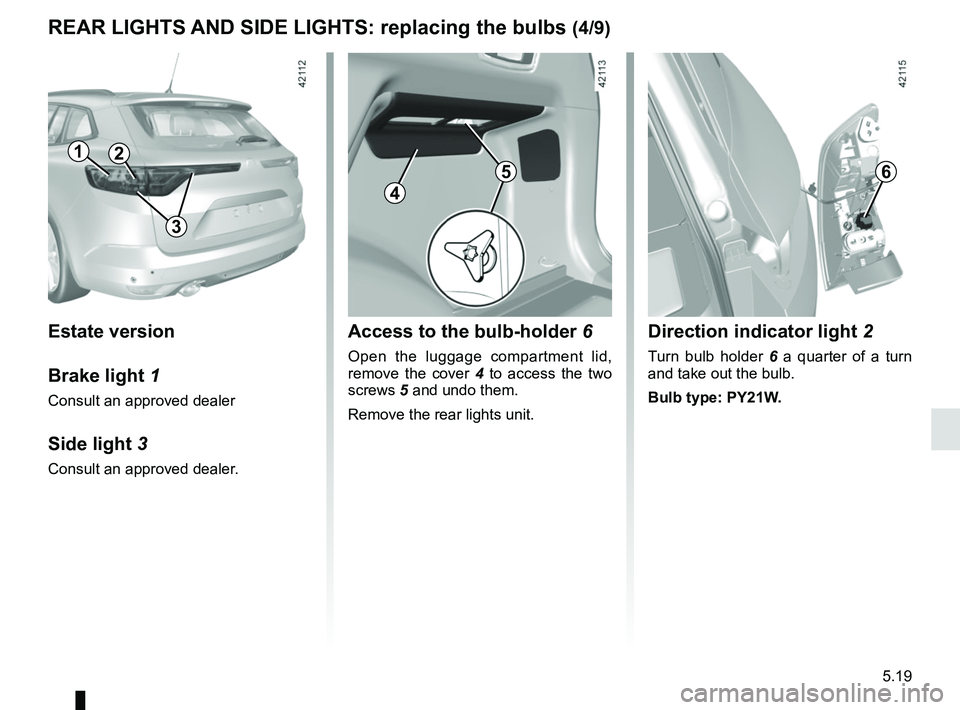

5.19
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (4/9)
Estate version
Brake light 1
Consult an approved dealer
Side light 3
Consult an approved dealer.
Access to the bulb-holder 6
Open the luggage compartment lid,
remove the cover 4 to access the two
screws 5 and undo them.
Remove the rear lights unit.
Direction indicator light 2
Turn bulb holder 6 a quarter of a turn
and take out the bulb.
Bulb type: PY21W.
6
4
5
12
3

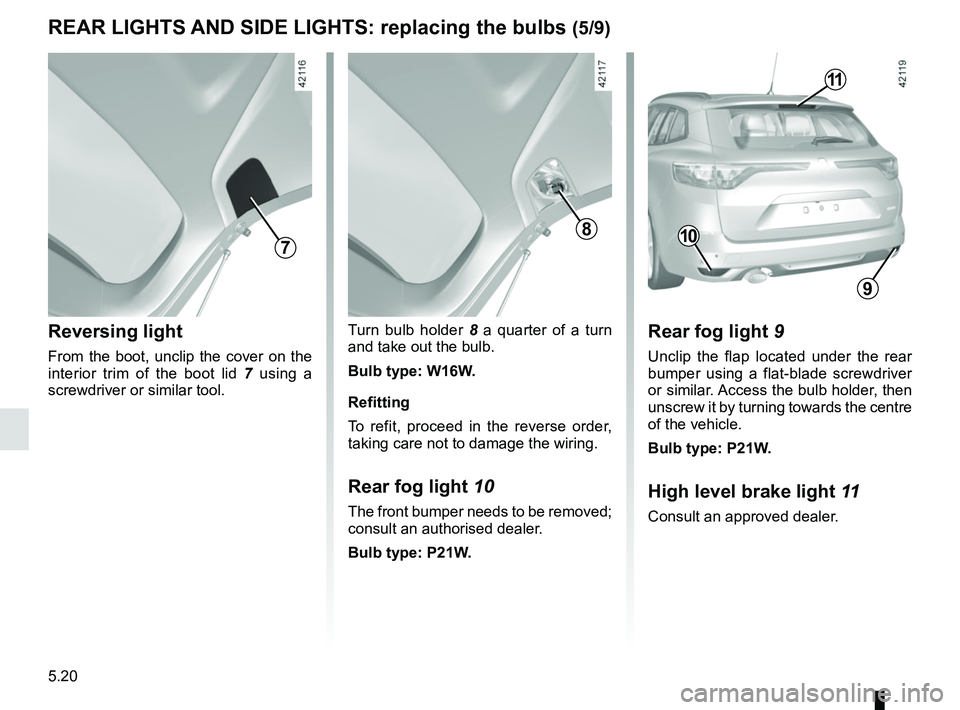

5.20
Reversing light
From the boot, unclip the cover on the
interior trim of the boot lid 7 using a
screwdriver or similar tool.
Turn bulb holder 8 a quarter of a turn
and take out the bulb.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
Rear fog light 10
The front bumper needs to be removed;
consult an authorised dealer.
Bulb type: P21W.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (5/9)
8
7
Rear fog light 9
Unclip the flap located under the rear
bumper using a flat-blade screwdriver
or similar. Access the bulb holder, then
unscrew it by turning towards the centre
of the vehicle.
Bulb type: P21W.
High level brake light 11
Consult an approved dealer.
9
10
11

5.21

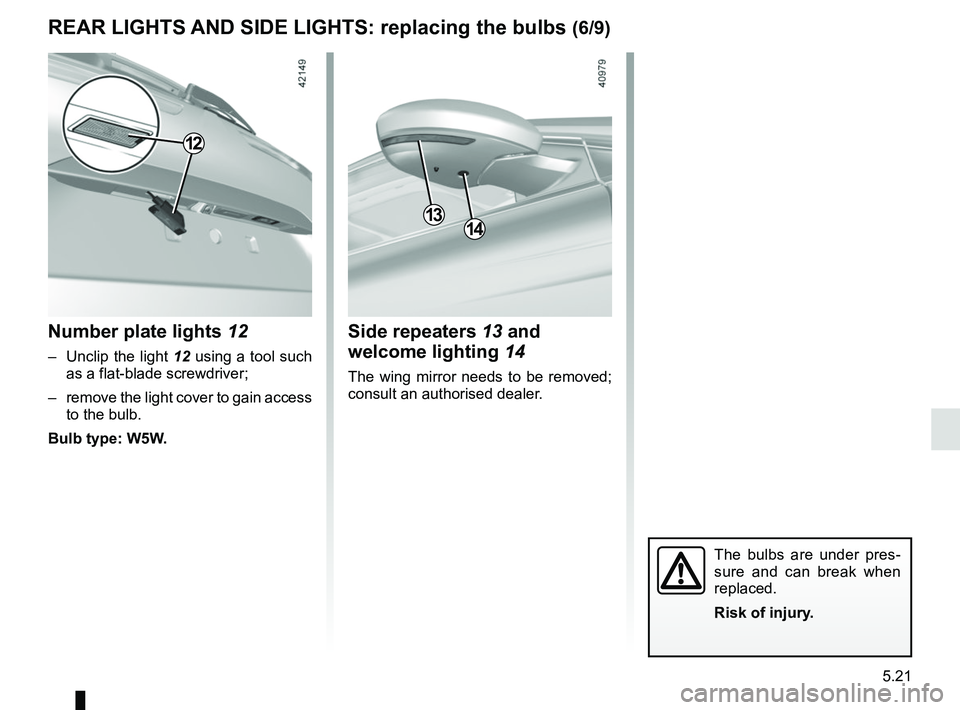

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (6/9)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side repeaters 13 and welcome lighting 14
The wing mirror needs to be removed;
consult an authorised dealer.
13
Number plate lights 12
– Unclip the light 12 using a tool such
as a flat-blade screwdriver;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
14
12

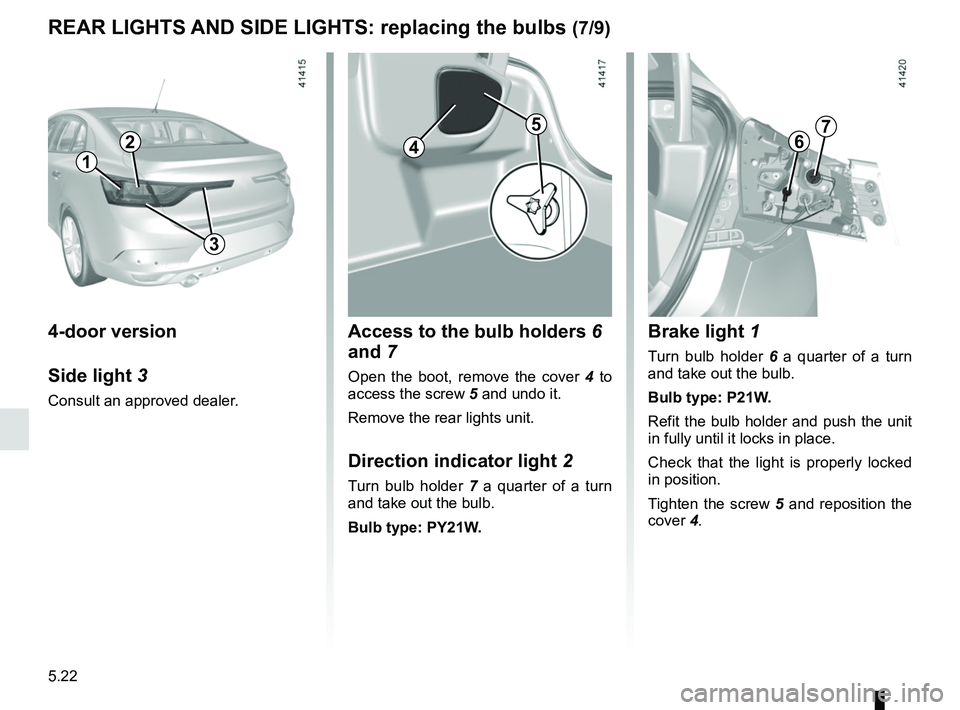

5.22
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (7/9)
4-door version
Side light 3
Consult an approved dealer.
Access to the bulb holders 6
and 7
Open the boot, remove the cover 4 to
access the screw 5 and undo it.
Remove the rear lights unit.
Direction indicator light 2
Turn bulb holder 7 a quarter of a turn
and take out the bulb.
Bulb type: PY21W.
4
5
Brake light 1
Turn bulb holder 6 a quarter of a turn
and take out the bulb.
Bulb type: P21W.
Refit the bulb holder and push the unit
in fully until it locks in place.
Check that the light is properly locked
in position.
Tighten the screw 5 and reposition the
cover 4.
67
1
2
3

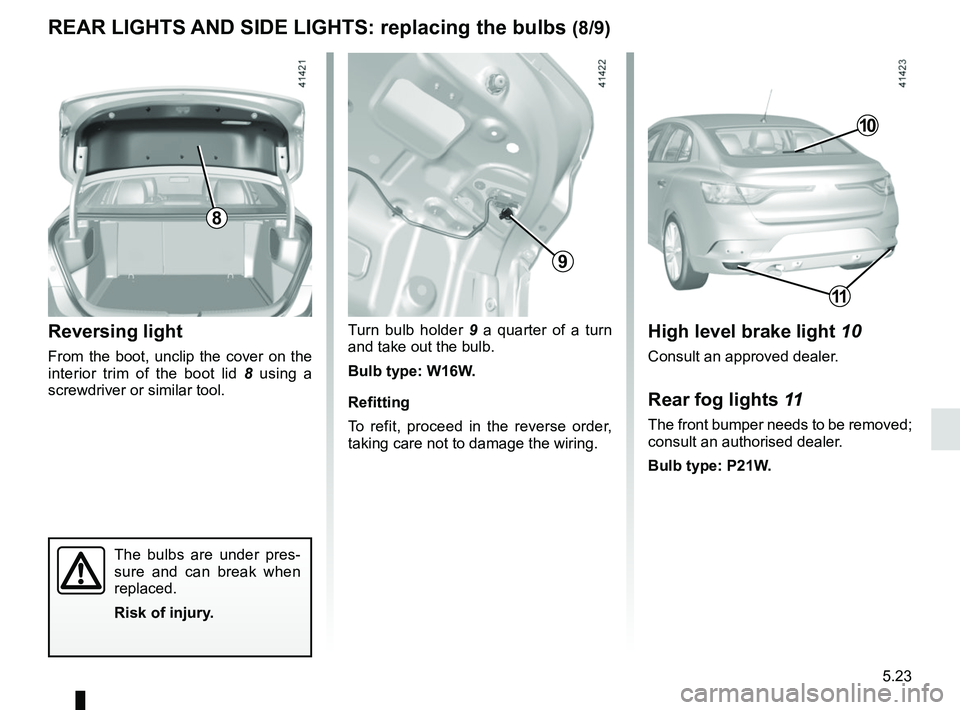

5.23
Turn bulb holder 9 a quarter of a turn
and take out the bulb.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.Reversing light
From the boot, unclip the cover on the
interior trim of the boot lid 8 using a
screwdriver or similar tool.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (8/9)
9
8
High level brake light 10
Consult an approved dealer.
Rear fog lights 11
The front bumper needs to be removed;
consult an authorised dealer.
Bulb type: P21W.
11
10
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

5.24

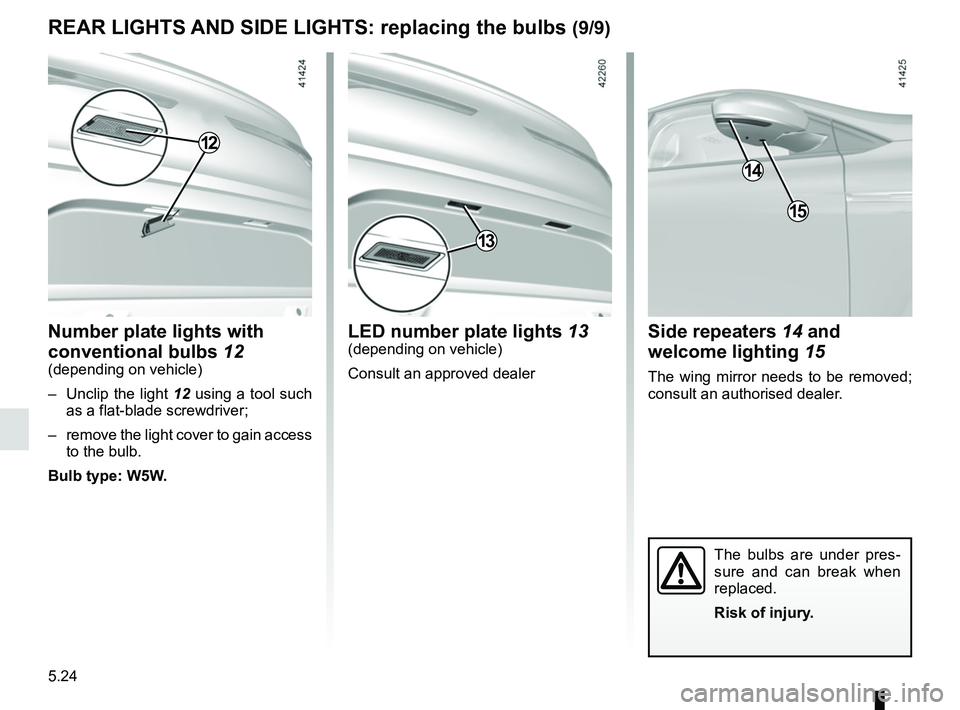

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (9/9)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side repeaters 14 and welcome lighting 15
The wing mirror needs to be removed;
consult an authorised dealer.
14
Number plate lights with
conventional bulbs 12
(depending on vehicle)
– Unclip the light 12 using a tool such
as a flat-blade screwdriver;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
12
15
LED number plate lights 13(depending on vehicle)
Consult an approved dealer
13

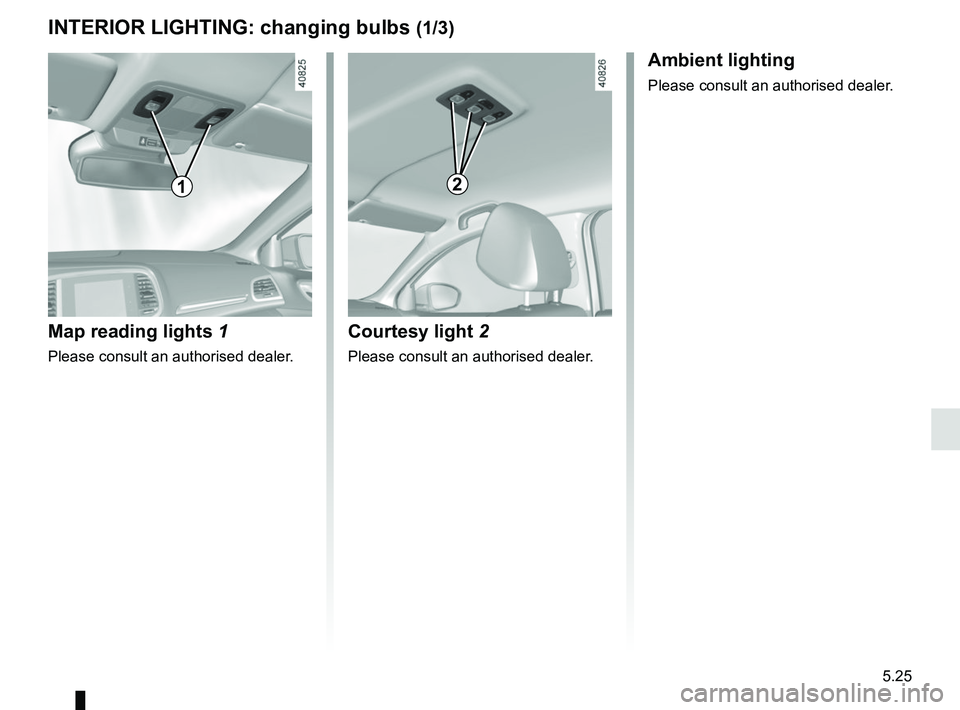

5.25
INTERIOR LIGHTING: changing bulbs (1/3)
Map reading lights 1
Please consult an authorised dealer.
1
Courtesy light 2
Please consult an authorised dealer.
Ambient lighting
Please consult an authorised dealer.
2

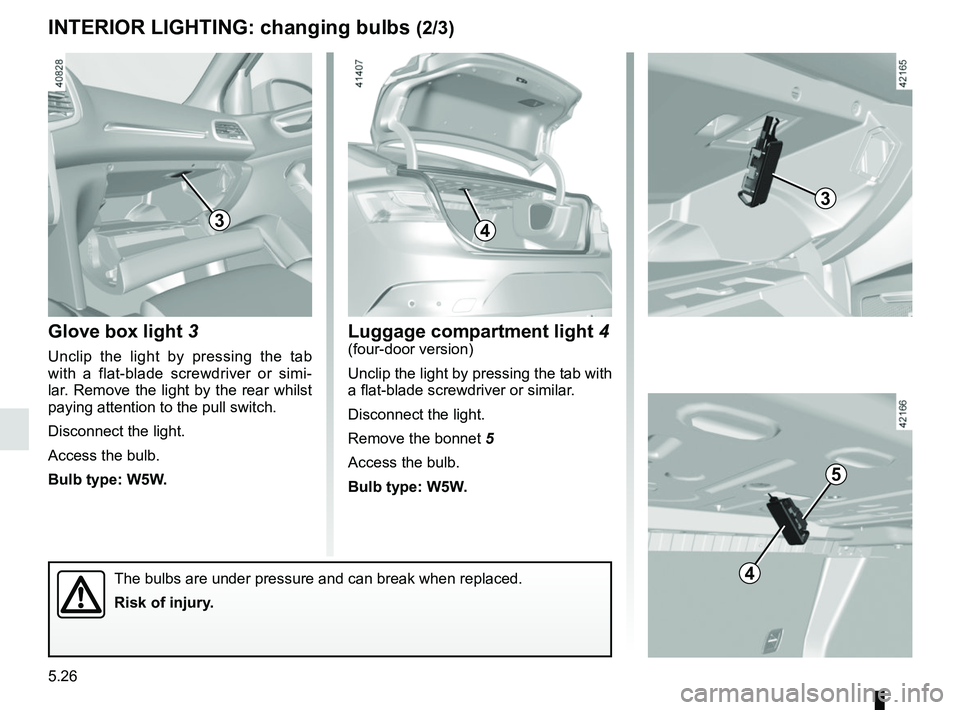

5.26
Glove box light 3
Unclip the light by pressing the tab
with a flat-blade screwdriver or simi-
lar. Remove the light by the rear whilst
paying attention to the pull switch.
Disconnect the light.
Access the bulb.
Bulb type: W5W.
INTERIOR LIGHTING: changing bulbs (2/3)
4
Luggage compartment light 4(four-door version)
Unclip the light by pressing the tab with
a flat-blade screwdriver or similar.
Disconnect the light.
Remove the bonnet 5
Access the bulb.
Bulb type: W5W.
The bulbs are under pressure and can break when replaced.
Risk of injury.
5
3
3
4

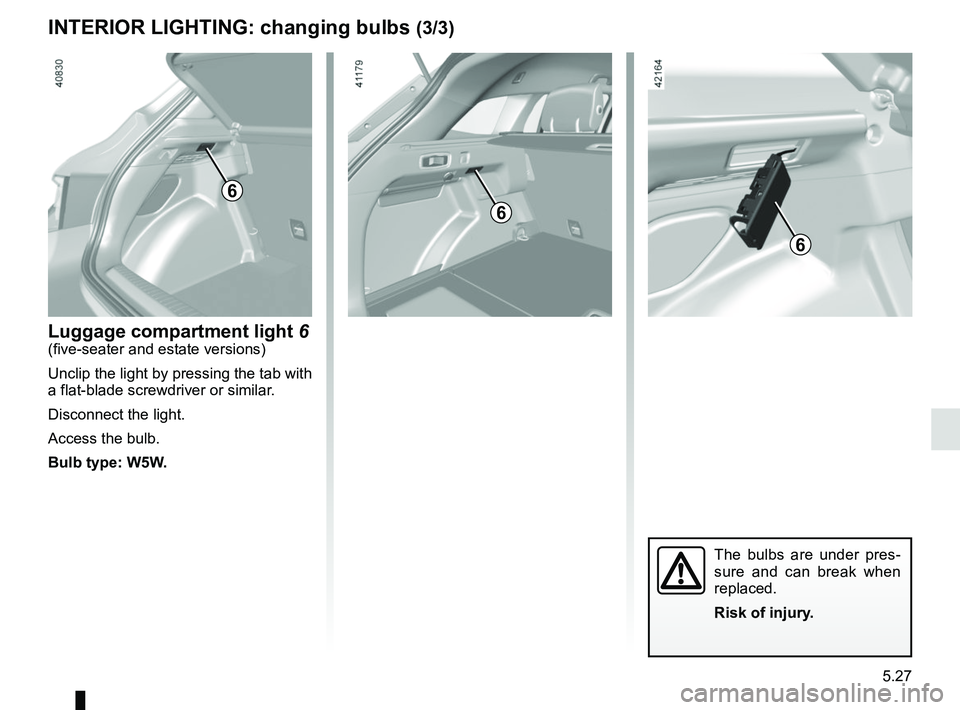

5.27
INTERIOR LIGHTING: changing bulbs (3/3)
6
Luggage compartment light 6(five-seater and estate versions)
Unclip the light by pressing the tab with
a flat-blade screwdriver or similar.
Disconnect the light.
Access the bulb.
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
6
6

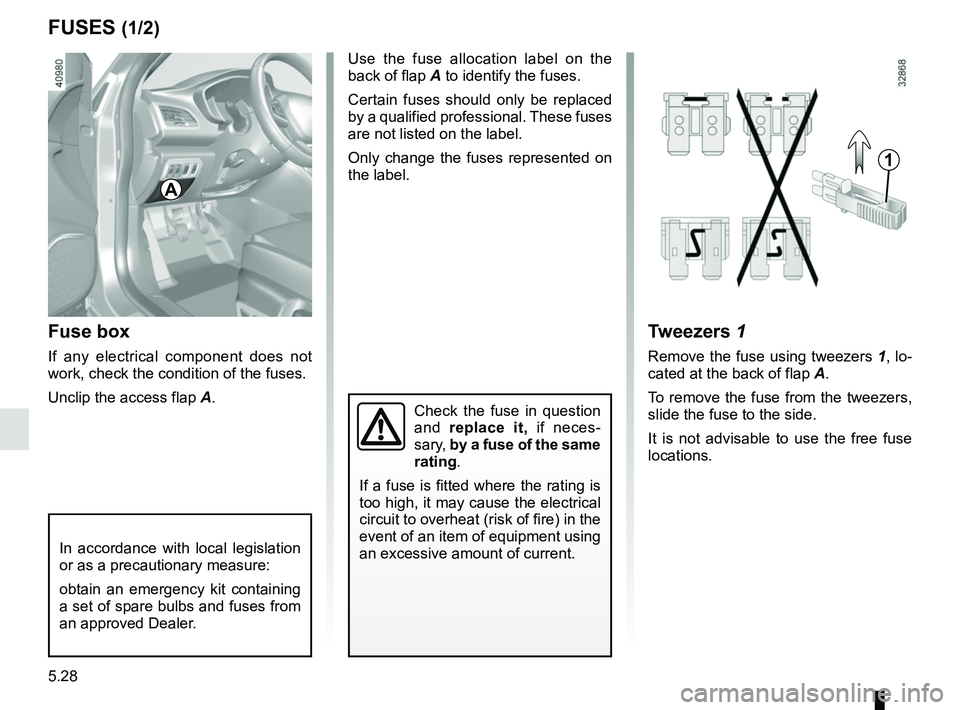

5.28
FUSES (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
Tweezers 1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
In accordance with local legislation
or as a precautionary measure:
obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
A
1
Use the fuse allocation label on the
back of flap A to identify the fuses.
Certain fuses should only be replaced
by a qualified professional. These fuses
are not listed on the label.
Only change the fuses represented on
the label.
