5.2
In case of puncture
Depending on the vehicle, a tyre infla-
tion kit or emergency spare wheel is
provided (refer to the following pages).
Special note
The Tyre Pressure Monitor function
does not check the emergency spare
wheel (the wheel replaced by the emer-
gency spare wheel disappears from the
instrument panel display).
Refer to the information on the “Tyre
pressure monitoring system” in
Section 2.
If the emergency spare wheel has been stored for several years, have it \
checked by your Dealer to ensure that it is safe to use.
Vehicles fitted with an emergency spare wheel smaller than the
four other wheels:
– Never fit more than one emergency spare wheel to the same vehicle.
– As the punctured wheel is wider than the emergency spare wheel, the vehi\
cle’s ground clearance is reduced.
– Replace the emergency spare wheel as soon as possible with a wheel with \
the same dimensions as the original.
– When this is fitted to the vehicle, which must only be a temporary measu\
re, the driving speed must not exceed the speed indicated on the label on the wh\
eel.
– Fitting an emergency spare wheel may alter the way the vehicle usually r\
uns. Avoid sudden acceleration or deceleration and reduce your speed when cor-\
nering.
– If you need to use snow chains, fit the emergency spare wheel to the rea\
r axle and check the tyre pressure.
PUNCTURE, EMERGENCY SPARE WHEEL (1/2)
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.

6.1

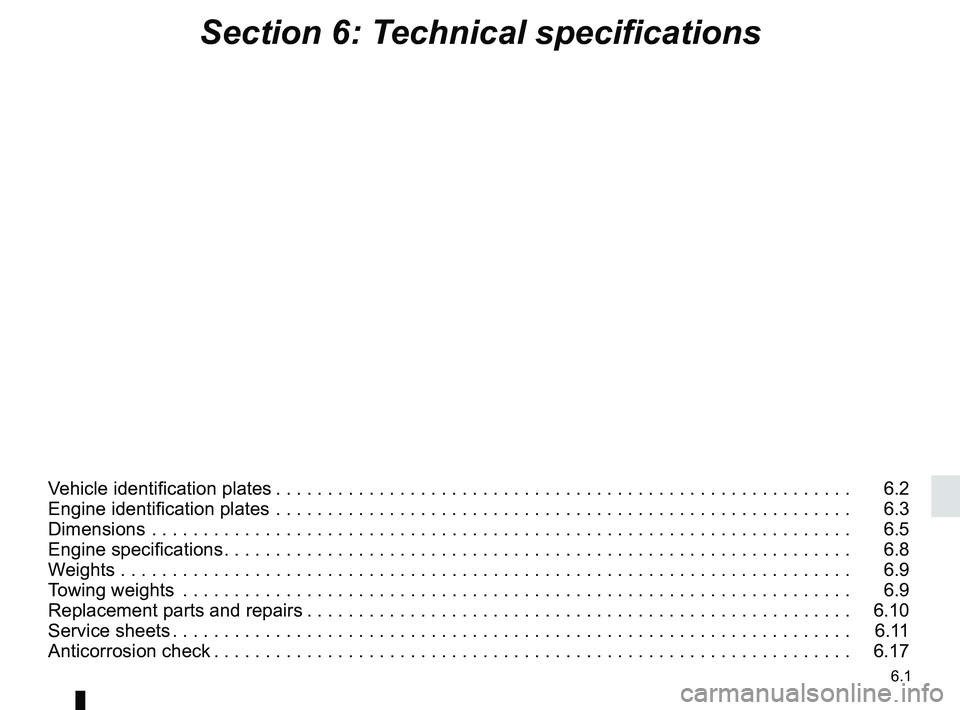

Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.10
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.11
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.17

6.5
1,446*
1,565 to 1,599
2,058
* Unladen
Five-door version
0,9212,6700,7681,574 to 1,596
4,359
DIMENSIONS (in metres) (1/3)

6.6
0,9212,712 0,993 1,574 to 1,596
4,626
1,449*
1,565 to 1,599
2,058

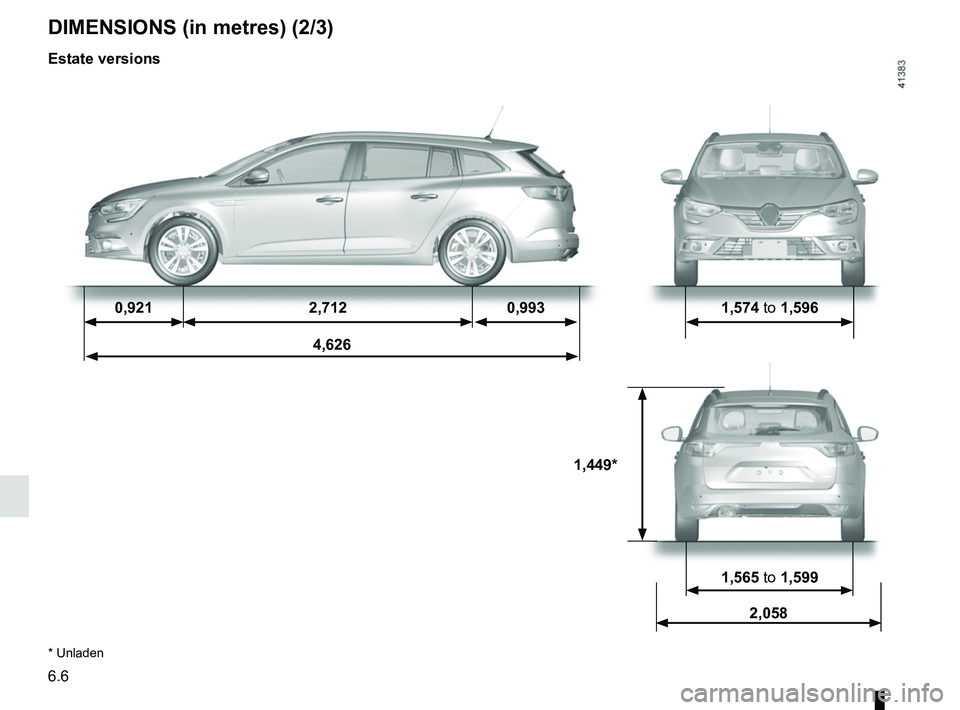

DIMENSIONS (in metres) (2/3)
* Unladen
Estate versions

6.7
0,9212,711 0,998 1,577 to 1,583
4,630
1,583 to 1,587
2,058
1,443*
* Unladen

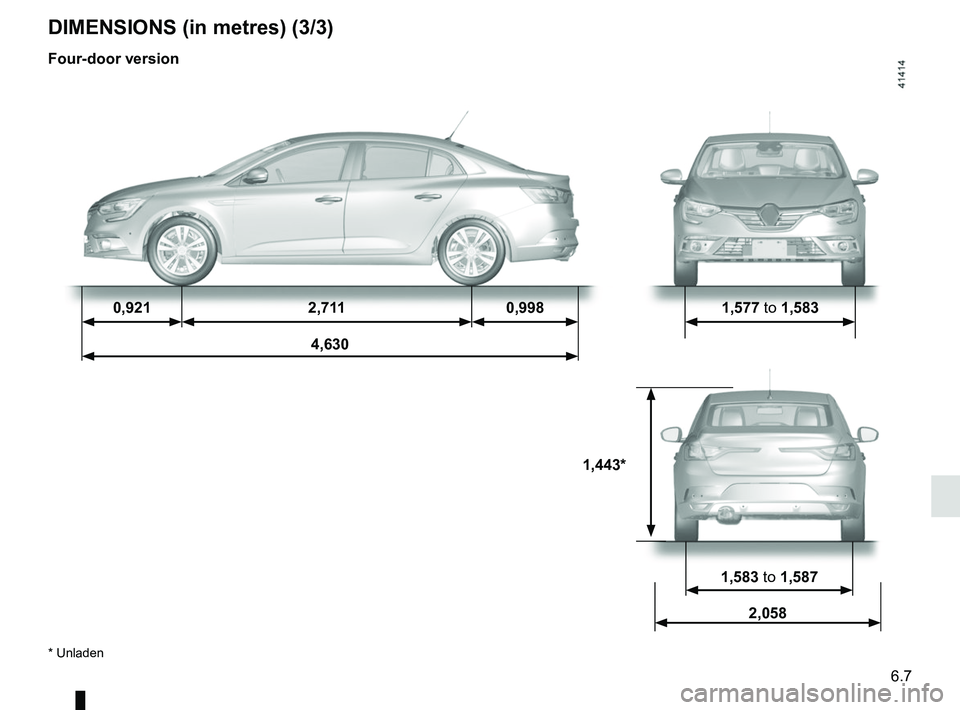

DIMENSIONS (in metres) (3/3)
Four-door version

7.2

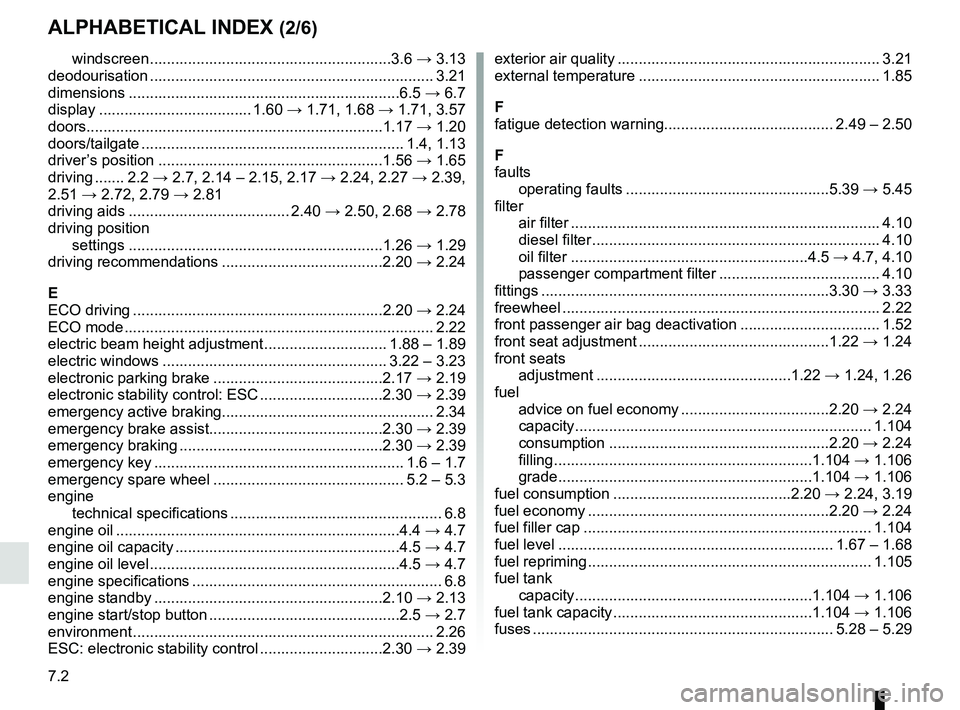

ALPHABETICAL INDEX (2/6)
windscreen .........................................................3.6 → 3.13
deodourisation .........................................................\
.......... 3.21
dimensions .............................................................\
...6.5 → 6.7
display .................................... 1.60 → 1.71, 1.68 → 1.71, 3.57
doors......................................................................1.17 → 1.20
doors/tailgate .........................................................\
..... 1.4, 1.13
driver’s position .....................................................1.56 → 1.65
driving ....... 2.2 → 2.7, 2.14 – 2.15, 2.17 → 2.24, 2.27 → 2.39,
2.51 → 2.72, 2.79 → 2.81
driving aids ...................................... 2.40 → 2.50, 2.68 → 2.78
driving position settings ............................................................1.26 → 1.29
driving recommendations ......................................2.20 → 2.24
E
ECO driving ...........................................................2.20 → 2.24
ECO mode ........................................................................\
. 2.22
electric beam height adjustment ............................. 1.88 – 1.89
electric windows ..................................................... 3.22 – 3.23
electronic parking brake ........................................2.17 → 2.19
electronic stability control: ESC .............................2.30 → 2.39
emergency active braking.................................................. 2.34
emergency brake assist.........................................2.30 → 2.39
emergency braking ................................................2.30 → 2.39
emergency key ........................................................... 1.6 – 1.7
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.8
engine oil ...................................................................4.4 → 4.7
engine oil capacity .....................................................4.5 → 4.7
engine oil level ...........................................................4.5 → 4.7
engine specifications ........................................................... 6.8
engine standby ......................................................2.10 → 2.13
engine start/stop button .............................................2.5 → 2.7
environment ............................................................\
........... 2.26
ESC: electronic stability control .............................2.30 → 2.39exterior air quality .............................................................. 3.21
external temperature ......................................................... 1.85
F
fatigue detection warning........................................ 2.49 – 2.50
F
faults operating faults ................................................5.39 → 5.45
filter air filter ........................................................................\
. 4.10
diesel filter .................................................................... 4.10
oil filter ........................................................4.5 → 4.7, 4.10
passenger compartment filter ...................................... 4.10
fittings ...............................................................\
.....3.30 → 3.33
freewheel ..............................................................\
............. 2.22
front passenger air bag deactivation ................................. 1.52
front seat adjustment .............................................1.22 → 1.24
front seats adjustment ..............................................1.22 → 1.24, 1.26
fuel advice on fuel economy ...................................2.20 →

2.24
capacity ...............................................................\
....... 1.104
consumption ....................................................2.20 → 2.24
filling .............................................................1.104 → 1.106
grade ............................................................1.104 → 1.106
fuel consumption ..........................................2.20 → 2.24, 3.19
fuel economy .........................................................2.20 → 2.24
fuel filler cap .................................................................... 1.104
fuel level ................................................................. 1.67 – 1.68
fuel repriming ................................................................... 1.105
fuel tank capacity ........................................................1.104 → 1.106
fuel tank capacity ...............................................1.104 → 1.106
fuses ....................................................................... 5.28 – 5.29
