RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G User Guide
Manufacturer: RENAULT, Model Year: 2015, Model line: MEGANE COUPE CABRIOLET, Model: RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.GPages: 236, PDF Size: 5.1 MB
Page 11 of 236
1.5

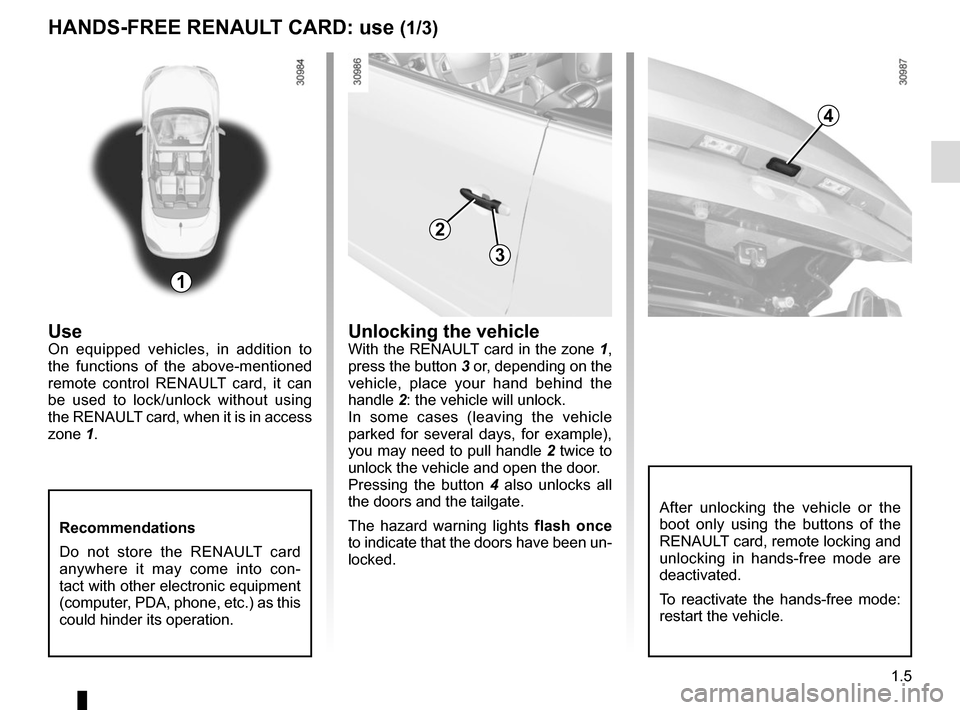

HANDS-FREE RENAULT CARD: use (1/3)
UseOn equipped vehicles, in addition to
the functions of the above-mentioned
remote control RENAULT card, it can
be used to lock/unlock without using
the RENAULT card, when it is in access
zone 1.
1
2
4
Recommendations
Do not store the RENAULT card
anywhere it may come into con-
tact with other electronic equipment
(computer, PDA, phone, etc.) as this
could hinder its operation.
After unlocking the vehicle or the
boot only using the buttons of the
RENAULT card, remote locking and
unlocking in hands-free mode are
deactivated.
To reactivate the hands-free mode:
restart the vehicle.
3
Unlocking the vehicleWith the RENAULT card in the zone 1,
press the button 3 or, depending on the
vehicle, place your hand behind the
handle 2: the vehicle will unlock.
In some cases (leaving the vehicle
parked for several days, for example),
you may need to pull handle 2 twice to
unlock the vehicle and open the door.
Pressing the button 4 also unlocks all
the doors and the tailgate.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
Page 12 of 236
1.6

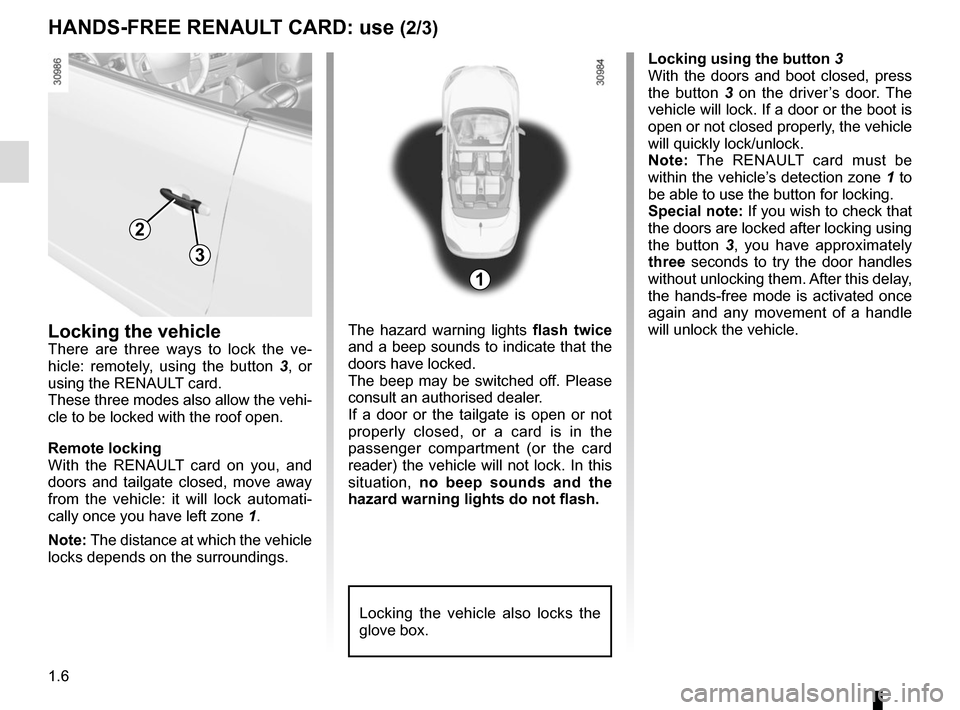

HANDS-FREE RENAULT CARD: use (2/3)
Locking the vehicle
There are three ways to lock the ve-
hicle: remotely, using the button 3, or
using the RENAULT card.
These three modes also allow the vehi-
cle to be locked with the roof open.
Remote locking
With the RENAULT card on you, and
doors and tailgate closed, move away
from the vehicle: it will lock automati-
cally once you have left zone 1.
Note: The distance at which the vehicle
locks depends on the surroundings. The hazard warning lights
flash twice
and a beep sounds to indicate that the
doors have locked.
The beep may be switched off. Please
consult an authorised dealer.
If a door or the tailgate is open or not
properly closed, or a card is in the
passenger compartment (or the card
reader) the vehicle will not lock. In this
situation, no beep sounds and the
hazard warning lights do not flash.
Locking using the button 3
With the doors and boot closed, press
the button 3 on the driver’s door. The
vehicle will lock. If a door or the boot is
open or not closed properly, the vehicle
will quickly lock/unlock.
Note: The RENAULT card must be
within the vehicle’s detection zone 1 to
be able to use the button for locking.
Special note: If you wish to check that
the doors are locked after locking using
the button 3 , you have approximately
three seconds to try the door handles
without unlocking them. After this delay,
the hands-free mode is activated once
again and any movement of a handle
will unlock the vehicle.
1
Locking the vehicle also locks the
glove box.
2
3
Page 13 of 236
1.7
With the engine running, if having
once opened and closed a door, the
card is no longer in the passenger com-
partment, the message “Keycard not
detected” (accompanied by a warning
beep once the speed passes a thresh-
old value) will tell you that the card is no
longer in the vehicle. This avoids you
driving away after having dropped off a
passenger who has the card, for exam-
ple.
The warning disappears when the card
is detected again.

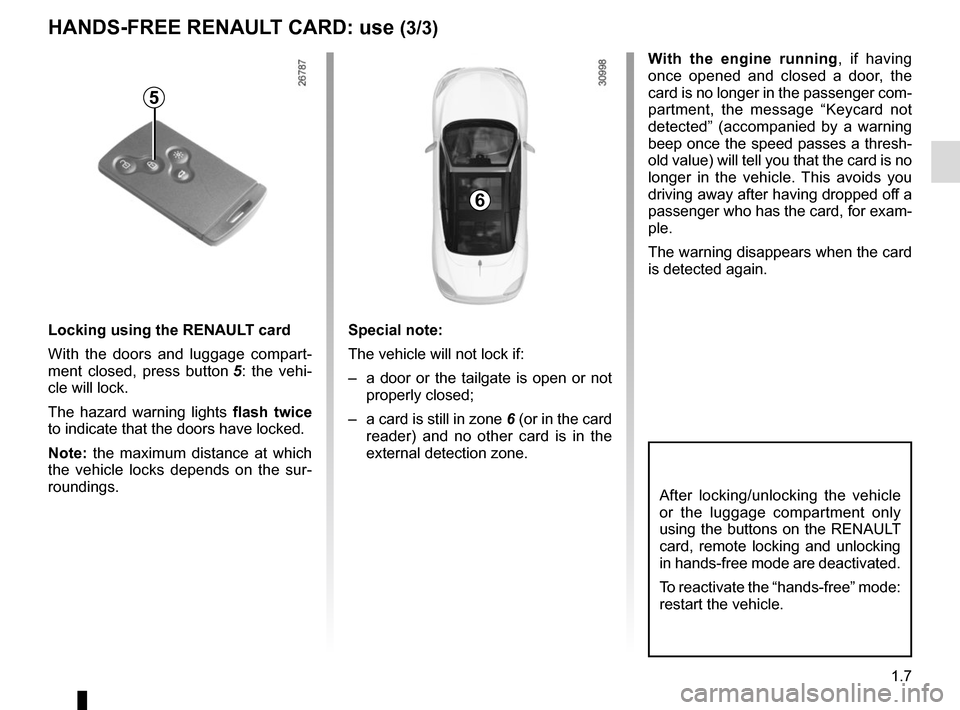

HANDS-FREE RENAULT CARD: use (3/3)
Locking using the RENAULT card
With the doors and luggage compart-
ment closed, press button 5: the vehi-
cle will lock.
The hazard warning lights flash twice
to indicate that the doors have locked.
Note: the maximum distance at which
the vehicle locks depends on the sur-
roundings. Special note:
The vehicle will not lock if:
– a door or the tailgate is open or not
properly closed;
– a card is still in zone 6 (or in the card
reader) and no other card is in the
external detection zone.
5
6
After locking/unlocking the vehicle
or the luggage compartment only
using the buttons on the RENAULT
card, remote locking and unlocking
in hands-free mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
Page 14 of 236
1.8
To deactivate deadlocking
Unlock the vehicle using button 1 on
the RENAULT card.
The hazard warning lights flash once to
indicate that the doors have been un-
locked.
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
You can choose between two deadlock-
ing activation modes:
– press button 2 twice in quick succes-
sion;
– or, press the button on the driver’s door handle 3 twice in quick succes-
sion.
The hazard warning lights flash five
times to indicate locking.
If the vehicle is equipped with a dead-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).

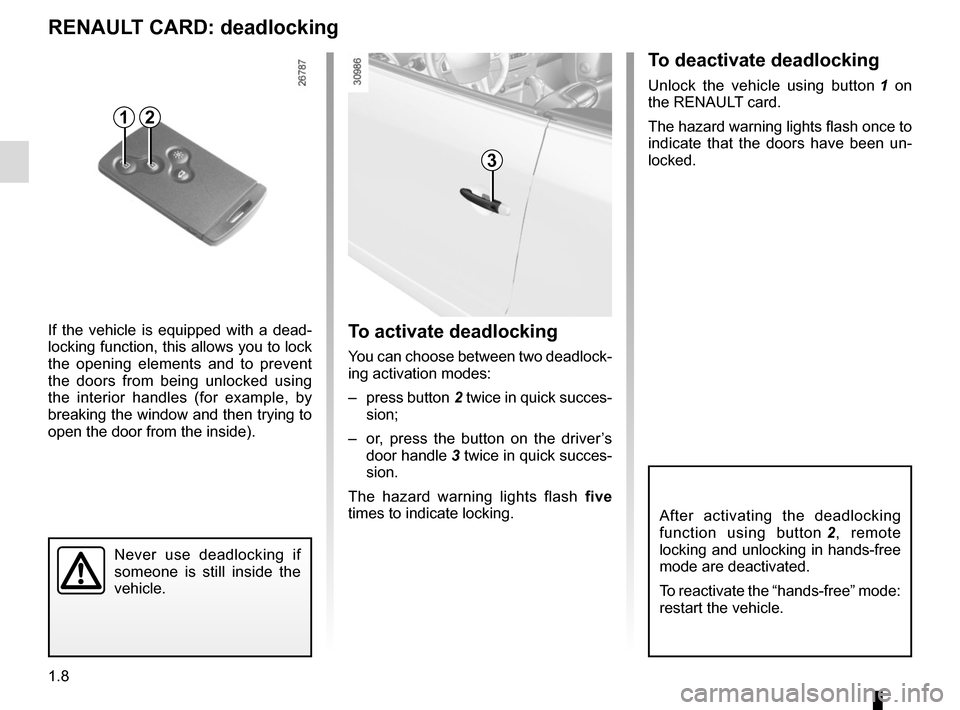

RENAULT CARD: deadlocking
2
3
1
After activating the deadlocking
function using button
2, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
Page 15 of 236

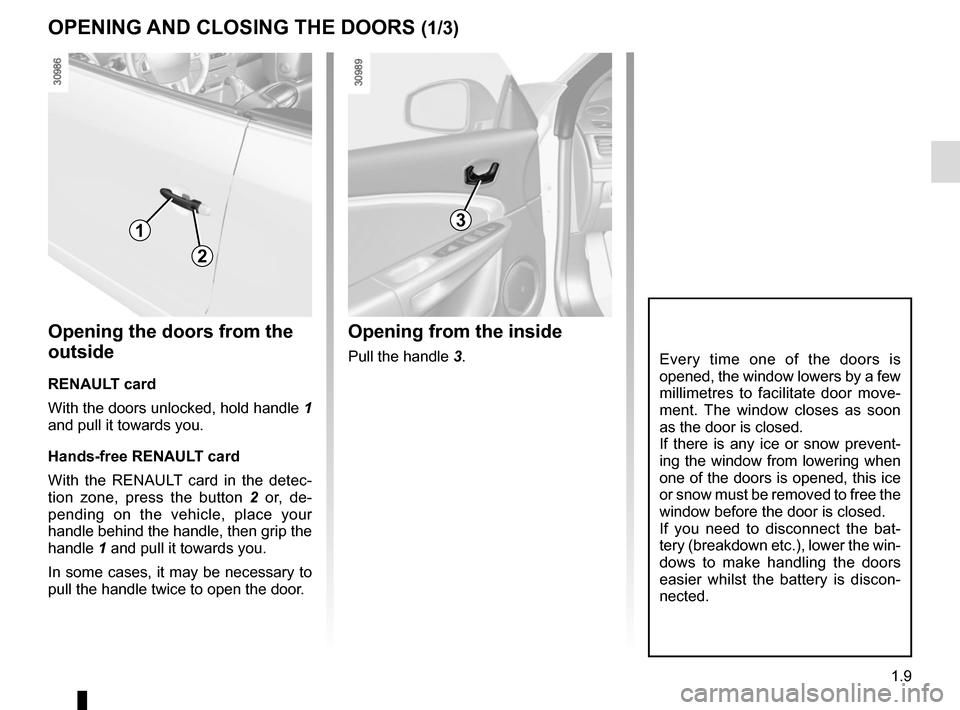

1.9
OPENING AND CLOSING THE DOORS (1/3)
3
Every time one of the doors is
opened, the window lowers by a few
millimetres to facilitate door move-
ment. The window closes as soon
as the door is closed.
If there is any ice or snow prevent-
ing the window from lowering when
one of the doors is opened, this ice
or snow must be removed to free the
window before the door is closed.
If you need to disconnect the bat-
tery (breakdown etc.), lower the win-
dows to make handling the doors
easier whilst the battery is discon-
nected.
Opening the doors from the
outside
RENAULT card
With the doors unlocked, hold handle 1
and pull it towards you.
Hands-free RENAULT card
With the RENAULT card in the detec-
tion zone, press the button 2 or, de-
pending on the vehicle, place your
handle behind the handle, then grip the
handle 1 and pull it towards you.
In some cases, it may be necessary to
pull the handle twice to open the door.
Opening from the inside
Pull the handle 3.
2
1
Page 16 of 236
1.10

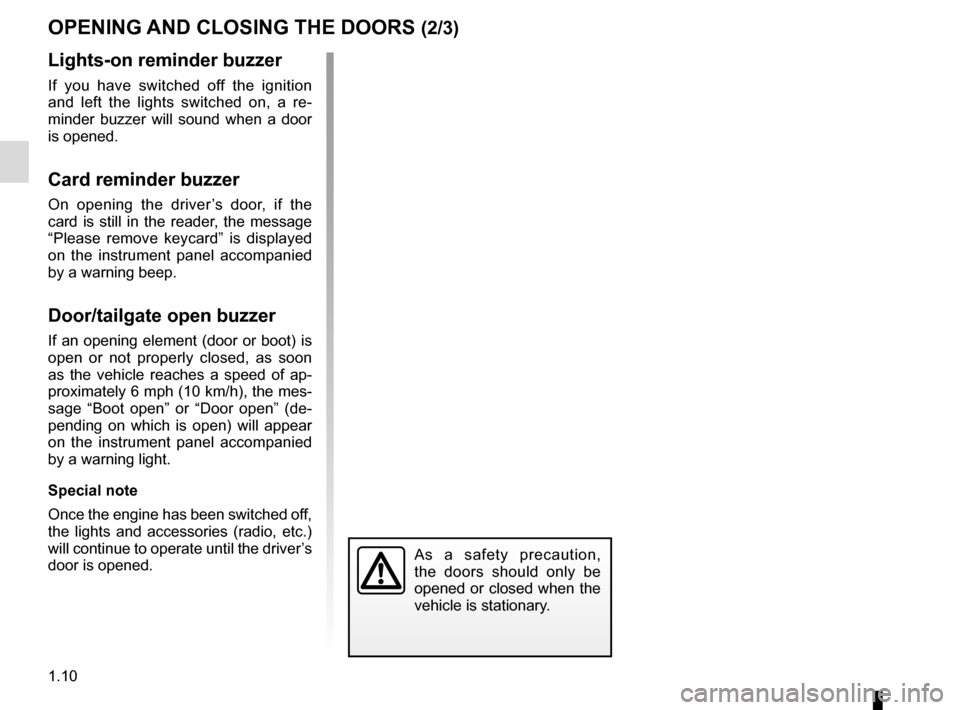

OPENING AND CLOSING THE DOORS (2/3)
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Card reminder buzzer
On opening the driver’s door, if the
card is still in the reader, the message
“Please remove keycard” is displayed
on the instrument panel accompanied
by a warning beep.
Door/tailgate open buzzer
If an opening element (door or boot) is
open or not properly closed, as soon
as the vehicle reaches a speed of ap-
proximately 6 mph (10 km/h), the mes-
sage “Boot open” or “Door open” (de-
pending on which is open) will appear
on the instrument panel accompanied
by a warning light.
Special note
Once the engine has been switched off,
the lights and accessories (radio, etc.)
will continue to operate until the driver’s
door is opened.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
Page 17 of 236

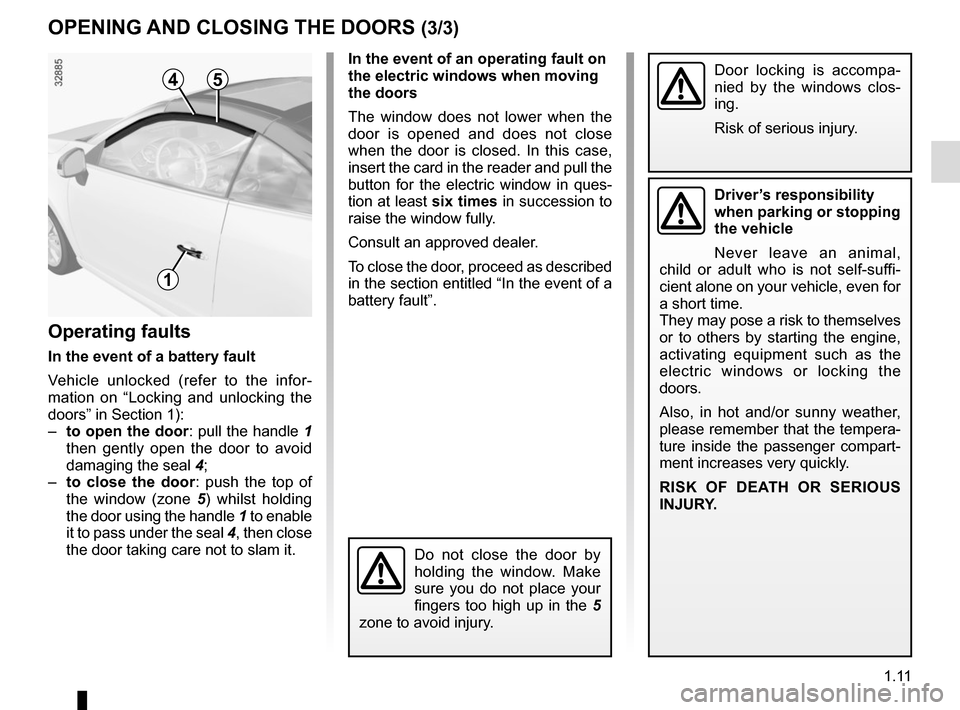

1.11
OPENING AND CLOSING THE DOORS (3/3)
In the event of an operating fault on
the electric windows when moving
the doors
The window does not lower when the
door is opened and does not close
when the door is closed. In this case,
insert the card in the reader and pull the
button for the electric window in ques-
tion at least six times in succession to
raise the window fully.
Consult an approved dealer.
To close the door, proceed as described
in the section entitled “In the event of a
battery fault”.
Operating faults
In the event of a battery fault
Vehicle unlocked (refer to the infor-
mation on “Locking and unlocking the
doors” in Section 1):
– to open the door: pull the handle 1
then gently open the door to avoid
damaging the seal 4;
– to close the door : push the top of
the window (zone 5) whilst holding
the door using the handle 1 to enable
it to pass under the seal 4, then close
the door taking care not to slam it.
Door locking is accompa-
nied by the windows clos-
ing.
Risk of serious injury.
Do not close the door by
holding the window. Make
sure you do not place your
fingers too high up in the 5
zone to avoid injury.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.
45
1
Page 18 of 236
1.12

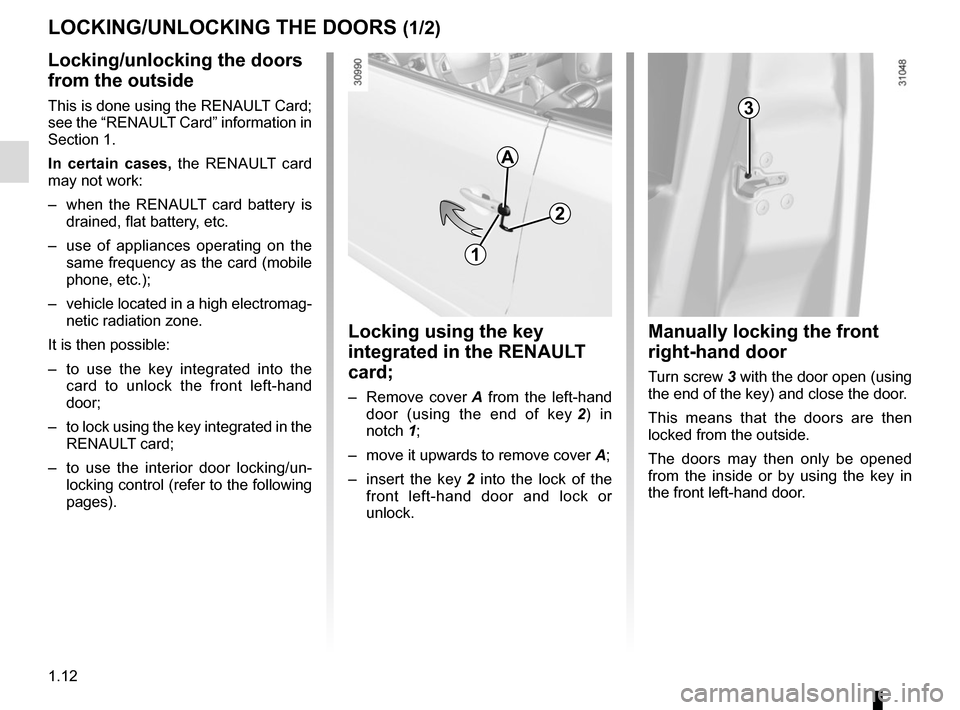

LOCKING/UNLOCKING THE DOORS (1/2)
Locking/unlocking the doors
from the outside
This is done using the RENAULT Card;
see the “RENAULT Card” information in
Section 1.
In certain cases, the RENAULT card
may not work:
– when the RENAULT card battery is drained, flat battery, etc.
– use of appliances operating on the same frequency as the card (mobile
phone, etc.);
– vehicle located in a high electromag- netic radiation zone.
It is then possible:
– to use the key integrated into the card to unlock the front left-hand
door;
– to lock using the key integrated in the RENAULT card;
– to use the interior door locking/un- locking control (refer to the following
pages).
Locking using the key
integrated in the RENAULT
card;
– Remove cover A from the left-hand
door (using the end of key 2) in
notch 1;
– move it upwards to remove cover A;
– insert the key 2 into the lock of the
front left-hand door and lock or
unlock.
Manually locking the front
right-hand door
Turn screw 3 with the door open (using
the end of the key) and close the door.
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the front left-hand door.
A
2
3
1
Page 19 of 236
1.13

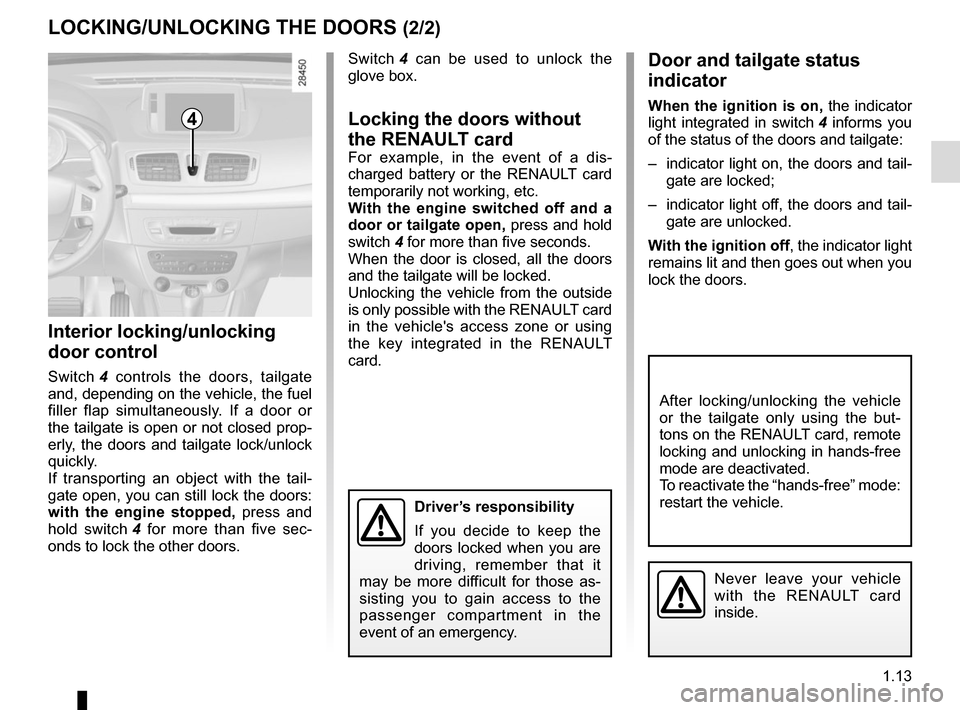

LOCKING/UNLOCKING THE DOORS (2/2)
Interior locking/unlocking
door control
Switch 4 controls the doors, tailgate
and, depending on the vehicle, the fuel
filler flap simultaneously. If a door or
the tailgate is open or not closed prop-
erly, the doors and tailgate lock/unlock
quickly.
If transporting an object with the tail-
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch 4 for more than five sec-
onds to lock the other doors. Switch 4
can be used to unlock the
glove box.
Locking the doors without
the RENAULT card
For example, in the event of a dis-
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or tailgate open, press and hold
switch 4 for more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
is only possible with the RENAULT card
in the vehicle's access zone or using
the key integrated in the RENAULT
card.
Door and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 4 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail- gate are locked;
– indicator light off, the doors and tail- gate are unlocked.
With the ignition off , the indicator light
remains lit and then goes out when you
lock the doors.
Never leave your vehicle
with the RENAULT card
inside.
4
After locking/unlocking the vehicle
or the tailgate only using the but-
tons on the RENAULT card, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.
Page 20 of 236
1.14
Activating/deactivating the
function
Refer to “Vehicle settings customisation
menu” in Section 1, regarding the “Auto
door locking while driving” function:
= function activated
< function deactivated.

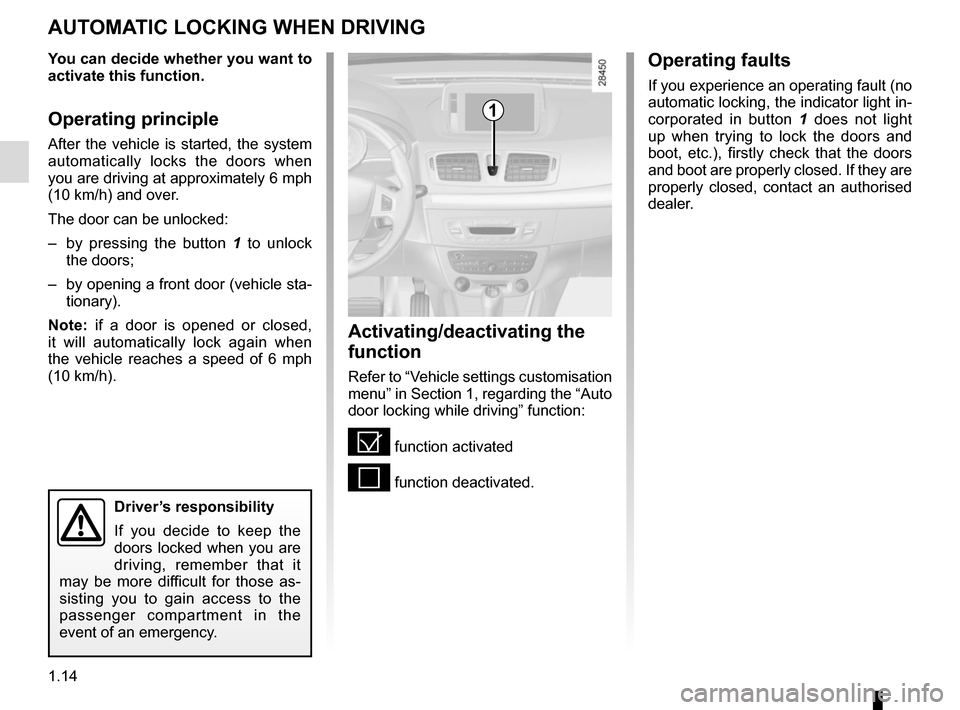

AUTOMATIC LOCKING WHEN DRIVING
You can decide whether you want to
activate this function.
Operating principle
After the vehicle is started, the system
automatically locks the doors when
you are driving at approximately 6 mph
(10 km/h) and over.
The door can be unlocked:
– by pressing the button 1 to unlock
the doors;
– by opening a front door (vehicle sta- tionary).
Note: if a door is opened or closed,
it will automatically lock again when
the vehicle reaches a speed of 6 mph
(10 km/h).
Operating faults
If you experience an operating fault (no
automatic locking, the indicator light in-
corporated in button 1 does not light
up when trying to lock the doors and
boot, etc.), firstly check that the doors
and boot are properly closed. If they are
properly closed, contact an authorised
dealer.
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.
