RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Workshop Manual

1.45

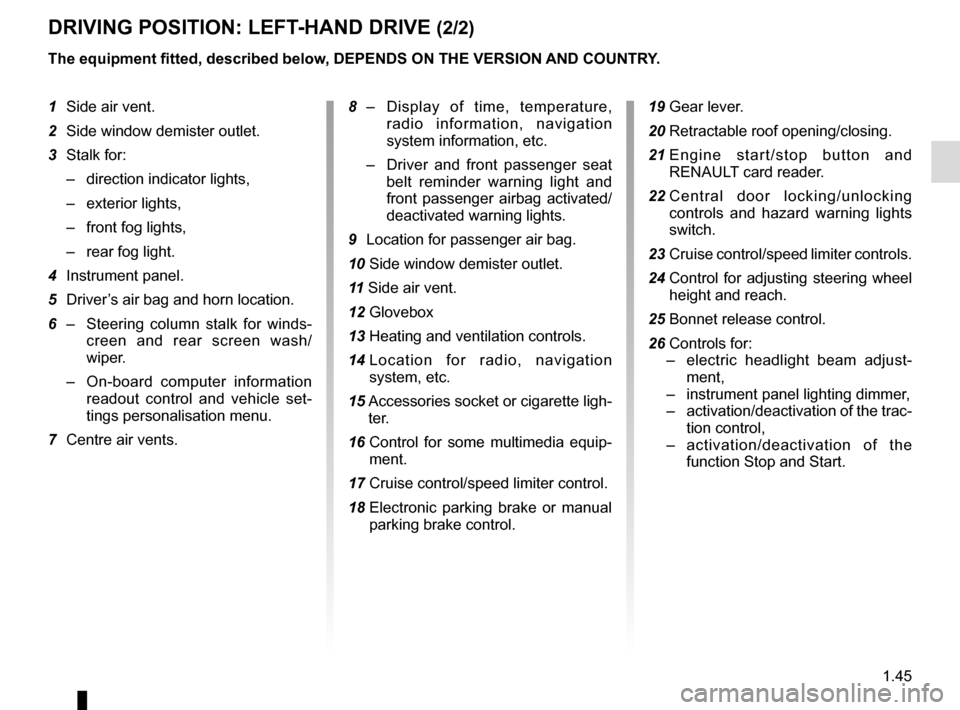

DRIVING POSITION: LEFT-HAND DRIVE (2/2)
1 Side air vent.
2 Side window demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light.
4 Instrument panel.
5 Driver’s air bag and horn location.
6 – Steering column stalk for winds-
creen and rear screen wash/
wiper.
– On-board computer information
readout control and vehicle set-
tings personalisation menu.
7 Centre air vents.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
19 Gear lever.
20 Retractable roof opening/closing.
21 Engine start/stop button and
RENAULT card reader.
22 Central door locking/unlocking
controls and hazard warning lights
switch.
23 Cruise control/speed limiter controls.
24 Control for adjusting steering wheel
height and reach.
25 Bonnet release control.
26 Controls for: – electric headlight beam adjust-
ment,
– instrument panel lighting dimmer,
– activation/deactivation of the trac-
tion control,
– activation/deactivation of the
function Stop and Start.
8 –
Display of time, temperature,
radio information, navigation
system information, etc.
– Driver and front passenger seat
belt reminder warning light and
front passenger airbag activated/
deactivated warning lights.
9 Location for passenger air bag.
10 Side window demister outlet.
11 Side air vent.
12 Glovebox
13 Heating and ventilation controls.
14 Location for radio, navigation
system, etc.
15 Accessories socket or cigarette ligh-
ter.
16 Control for some multimedia equip-
ment.
17 Cruise control/speed limiter control.
18 Electronic parking brake or manual
parking brake control.

1.46

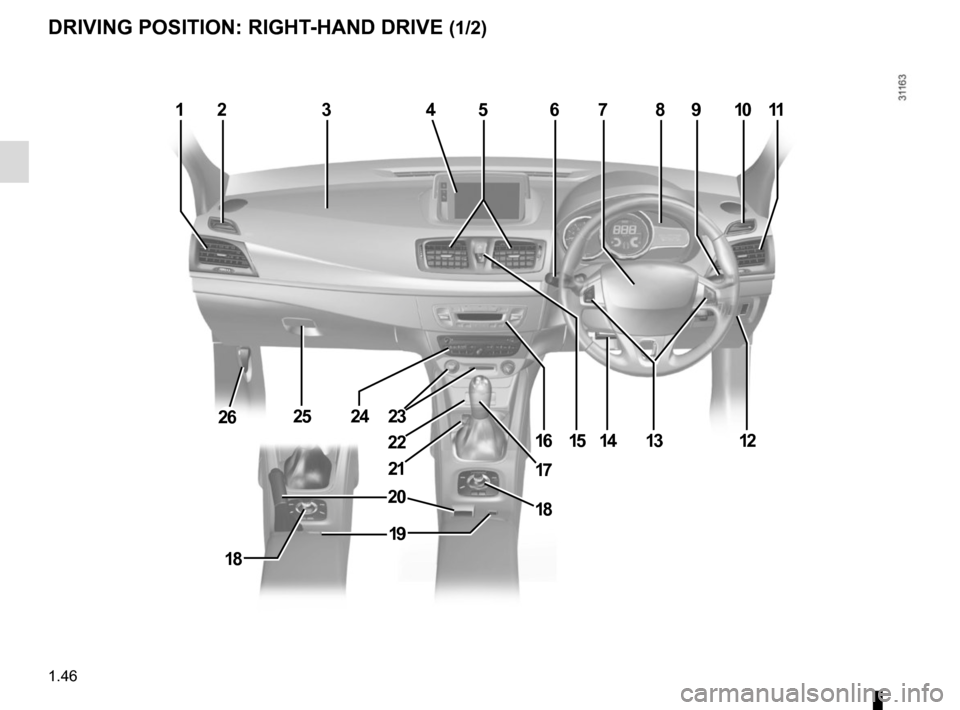

DRIVING POSITION: RIGHT-HAND DRIVE (1/2)
2378
17
11
24
610
151612
26
21
9
25
13
54
14
23
1
22
19
20
18
18

1.47

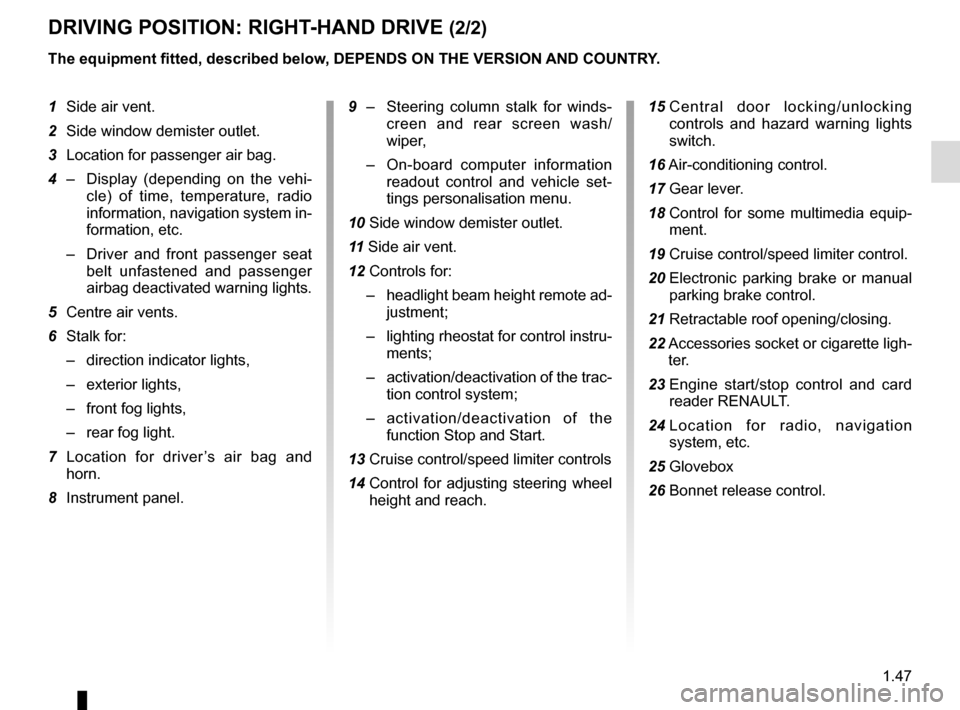

DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2 Side window demister outlet.
3 Location for passenger air bag.
4 – Display (depending on the vehi-
cle) of time, temperature, radio
information, navigation system in-
formation, etc.
– Driver and front passenger seat
belt unfastened and passenger
airbag deactivated warning lights.
5 Centre air vents.
6 Stalk for: – direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light.
7 Location for driver’s air bag and horn.
8 Instrument panel.
9 – Steering column stalk for winds-
creen and rear screen wash/
wiper,
– On-board computer information
readout control and vehicle set-
tings personalisation menu.
10 Side window demister outlet.
11 Side air vent.
12 Controls for: – headlight beam height remote ad-
justment;
– lighting rheostat for control instru-
ments;
– activation/deactivation of the trac-
tion control system;
– activation/deactivation of the
function Stop and Start.
13 Cruise control/speed limiter controls
14 Control for adjusting steering wheel
height and reach. 15
Central door locking/unlocking
controls and hazard warning lights
switch.
16 Air-conditioning control.
17 Gear lever.
18 Control for some multimedia equip-
ment.
19 Cruise control/speed limiter control.
20 Electronic parking brake or manual
parking brake control.
21 Retractable roof opening/closing.
22 Accessories socket or cigarette ligh-
ter.
23 Engine start/stop control and card
reader RENAULT.
24 Location for radio, navigation
system, etc.
25 Glovebox
26 Bonnet release control.

1.48

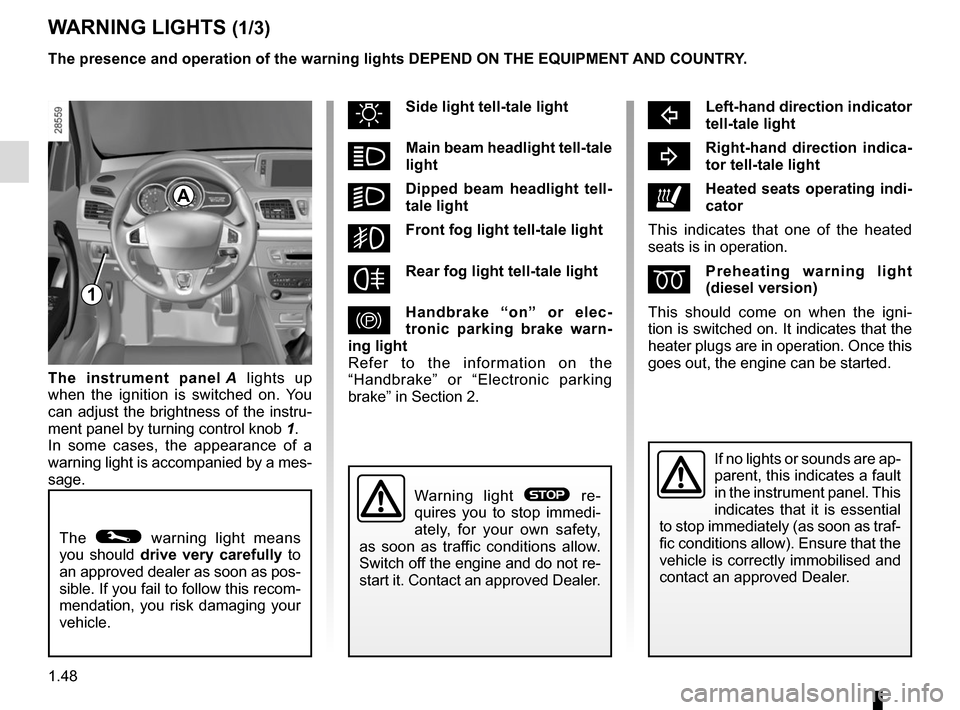

WARNING LIGHTS (1/3)
The © warning light means
you should drive very carefully to
an approved dealer as soon as pos-
sible. If you fail to follow this recom-
mendation, you risk damaging your
vehicle.
cLeft-hand direction indicator
tell-tale light
bRight-hand direction indica-
tor tell-tale light
ðHeated seats operating indi-
cator
This indicates that one of the heated
seats is in operation.
ÉPreheating warning light
(diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. Once this
goes out, the engine can be started.
uSide light tell-tale light
áMain beam headlight tell-tale
light
kDipped beam headlight tell-
tale light
gFront fog light tell-tale light
fRear fog light tell-tale light

}Handbrake “on” or elec-
tronic parking brake warn-
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Warning light ® re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
The instrument panel A lights up
when the ignition is switched on. You
can adjust the brightness of the instru-
ment panel by turning control knob 1.
In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
A
1
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.49

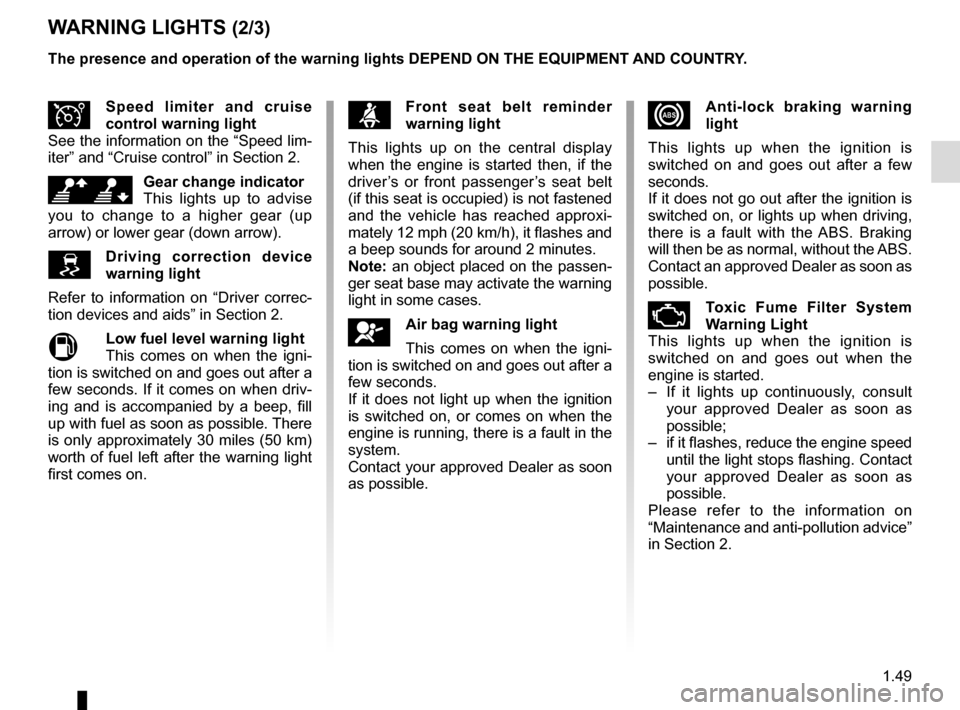

WARNING LIGHTS (2/3)
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS.
Contact an approved Dealer as soon as
possible.
ÄToxic Fume Filter System
Warning Light
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult your approved Dealer as soon as
possible;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and anti-pollution advice”
in Section 2.
ßFront seat belt reminder
warning light
This lights up on the central display
when the engine is started then, if the
driver’s or front passenger’s seat belt
(if this seat is occupied) is not fastened
and the vehicle has reached approxi-
mately 12 mph (20 km/h), it flashes and
a beep sounds for around 2 minutes.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
åAir bag warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system.
Contact your approved Dealer as soon
as possible.
ÎSpeed limiter and cruise
control warning light
See the information on the “Speed lim-
iter” and “Cruise control” in Section 2.
\[Gear change indicator
This lights up to advise
you to change to a higher gear (up
arrow) or lower gear (down arrow).
Driving correction device
warning light
Refer to information on “Driver correc-
tion devices and aids” in Section 2.
MLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing and is accompanied by a beep, fill
up with fuel as soon as possible. There
is only approximately 30 miles (50 km)
worth of fuel left after the warning light
first comes on. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.50

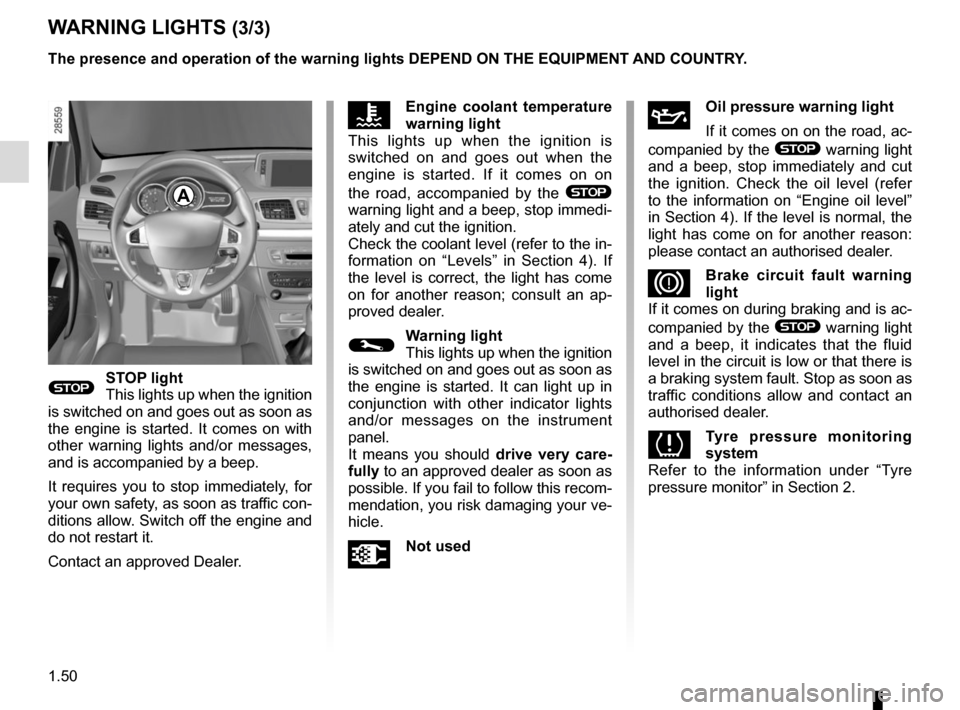

WARNING LIGHTS (3/3)
ÔEngine coolant temperature
warning light
This lights up when the ignition is
switched on and goes out when the
engine is started. If it comes on on
the road, accompanied by the
®
warning light and a beep, stop immedi-
ately and cut the ignition.
Check the coolant level (refer to the in-
formation on “Levels” in Section 4). If
the level is correct, the light has come
on for another reason; consult an ap-
proved dealer.
©Warning light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an approved dealer as soon as
possible. If you fail to follow this recom-
mendation, you risk damaging your ve-
hicle.
ÜNot used
A
ÀOil pressure warning light
If it comes on on the road, ac-
companied by the
® warning light
and a beep, stop immediately and cut
the ignition. Check the oil level (refer
to the information on “Engine oil level”
in Section 4). If the level is normal, the
light has come on for another reason:
please contact an authorised dealer.
DBrake circuit fault warning
light
If it comes on during braking and is ac-
companied by the
® warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault. Stop as soon as
traffic conditions allow and contact an
authorised dealer.
 Tyre pressure monitoring
system
Refer to the information under “Tyre
pressure monitor” in Section 2.
®STOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.51

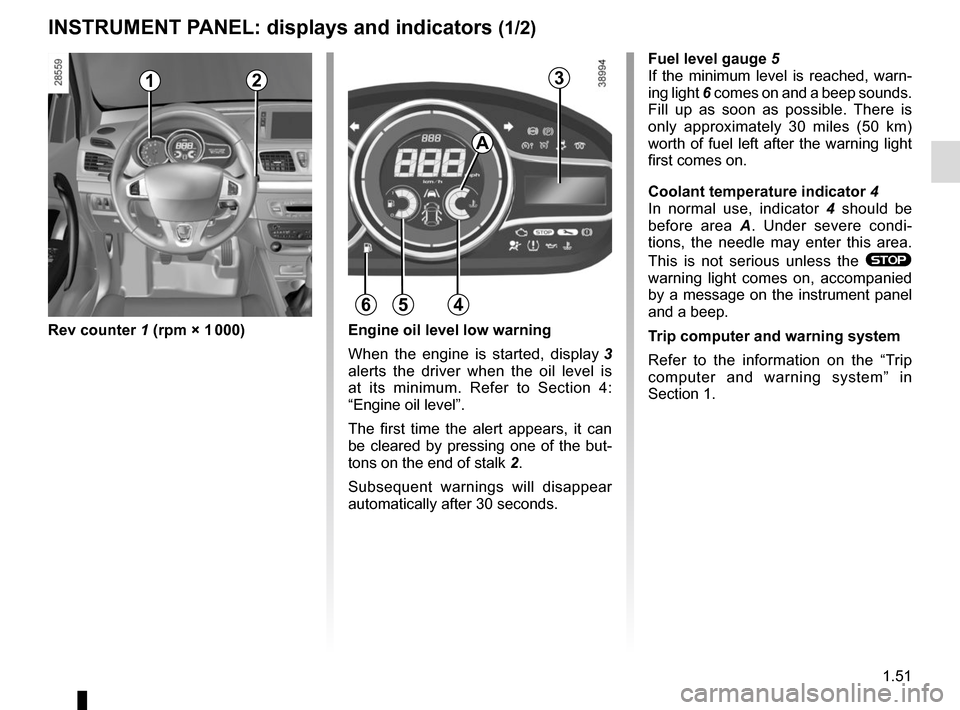

INSTRUMENT PANEL: displays and indicators (1/2)
Rev counter 1 (rpm × 1 000)Fuel level gauge
5
If the minimum level is reached, warn-
ing light 6 comes on and a beep sounds.
Fill up as soon as possible. There is
only approximately 30 miles (50 km)
worth of fuel left after the warning light
first comes on.
Coolant temperature indicator 4
In normal use, indicator 4 should be
before area A. Under severe condi-
tions, the needle may enter this area.
This is not serious unless the
®
warning light comes on, accompanied
by a message on the instrument panel
and a beep.
Trip computer and warning system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Engine oil level low warning
When the engine is started, display 3
alerts the driver when the oil level is
at its minimum. Refer to Section 4:
“Engine oil level”.
The first time the alert appears, it can
be cleared by pressing one of the but-
tons on the end of stalk 2.
Subsequent warnings will disappear
automatically after 30 seconds.
12
564
A
3

1.52

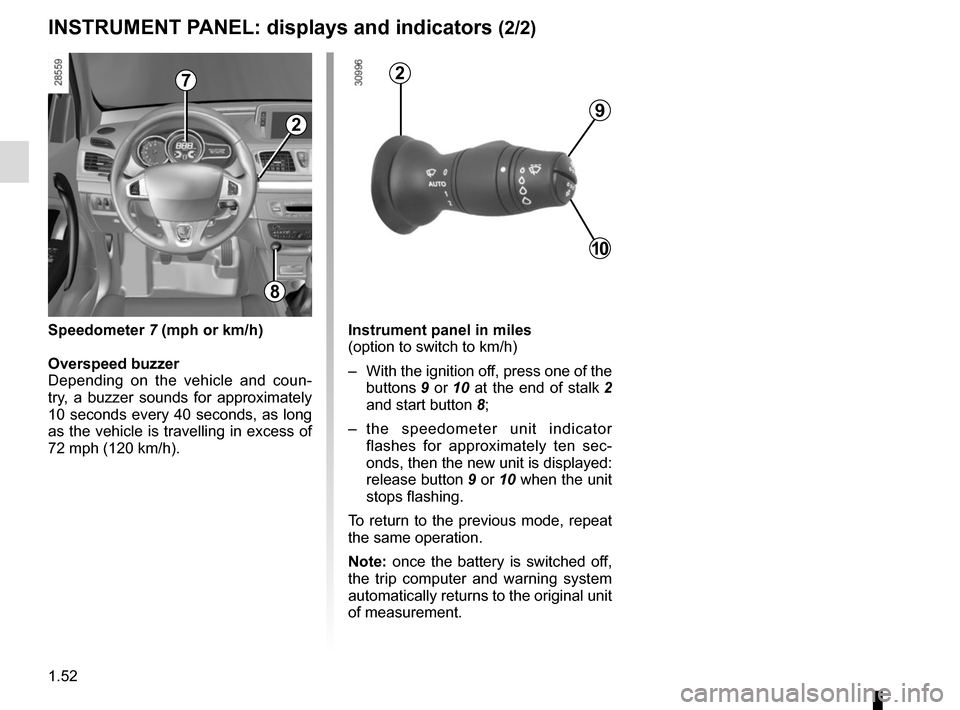

Instrument panel in miles
(option to switch to km/h)
– With the ignition off, press one of the buttons 9 or 10 at the end of stalk 2
and start button 8;
– the speedometer unit indicator flashes for approximately ten sec-
onds, then the new unit is displayed:
release button 9 or 10 when the unit
stops flashing.
To return to the previous mode, repeat
the same operation.
Note: once the battery is switched off,
the trip computer and warning system
automatically returns to the original unit
of measurement.
INSTRUMENT PANEL: displays and indicators (2/2)
9
10
2
2
8
Speedometer 7 (mph or km/h)
Overspeed buzzer
Depending on the vehicle and coun-
try, a buzzer sounds for approximately
10 seconds every 40 seconds, as long
as the vehicle is travelling in excess of
72 mph (120 km/h).
7

1.53
Trip computer and warning
system 1
Depending on the vehicle, this includes
the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (con-
nected to the warning light
©);
– warning messages (connected to the
® warning light);
– vehicle settings customisation menu.
All these functions are described on the
following pages.
Display selection keys 2
and 3
Scroll through the following informa-
tion upwards (button 2) or downwards
(button 3 ) by pressing briefly and suc-
cessively (the display depends on the
vehicle equipment and country).
a) total mileage and trip mileage re-
corder;
b) journey parameters: – fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed;
1
2
3
c) mileage before service;
d) tyre pressure monitor;
e) vehicle settings customisation menu;
f) trip log, operating faults and informa- tion message readout.

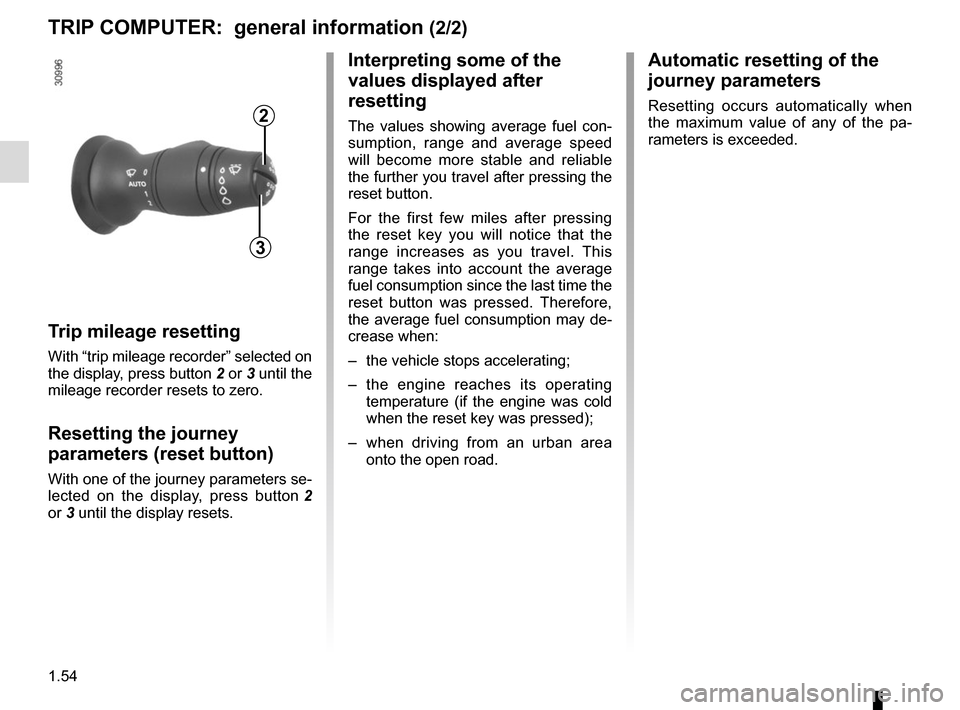

TRIP COMPUTER: general information (1/2)

1.54
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 2 or 3 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 2
or 3 until the display resets.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
3
2
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa-
rameters is exceeded.
TRIP COMPUTER: general information (2/2)
