headrest RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual MEGANE HATCHBACK 2015 X95 / 3.G RENAULT RENAULT https://www.carmanualsonline.info/img/7/1603/w960_1603-0.png RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual

Page 7 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.1
Section 1: Getting to know your vehicle
RENAULT cards: General information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   1.2
Doors . . . . . . . . . . . . .

Page 20 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.14

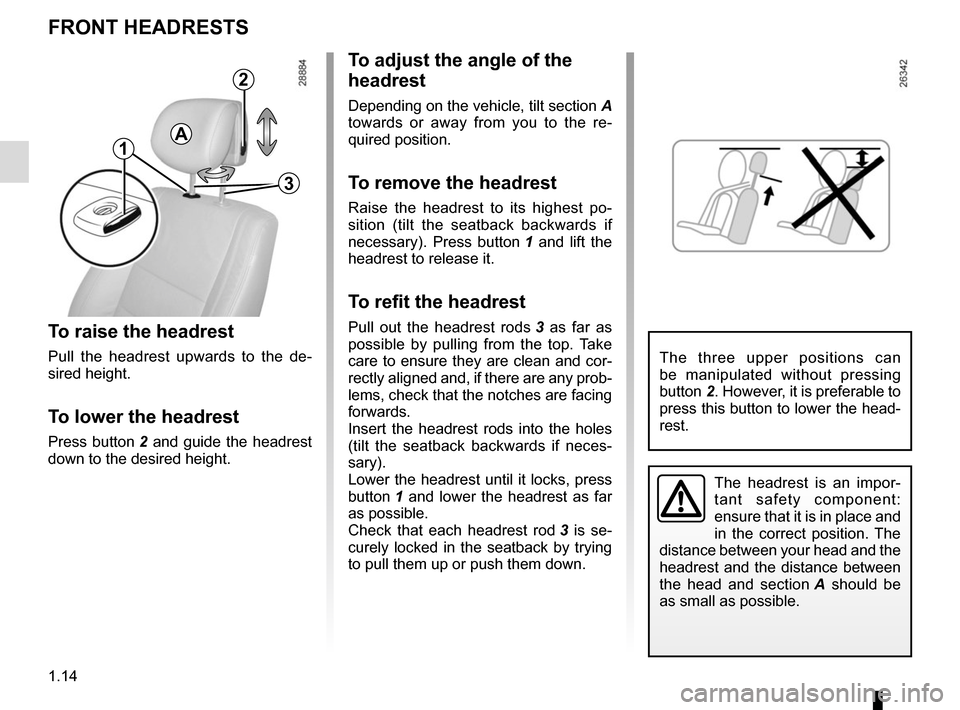

FRONT HEADRESTS
To raise the headrest
Pull the headrest upwards to the de-
sired height.
To lower the headrest
Press button 2 and guide the headrest
down to the desired height.
To adjust the ang

Page 21 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.15
REAR HEADRESTS
Position for use
Raise or lower the headrest while pull-
ing it towards the front of the vehicle.
To remove the headrest
Press tabs A of rods 1 and 2 simultane-
ously and remove th

Page 23 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.17
Table function
Depending on the vehicle, the passen-
ger seatback may be folded down onto
the seat base to create a table.
Lower the headrest, move the seat
back, tilt handle 6 and completely l

Page 27 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.21
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
Incorrectly adjusted or
twisted seat belts may
c

Page 42 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.36
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before u

Page 43 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.37
Ensure that the child seat
or the child’s feet do not
prevent the front seat from
locking correctly. Refer to
the information on the “Front seat”
in Section 1.
In the rear side seat
A

Page 45 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.39
CHILD SAFETY: fitting a child seat (4/12)
X =  Seat not suitable for fitting child seats.
U =  Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; ch

Page 49 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.43
X =  Seat not suitable for fitting child seats.
U =  Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
IUF/IL =   On e

Page 51 of 268

RENAULT MEGANE HATCHBACK 2015 X95 / 3.G Owners Manual 1.45
Type of child seat
estate version (five seats) Weight of
the child Seat size
ISOFIX Front passenger
seat (1) (5) Rear side seats Rear centre
seat
Carrycot fitted across the vehicle
Group 0 < 1
