Page 211 of 239
6.1
ENG_UD19032_7
Sommaire 6 (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.11
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.17
Page 212 of 239
6.2
ENG_UD14568_2
Plaques d’identification véhicule (X95 - B95 - D95 - K95 - Renaul\
t)
ENG_NU_837-6_BDK95_Renault_6
Vehicle identification plates
Vehicle identification plates
6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica -
tion.
12 Fabrication number.
13 Interior trim code.the information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
depending on the vehicle, this
information is also given on
marking B.
2 M a x i m u m p e r m i s s i b l e a l l - u p
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 Maximum permissible weight, front
axle.
5 Maximum permissible weight, rear
axle.
a
B
a
1
2
3
4
5
678
910
12
13
11
Page 213 of 239
technical specifications ......................... (up to the end of the DU)
vehicle identification plates ................... (up to the end of the DU)
6.3
ENG_UD11756_3
Plaques d’identification (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6
Engine identification plates
engine identification plates (1/2)
the information on the engine plate
(or label) C should be quoted on all
your correspondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
c
2
3
c
1
c
c
c
Page 214 of 239
6.4
ENG_UD11756_3
Plaques d’identification (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6
c
the information on the engine plate
(or label) C should be quoted on all
your correspondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
c
2
3
1
c
c

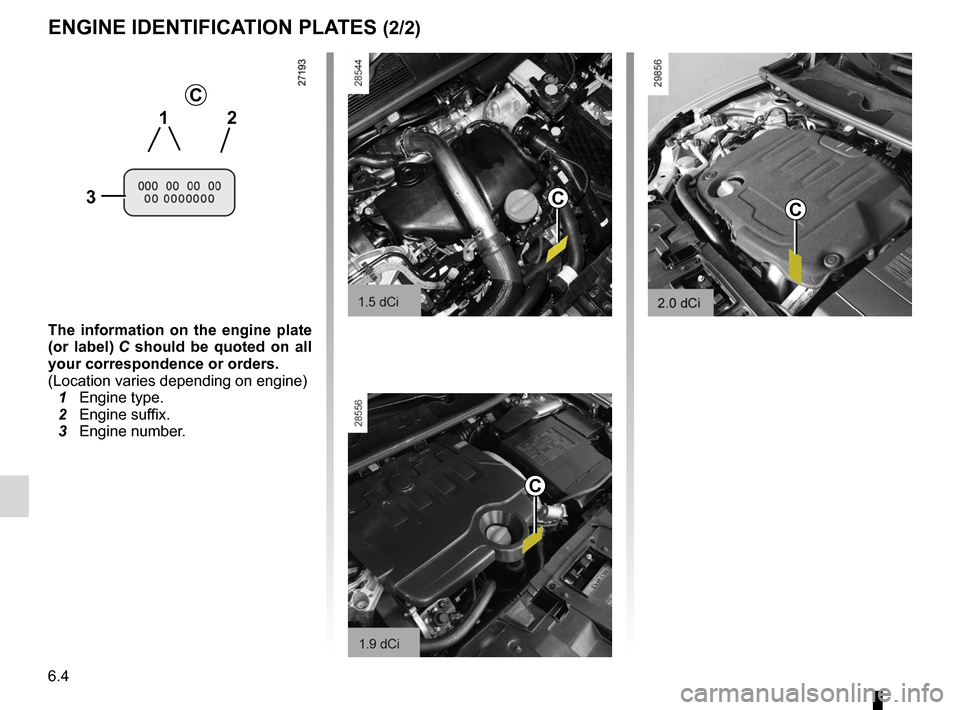

engine identification plates (2/2)
c
Page 215 of 239
technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the end of the DU)
6.5
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6
Dimensions
dimensions (in metres) (1/3)
three door version
0.862 2.6400.797 1.546
4.299
1.423*
1.547
1.785
* Unladen
Page 216 of 239
6.6
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6
Jaune NoirNoir texte

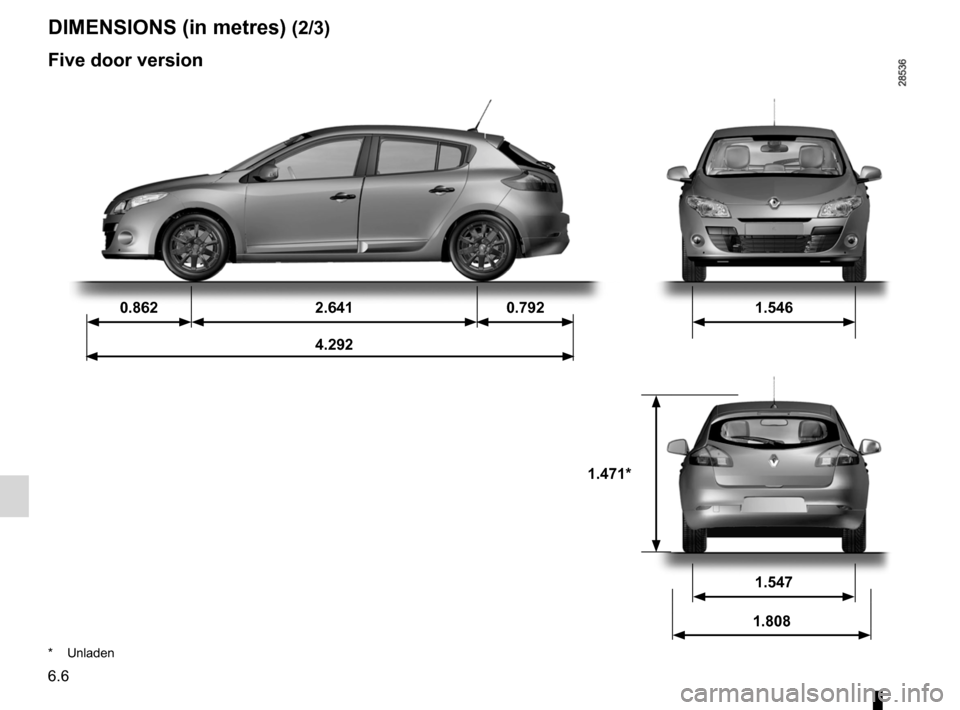

dimensions (in metres) (2/3)
0.862 2.6410.792 1.546
4.292
1.471*
* Unladen
1.547
1.808
five door version
Page 217 of 239
JauneNoirNoir texte
6.7
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6

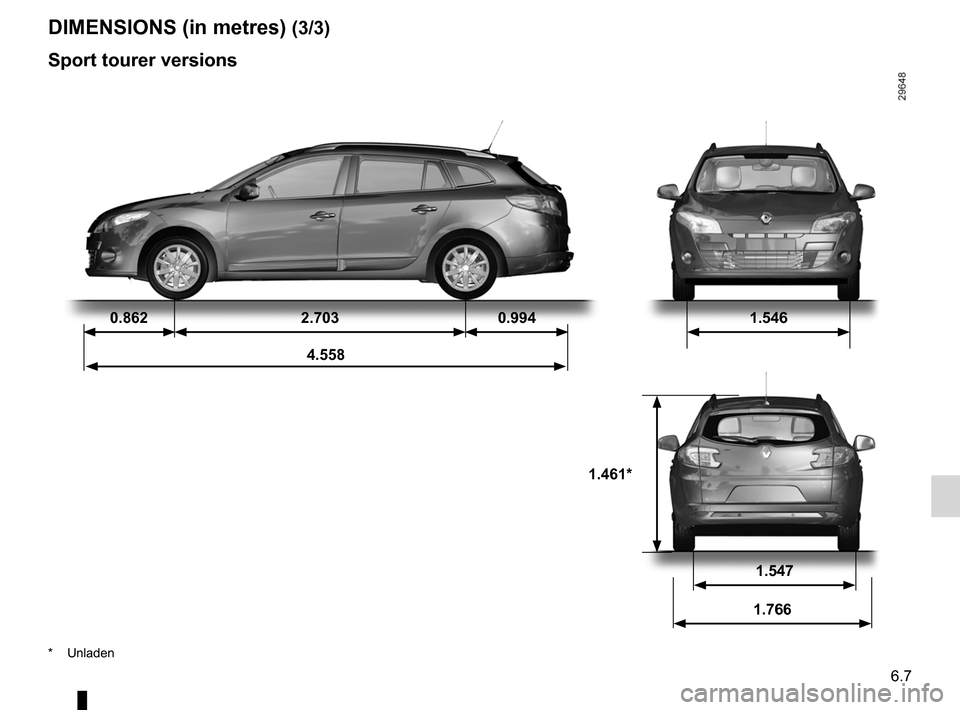

dimensions (in metres) (3/3)
sport tourer versions
0.862 2.703 0.994 1.546
4.558
1.461*
* Unladen
1.547
1.766
Page 218 of 239
6.8
ENG_UD12979_3
Caractéristiques moteurs (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6

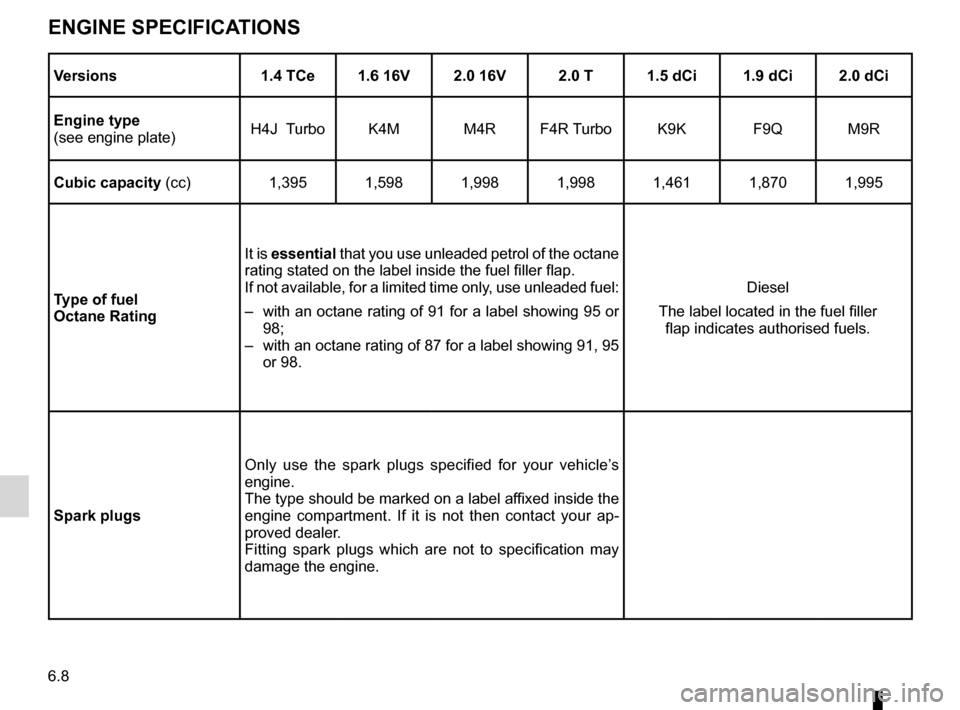

Engine specifications
Versions 1.4 tce1.6 16V2.0 16V 2.0 t1.5 dci 1.9 dci2.0 dci
engine type
(see engine plate) H4J Turbo
K4MM4RF4R Turbo K9KF9QM9R
cubic capacity (cc) 1,3951,5981,9981,9981,4611,8701,995
t ype of fuel
octane Rating It is
essential that you use unleaded petrol of the octane
rating stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label showing 95 or
98;
– with an octane rating of 87 for a label showing 91, 95
or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified for your vehicle’s
engine.
The type should be marked on a label affixed inside the
engine compartment. If it is not then contact your ap
-
proved dealer.
Fitting spark plugs which are not to specification may
damage the engine.
engine specifications
Page 219 of 239
technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
6.9
ENG_UD6360_1
Masse en Kg (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6
Weights
Towing weights
Weights (in kg)
the weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. consult
your approved dealer.
maximum permissible all-up weight (mmac)
t otal train weight (mtR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked trailer weight found by calculating: mtR - mmac
Unbraked trailer weight 650
permissible nose weight 75
permissible load on the roof with the carrying device 80 kg (including the carrying device)
t owing weight (t owing a caravan, boat, etc.)
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be
increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Page 220 of 239
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.10
ENG_UD7339_1
Pièces de rechange et réparations (X76 - Renault)
ENG_NU_837-6_BDK95_Renault_6
Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
Replacement paRts and RepaiRs
