Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Tyres (tyre and wheel safety, use in winter)

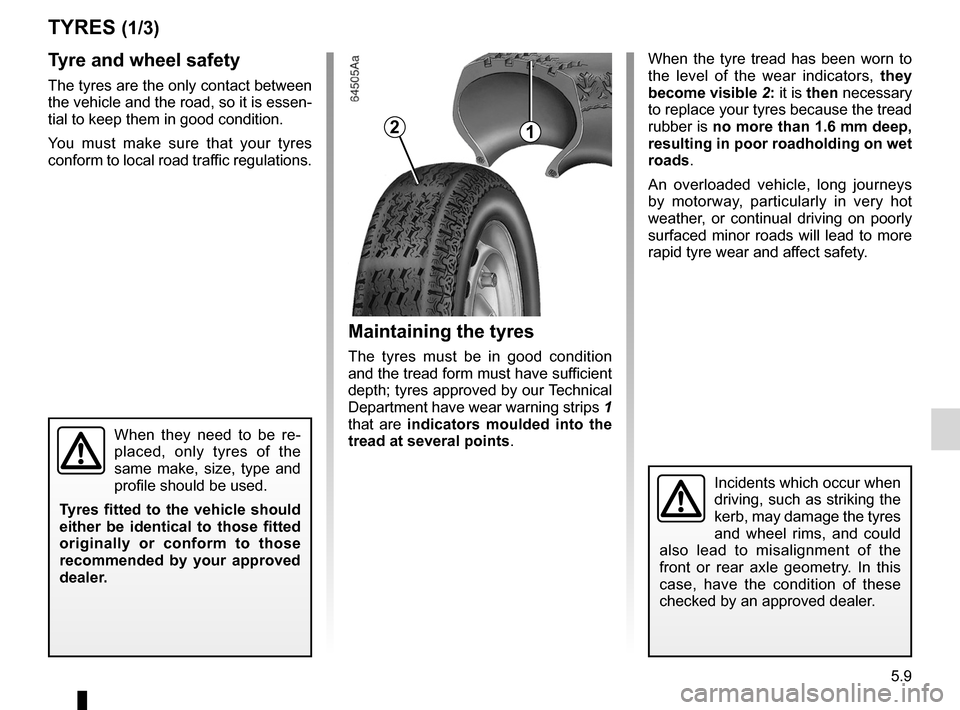

tyres (1/3)
maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
that are indicators moulded into the
tread at several points.
t yre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations. When the tyre tread has been worn to
the level of the wear indicators,
they
become visible 2: it is then necessary
to replace your tyres because the tread
rubber is no more than 1.6 mm deep,
resulting in poor roadholding on wet
roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
When they need to be re -
placed, only tyres of the
same make, size, type and
profile should be used.
t yres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
dealer.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
12
Page 182 of 239
tyre pressure.......................................................... (current page)
5.10
ENG_UD10474_2
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
tyre pressuresAdhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af -
fixed to the edge of the driver’s door). Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are
cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PsI).
never deflate a hot tyre.
special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.Fitting new tyres
emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in -
structions on “Changing a wheel” in
Section 5.
tyres (2/3)
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi -
tions of use (refer to the label affixed
to the edge of the driver’s door).
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– It may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– It may affect the use of snow
chains.
Page 183 of 239
JauneNoirNoir texte
5.11
ENG_UD10474_2
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
use in winter
chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
snow or w inter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe -
sion.
w arning: These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces -
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.

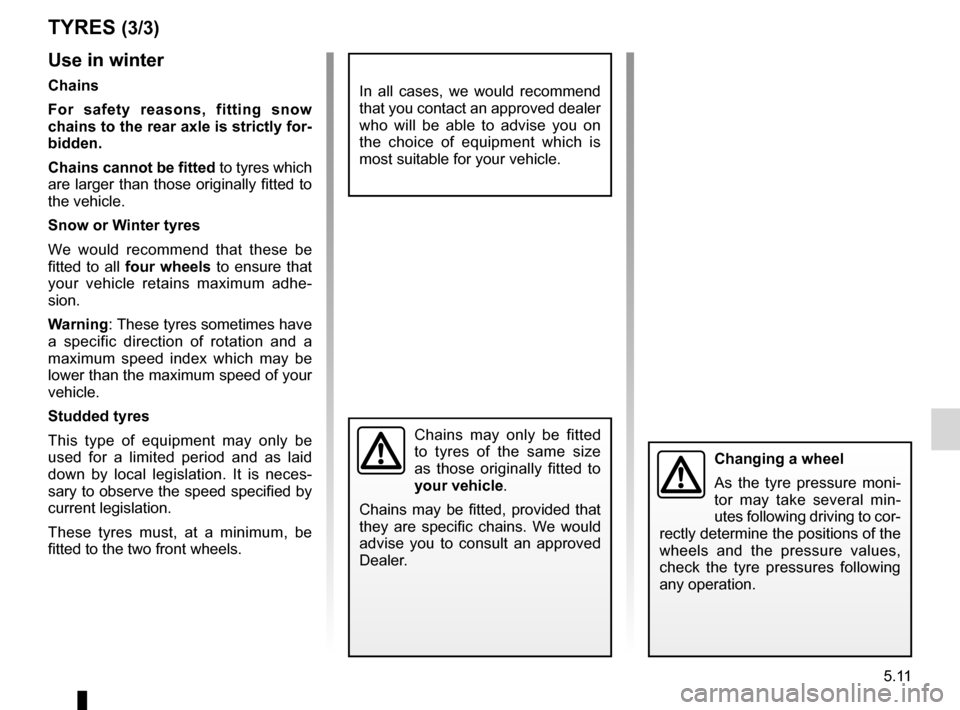

tyres (3/3)
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Chains may be fitted, provided that
they are specific chains. We would
advise you to consult an approved
Dealer.
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
changing a wheel
As the tyre pressure moni -
tor may take several min -
utes following driving to cor-
rectly determine the positions of the
wheels and the pressure values,
check the tyre pressures following
any operation.
Page 184 of 239
lightsfront ................................................. (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.12
ENG_UD10900_2
Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
Headlights (changing bulbs)

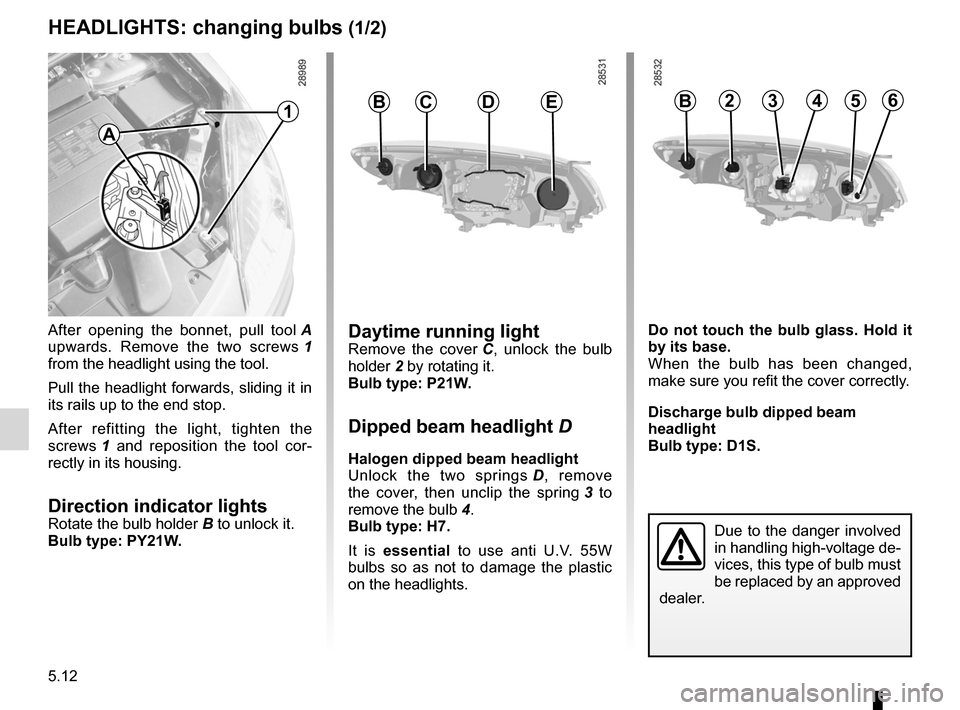

heaDlIghts: changing bulbs (1/2)
After opening the bonnet, pull tool A
upwards. Remove the two screws 1
from the headlight using the tool.
Pull the headlight forwards, sliding it in
its rails up to the end stop.
After refitting the light, tighten the
screws 1 and reposition the tool cor -
rectly in its housing.
Direction indicator lightsRotate the bulb holder B to unlock it.
Bulb type: Py21w .
Daytime running lightRemove the cover C , unlock the bulb
holder 2 by rotating it.
Bulb type: P21w .
Dipped beam headlight D
halogen dipped beam headlight
Unlock the two springs D , remove
the cover, then unclip the spring 3 to
remove the bulb 4.
Bulb type: h7.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
1BcDe3245B6
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
Do not touch the bulb glass. hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Discharge bulb dipped beam
headlight
Bulb type: D1s.
a
Page 185 of 239
JauneNoirNoir texte
5.13
ENG_UD10900_2
Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-6_BDK95_Renault_5
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an approved
dealer containing a set of spare
bulbs and fuses.

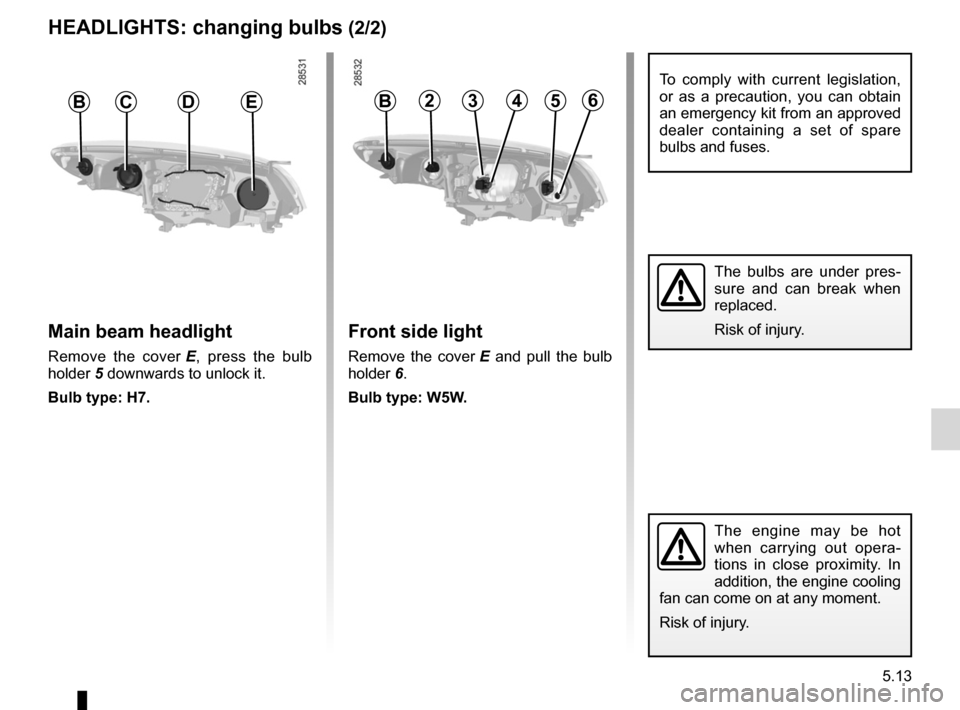

heaDlIghts: changing bulbs (2/2)
main beam headlight
Remove the cover E , press the bulb
holder 5 downwards to unlock it.
Bulb type: h7.
BcDe3245B6
Front side light
Remove the cover E and pull the bulb
holder 6.
Bulb type: w5w .
Page 186 of 239
bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.14
ENG_UD11884_2
Projecteurs avant Feux de brouillard avant additionnels (X95 - B95 - D9\
5 - Renault)
ENG_NU_837-6_BDK95_Renault_5

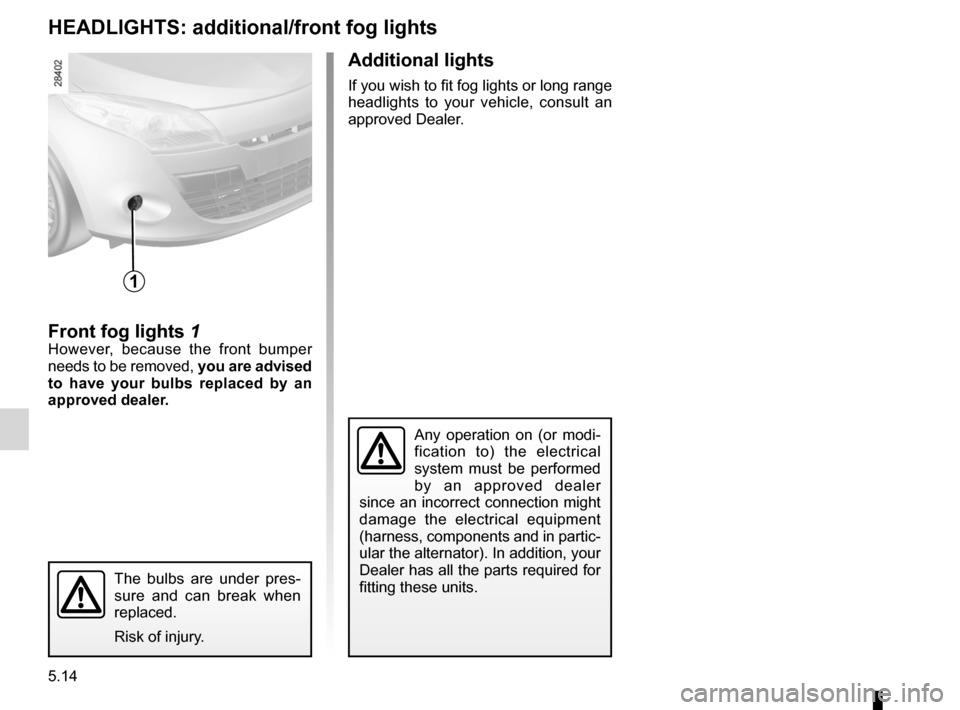

heaDlIghts: additional/front fog lights
additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved Dealer.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
Front fog lights 1However, because the front bumper
needs to be removed, you are advised
to have your bulbs replaced by an
approved dealer.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
Page 187 of 239
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
lights: reversing lights ................................................. (current page)
lights: fog lights .......................................................... (current page)
indicators: direction indicators ........................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.15
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Rear lights (changing bulbs)

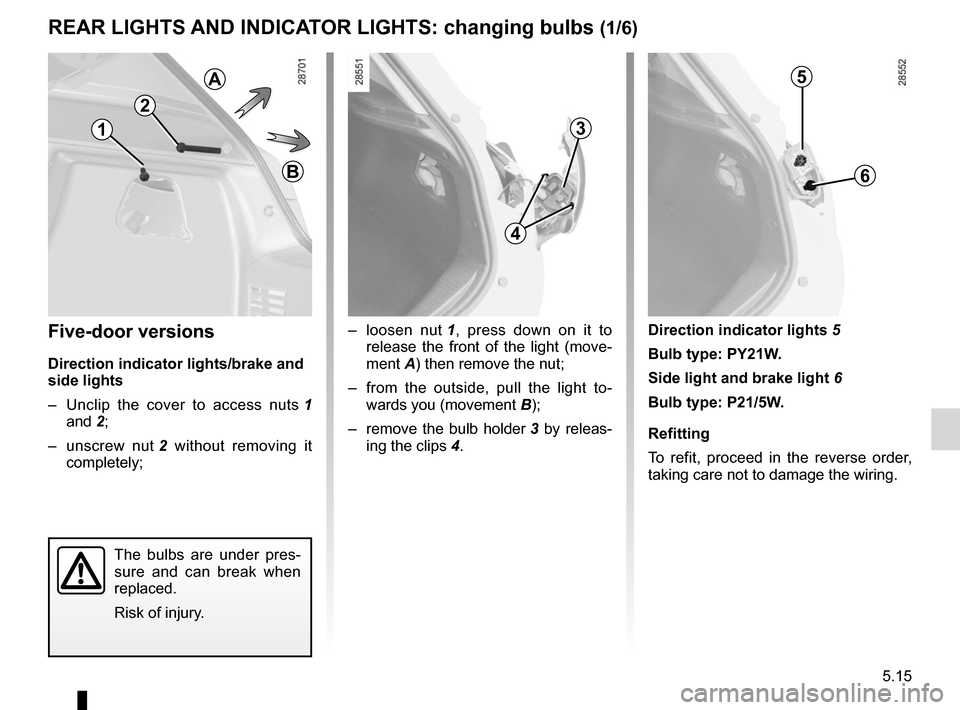

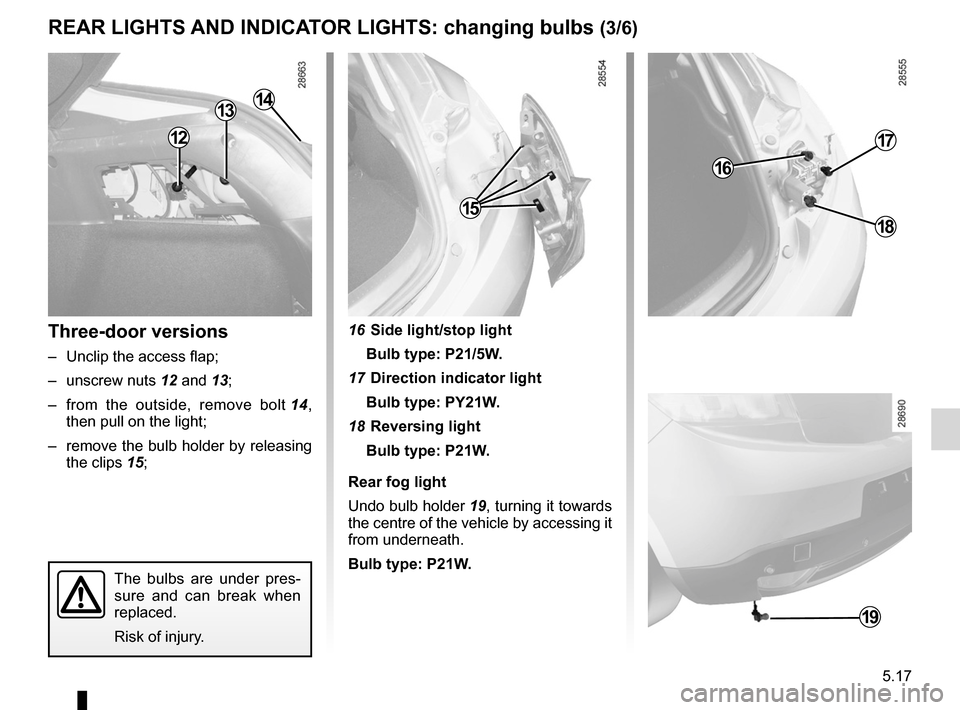

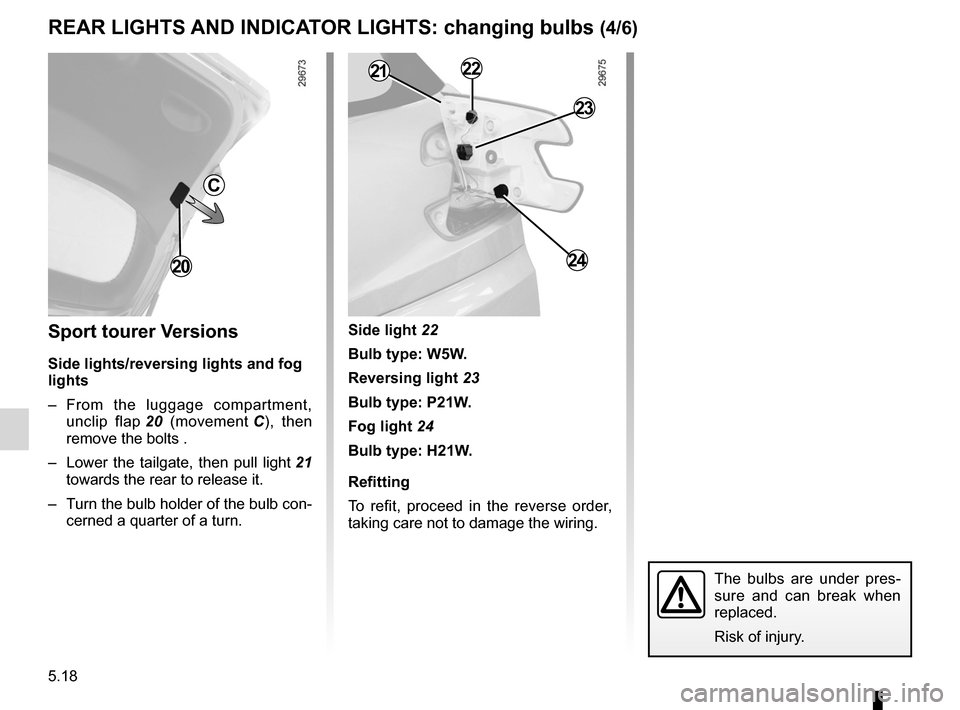

rear lIghts anD InDIcatOr lIghts: changing bulbs (1/6)
5
– loosen nut 1 , press down on it to
release the front of the light (move -
ment A) then remove the nut;
– from the outside, pull the light to -
wards you (movement B);
– remove the bulb holder 3 by releas-
ing the clips 4. Direction indicator lights
5
Bulb type: Py21w .
side light and brake light 6
Bulb type: P21/5w .
refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.Five-door versions
Direction indicator lights/brake and
side lights
– Unclip the cover to access nuts 1
and 2;
– unscrew nut 2 without removing it
completely;
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
4
6
a
B
1
2
3
Page 188 of 239
5.16
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte

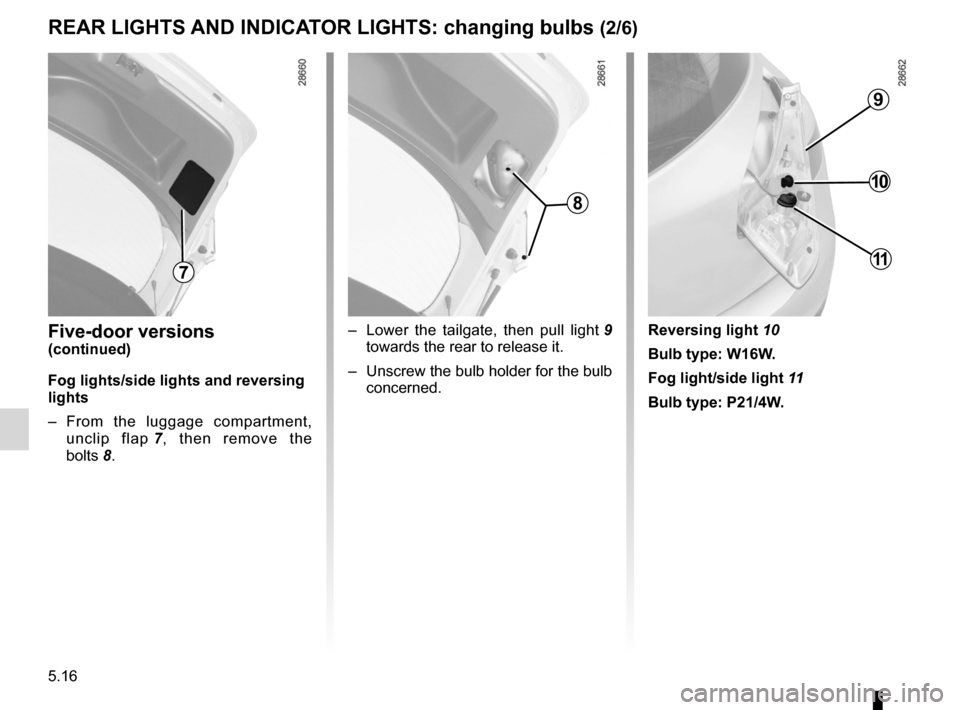

rear lIghts anD InDIcatOr lIghts: changing bulbs (2/6)
Five-door versions
(continued)
Fog lights/side lights and reversing
lights
– From the luggage compartment,
unclip flap 7 , then remove the
bolts 8.
– Lower the tailgate, then pull light 9
towards the rear to release it.
– Unscrew the bulb holder for the bulb
concerned.
7
9
10
8
11
reversing light 10
Bulb type: w16w .
Fog light/side light 11
Bulb type: P21/4w .
Page 189 of 239
JauneNoirNoir texte
5.17
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
three-door versions
– Unclip the access flap;
– unscrew nuts 12 and 13;
– from the outside, remove bolt 14 ,
then pull on the light;
– remove the bulb holder by releasing
the clips 15; 16
side light/stop light
Bulb type: P21/5w .
17 Direction indicator light
Bulb type: Py21w .
18 reversing light
Bulb type: P21w .
rear fog light
Undo bulb holder 19, turning it towards
the centre of the vehicle by accessing it
from underneath.
Bulb type: P21w .
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
rear lIghts anD InDIcatOr lIghts: changing bulbs (3/6)
18
16
1712
1314
15
19
Page 190 of 239
5.18
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Jaune NoirNoir texte
rear lIghts anD InDIcatOr lIghts: changing bulbs (4/6)
sport tourer Versions
side lights/reversing lights and fog
lights
– From the luggage compartment,
unclip flap 20 (movement C ), then
remove the bolts .
– Lower the tailgate, then pull light 21
towards the rear to release it.
– Turn the bulb holder of the bulb con-
cerned a quarter of a turn.
20
side light 22
Bulb type: w5w .
reversing light 23
Bulb type: P21w .
Fog light 24
Bulb type: h21w .
refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
c
21
23
24
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
22
