catalytic converter RENAULT MEGANE RS 2012 X95 / 3.G Owners Manual

special features of petrol vehicles ........ (up to the end of the DU)
catalytic converter ................................. (up to the end of the DU)
driving ................................................... (up to the end of the DU)
catalytic converter ................................. (up to the end of the DU)
2.6
ENG_UD10553_1
Particularités des versions essence (X85 - B85 - C85 - S85 - K85 - R\
enault)
ENG_NU_837-6_BDK95_Renault_2

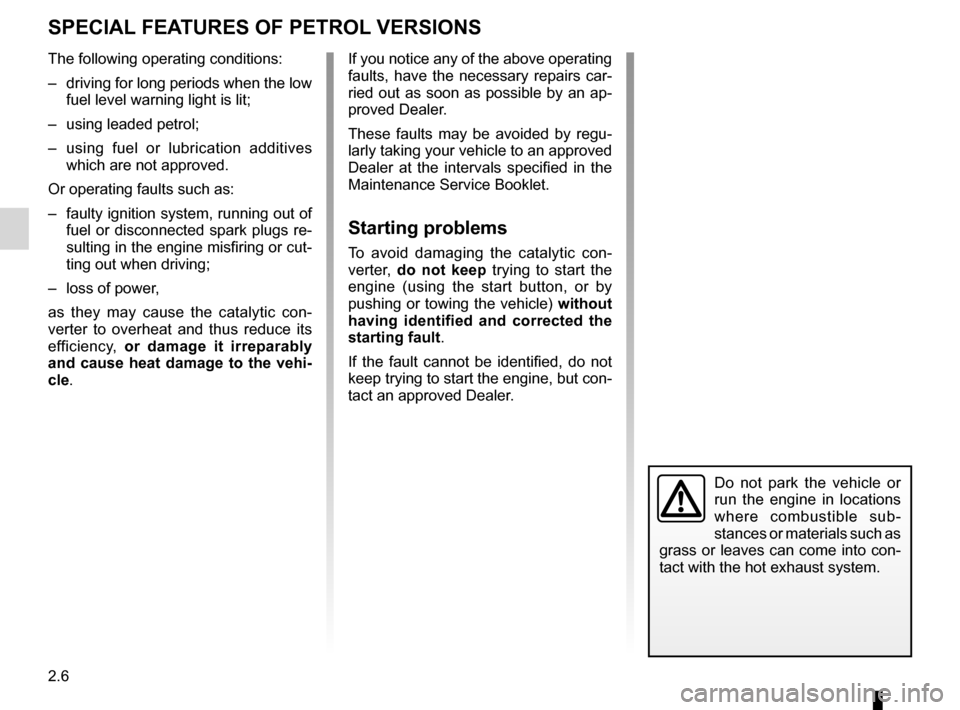

Special features of petrol versions
SPECIAL FEATURES OF PETROL VERSIONS
The following operating conditions:
– driving for long periods when the low
fuel level warning light is lit;
– using leaded petrol;
– using fuel or lubrication additives
which are not approved.
Or operating faults such as:
– faulty ignition system, running out of
fuel or disconnected spark plugs re-
sulting in the engine misfiring or cut-
ting out when driving;
– loss of power,
as they may cause the catalytic con -
verter to overheat and thus reduce its
efficiency, or damage it irreparably
and cause heat damage to the vehi-
cle. If you notice any of the above operating
faults, have the necessary repairs car-
ried out as soon as possible by an ap-
proved Dealer.
These faults may be avoided by regu
-
larly taking your vehicle to an approved
Dealer at the intervals specified in the
Maintenance Service Booklet.
Starting problems
To avoid damaging the catalytic con -
verter, do not keep trying to start the
engine (using the start button, or by
pushing or towing the vehicle) without
having identified and corrected the
starting fault.
If the fault cannot be identified, do not
keep trying to start the engine, but con-
tact an approved Dealer.
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such as
grass or leaves can come into con-
tact with the hot exhaust system.

catalytic converter................................. (up to the end of the DU)
special features of diesel versions ........(up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.7
ENG_UD9672_2
Particularités des versions diesel (X95 - B95 - D95 - J95 - R95 - Re\
nault)
ENG_NU_837-6_BDK95_Renault_2

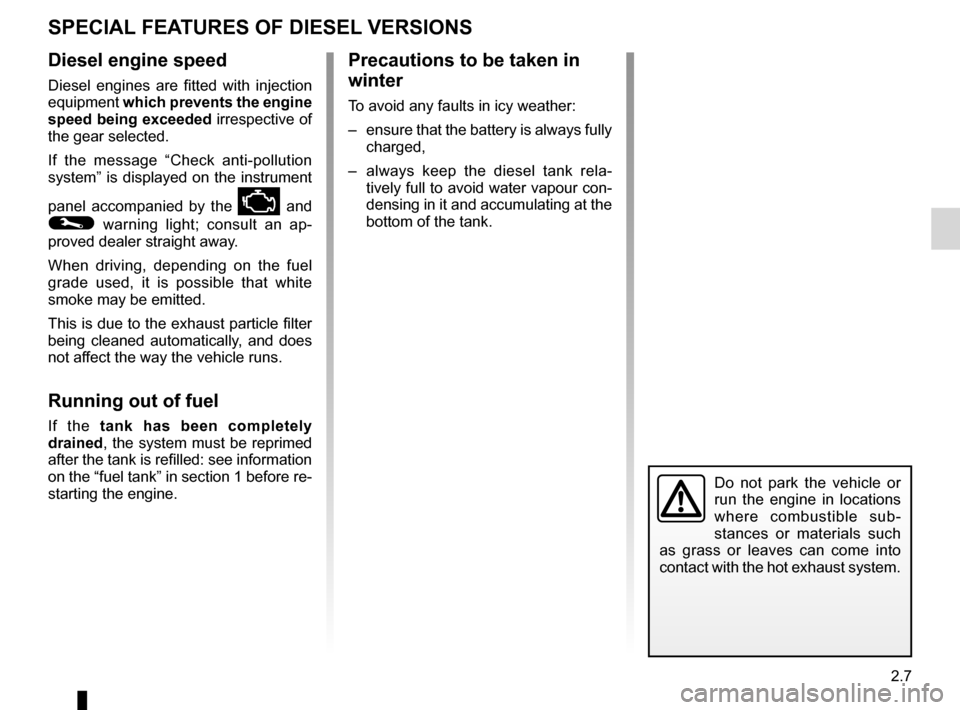

Special features of diesel versions
SPECIAL FEATURES OF DIESEL VERSIONS
Diesel engine speed
Diesel engines are fitted with injection
equipment which prevents the engine
speed being exceeded irrespective of
the gear selected.
If the message “ Check anti-pollution
system” is displayed on the instrument
panel accompanied by the
Ä and
© warning light; consult an ap -
proved dealer straight away.
When driving, depending on the fuel
grade used, it is possible that white
smoke may be emitted.
This is due to the exhaust particle filter
being cleaned automatically, and does
not affect the way the vehicle runs.
Running out of fuel
If the tank has been completely
drained, the system must be reprimed
after the tank is refilled: see information
on the “fuel tank” in section 1 before re-
starting the engine.
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
Precautions to be taken in
winter
To avoid any faults in icy weather:
– ensure that the battery is always fully
charged,
– always keep the diesel tank rela -
tively full to avoid water vapour con-
densing in it and accumulating at the
bottom of the tank.

dipstick..................................................(up to the end of the DU)
4.4
ENG_UD11751_2
Niveau huile moteur : généralités (X95 - B95 - D95 - Renault)\
ENG_NU_837-6_BDK95_Renault_4

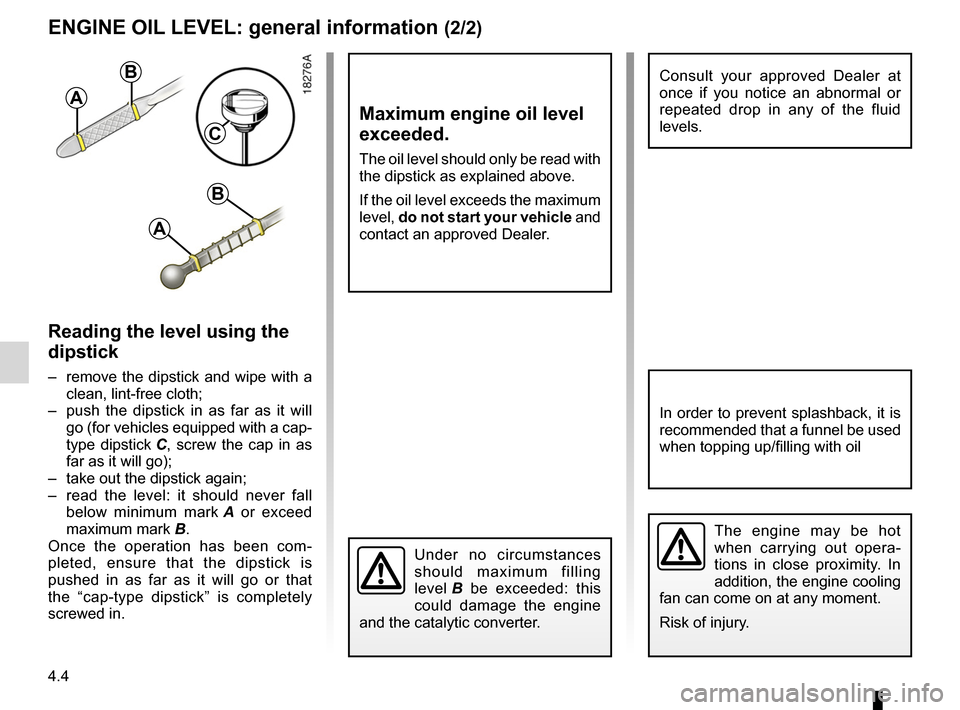

engine Oil level: general information (2/2)
Reading the level using the
dipstick
– remove the dipstick and wipe with a
clean, lint-free cloth;
– push the dipstick in as far as it will
go (for vehicles equipped with a cap-
type dipstick C, screw the cap in as
far as it will go);
– take out the dipstick again;
– read the level: it should never fall
below minimum mark A or exceed
maximum mark B.
Once the operation has been com -
pleted, ensure that the dipstick is
pushed in as far as it will go or that
the “cap-type dipstick” is completely
screwed in.
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
A
B
C
B
A
Maximum engine oil level
exceeded.
The oil level should only be read with
the dipstick as explained above.
If the oil level exceeds the maximum
level, do not start your vehicle and
contact an approved Dealer.
Under no circumstances
should maximum filling
level B be exceeded: this
could damage the engine
and the catalytic converter.
In order to prevent splashback, it is
recommended that a funnel be used
when topping up/filling with oil

7.1
FRA_UD19033_8
Index (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_7
AlphAbeticAl index (1/5)
A
ABS .............................................................. 1.51, 2.19 → 2.22
accessories........................................................................\
5.29
accessories socket ............................................................ 3.21
additional methods of restraint .....................1.25 → 1.28, 1.31
side protection ............................................................. 1.30
to the front seat belts ....................................... 1.25 → 1.28
to the rear seat belts ........................................ 1.25 → 1.29
adjusting your driving position ....................... 1.15 – 1.16, 1.22
advice on antipollution ........................................... 2.12 → 2.14
air bag ........................................................... 1.25 → 1.31, 1.51
activating the front passenger air bags ........................ 1.45
deactivating the front passenger air bags .................... 1.43
air conditioning ........................................................ 3.4 → 3.11
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.17 → 6.22
anti-corrosion protection ......................................... 4.12 – 4.13
anti-lock braking system: ABS ...............................2.19 → 2.22
antipollution advice .......................................................................... 2.12
armrest: front .............................................................................. 3.18
ashtray ........................................................................\
....... 3.21
ASR (traction control) ............................................ 2.19 → 2.22
audible and visual signals .................................................. 1.70
automatic gearbox (use) ........................................ 2.33 → 2.35
automatic gearbox selector lever ...........................2.33 → 2.35
b
battery ....................................................................... 1.52, 4.11
troubleshooting ................................................. 5.25 – 5.26
bonnet ........................................................................\
.......... 4.2
brake fluid ........................................................................\
.... 4.8
bulbs changing .......................................................... 5.12 → 5.20c
catalytic converter
....................................................... 2.6 – 2.7
central door locking ........................................ 1.8, 1.12 → 1.14
changing a bulb ..................................................... 5.12 → 5.20
changing a wheel ........................................................ 5.7 – 5.8
changing gear ................................................. 2.8, 2.33 → 2.35
child restraint/seat ............................. 1.32 – 1.33, 1.35 → 1.45
child safety .........1.2, 1.6, 1.11, 1.32 – 1.33, 1.35 → 1.45, 3.12
child seats .......................................... 1.32 – 1.33, 1.35 → 1.42
children ...................................... 1.10 – 1.11, 1.32 – 1.33, 1.33
children (safety) .......................................... 1.2, 1.6, 1.11, 3.12
cigar lighter ........................................................................\
3.21
clock ........................................................................\
.......... 1.68
closing the doors ................................................... 1.10 → 1.13
control instruments ................................................ 1.50 → 1.65
controls .................................................................. 1.46 → 1.49
coolant ........................................................................\
1.54, 4.7
courtesy light ...................................... 3.15 – 3.16, 5.21 – 5.22
courtesy mirrors ................................................................. 3.16
cruise control ................................................ 1.51, 2.23 → 2.29
cruise control-speed limiter.................................... 2.23 → 2.29
customised vehicle settings ............................................... 1.66
customising the vehicle settings ........................................ 1.66
d
dashboard .............................................................. 1.46 → 1.49
daytime running lights ........................................................ 1.71
deadlocking the doors ......................................................... 1.8
dimensions ................................................................ 6.5 → 6.7
dipstick........................................................................\
......... 4.4
display ................................................................... 1.50 → 1.55
doors .............................................................. 1.10 – 1.11, 1.14
doors/tailgate .......................................... 1.8, 1.10 – 1.11, 1.14
driver’s position ..................................................... 1.46 → 1.53
driving ................................ 2.2 – 2.4, 2.6 → 2.14, 2.16 → 2.35
