ESP RENAULT SCENIC 2010 J95 / 3.G Engine And Pheripherals DCM 1.2 Injection User Guide

13B-85
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$110.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF053
PRESENT
OR
STOREDRAIL PRESSURE REGULATION FUNCTION
1.DEF: at minimum stop
2.DEF: at maximum stop
3.DEF: below minimum threshold
4.DEF: above maximum threshold
5.DEF: high flow current < minimum
6.DEF: high flow current > maximum
7.DEF: low flow current < minimum
8.DEF: low flow current > maximum
NOTESPriorities when dealing with a number of faults:
–DF098 Fuel temperature sensor circuit,
–DF007 Rail pressure sensor circuit.
Special note. If DF053, the engine may stop with the level 2 warning light illuminated
with the message Faulty injection displayed on the instrument panel.
Conditions for applying fault finding procedures to stored faults:
The fault is present with the engine running.
See the Technical Note Wiring Diagrams for the vehicle.
Check the presence and conformity of the fuel, run TEST 13: Diesel fuel conformity check.
Check the connection and condition of the flow actuator connector, component code 1105.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check for + 12 V (after relay) on connection 3FB1 or 3FB2 (for New Twingo) or 3FB3 (for Kangoo 2) of
component 1105.
Check the connection and condition of connector B (brown 48-track) of the injection computer, component
code 120.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3HI and 3FB1 or 3FB2 (for New Twingo) or 3FB3 (for Kangoo 2)
of component 1105.
If the resistance of the flow actuator is not between 4.8 Ω and 5.8 Ω at 20
°C, replace the flow actuator, component
code 1105 (see MR 364 (Mégane II), MR 370 (Scénic II), MR 385 (Modus), MR 392 (Clio III), MR 411
(New Twingo), MR 417 (Kangoo 2), Mechanical, 13B, Diesel injection, Flow actuator: Removal - Refitting).
DCM1.2_V48_DF053/DCM1.2_V4C_DF053/DCM1.2_V50_DF053/DCM1.2_V54_DF053/DCM1.2_V58_DF053/DCM1.2_V5C_DF053

13B-94
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$110.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF089
PRESENT
OR
STOREDINLET MANIFOLD PRESSURE SENSOR CIRCUIT1.DEF: Permanent low level
2.DEF: Permanent high level
3.DEF: Below minimum threshold
4.DEF: Above maximum threshold
5.DEF: Inconsistency
6.DEF: At maximum stop
7.DEF: At minimum stop
NOTESPriority in dealing with a number of faults:
–DF113 Sensor supply voltage.
Special notes:
The level 1 warning light illuminates accompanied by the message Check
injection.
See Technical Note Wiring Diagrams of the vehicle concerned.
1.DEF
2.DEF
3.DEF
4.DEF
NOTESNone.
Check the connection and condition of the inlet pressure sensor connector, component code 1071.
Check the connection and condition of connector B (brown 48-track) of the injection computer, component
code 120.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check for + 5 V on connection 3LQ of component 1071 (or 1474 for the K9K750).
Check for earth on connection 3LN of component 1071 (or 1474 for the K9K750).
Check the insulation, the continuity and the absence of interference resistance on the following connections:
–3LQ between components 120 and 1071 (or 1474 for the K9K750).
–3LP between components 120 and 1071 (or 1474 for the K9K750).
–3LN between components 120 and 1071 (or 1474 for the K9K750).
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
DCM1.2_V48_DF089/DCM1.2_V4C_DF089/DCM1.2_V50_DF089/DCM1.2_V54_DF089/DCM1.2_V58_DF089/DCM1.2_V5C_DF089

13B-102
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$110.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF114
PRESENT
OR
STOREDEGR SOLENOID VALVE CIRCUIT1.DEF: At minimum limit
2.DEF: At maximum limit
3.DEF: Inconsistency
4.DEF: Valve jammed
5.DEF: Valve clogged
NOTESPriority when dealing with a number of faults:
–DF113 Sensor supply voltage.
Special notes:
If fault DF114 is present: unstable engine speed and even stalling. Starting difficult
or even impossible when cold, smoke emissions and loss of performance possible. On
status 4.DEF, the level 1 warning light illuminates with the message Faulty injection
displayed on the instrument panel.
Conditions for applying fault finding procedures to stored faults:
The fault is present with the engine running.
See Technical Note Wiring Diagrams of the vehicle concerned.
K9K 766, 768, 724, 740, 800, 802, and 812 ENGINES (Euro 4):
Check the connection and condition of the EGR valve connector, component code 1460.
Check the connection and condition of connector B (brown 48-track) of the injection computer, component
code120.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation and continuity of the following connections:
–3VP between components 1460 and 120,
–3VQ between components 1460 and 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check for +5 V on connection 3GC of component 1460.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
DCM1.2_V48_DF114/DCM1.2_V4C_DF114/DCM1.2_V50_DF114/DCM1.2_V54_DF114/DCM1.2_V58_DF114/DCM1.2_V5C_DF114

13B-106
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF121
PRESENT OR
STOREDACCELEROMETER CIRCUIT1.DEF: No signal
NOTESPriority when dealing with a number of faults:
If there is a combination of the following faults:
–DF121 Accelerometer sensor circuit,
–DF001 Coolant temperature sensor circuit,
–DF002 Air temperature sensor circuit,
–DF003 Atmospheric pressure sensor circuit,
–DF098 Fuel temperature sensor circuit,
–DF026 Cylinder 1 injector control circuit,
–DF027 Cylinder 2 injector control circuit,
–DF028 Cylinder 3 injector control circuit,
–DF029 Cylinder 4 injector control circuit,
Deal first with faults DF026, DF027, DF028, and DF029 (1.DEF - 2.DEF).
A fault on these sensors could lead to incorrect fault finding on the accelerometer.
Conditions for applying the fault finding procedure to a stored fault:
The fault is present with the engine running.
See Technical Note Wiring Diagrams of the vehicle concerned
Check the conformity of the injectors fitted to the vehicle in relation to the type of vehicle and engine number
(low, high or very high pressure injector).
Check the connection and condition of the accelerometer connector, component code 146.
Check the connection and condition of connector B (brown 48-track) of the injection computer, component
code 120 and the sensor shielding on connection TB1.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation and continuity of the following connections:
–3DQ between components 146 and 120,
–3S between components 146 and 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
DCM1.2_V48_DF121/DCM1.2_V4C_DF121/DCM1.2_V50_DF121/DCM1.2_V54_DF121/DCM1.2_V58_DF121/DCM1.2_V5C_DF121
DIESEL INJECTION
Fault finding – Interpretation of faults

13B-112
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF209
PRESENT OR
STOREDEGR VALVE POSITION SENSOR CIRCUITCO.0: Open circuit or short circuit to earth.
CC.1: Short circuit to +12 V.
NOTESPriority when dealing with a number of faults:
–DF113 Sensor supply voltage.
Special note:
If fault DF209 is present, the message Faulty injection is displayed on the instrument
panel.
See Technical Note Wiring Diagrams of the vehicle concerned
Check the connection and condition of the EGR valve connector, component code 1460.
Check the connection and condition of connector B of the injection computer, component code 120.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation and continuity of the following connections:
–3GC between components 1460 and 120,
–3EL between components 1460 and 120,
–3JM between components 1460 and 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check for +5 V on connection 3GC of component 1460.
Check for earth on connection 3JM of component 1460.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, replace the EGR valve, component code 1460 (see MR 364 (Mégane II), MR 370 (Scénic
II), MR 385 (Modus), MR 392 (Clio III), MR 411 (New Twingo), MR 417 (Kangoo 2), Mechanical, 14A, Emission
control, Exhaust gas recirculation solenoid valve: Removal - Refitting).
After replacing the EGR valve, use command RZ002 EGR adaptives to reinitialise the EGR valve offsets.
If the fault is still present, contact the Techline.
DCM1.2_V48_DF209/DCM1.2_V4C_DF209/DCM1.2_V50_DF209/DCM1.2_V54_DF209/DCM1.2_V58_DF209/DCM1.2_V5C_DF209

13B-119
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF631
CONTINUED
Check the insulation and continuity of the following connections:
–5A between components 160 and 120,
–BPT between components 160 and 645 (for Mégane II, Scénic II, Modus and Clio III),
–AP10 between components 160 and 1016 (for New Twingo),
–BPT2 between components 160 and 645 (for Kangoo 2),
–SP17 between components 160 and 260 (for Kangoo 2),
–65A between components 160 and 645 (vehicle without ESP),
–65G between components 160 and 645 (vehicle with ESP).
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, replace the brake light switch, component code 160 (see MR 364 (Mégane II), MR 370
(Scénic II), MR 385 (Modus), MR 392 (Clio III), MR 411 (New Twingo), MR 417 (Kangoo 2), Mechanical, 37A,
Mechanical component controls, Brake light switch: Removal - Refitting).
If the fault is still present, contact the Techline.

13B-122
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF886
PRESENT OR
STOREDPRESENCE OF WATER IN THE DIESEL FUEL
NOTESPriorities when dealing with a number of faults:
–DF057 Water in diesel fuel detector circuit,
Special notes:
If water is detected downstream of the diesel filter, the high pressure pump and
the injectors may be damaged.
The level 1 warning light is illuminated.
Use bornier Elé. 1681 for all operations on the engine management computer
connector.
See the Technical Note Wiring Diagrams for the vehicle.
If there is water present, bleed the diesel filter.
If there is a great amount of water, run the first part of Test 13: Diesel fuel conformity check (Is the fuel cloudy
or does it separate into 2 parts?)
Check the connections of the water in diesel fuel sensor, component code 414.
Check the connections of the engine management computer grey connector, component code 120.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
With the ignition on, check for +12 V on connections 3FB1 or 3FB2 (for New Twingo) or AP15 (for Kangoo 2) of
component 414.
Check for earth on connections M or 3WU (only for New Twingo) of component 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
DCM1.2_V48_DF886/DCM1.2_V4C_DF886/DCM1.2_V50_DF886/DCM1.2_V54_DF886/DCM1.2_V58_DF886/DCM1.2_V5C_DF886

13B-139
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C

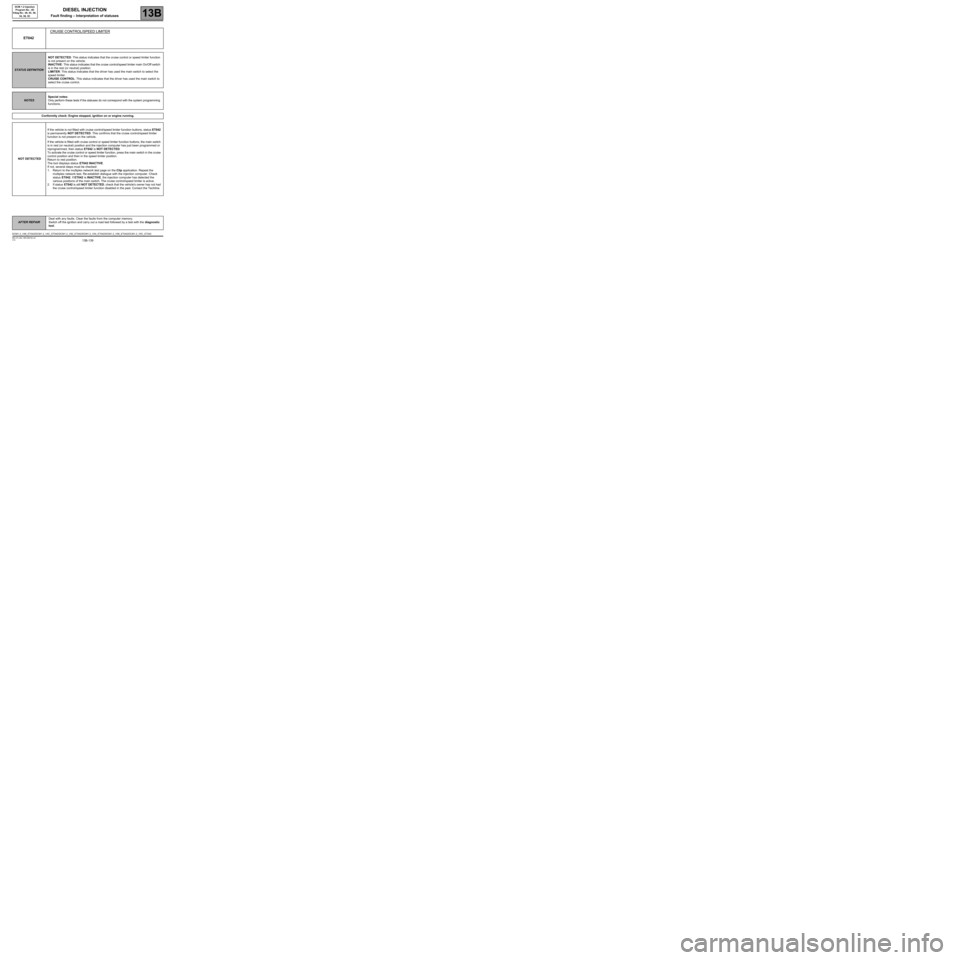

ET042CRUISE CONTROL/SPEED LIMITER
STATUS DEFINITIONNOT DETECTED: This status indicates that the cruise control or speed limiter function
is not present on the vehicle.
INACTIVE: This status indicates that the cruise control/speed limiter main On/Off switch
is in the rest (or neutral) position.
LIMITER: This status indicates that the driver has used the main switch to select the
speed limiter.
CRUISE CONTROL: This status indicates that the driver has used the main switch to
select the cruise control.
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system programming
functions.
Conformity check: Engine stopped, ignition on or engine running.
NOT DETECTED If the vehicle is not fitted with cruise control/speed limiter function buttons, status ET042
is permanently NOT DETECTED. This confirms that the cruise control/speed limiter
function is not present on the vehicle.
If the vehicle is fitted with cruise control or speed limiter function buttons, the main switch
is in rest (or neutral) position and the injection computer has just been programmed or
reprogrammed, then status ET042 is NOT DETECTED.
To activate the cruise control or speed limiter function, press the main switch in the cruise
control position and then in the speed limiter position.
Return to rest position.
The tool displays status ET042 INACTIVE.
If not, several steps must be checked:
1. Return to the multiplex network test page on the Clip application. Repeat the
multiplex network test. Re-establish dialogue with the injection computer. Check
status ET042. If ET042 is INACTIVE, the injection computer has detected the
various positions of the main switch. The cruise control/speed limiter is active.
2. If status ET042 is still NOT DETECTED, check that the vehicle's owner has not had
the cruise control/speed limiter function disabled in the past. Contact the Techline.
DCM1.2_V48_ET042/DCM1.2_V4C_ET042/DCM1.2_V50_ET042/DCM1.2_V54_ET042/DCM1.2_V58_ET042/DCM1.2_V5C_ET042

13B-140
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET042
CONTINUED 1
INACTIVE When the main switch is in rest position (or neutral), status ET042 is INACTIVE.
If CRUISE CONTROL or SPEED LIMITER appears despite the main switch being in the
rest (or neutral) position, carry out the following operations:
For Mégane II and Scénic II:
Check the connections of the cruise control/speed limiter main switch, component code
1081 (Mégane II) or 1546 (Scénic II).
If the connector is faulty and there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, Wiring: Precautions for repair), repair the connector,
otherwise replace the wiring.
Check for + 12 V after ignition on the main switch connector.
●Connection code AP43, component 1081 (Mégane II) or 1546 (Scénic II).
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Disconnect the main switch and with it in the rest position, check the insulation between:
●Connection codes AP43 and 3FX, component 1081 (Mégane II) or 1546
(Scénic II).
●Connection codes AP43 and 3PD, component 1081 (Mégane II) or 1546
(Scénic II).
Check the continuity between connections AP43 and 3PD of component 1081
(Mégane II) or 1546 (Scénic II) at speed limiter position.
Check the continuity between connections AP43 and 3FX of component 1081
(Mégane II) or 1546 (Scénic II) at cruise control position.
If the checks are incorrect, replace the switch, component code 1081 (Mégane II) or
1546 (Scénic II).
Check the insulation, continuity and the absence of interference resistance on the
following connections:
●3FX between components 120 and 1081 (Mégane II) or 1546 (Scénic II),
●3PD between components 120 and 1081 (Mégane II) or 1546 (Scénic II),
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
Check the connections of the engine management computer, component code 120.
If the connector is faulty and there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, Wiring: Precautions for repair), repair the connector,
otherwise replace the wiring.

13B-150
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
*RCH = Passenger Compartment Heating Resistors
ET111SET NUMBER OF PASSENGER COMPARTMENT HEATING RESISTORS
STATUS DEFINITIONThis status indicates that the injection computer is blocking any change to the number
of passenger compartment air heating resistors active (active ones are not cut off, but
no more can be added). This freeze in the number of heating resistors is in response to
vehicle needs (availability of power, need for torque etc.).
Conformity check: Engine stopped and ignition on, or engine running and engine coolant
temperature > 80
°C
YESDepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer sets the number of activated passenger
compartment heating resistors (no more or no fewer than required).
Status ET111 becomes YES when the number of activated passenger compartment
heating resistors is set by the injection computer.
NODepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer sets the number of activated passenger
compartment heating resistors (no more or no fewer than required). Status ET111
becomes NO if the number of passenger compartment heating resistors engaged can
be freely controlled by the UCH.
DCM1.2_V48_ET111/DCM1.2_V4C_ET111/DCM1.2_V50_ET111/DCM1.2_V54_ET111/DCM1.2_V58_ET111/DCM1.2_V5C_ET111
