warning RENAULT SCENIC 2012 J95 / 3.G Engine And Peripherals EDC16CP33 Owner's Manual

13B-109
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF052
PRESENT
OR
STOREDINJECTORS CONTROL CIRCUIT
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 volts
CC: Short circuit
NOTESConditions for applying the fault finding procedure to a stored fault:
the fault becomes present after:
– the ignition is switched on.
– the engine is started.
Special notes:
If the fault is present:
– the level 2 warning light is lit,
– the engine stops.
Use bornier Elé. 1681 for all operations on the engine management computer
connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
IMPORTANT:
– cylinder no.1 is located at the timing end.
– do not disconnect the injectors when the engine is running.
– please observe the cleanliness guidelines and safety advice.
Check the condition and connection of the injector connectors (see Wiring Diagram Technical Note, Laguna II
ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component codes 193, 194, 195, 196).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Séenic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33_V18_DF052 / EDC16CP33_V1C_DF052 / EDC16CP33_V54_DF052 / EDC16CP33_V20_DF052 / EDC16CP33_V58_DF052 /
EDC16CP33_V5C_DF052 / EDC16CP33_V24_DF052 / EDC16CP33_V04_DF052 / EDC16CP33_V08_DF052 / EDC16CP33_V44_DF052 /
EDC16CP33_V4C_DF052 / EDC16CP33_V34_DF052 / EDC16CP33_V38_DF052 / EDC16CP33_V74_DF052 / EDC16CP33_V28_DF052 /
EDC16CP33_V62_DF052 / EDC16CP33_V26_DF052 / EDC16CP33_V60_DF052

13B-111
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF054
PRESENT
OR
STOREDTURBOCHARGING SOLENOID VALVE CONTROL CIRCUITCO: open circuit
CC.1: short-circuit to + 12 V
CC.0: Short circuit to earth
1.DEF: Internal electronic fault
NOTESPriorities when dealing with a number of faults:
– DF046 Battery voltage.
Conditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– the ignition is switched on.
– starting the engine,
– a road test,
– actuator command AC004 Turbocharging solenoid valve.
Special notes:
If the fault is present:
– turbocharging is no longer authorised,
– the EGR function is inhibited,
–the level 1 and EOBD (European On Board Diagnostic) warning lights are lit.
Use bornier Elé.1681 for any work on the injection computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
CO
NOTESNone.
Check the condition of the turbocharging solenoid valve connector (see Wiring Diagram Technical Note, Laguna
II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1475).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33_V18_DF054 / EDC16CP33_V1C_DF054 / EDC16CP33_V54_DF054 / EDC16CP33_V20_DF054 / EDC16CP33_V58_DF054 /
EDC16CP33_V5C_DF054 / EDC16CP33_V24_DF054 / EDC16CP33_V04_DF054 / EDC16CP33_V08_DF054 / EDC16CP33_V44_DF054 /
EDC16CP33_V4C_DF054 / EDC16CP33_V34_DF054 / EDC16CP33_V38_DF054 / EDC16CP33_V74_DF054 / EDC16CP33_V28_DF054 /
EDC16CP33_V62_DF054 / EDC16CP33_V26_DF054 / EDC16CP33_V60_DF054

13B-115
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF056
PRESENT
OR
STOREDAIR FLOW SENSOR CIRCUIT
CO.0: Open circuit or short circuit to earth
CC.1: Short circuit + 12 volts
1.DEF: Consistent after switching off the ignition
NOTESConditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– the ignition is switched on.
– starting the engine,
– a road test,
– the ignition is switched off: 1.DEF.
Priorities when dealing with a number of faults:
– DF013 Sensor supply voltage no. 3, 1.DEF
Special notes:
If the fault is present:
–the EOBD (European On Board Diagnostic) warning light is lit,
–the level 1 warning light is lit and turbocharging is no longer authorised for CO.0 and
CC.1,
–the level 1 warning light is lit for 1.DEF (for Vdiag 20, 24, 58 and 5C),
– the EGR function is inhibited by the engine management computer,
– engine torque limited,
– safe value PR132 Air flow = 90 kg/h at idle speed,
– particle filter regeneration is inhibited.
Use bornier Elé. 1681 for all operations on the engine management computer
connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
EDC16CP33_V18_DF056 / EDC16CP33_V1C_DF056 / EDC16CP33_V54_DF056 / EDC16CP33_V20_DF056 / EDC16CP33_V58_DF056 /
EDC16CP33_V5C_DF056 / EDC16CP33_V24_DF056 / EDC16CP33_V04_DF056 / EDC16CP33_V08_DF056 / EDC16CP33_V44_DF056 /
EDC16CP33_V4C_DF056 / EDC16CP33_V34_DF056 / EDC16CP33_V38_DF056 / EDC16CP33_V74_DF056 / EDC16CP33_V28_DF056 /
EDC16CP33_V62_DF056 / EDC16CP33_V26_DF056 / EDC16CP33_V60_DF056

13B-128
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF066
PRESENT
OR
STOREDINJECTOR(S) CODE(S)
1.DEF: No code stored
2.DEF: Configuration/Initialisation
NOTESSpecial notes:
If the fault is present:
– the injection flow will be limited,
– engine torque limited, resulting in a maximum engine speed of 1500 rpm,
–the level 1 warning light is illuminated.
1.DEF
NOTESSpecial notes:
This fault appears when an incorrect injector code is entered
from command SC002 Enter injector codes. The IMA*
codes must be read from left to right.
Check the injector codes and reprogram the correct codes using command SC002 Enter injector codes, see
Interpretation of commands.
(Consult the procedures defined in the Interpretation of commands section).
– After the codes have been written:
– Switch off the ignition.
– Wait for the diagnostic tool message (maximum wait 8 minutes): Loss of dialogue with the computer:
EDC16 CP33, check the tool connection and the computer supply before switching the ignition back on.
– Establish dialogue and clear the fault memory.
– End of the procedure.
EDC16CP33_V18_DF066 / EDC16CP33_V1C_DF066 / EDC16CP33_V54_DF066 / EDC16CP33_V20_DF066 / EDC16CP33_V58_DF066 /
EDC16CP33_V5C_DF066 / EDC16CP33_V24_DF066 / EDC16CP33_V04_DF066 / EDC16CP33_V08_DF066 / EDC16CP33_V44_DF066 /
EDC16CP33_V4C_DF066 / EDC16CP33_V34_DF066 / EDC16CP33_V38_DF066 / EDC16CP33_V74_DF066 / EDC16CP33_V28_DF066 /
EDC16CP33_V62_DF066 / EDC16CP33_V26_DF066 / EDC16CP33_V60_DF066

13B-129
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
IMA*: Individual injector correction
IMA*: Individual injector correction
DF066
CONTINUED 1
WARNING:
If fault DF066 is still present after the injector codes have been entered, check that power latch occurs each time
the ignition is switched off:
– Switch off the ignition.
– Wait for the diagnostic tool message (maximum wait 8 min): Loss of dialogue with the computer: EDC16
CP33, check the tool connection and the computer supply voltage and switch on the ignition again.
– Establish dialogue.
If the fault has become stored, clear the fault memory and end the operation.
If the fault is still present, contact the Techline.
2.DEF
NOTESConditions for applying the fault finding procedure to a
stored fault:
The fault is declared present after:
– the injection computer has been replaced,
– reprogramming.
This fault is present on all blank computers (new or after reprogramming).
– Program the injector codes using:
– either command SC001 Write saved data,
– or command SC002 Enter injector codes or Interpretation of commands.
The IMA* codes must be read from left to right.
(Consult the procedures defined in the Interpretation of commands section).

13B-130
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
IMA*: Individual injector correction

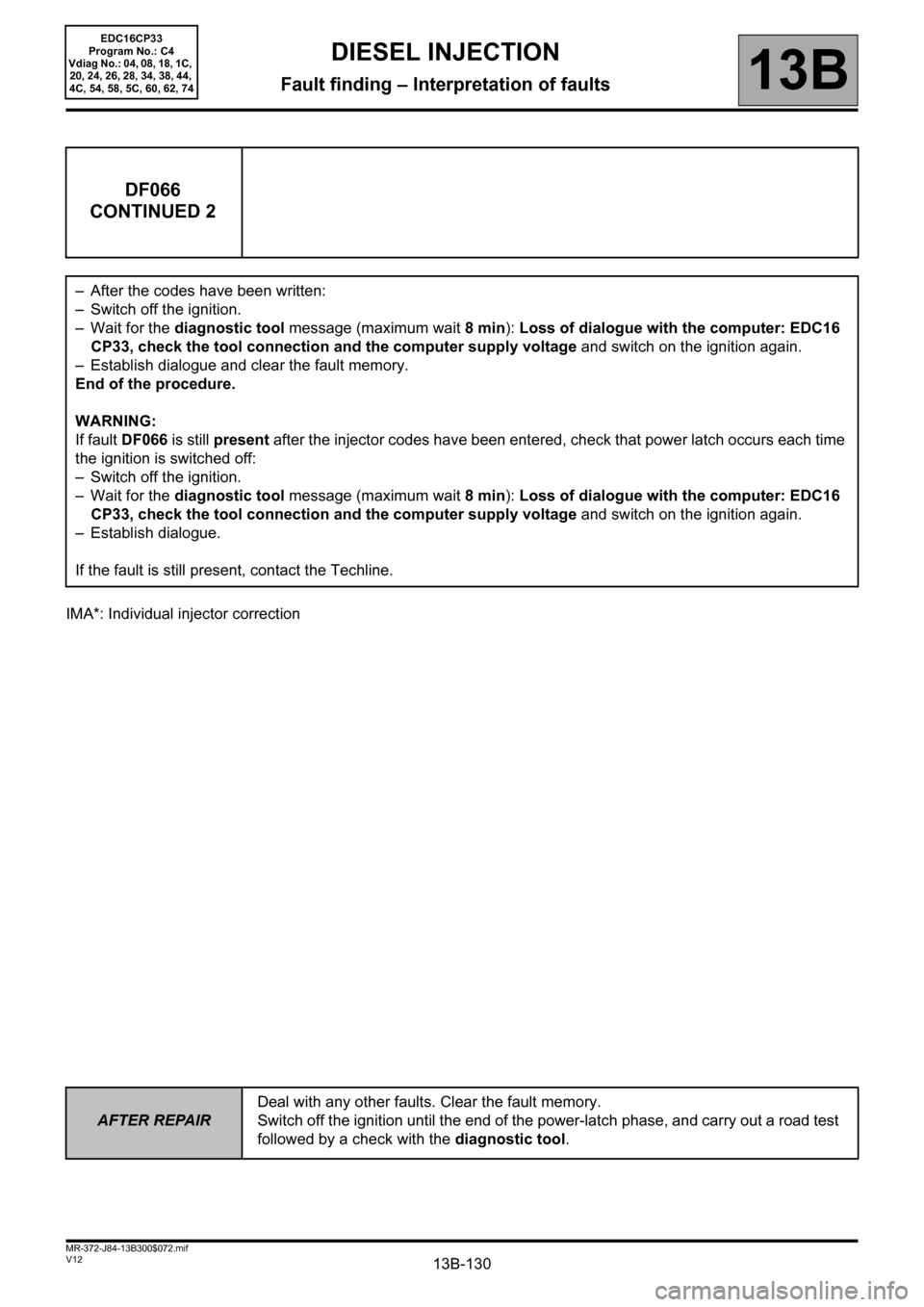

DF066
CONTINUED 2
– After the codes have been written:
– Switch off the ignition.
– Wait for the diagnostic tool message (maximum wait 8 min): Loss of dialogue with the computer: EDC16
CP33, check the tool connection and the computer supply voltage and switch on the ignition again.
– Establish dialogue and clear the fault memory.
End of the procedure.
WARNING:
If fault DF066 is still present after the injector codes have been entered, check that power latch occurs each time
the ignition is switched off:
– Switch off the ignition.
– Wait for the diagnostic tool message (maximum wait 8 min): Loss of dialogue with the computer: EDC16
CP33, check the tool connection and the computer supply voltage and switch on the ignition again.
– Establish dialogue.
If the fault is still present, contact the Techline.

13B-131
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF069
PRESENT
OR
STOREDIMPACT DETECTED SIGNAL
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present under + after ignition feed.
Special notes:
As soon as the injection computer receives this signal:
– engine operation is prohibited,
the level 2 warning light is lit.
The fault appears when the injection computer receives a frontal impact signal from the Airbag computer via the
multiplex network.
Do not deal with this fault.
If the vehicle has been involved in an accident:
Carry out any necessary repairs,
– clear the fault,
– switch off the ignition,
–wait for 1 minute,
– switch on the ignition.
If the fault does not reappear, end of fault finding procedure.
If the fault recurs, run fault finding on the AIRBAG computer.
If the vehicle has not been involved in an accident:
Run fault finding on the AIRBAG computer (see 88C, Airbag and pretensioner).
EDC16CP33_V18_DF069 / EDC16CP33_V1C_DF069 / EDC16CP33_V54_DF069 / EDC16CP33_V20_DF069 / EDC16CP33_V58_DF069 /
EDC16CP33_V5C_DF069 / EDC16CP33_V24_DF069 / EDC16CP33_V04_DF069 / EDC16CP33_V08_DF069 / EDC16CP33_V44_DF069 /
EDC16CP33_V4C_DF069 / EDC16CP33_V34_DF069 / EDC16CP33_V38_DF069 / EDC16CP33_V74_DF069 / EDC16CP33_V28_DF069 /
EDC16CP33_V62_DF069 / EDC16CP33_V26_DF069 / EDC16CP33_V60_DF069

13B-139
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF107
PRESENT
OR
STOREDCOMPUTER MEMORY
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– a road test followed by a power latch phase.
Special notes:
The level 1 and EOBD (European On Board Diagnostic) warning lights are lit.
If the fault is stored, clear the fault from the computer memory.
In the main screen of the CLIP diagnostic tool, note the injector codes.
Clear the computer memory using command RZ034 Computer memory.
Switch off the ignition, wait for the diagnostic tool message (maximum wait 8 min): Loss of dialogue with the
computer: EDC16 CP33, check the tool connection and the computer supply voltage then switch on the
ignition again.
Switch on the ignition and re-establish dialogue.
If the fault is still present, contact the Techline.
If the fault is no longer present, carry out the programming (see Programming).
Switch off the ignition, wait for the diagnostic tool message (maximum wait 8 min): Loss of dialogue with the
computer: EDC16 CP33, check the tool connection and the computer supply voltage then switch on the
ignition again.
For vehicles equipped with a particle filter:
– Check the exhaust pipe for leaks or blockage. Repair if necessary.
– Carry out a particle filter regeneration using command SC017 Particle filter regeneration (see Interpretation
of commands) and perform an oil change if the vehicle is not new.
EDC16CP33_V18_DF107 / EDC16CP33_V1C_DF107 / EDC16CP33_V54_DF107 / EDC16CP33_V20_DF107 / EDC16CP33_V58_DF107 /
EDC16CP33_V5C_DF107 / EDC16CP33_V24_DF107 / EDC16CP33_V04_DF107 / EDC16CP33_V08_DF107 / EDC16CP33_V44_DF107 /
EDC16CP33_V4C_DF107 / EDC16CP33_V34_DF107 / EDC16CP33_V38_DF107 / EDC16CP33_V74_DF107 / EDC16CP33_V28_DF107 /
EDC16CP33_V62_DF107 / EDC16CP33_V26_DF107 / EDC16CP33_V60_DF107

13B-140
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF119
PRESENT
OR
STOREDCAMSHAFT SENSOR SIGNAL
1.DEF: No camshaft signal or timing fault (tension or setting)
2.DEF: Supply fault, signal interference, camshaft sensor internal fault
NOTESConditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– starting the engine,
– a road test.
Special notes:
–the level 1 warning light is lit.
Use bornier Elé.1681 for any operations on the injection computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
1.DEF
NOTESNone.
Check the condition of the camshaft sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 746).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
If the fault is stored:
Visually check the condition of the surrounding area.
If, on detection of the fault, the engine speed is considerably lower than the idling speed (less than 150 rpm) and
no customer complaint is declared (warning light indicated by the customer does not come on and vehicle can be
started), the fault was detected because the engine had stalled.
Clear the fault and carry out a road test.
EDC16CP33_V18_DF119 / EDC16CP33_V1C_DF119 / EDC16CP33_V54_DF119 / EDC16CP33_V20_DF119 / EDC16CP33_V58_DF119 /
EDC16CP33_V5C_DF119 / EDC16CP33_V24_DF119 / EDC16CP33_V04_DF119 / EDC16CP33_V08_DF119 / EDC16CP33_V44_DF119 /
EDC16CP33_V4C_DF119 / EDC16CP33_V34_DF119 / EDC16CP33_V38_DF119 / EDC16CP33_V74_DF119 / EDC16CP33_V28_DF119 /
EDC16CP33_V62_DF119 / EDC16CP33_V26_DF119 / EDC16CP33_V60_DF119

13B-143
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
13B
DF120
PRESENT
OR
STOREDENGINE SPEED SENSOR SIGNAL
1.DEF: Engine speed signal interference, broken tooth on flywheel or engine speed
sensor internal fault
2.DEF: No engine speed signal, or interference affecting engine speed signal
NOTESConditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– starting the engine,
– a road test,
– attempting to start the engine.
Special notes:
The engine speed sensor is consistent with the camshaft sensor.
If the fault is present:
– particle filter regeneration is inhibited,
–the level 2 warning light is lit.
Use bornier Elé.1681 for any operations on the injection computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Check the condition of the engine speed sensor connector (see Wiring Diagram Technical Note, Laguna II ph2,
Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 149).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check that the sensor is securely attached.
Measure the resistance between connections 3BG and 3BL of component 149.
If the winding resistance is not between 600Ω and 1000Ω, replace the engine speed sensor.
EDC16CP33_V18_DF120 / EDC16CP33_V1C_DF120 / EDC16CP33_V54_DF120 / EDC16CP33_V20_DF120 / EDC16CP33_V58_DF120 /
EDC16CP33_V5C_DF120 / EDC16CP33_V24_DF120 / EDC16CP33_V04_DF120 / EDC16CP33_V08_DF120 / EDC16CP33_V44_DF120 /
EDC16CP33_V4C_DF120 / EDC16CP33_V34_DF120 / EDC16CP33_V38_DF120 / EDC16CP33_V74_DF120 / EDC16CP33_V28_DF120 /
EDC16CP33_V62_DF120/ EDC16CP33_V26_DF120 / EDC16CP33_V60_DF120
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
