RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual
Manufacturer: RENAULT, Model Year: 2013, Model line: SCENIC, Model: RENAULT SCENIC 2013 J95 / 3.GPages: 115, PDF Size: 0.64 MB
Page 101 of 115
37B-101
MR-372-J84-37B000$792.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of commands
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B

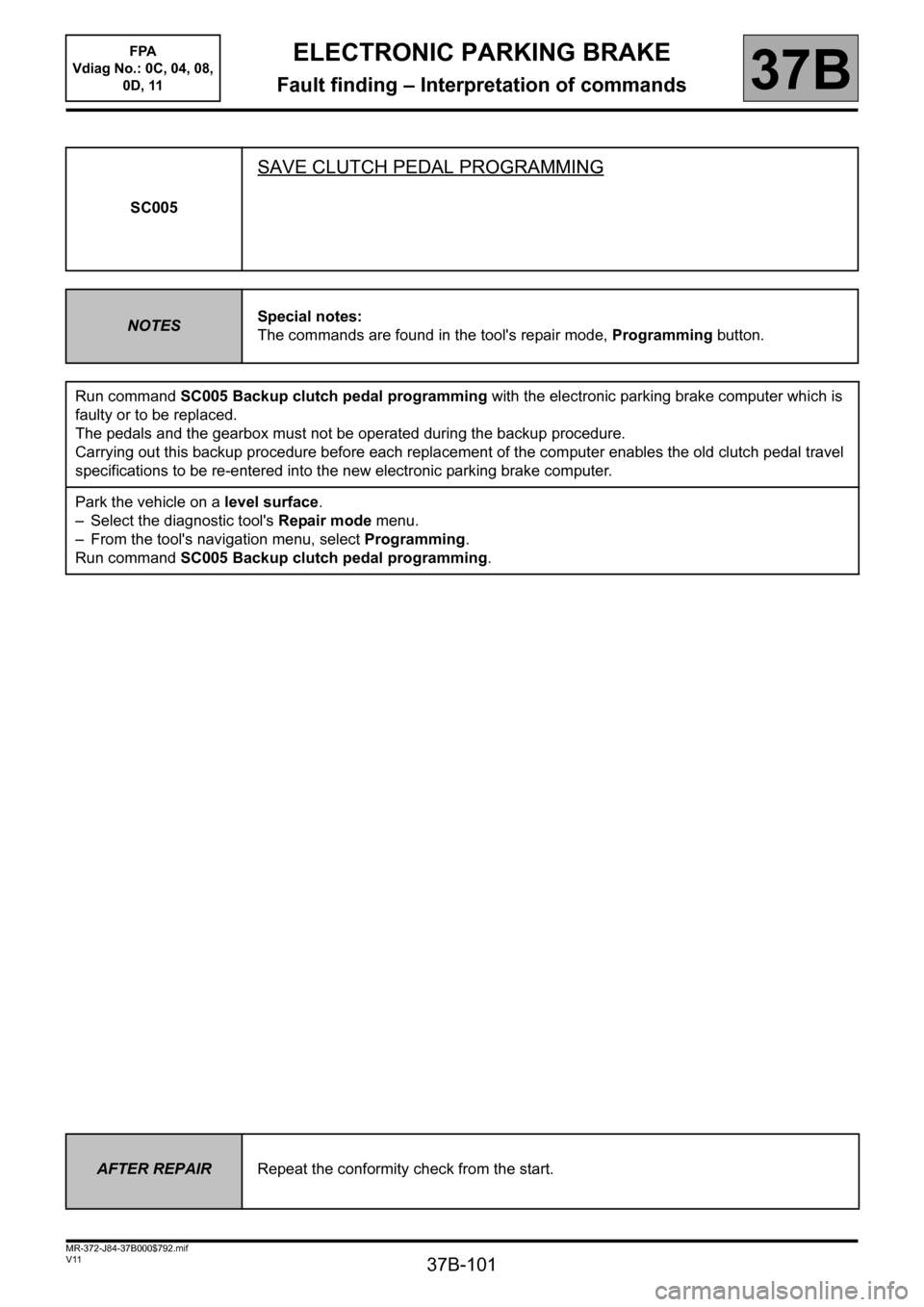

SC005
SAVE CLUTCH PEDAL PROGRAMMING
NOTESSpecial notes:
The commands are found in the tool's repair mode, Programming button.
Run command SC005 Backup clutch pedal programming with the electronic parking brake computer which is
faulty or to be replaced.
The pedals and the gearbox must not be operated during the backup procedure.
Carrying out this backup procedure before each replacement of the computer enables the old clutch pedal travel
specifications to be re-entered into the new electronic parking brake computer.
Park the vehicle on a level surface.
– Select the diagnostic tool's Repair mode menu.
– From the tool's navigation menu, select Programming.
Run command SC005 Backup clutch pedal programming.
AFTER REPAIRRepeat the conformity check from the start.

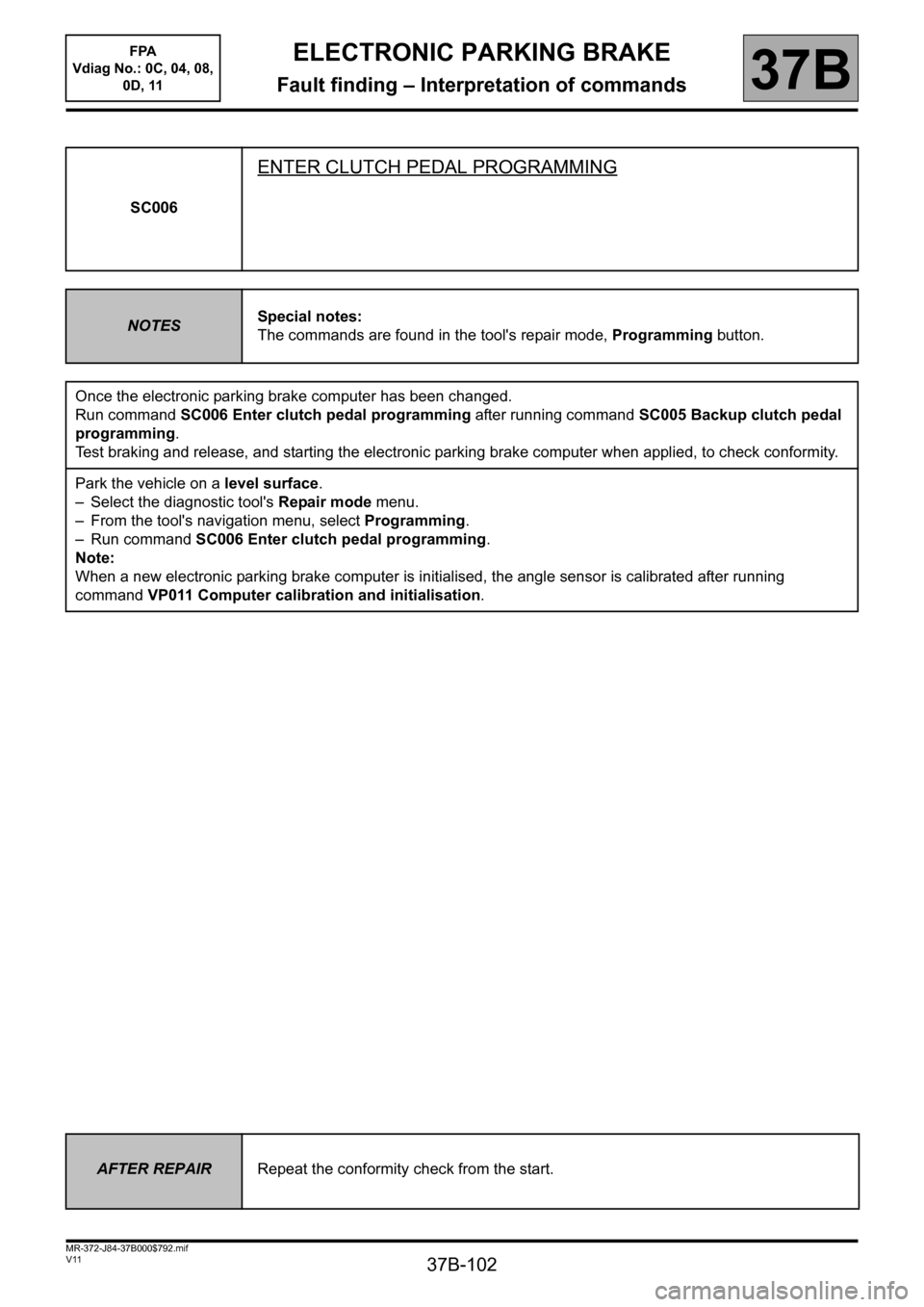

Page 102 of 115
37B-102
MR-372-J84-37B000$792.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of commands
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
SC006
ENTER CLUTCH PEDAL PROGRAMMING
NOTESSpecial notes:
The commands are found in the tool's repair mode, Programming button.
Once the electronic parking brake computer has been changed.
Run command SC006 Enter clutch pedal programming after running command SC005 Backup clutch pedal
programming.
Test braking and release, and starting the electronic parking brake computer when applied, to check conformity.
Park the vehicle on a level surface.
– Select the diagnostic tool's Repair mode menu.
– From the tool's navigation menu, select Programming.
– Run command SC006 Enter clutch pedal programming.
Note:
When a new electronic parking brake computer is initialised, the angle sensor is calibrated after running
command VP011 Computer calibration and initialisation.
AFTER REPAIRRepeat the conformity check from the start.

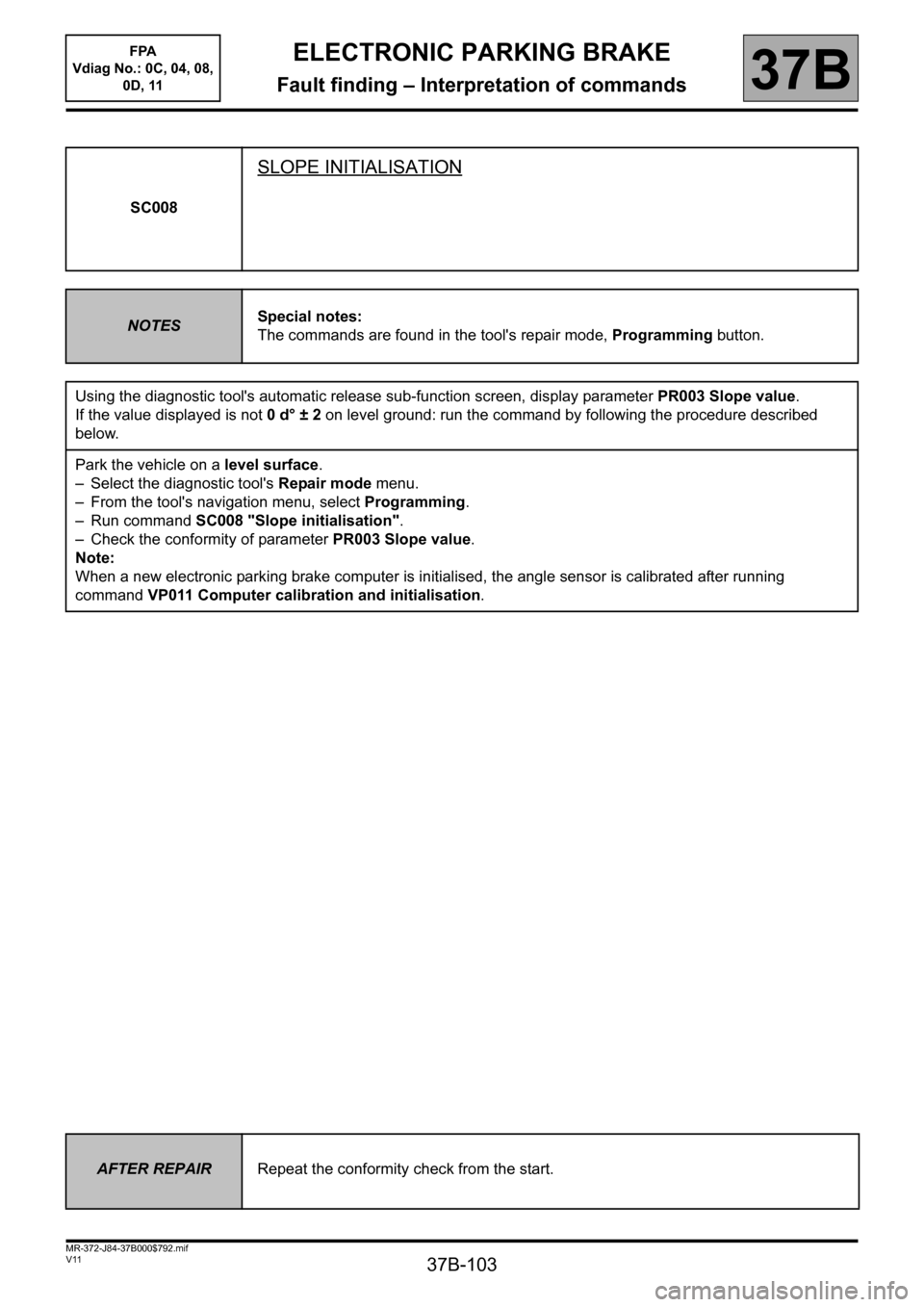

Page 103 of 115
37B-103
MR-372-J84-37B000$792.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of commands
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
SC008
SLOPE INITIALISATION
NOTESSpecial notes:
The commands are found in the tool's repair mode, Programming button.
Using the diagnostic tool's automatic release sub-function screen, display parameter PR003 Slope value.
If the value displayed is not 0d° ± 2 on level ground: run the command by following the procedure described
below.
Park the vehicle on a level surface.
– Select the diagnostic tool's Repair mode menu.
– From the tool's navigation menu, select Programming.
– Run command SC008 "Slope initialisation".
– Check the conformity of parameter PR003 Slope value.
Note:
When a new electronic parking brake computer is initialised, the angle sensor is calibrated after running
command VP011 Computer calibration and initialisation.
AFTER REPAIRRepeat the conformity check from the start.

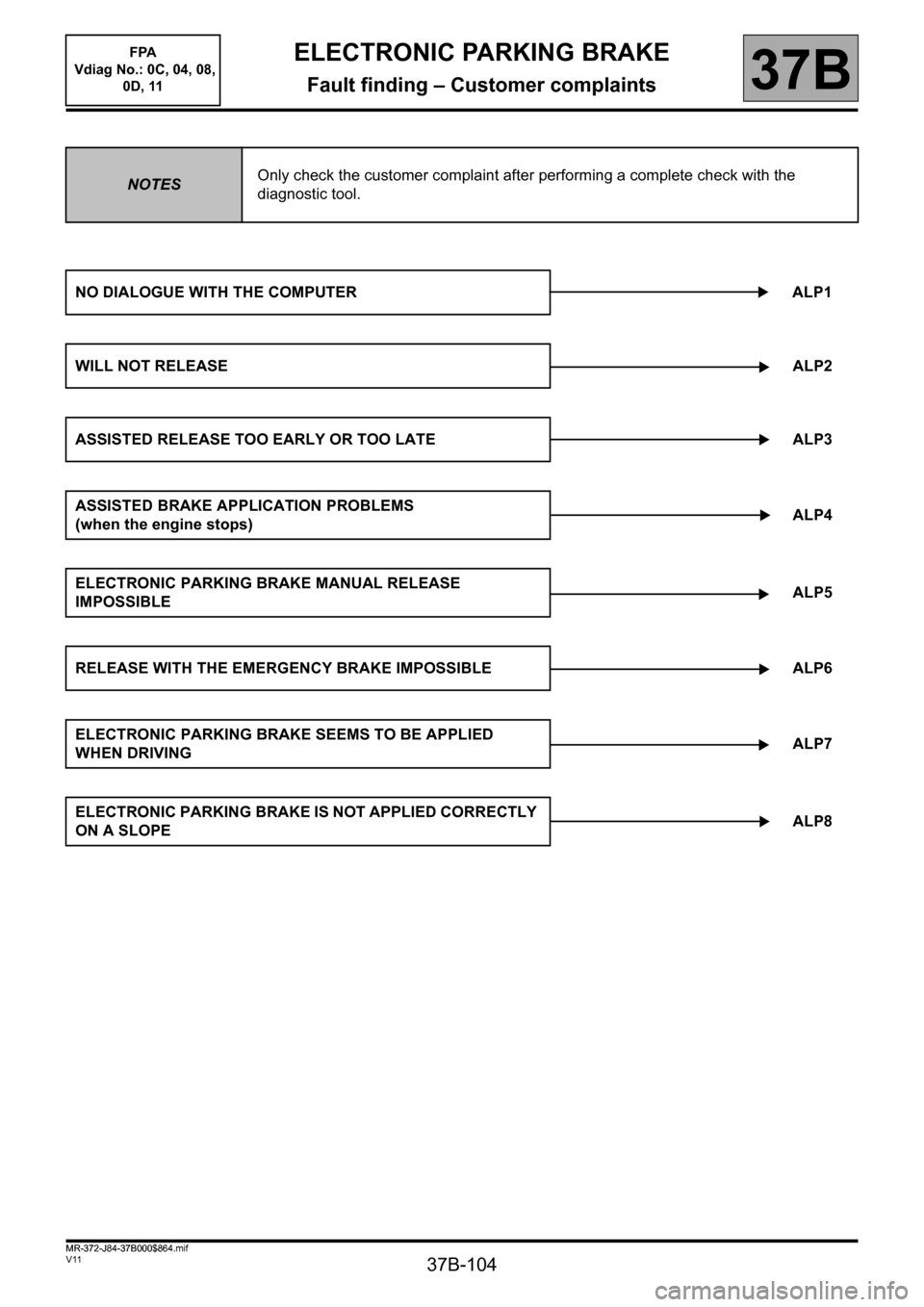

Page 104 of 115
37B-104
MR-372-J84-37B000$864.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Customer complaints
NOTESOnly check the customer complaint after performing a complete check with the
diagnostic tool.
NO DIALOGUE WITH THE COMPUTER ALP1
WILL NOT RELEASEALP2
ASSISTED RELEASE TOO EARLY OR TOO LATE ALP3
ASSISTED BRAKE APPLICATION PROBLEMS
(when the engine stops)ALP4
ELECTRONIC PARKING BRAKE MANUAL RELEASE
IMPOSSIBLE ALP5
RELEASE WITH THE EMERGENCY BRAKE IMPOSSIBLE ALP6
ELECTRONIC PARKING BRAKE SEEMS TO BE APPLIED
WHEN DRIVINGALP7
ELECTRONIC PARKING BRAKE IS NOT APPLIED CORRECTLY
ON A SLOPEALP8
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$864.mif

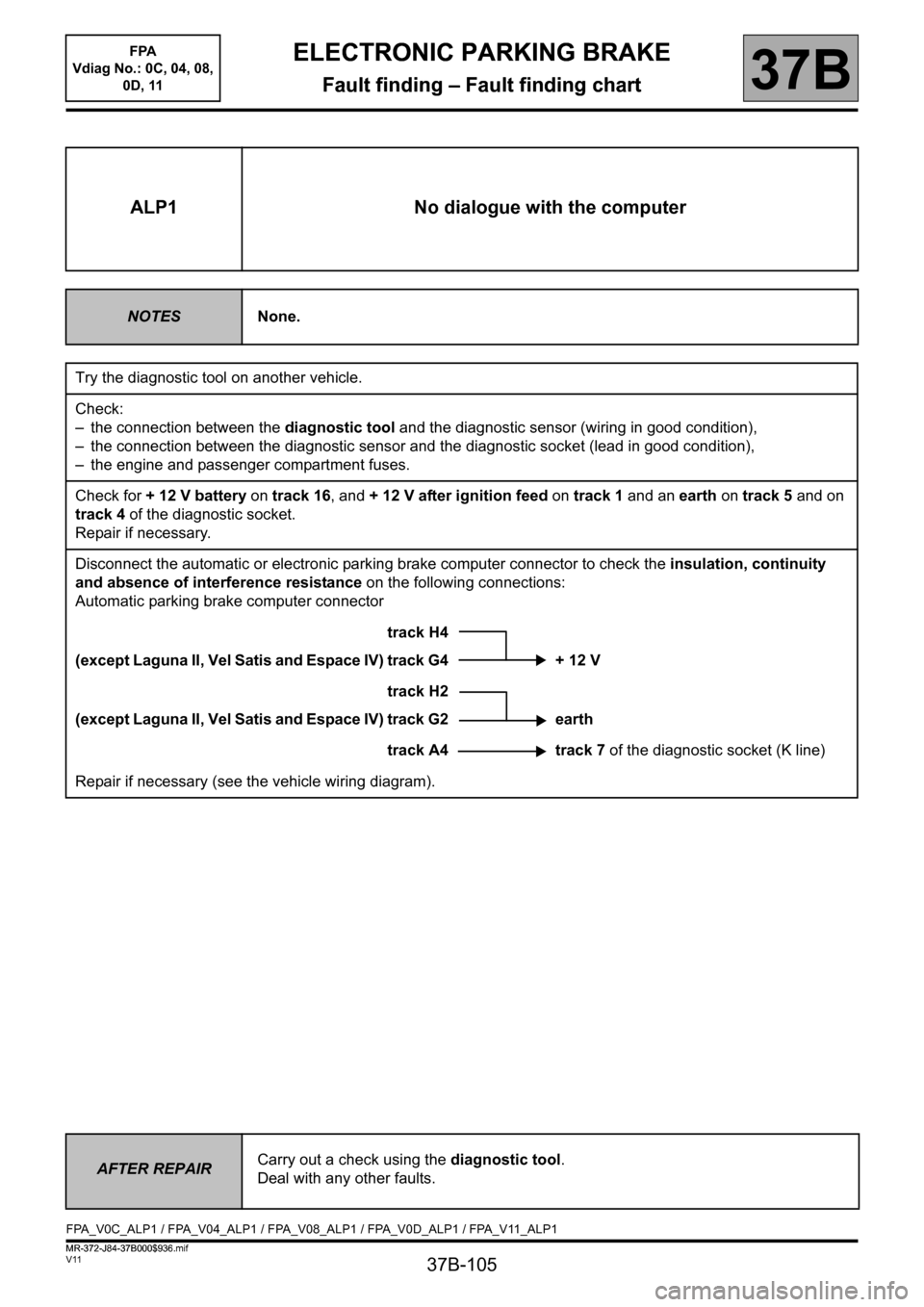

Page 105 of 115
37B-105
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP1 No dialogue with the computer
NOTESNone.
Try the diagnostic tool on another vehicle.
Check:
– the connection between the diagnostic tool and the diagnostic sensor (wiring in good condition),
– the connection between the diagnostic sensor and the diagnostic socket (lead in good condition),
– the engine and passenger compartment fuses.
Check for + 12 V battery on track 16, and + 12 V after ignition feed on track 1 and an earth on track 5 and on
track 4 of the diagnostic socket.
Repair if necessary.
Disconnect the automatic or electronic parking brake computer connector to check the insulation, continuity
and absence of interference resistance on the following connections:
Automatic parking brake computer connector
track H4
(except Laguna II, Vel Satis and Espace IV) track G4 + 12 V
track H2
(except Laguna II, Vel Satis and Espace IV) track G2 earth
track A4 track 7 of the diagnostic socket (K line)
Repair if necessary (see the vehicle wiring diagram).
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
FPA_V0C_ALP1 / FPA_V04_ALP1 / FPA_V08_ALP1 / FPA_V0D_ALP1 / FPA_V11_ALP1
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
MR-372-J84-37B000$936.mif

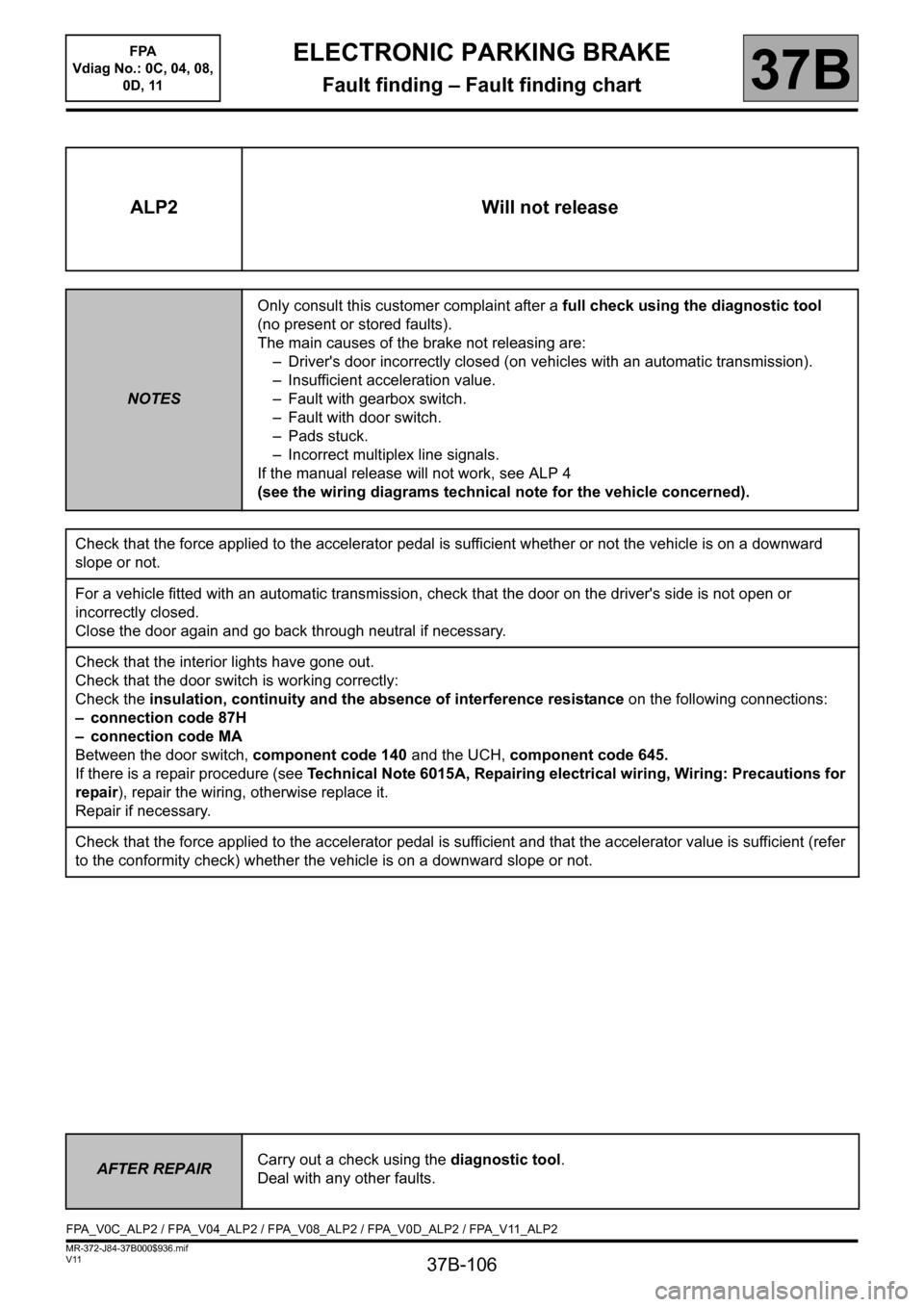

Page 106 of 115
37B-106
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP2 Will not release
NOTESOnly consult this customer complaint after a full check using the diagnostic tool
(no present or stored faults).
The main causes of the brake not releasing are:
– Driver's door incorrectly closed (on vehicles with an automatic transmission).
– Insufficient acceleration value.
– Fault with gearbox switch.
– Fault with door switch.
– Pads stuck.
– Incorrect multiplex line signals.
If the manual release will not work, see ALP 4
(see the wiring diagrams technical note for the vehicle concerned).
Check that the force applied to the accelerator pedal is sufficient whether or not the vehicle is on a downward
slope or not.
For a vehicle fitted with an automatic transmission, check that the door on the driver's side is not open or
incorrectly closed.
Close the door again and go back through neutral if necessary.
Check that the interior lights have gone out.
Check that the door switch is working correctly:
Check the insulation, continuity and the absence of interference resistance on the following connections:
– connection code 87H
– connection code MA
Between the door switch, component code 140 and the UCH, component code 645.
If there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
Repair if necessary.
Check that the force applied to the accelerator pedal is sufficient and that the accelerator value is sufficient (refer
to the conformity check) whether the vehicle is on a downward slope or not.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
FPA_V0C_ALP2 / FPA_V04_ALP2 / FPA_V08_ALP2 / FPA_V0D_ALP2 / FPA_V11_ALP2

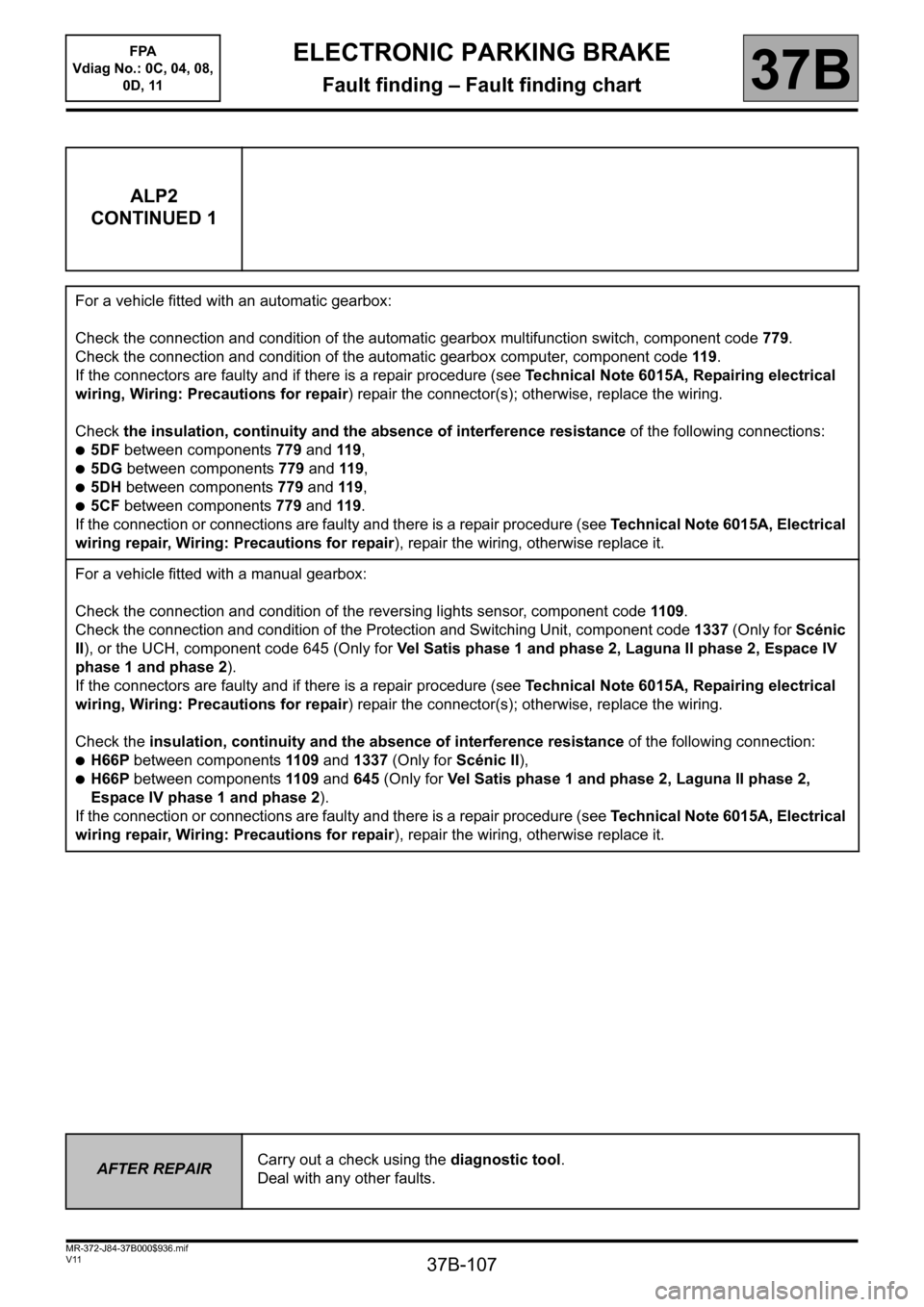

Page 107 of 115
37B-107
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP2
CONTINUED 1
For a vehicle fitted with an automatic gearbox:
Check the connection and condition of the automatic gearbox multifunction switch, component code 779.
Check the connection and condition of the automatic gearbox computer, component code 119.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair) repair the connector(s); otherwise, replace the wiring.
Check the insulation, continuity and the absence of interference resistance of the following connections:
●5DF between components 779 and 119,
●5DG between components 779 and 119,
●5DH between components 779 and 119,
●5CF between components 779 and 119.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
For a vehicle fitted with a manual gearbox:
Check the connection and condition of the reversing lights sensor, component code 1109.
Check the connection and condition of the Protection and Switching Unit, component code 1337 (Only for Scénic
II), or the UCH, component code 645 (Only for Vel Satis phase 1 and phase 2, Laguna II phase 2, Espace IV
phase 1 and phase 2).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair) repair the connector(s); otherwise, replace the wiring.
Check the insulation, continuity and the absence of interference resistance of the following connection:
●H66P between components 1109 and 1337 (Only for Scénic II),
●H66P between components 1109 and 645 (Only for Vel Satis phase 1 and phase 2, Laguna II phase 2,
Espace IV phase 1 and phase 2).
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.

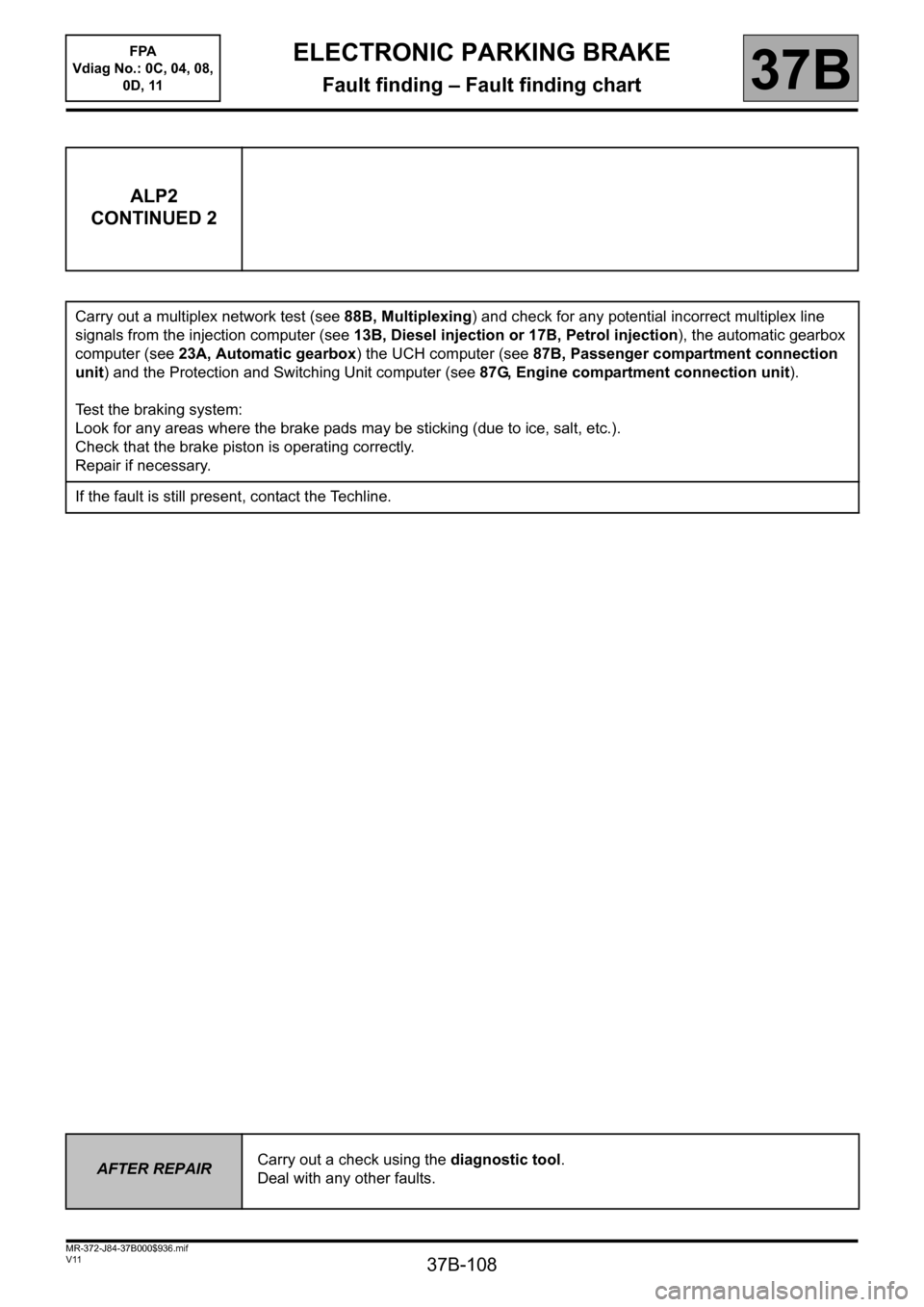

Page 108 of 115
37B-108
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP2
CONTINUED 2
Carry out a multiplex network test (see 88B, Multiplexing) and check for any potential incorrect multiplex line
signals from the injection computer (see 13B, Diesel injection or 17B, Petrol injection), the automatic gearbox
computer (see 23A, Automatic gearbox) the UCH computer (see 87B, Passenger compartment connection
unit) and the Protection and Switching Unit computer (see 87G, Engine compartment connection unit).
Test the braking system:
Look for any areas where the brake pads may be sticking (due to ice, salt, etc.).
Check that the brake piston is operating correctly.
Repair if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
Page 109 of 115
37B-109
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B

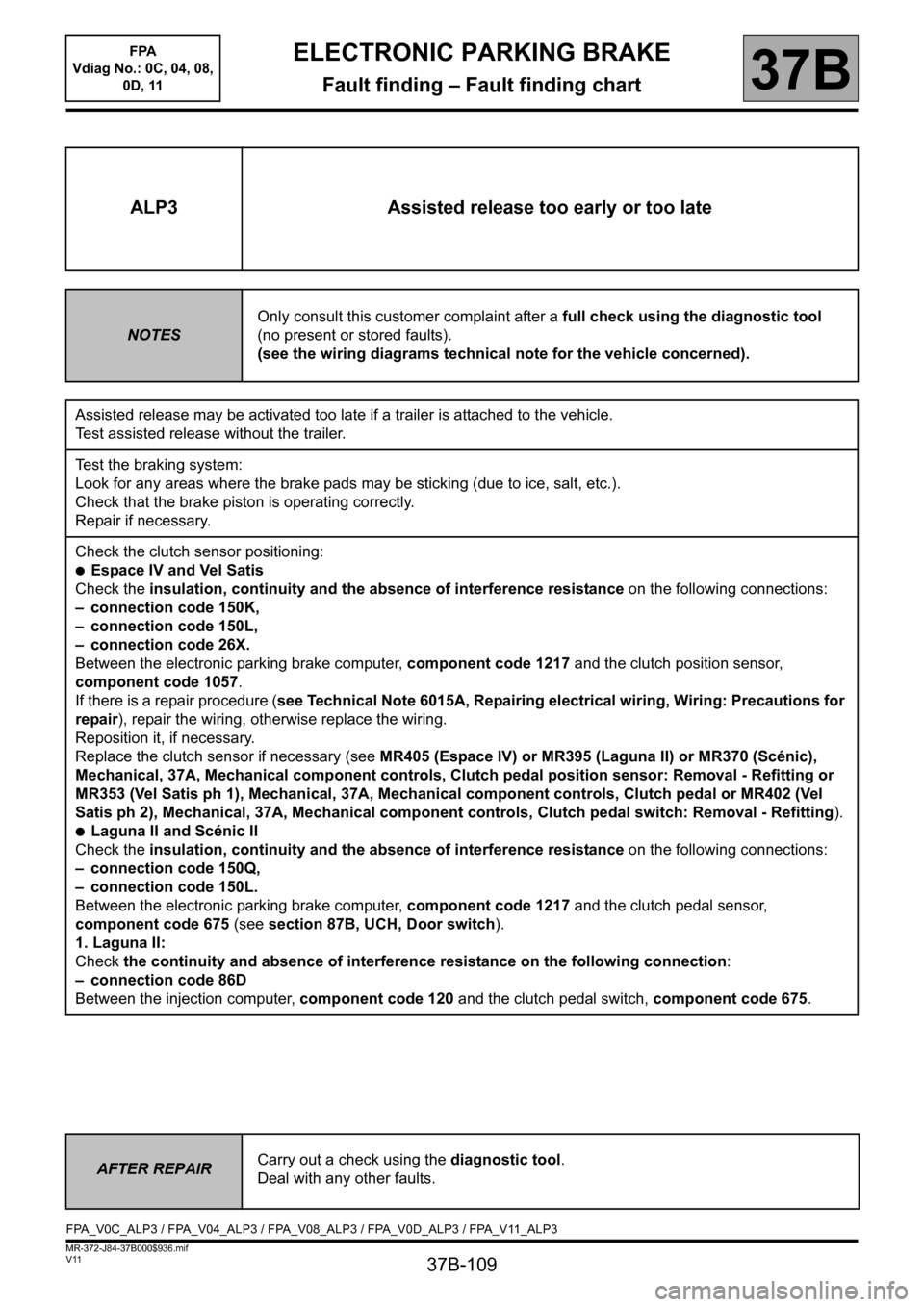

ALP3 Assisted release too early or too late
NOTESOnly consult this customer complaint after a full check using the diagnostic tool
(no present or stored faults).
(see the wiring diagrams technical note for the vehicle concerned).
Assisted release may be activated too late if a trailer is attached to the vehicle.
Test assisted release without the trailer.
Test the braking system:
Look for any areas where the brake pads may be sticking (due to ice, salt, etc.).
Check that the brake piston is operating correctly.
Repair if necessary.
Check the clutch sensor positioning:
●Espace IV and Vel Satis
Check the insulation, continuity and the absence of interference resistance on the following connections:
– connection code 150K,
– connection code 150L,
– connection code 26X.
Between the electronic parking brake computer, component code 1217 and the clutch position sensor,
component code 1057.
If there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace the wiring.
Reposition it, if necessary.
Replace the clutch sensor if necessary (see MR405 (Espace IV) or MR395 (Laguna II) or MR370 (Scénic),
Mechanical, 37A, Mechanical component controls, Clutch pedal position sensor: Removal - Refitting or
MR353 (Vel Satis ph 1), Mechanical, 37A, Mechanical component controls, Clutch pedal or MR402 (Vel
Satis ph 2), Mechanical, 37A, Mechanical component controls, Clutch pedal switch: Removal - Refitting).
●Laguna II and Scénic II
Check the insulation, continuity and the absence of interference resistance on the following connections:
– connection code 150Q,
– connection code 150L.
Between the electronic parking brake computer, component code 1217 and the clutch pedal sensor,
component code 675 (see section 87B, UCH, Door switch).
1. Laguna II:
Check the continuity and absence of interference resistance on the following connection:
– connection code 86D
Between the injection computer, component code 120 and the clutch pedal switch, component code 675.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
FPA_V0C_ALP3 / FPA_V04_ALP3 / FPA_V08_ALP3 / FPA_V0D_ALP3 / FPA_V11_ALP3

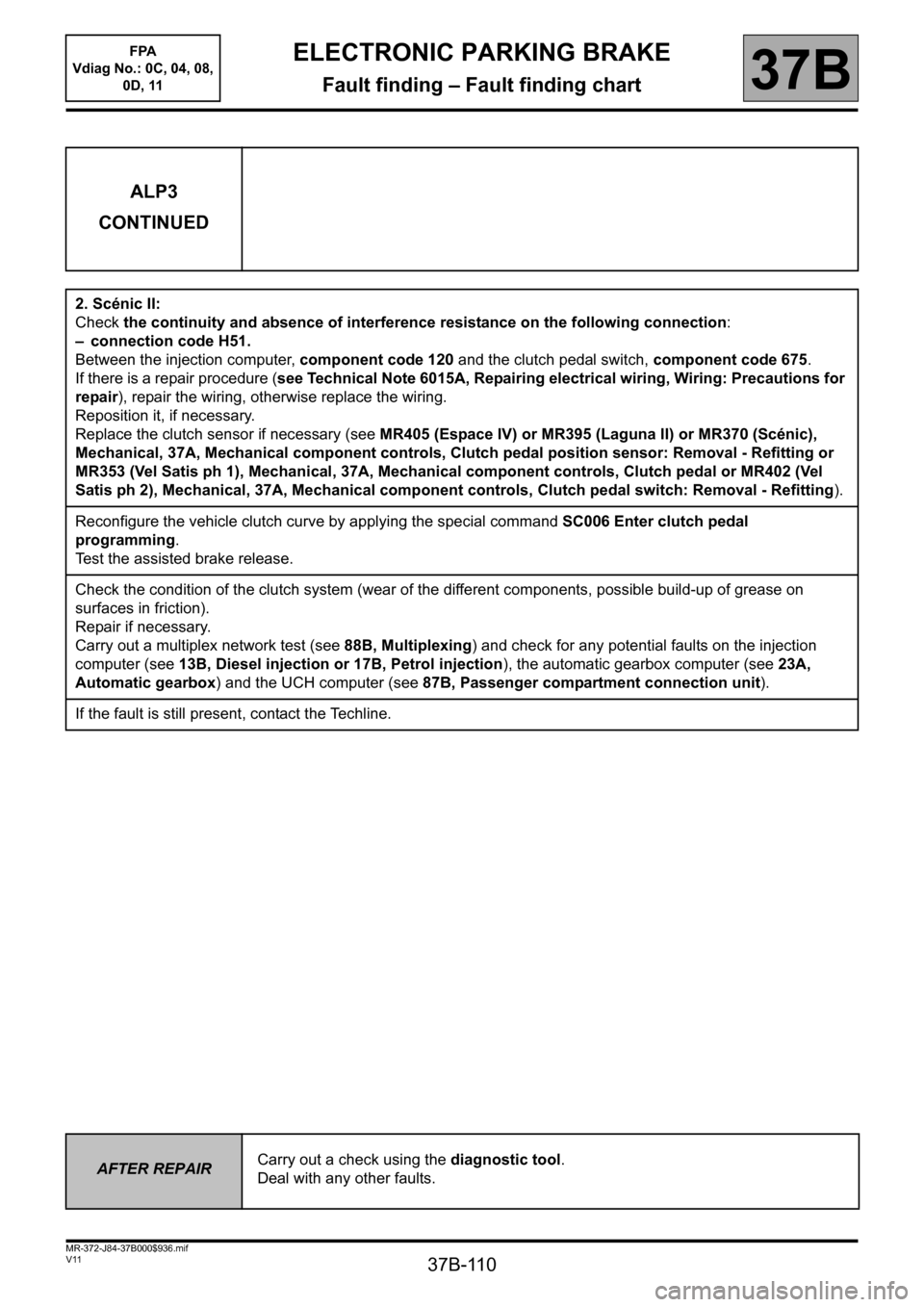

Page 110 of 115
37B-110
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP3
CONTINUED
2. Scénic II:
Check the continuity and absence of interference resistance on the following connection:
– connection code H51.
Between the injection computer, component code 120 and the clutch pedal switch, component code 675.
If there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace the wiring.
Reposition it, if necessary.
Replace the clutch sensor if necessary (see MR405 (Espace IV) or MR395 (Laguna II) or MR370 (Scénic),
Mechanical, 37A, Mechanical component controls, Clutch pedal position sensor: Removal - Refitting or
MR353 (Vel Satis ph 1), Mechanical, 37A, Mechanical component controls, Clutch pedal or MR402 (Vel
Satis ph 2), Mechanical, 37A, Mechanical component controls, Clutch pedal switch: Removal - Refitting).
Reconfigure the vehicle clutch curve by applying the special command SC006 Enter clutch pedal
programming.
Test the assisted brake release.
Check the condition of the clutch system (wear of the different components, possible build-up of grease on
surfaces in friction).
Repair if necessary.
Carry out a multiplex network test (see 88B, Multiplexing) and check for any potential faults on the injection
computer (see 13B, Diesel injection or 17B, Petrol injection), the automatic gearbox computer (see 23A,
Automatic gearbox) and the UCH computer (see 87B, Passenger compartment connection unit).
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
