RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-17
MR-372-J84-37B000$432.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Fault summary table
Tool faultAssociated
DTCDiagnostic tool title
DF003 50C3Computer
DF004 50CAComputer
DF006 50C5C

Page 30 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-30
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults37B
DF029
PRESENT
OR
STOREDCOMPUTER
1. DEF: Internal electronic fault
2. DEF: Internal electroni

Page 49 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-49
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF046
PRESENT
OR
STOREDBRAKE MOTOR/CABLES CONNECTION

Page 52 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-52
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,

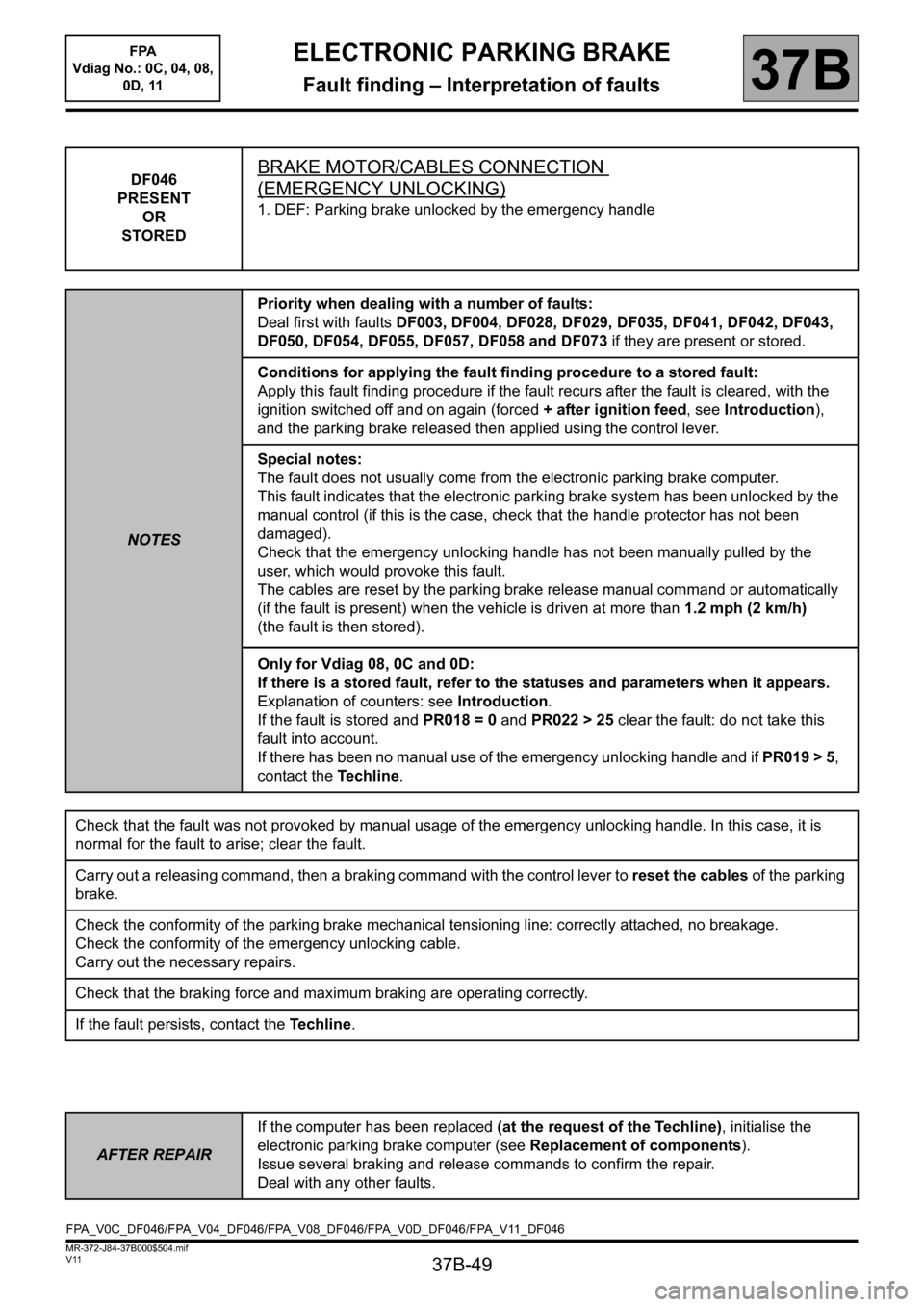

0D, 11
37B
DF048
PRESENT
OR
STOREDRELEASE SWITCH
1. DEF: Signal i

Page 55 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-55
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults37B
DF049
PRESENT
OR
STOREDBRAKING
1. DEF: Inconsistent braking value
2. DEF: Normal brake appli

Page 60 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-60
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF052
PRESENT
OR
STOREDMULTIPLEX NETWORK
1. DEF: Probl

Page 62 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-62
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF054
PRESENT
OR
STOREDBATTERY VOLTAGE TOO HIGH
1. DEF

Page 65 of 115

RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual 37B-65
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF056
PRESENT
OR
STOREDBRAKE CABLES INCORRECTLY FITTED
