Page 41 of 270

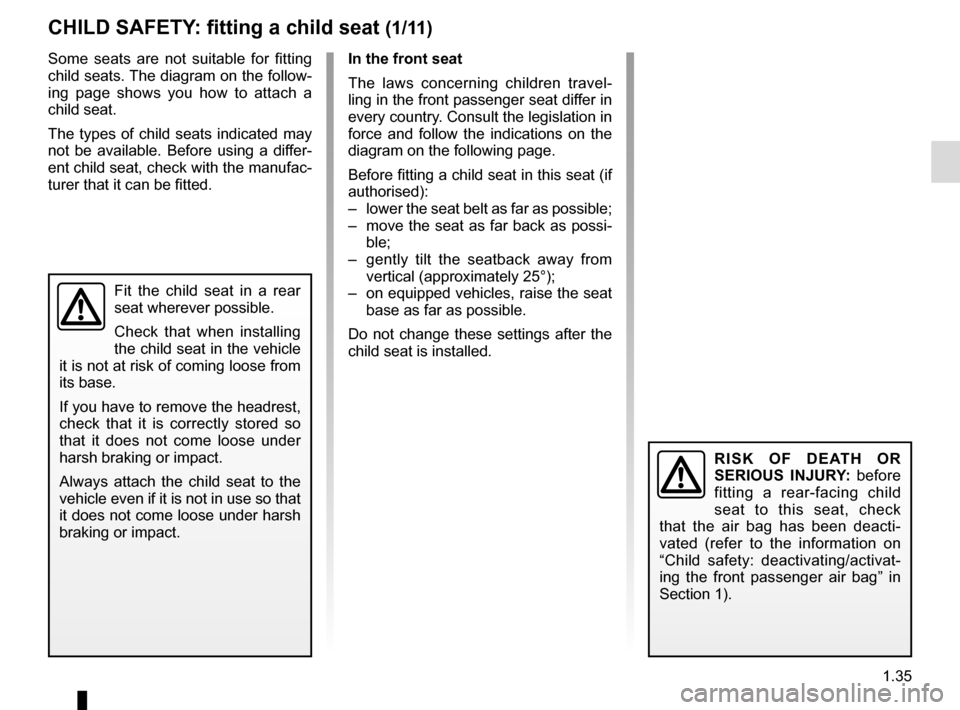

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.35
CHILD SAFETY: fitting a child seat (1/11)
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and f

Page 42 of 270

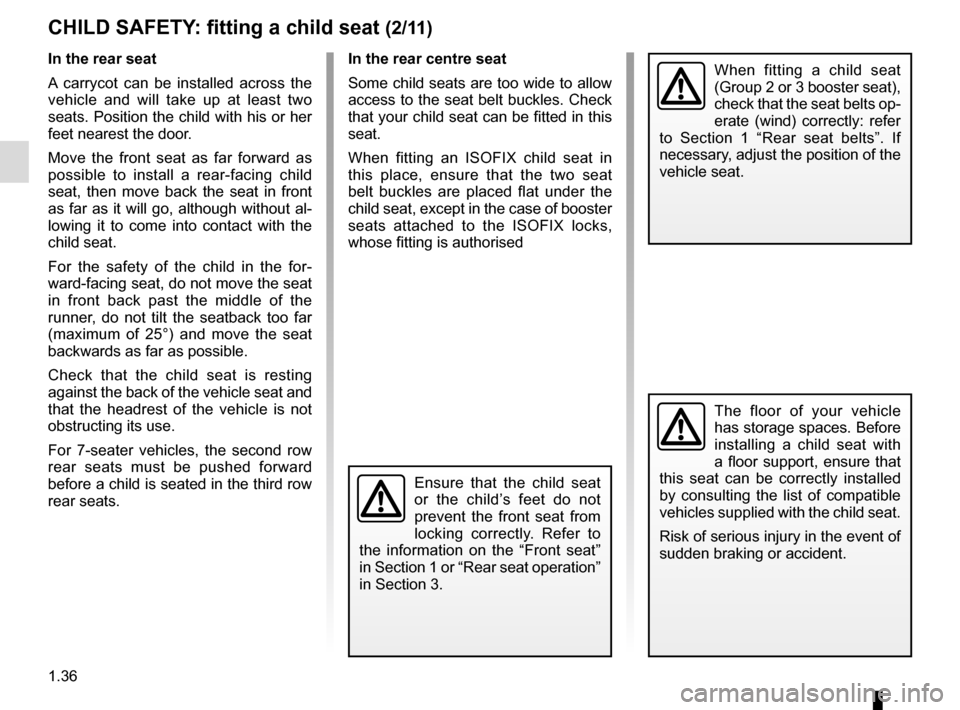

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.36
CHILD SAFETY: fitting a child seat (2/11)
In the rear seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest t

Page 43 of 270

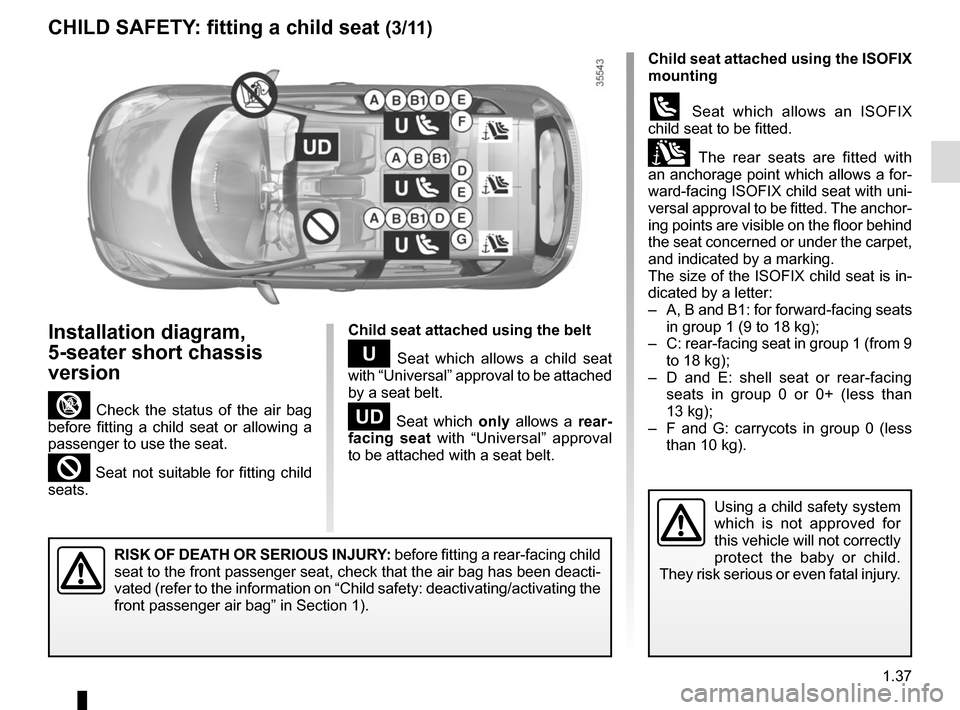

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.37
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only  allows a rear-
facing seat with “Univers

Page 44 of 270

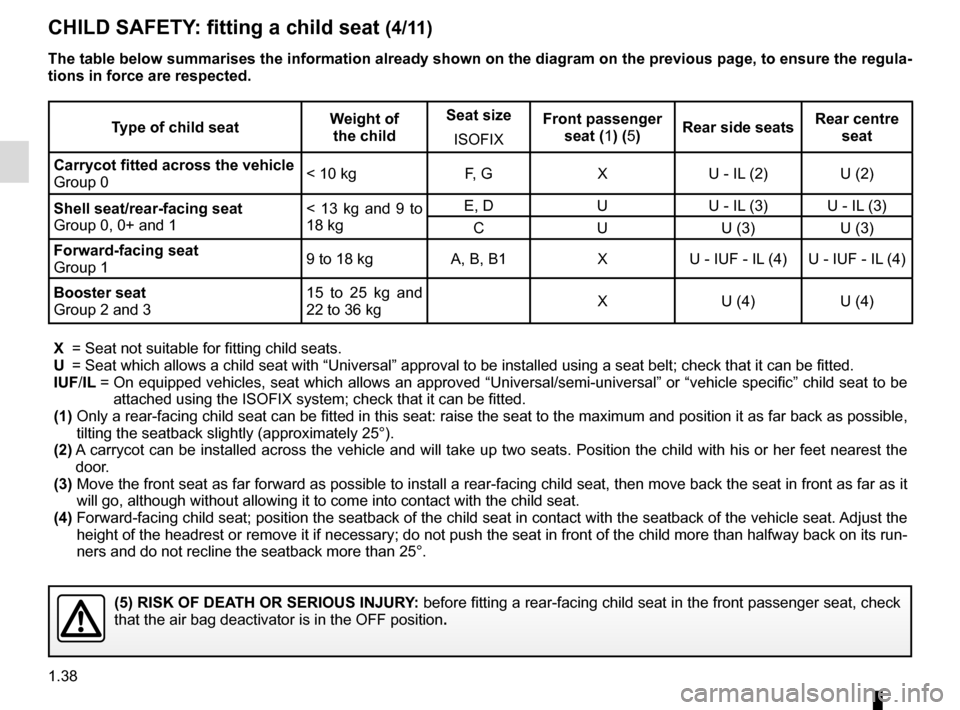

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.38
CHILD SAFETY: fitting a child seat (4/11)
Type of child seatWeight of
the child Seat size
ISOFIX Front passenger
seat (1) (5) Rear side seats Rear centre
seat
Carrycot fitted across the vehicl

Page 45 of 270

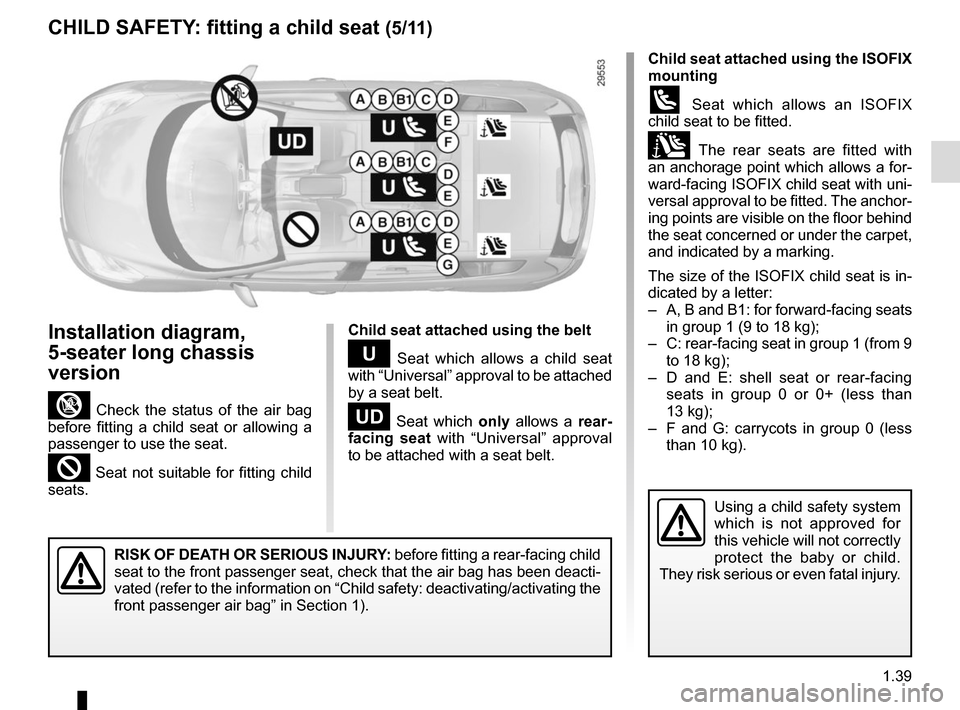

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.39
CHILD SAFETY: fitting a child seat (5/11)
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage

Page 46 of 270

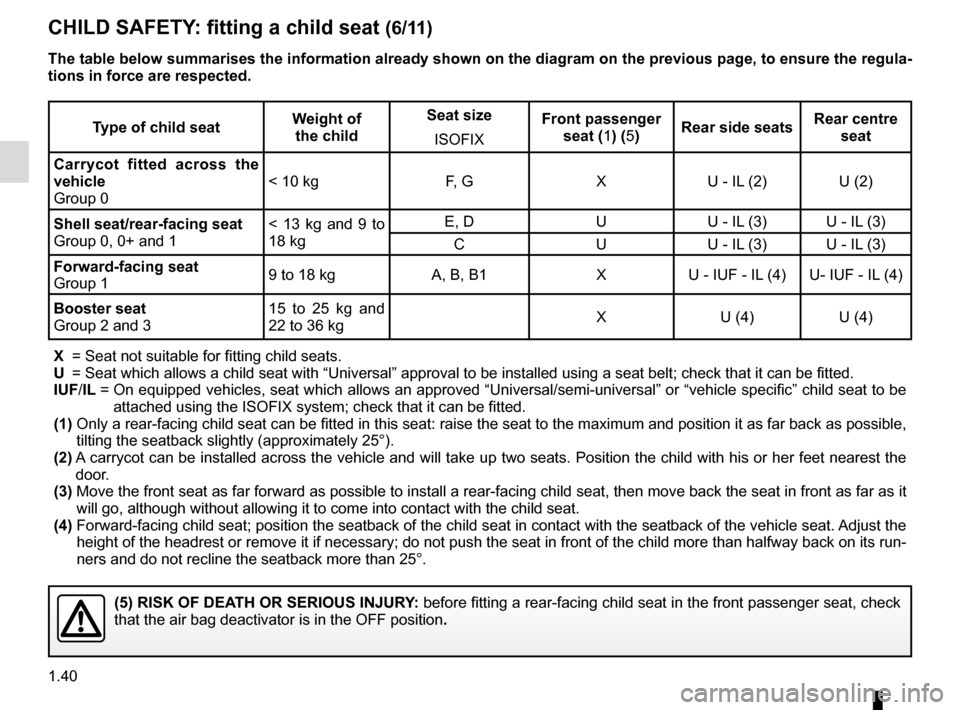

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.40
CHILD SAFETY: fitting a child seat (6/11)
Type of child seatWeight of
the child Seat size
ISOFIX Front passenger
seat (1) (5) Rear side seats Rear centre
seat
Carrycot fitted across the
vehic

Page 47 of 270

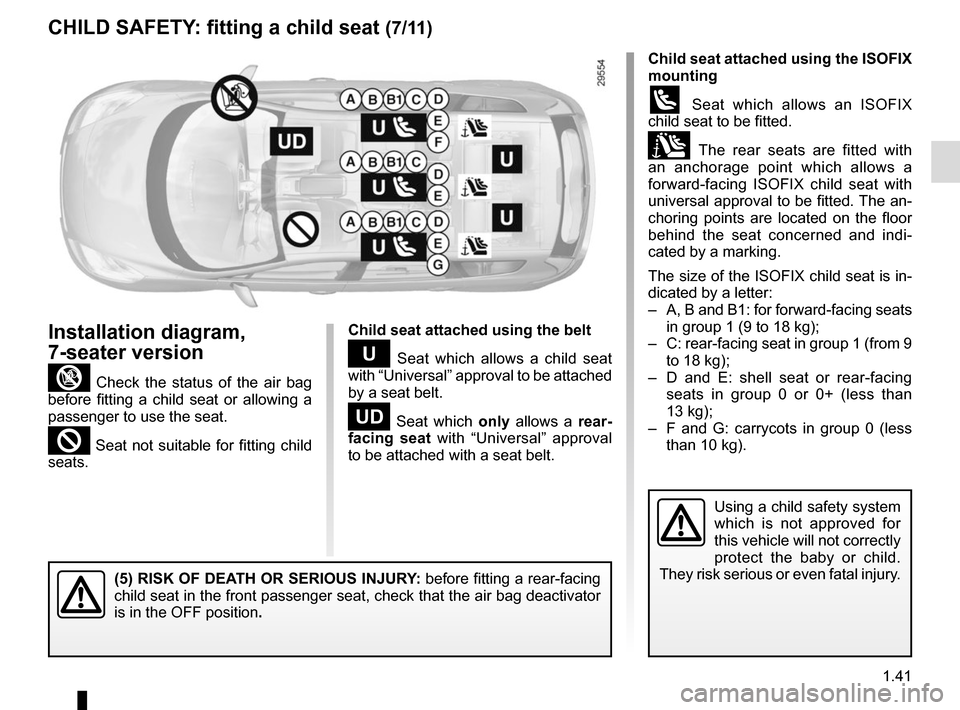

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.41
CHILD SAFETY: fitting a child seat (7/11)
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage

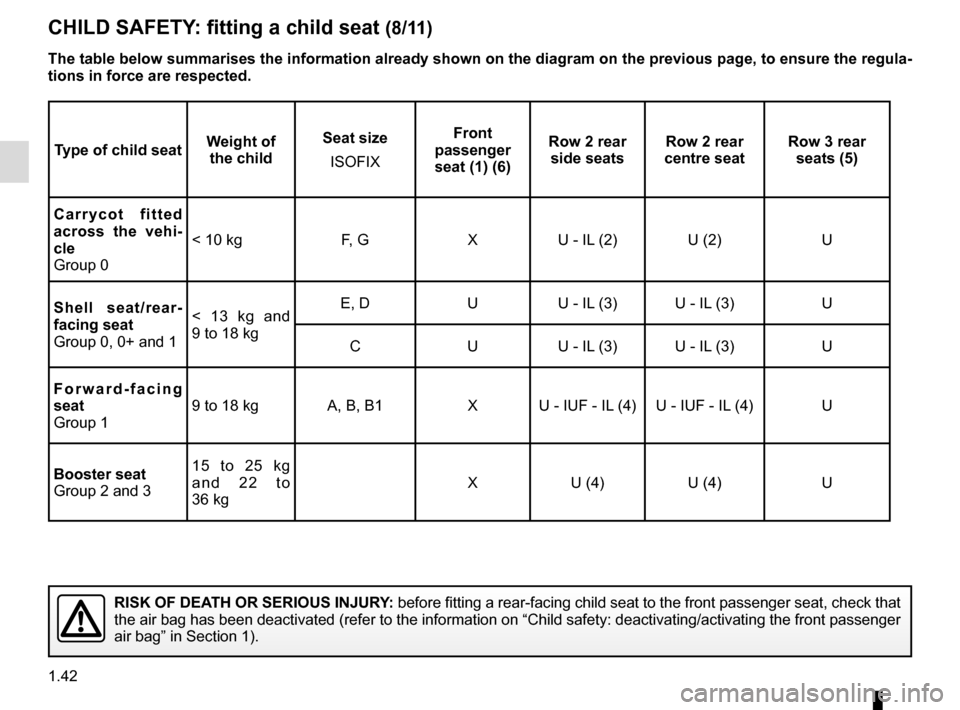

Page 48 of 270

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.42
CHILD SAFETY: fitting a child seat (8/11)
Type of child seatWeight of
the child Seat size
ISOFIX Front
passenger  seat (1) (6) Row 2 rear
side seats Row 2 rear
centre seat Row 3 rear
seats (

Page 49 of 270

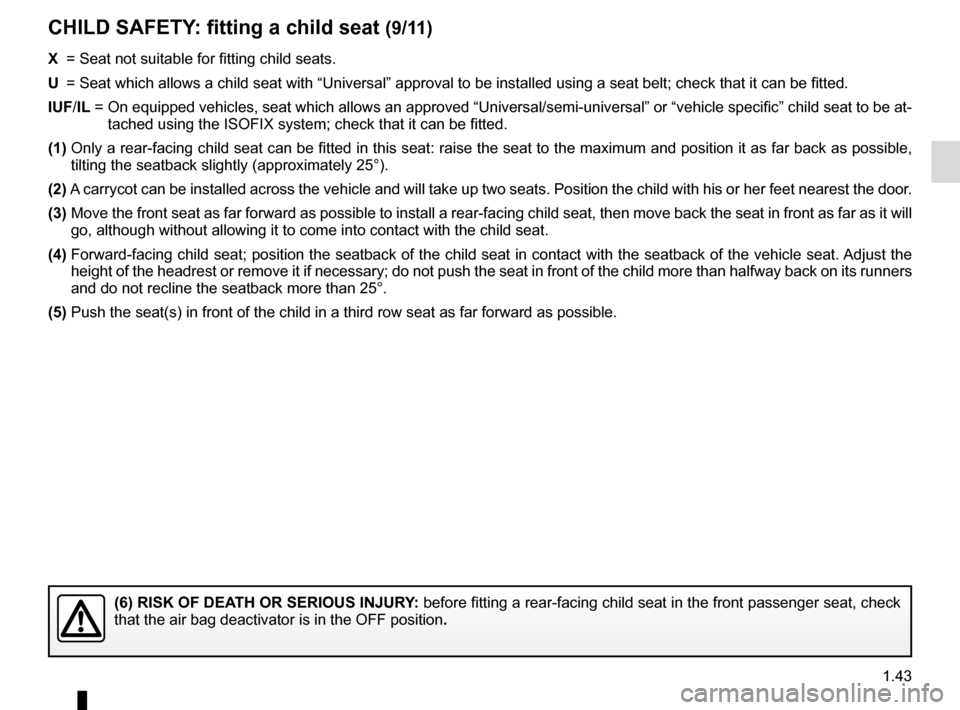

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.43
X =  Seat not suitable for fitting child seats.
U =   Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
IUF/IL =    On

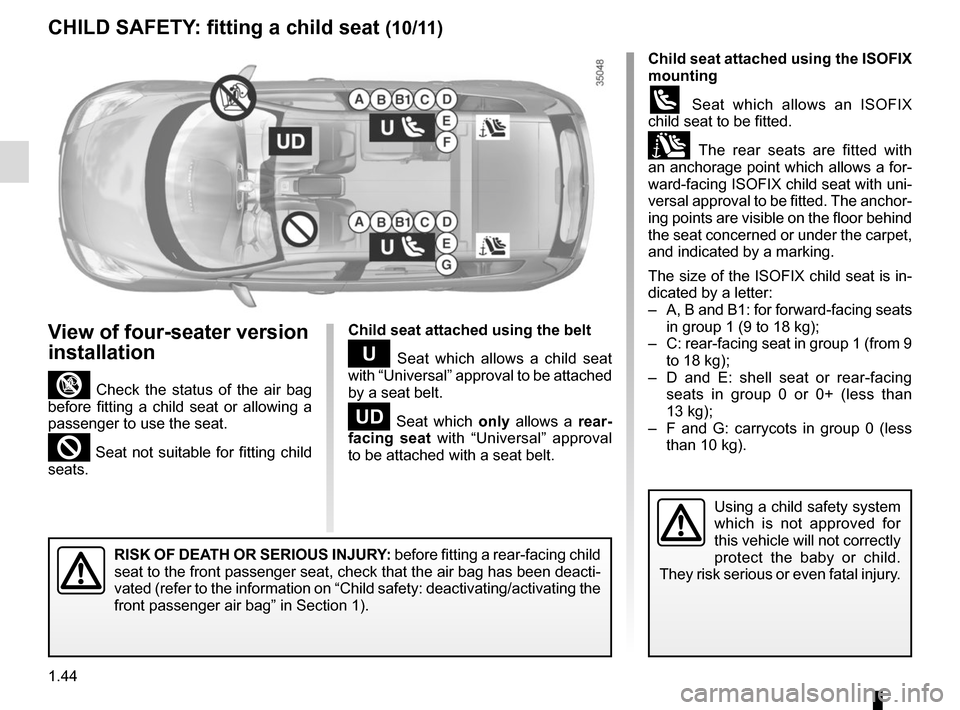

Page 50 of 270

RENAULT SCENIC 2015 J95 / 3.G Service Manual 1.44
CHILD SAFETY: fitting a child seat (10/11)
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage
