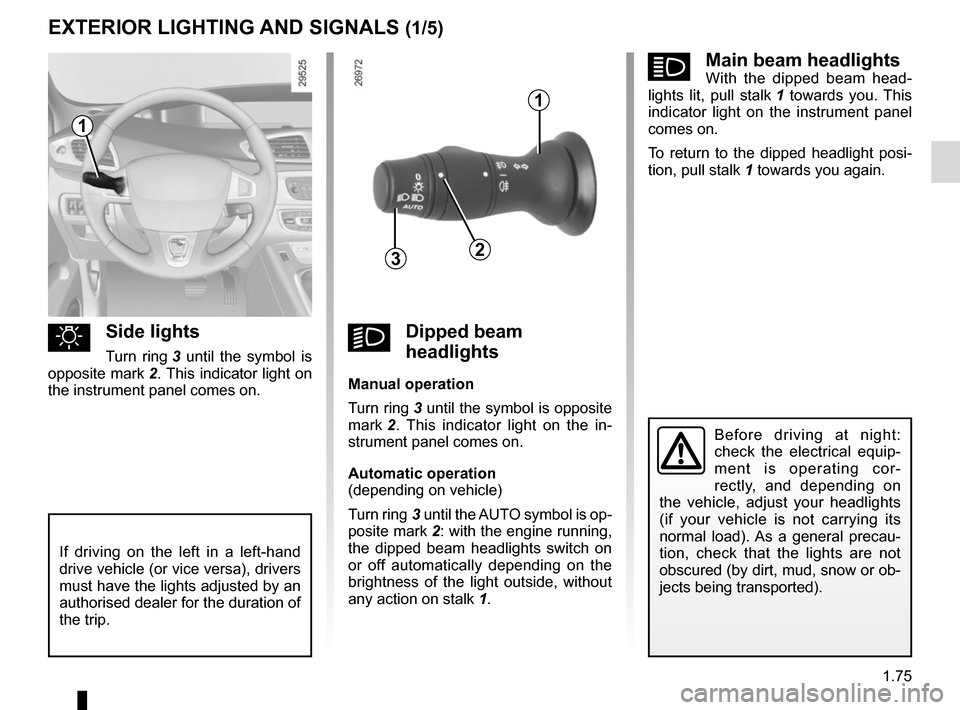

1.75
áMain beam headlightsWith the dipped beam head-
lights lit, pull stalk 1 towards you. This
indicator light on the instrument panel
comes on.
To return to the dipped headlight posi-
tion, pull stalk 1 towards you again.
EXTERIOR LIGHTING AND SIGNALS (1/5)
uSide lights
Turn ring 3 until the symbol is
opposite mark 2. This indicator light on
the instrument panel comes on.kDipped beam
headlights
Manual operation
Turn ring 3 until the symbol is opposite
mark 2 . This indicator light on the in-
strument panel comes on.
Automatic operation
(depending on vehicle)
Turn ring 3 until the AUTO symbol is op-
posite mark 2: with the engine running,
the dipped beam headlights switch on
or off automatically depending on the
brightness of the light outside, without
any action on stalk 1.
Before driving at night:
check the electrical equip-
ment is operating cor-
rectly, and depending on
the vehicle, adjust your headlights
(if your vehicle is not carrying its
normal load). As a general precau-
tion, check that the lights are not
obscured (by dirt, mud, snow or ob-
jects being transported).
1
32
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.
1

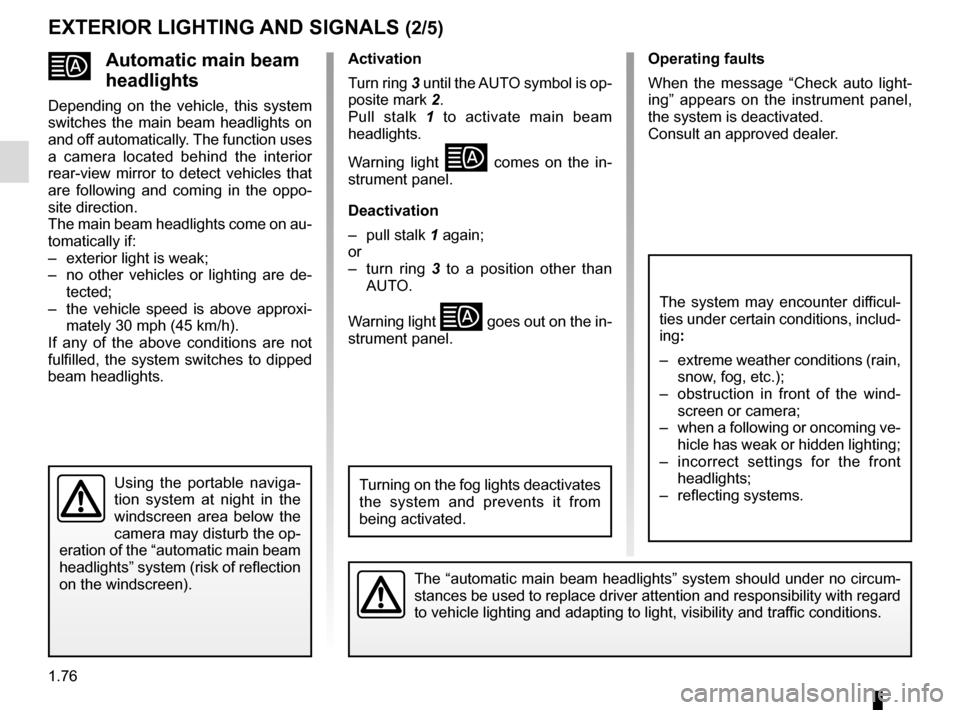

1.76
Automatic main beam
headlights
Depending on the vehicle, this system
switches the main beam headlights on
and off automatically. The function uses
a camera located behind the interior
rear-view mirror to detect vehicles that
are following and coming in the oppo-
site direction.
The main beam headlights come on au-
tomatically if:
– exterior light is weak;
– no other vehicles or lighting are de-tected;
– the vehicle speed is above approxi- mately 30 mph (45 km/h).
If any of the above conditions are not
fulfilled, the system switches to dipped
beam headlights.
The “automatic main beam headlights” system should under no circum\
-
stances be used to replace driver attention and responsibility with rega\
rd
to vehicle lighting and adapting to light, visibility and traffic conditions.
Using the portable naviga-
tion system at night in the
windscreen area below the
camera may disturb the op-
eration of the “automatic main beam
headlights” system (risk of reflection
on the windscreen).
Activation
Turn ring 3 until the AUTO symbol is op-
posite mark 2.
Pull stalk 1 to activate main beam
headlights.
Warning light
 comes on the in-
strument panel.
Deactivation
– pull stalk 1 again;
or
– turn ring 3 to a position other than
AUTO.
Warning light
 goes out on the in-
strument panel. Operating faults
When the message “Check auto light-
ing” appears on the instrument panel,
the system is deactivated.
Consult an approved dealer.
EXTERIOR LIGHTING AND SIGNALS (2/5)
Turning on the fog lights deactivates
the system and prevents it from
being activated.
The system may encounter difficul-
ties under certain conditions, includ-
ing
:
– extreme weather conditions (rain, snow, fog, etc.);
– obstruction in front of the wind- screen or camera;
– when a following or oncoming ve- hicle has weak or hidden lighting;
– incorrect settings for the front headlights;
– reflecting systems.

1.77

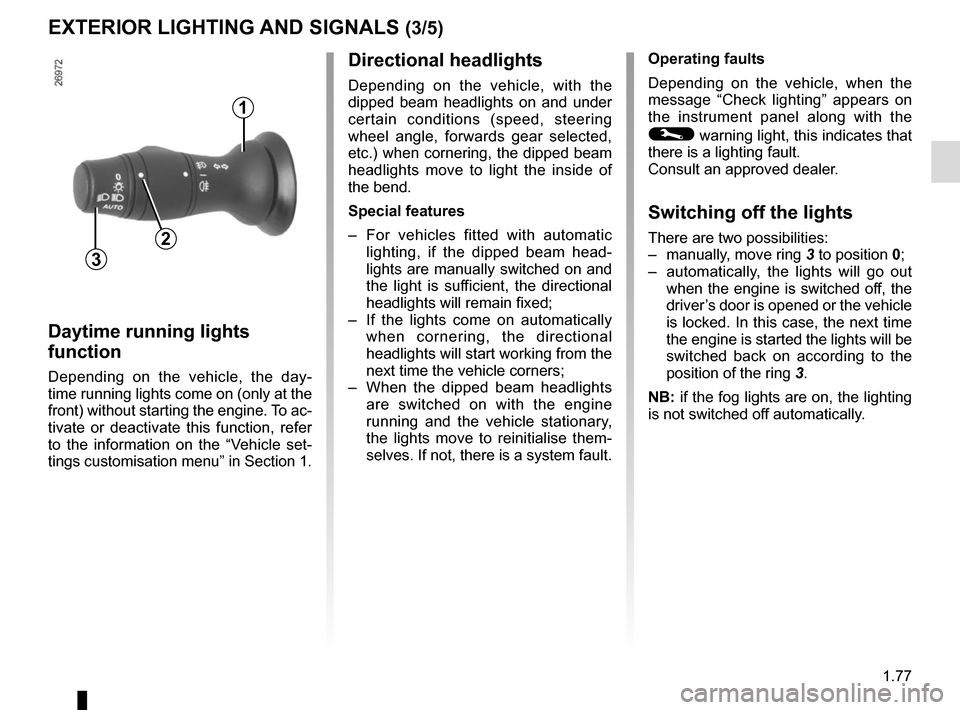

EXTERIOR LIGHTING AND SIGNALS (3/5)
Operating faults
Depending on the vehicle, when the
message “Check lighting” appears on
the instrument panel along with the
© warning light, this indicates that
there is a lighting fault.
Consult an approved dealer.
Switching off the lights
There are two possibilities:
– manually, move ring 3 to position 0;
– automatically, the lights will go out when the engine is switched off, the
driver’s door is opened or the vehicle
is locked. In this case, the next time
the engine is started the lights will be
switched back on according to the
position of the ring 3.
NB: if the fog lights are on, the lighting
is not switched off automatically.
Daytime running lights
function
Depending on the vehicle, the day-
time running lights come on (only at the
front) without starting the engine. To ac-
tivate or deactivate this function, refer
to the information on the “Vehicle set-
tings customisation menu” in Section 1.
Directional headlights
Depending on the vehicle, with the
dipped beam headlights on and under
certain conditions (speed, steering
wheel angle, forwards gear selected,
etc.) when cornering, the dipped beam
headlights move to light the inside of
the bend.
Special features
– For vehicles fitted with automatic lighting, if the dipped beam head-
lights are manually switched on and
the light is sufficient, the directional
headlights will remain fixed;
– If the lights come on automatically when cornering, the directional
headlights will start working from the
next time the vehicle corners;
– When the dipped beam headlights are switched on with the engine
running and the vehicle stationary,
the lights move to reinitialise them-
selves. If not, there is a system fault.
3
2
1

1.78

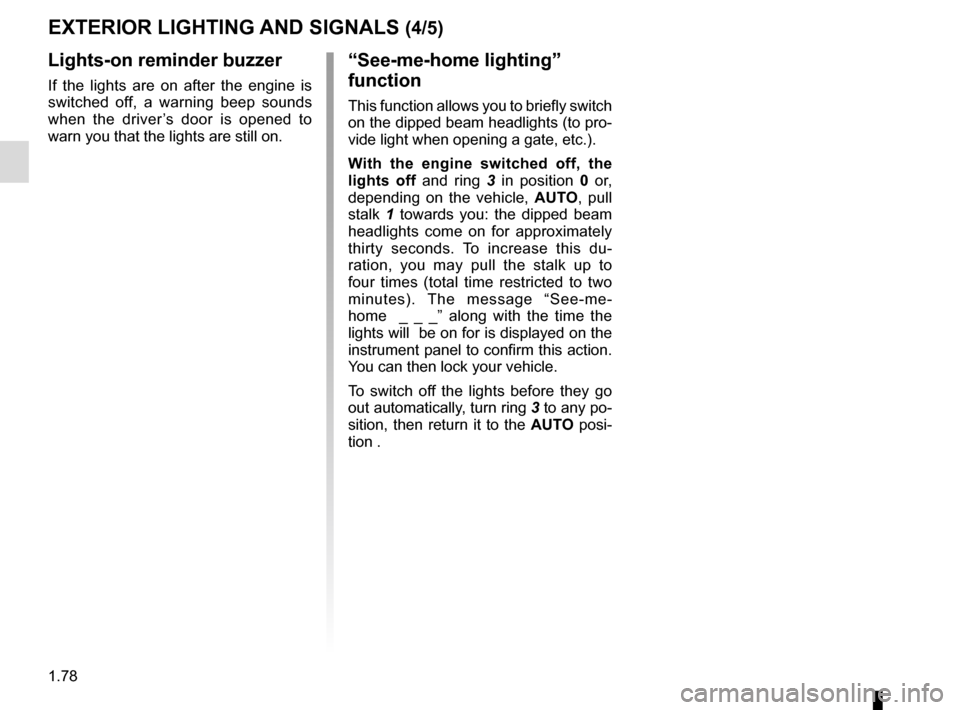

EXTERIOR LIGHTING AND SIGNALS (4/5)
Lights-on reminder buzzer
If the lights are on after the engine is
switched off, a warning beep sounds
when the driver’s door is opened to
warn you that the lights are still on.
“See-me-home lighting”
function
This function allows you to briefly switch
on the dipped beam headlights (to pro-
vide light when opening a gate, etc.).
With the engine switched off, the
lights off and ring 3 in position 0 or,
depending on the vehicle, AUTO, pull
stalk 1 towards you: the dipped beam
headlights come on for approximately
thirty seconds. To increase this du-
ration, you may pull the stalk up to
four times (total time restricted to two
minutes). The message “See-me-
home _ _ _” along with the time the
lights will be on for is displayed on the
instrument panel to confirm this action.
You can then lock your vehicle.
To switch off the lights before they go
out automatically, turn ring 3 to any po-
sition, then return it to the AUTO posi-
tion .

1.79

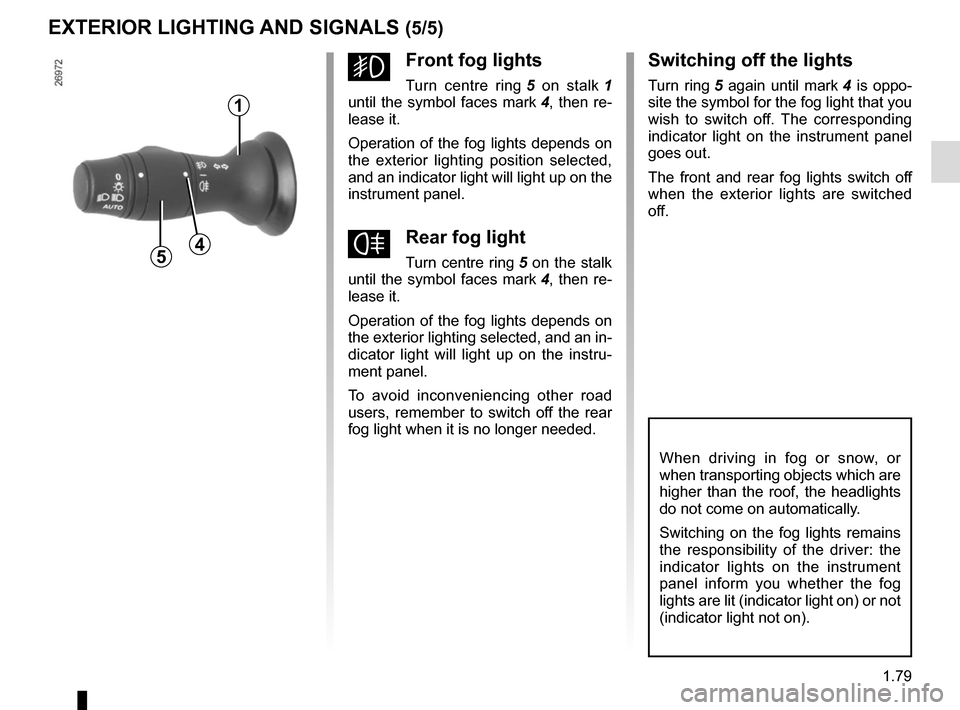

EXTERIOR LIGHTING AND SIGNALS (5/5)
gFront fog lights
Turn centre ring 5 on stalk 1
until the symbol faces mark 4, then re-
lease it.
Operation of the fog lights depends on
the exterior lighting position selected,
and an indicator light will light up on the
instrument panel.
fRear fog light
Turn centre ring 5 on the stalk
until the symbol faces mark 4, then re-
lease it.
Operation of the fog lights depends on
the exterior lighting selected, and an in-
dicator light will light up on the instru-
ment panel.
To avoid inconveniencing other road
users, remember to switch off the rear
fog light when it is no longer needed.
Switching off the lights
Turn ring 5 again until mark 4 is oppo-
site the symbol for the fog light that you
wish to switch off. The corresponding
indicator light on the instrument panel
goes out.
The front and rear fog lights switch off
when the exterior lights are switched
off.
When driving in fog or snow, or
when transporting objects which are
higher than the roof, the headlights
do not come on automatically.
Switching on the fog lights remains
the responsibility of the driver: the
indicator lights on the instrument
panel inform you whether the fog
lights are lit (indicator light on) or not
(indicator light not on).
54
1

1.80
On vehicles fitted with this function,
control A allows you to adjust the height
of the beams according to the load.
Turn control A downwards to lower the
headlights and upwards to raise them.
For vehicles not fitted with control A,
adjustment is automatic.
ADJUSTING THE HEADLIGHT BEAM HEIGHT
A
For manual settings
Examples of positions for adjusting control A according to the load
5 seater 7 seater
Driver alone or with front
passenger 00
Driver with one front
passenger and one rear
passenger 00
Driver with one front
passenger and two or three
rear passengers 12
Driver with one front
passenger, three rear
passengers and luggage 23
Driver with luggage
or (load) reaching the
maximum permissible
all-up weight 33
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.

1.81
Vehicle fitted with front
windscreen wiper rain sensor
A park
B automatic wiper function
When this position is selected, the
system detects water on the wind-
screen and triggers the wipers at a
suitable wiping speed. It is possi-
ble to change the triggering thresh-
old and the time sweeps by turning
ring 2:
– E: minimum sensitivity
– F: maximum sensitivity
note: in foggy weather or during
snowfalls, the wiping is not automati-
cally triggered and remains under
the driver’s control.
C normal wiping speed
D fast wiping speed

C normal wiping speed
D fast wiping speed
Special note
When driving the vehicle, the wiping
speed slows down whenever the ve-
hicle stops. For example, fast wiping
speed will slow to normal wiping speed.
As soon as the vehicle moves off,
wiping will return to the speed originally
selected.
If stalk 1 is operated, it overrides and
cancels the automatic function.
Vehicle fitted with intermittent
windscreen wipers
A park
B intermittent wiping
The wipers will pause for several
seconds between sweeps. It is
possible to change the time be-
tween sweeps by turning ring 2.
Position C is accessible with the ig-
nition on. Positions B and D are ac-
cessible only when the engine is
running.Positions B and C are accessible
with the ignition on. Position D is
accessible only when the engine is
running.
1
A
B
C
D
2
F
E
1
WINDSCREEN WIPER, WASHER (1/2)

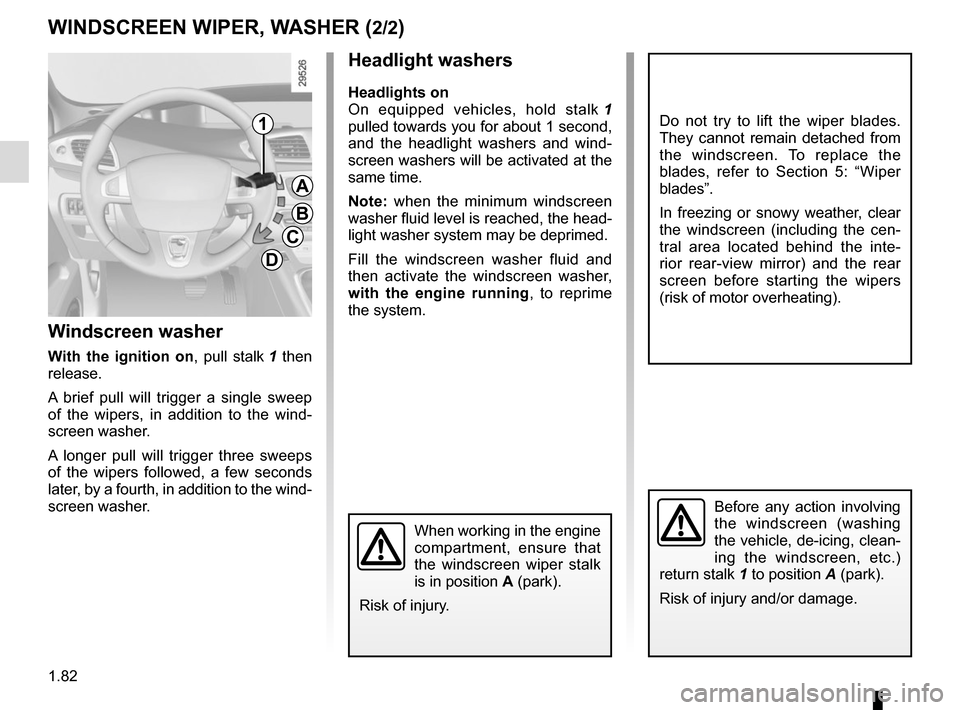

1.82
Headlight washers
Headlights on
On equipped vehicles, hold stalk 1
pulled towards you for about 1 second,
and the headlight washers and wind-
screen washers will be activated at the
same time.
Note: when the minimum windscreen
washer fluid level is reached, the head-
light washer system may be deprimed.
Fill the windscreen washer fluid and
then activate the windscreen washer,
with the engine running , to reprime
the system.
Windscreen washer
With the ignition on , pull stalk 1 then
release.
A brief pull will trigger a single sweep
of the wipers, in addition to the wind-
screen washer.
A longer pull will trigger three sweeps
of the wipers followed, a few seconds
later, by a fourth, in addition to the wind-
screen washer.
Before any action involving
the windscreen (washing
the vehicle, de-icing, clean-
ing the windscreen, etc.)
return stalk 1 to position A (park).
Risk of injury and/or damage.
Do not try to lift the wiper blades.
They cannot remain detached from
the windscreen. To replace the
blades, refer to Section 5: “Wiper
blades”.
In freezing or snowy weather, clear
the windscreen (including the cen-
tral area located behind the inte-
rior rear-view mirror) and the rear
screen before starting the wipers
(risk of motor overheating).
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position A (park).
Risk of injury.
1
A
B
C
D
WINDSCREEN WIPER, WASHER (2/2)

1.83
REAR SCREEN WASH/WIPE
1
2
Activating/deactivating the rear
screen wiper (depending on the vehi-
cle)
If your vehicle is fitted with a vehicle
settings customisation menu, it is pro-
grammed to activate the rear wipers
when reverse gear is selected (if the
windscreen wipers are on). You can
choose to activate or deactivate the
function. To do this, please refer to
“Vehicle settings customisation menu”
in Section 1, regarding the “Auto rear
wipe with reverse gear” function.
= function activated;
< function deactivated.
pRear screen wash/wipe
With the ignition on, push the
stalk.
A
Check the condition of the wiper
blades. You are responsible for their
service life:
– they must remain clean: clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind- screen or rear screen are dry;
– free them from the windscreen or rear screen when they have not
been used for a long time.
In all cases, replace them as soon
as they begin to lose efficiency: ap-
proximately once a year.
Before using the rear wiper, check
that no object obstructs the travel of
the blade.
Do not use the wiper arm to open or
close the tailgate.
YRear screen wiperWith the ignition on, turn ring A
on stalk 1 to align the symbol with
mark 2 then release it.
To stop the operation, pivot ring A
again.
Wiping frequency varies with vehicle
speed.
Before any action involving the windscreen (washing the vehicle, deicin\
g,
cleaning the windscreen, etc.) return stalk 1 to position A (park).
Risk of injury and/or damage.

1.84

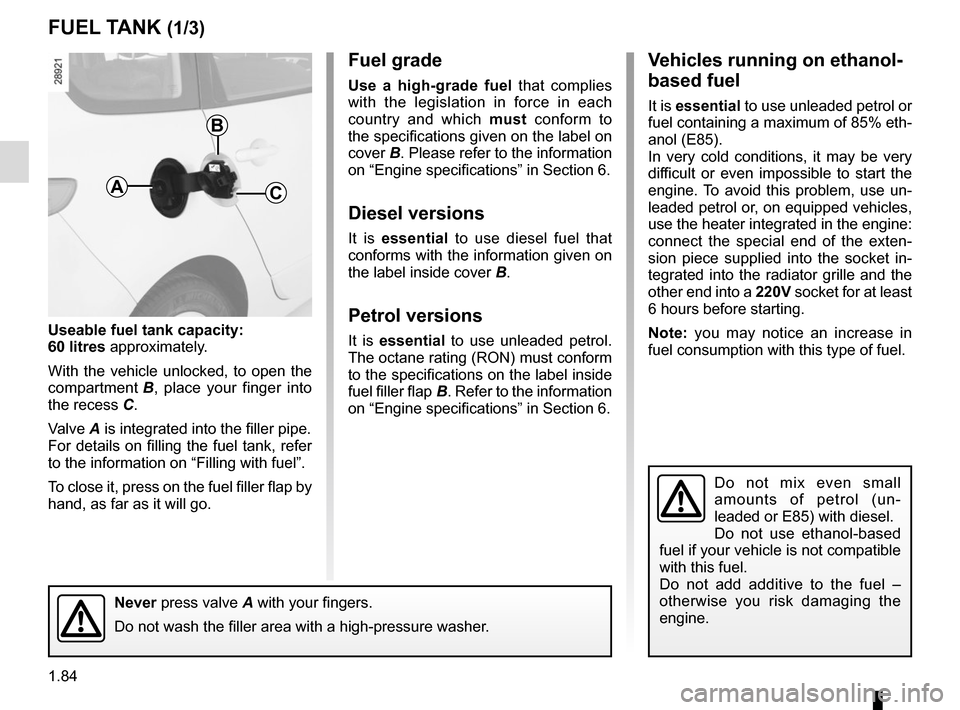

FUEL TANK (1/3)
Useable fuel tank capacity:
60 litres approximately.
With the vehicle unlocked, to open the
compartment B, place your finger into
the recess C.
Valve A is integrated into the filler pipe. For details on filling the fuel tank, refer
to the information on “Filling with fuel”.
To close it, press on the fuel filler flap by
hand, as far as it will go.
Fuel grade
Use a high-grade fuel that complies
with the legislation in force in each
country and which must conform to
the specifications given on the label on
cover B. Please refer to the information
on “Engine specifications” in Section 6.
Diesel versions
It is essential to use diesel fuel that
conforms with the information given on
the label inside cover B.
Petrol versions
It is essential to use unleaded petrol.
The octane rating (RON) must conform
to the specifications on the label inside
fuel filler flap B. Refer to the information
on “Engine specifications” in Section 6.
Never press valve A with your fingers.
Do not wash the filler area with a high-pressure washer.
B
CA
Vehicles running on ethanol-
based fuel
It is essential to use unleaded petrol or
fuel containing a maximum of 85% eth-
anol (E85).
In very cold conditions, it may be very
difficult or even impossible to start the
engine. To avoid this problem, use un-
leaded petrol or, on equipped vehicles,
use the heater integrated in the engine:
connect the special end of the exten-
sion piece supplied into the socket in-
tegrated into the radiator grille and the
other end into a 220V socket for at least
6 hours before starting.
Note: you may notice an increase in
fuel consumption with this type of fuel.
Do not mix even small
amounts of petrol (un-
leaded or E85) with diesel.
Do not use ethanol-based
fuel if your vehicle is not compatible
with this fuel.
Do not add additive to the fuel –
otherwise you risk damaging the
engine.
