Armrest storage
compartment D
With the armrest in the retracted posi-
tion, press button 10 and lift armrest 8.

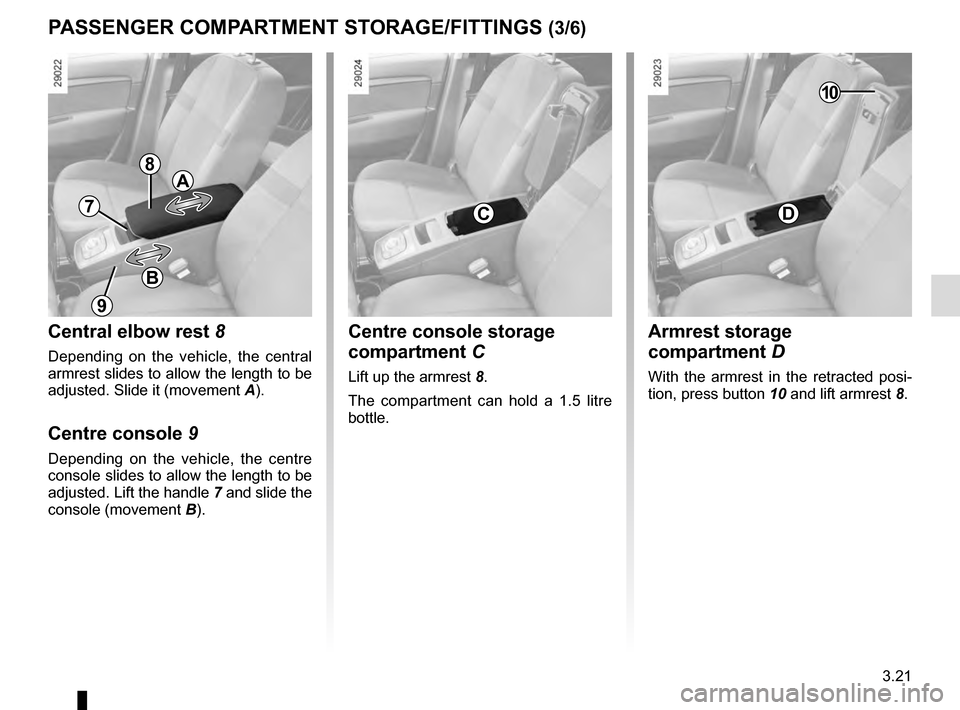

PASSENGER COMPARTMENT STORAGE/FITTINGS (3/6)
Centre console storage
compartment C
Lift up the armrest 8.
The compartment can hold a 1.5 litre
bottle.
D
10
C
Central elbow rest 8
Depending on the vehicle, the central
armrest slides to allow the length to be
adjusted. Slide it (movement A).
Centre console 9
Depending on the vehicle, the centre
console slides to allow the length to be
adjusted. Lift the handle 7 and slide the
console (movement B).
8
7
A
B
9

3.22

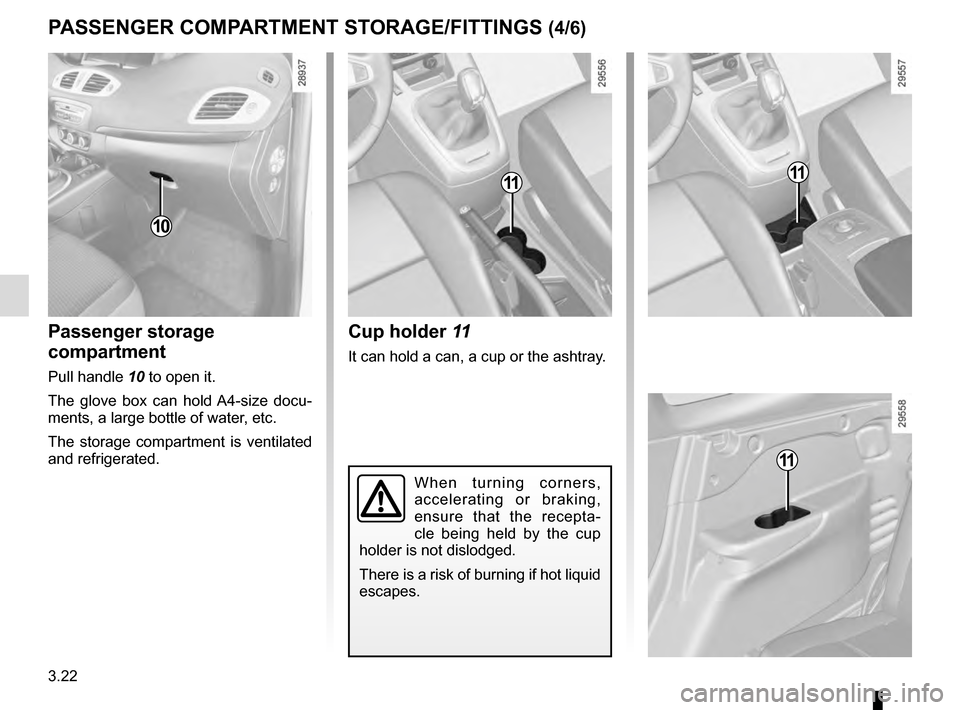

PASSENGER COMPARTMENT STORAGE/FITTINGS (4/6)
Cup holder 11
It can hold a can, a cup or the ashtray.
11
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
Passenger storage
compartment
Pull handle 10 to open it.
The glove box can hold A4-size docu-
ments, a large bottle of water, etc.
The storage compartment is ventilated
and refrigerated.
10
11
11

3.23
PASSENGER COMPARTMENT STORAGE/FITTINGS (5/6)
14
15

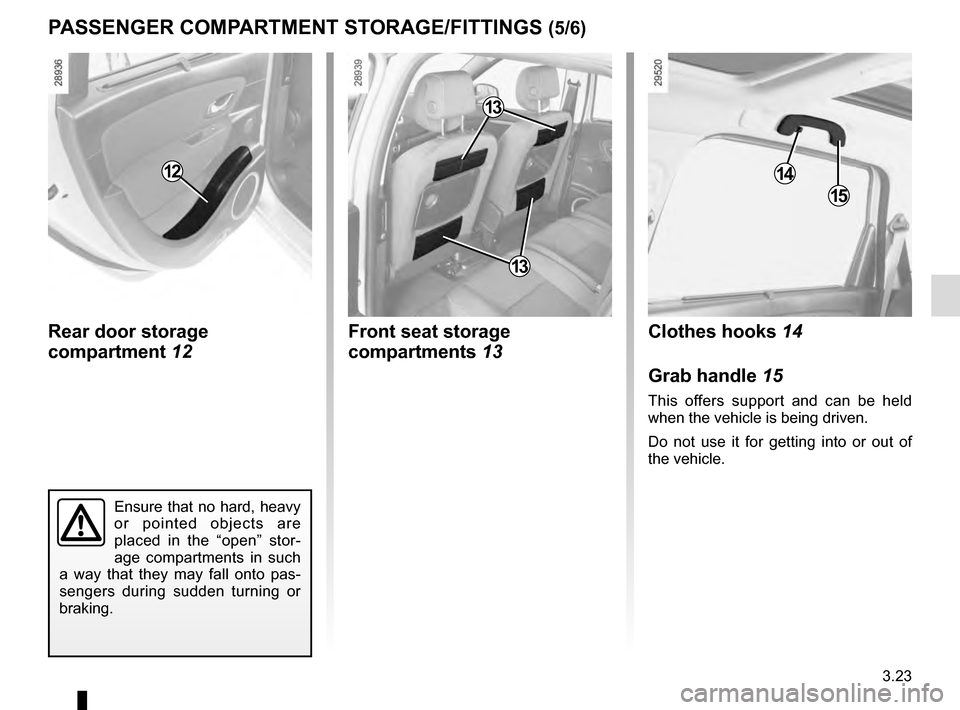

Clothes hooks 14
Grab handle 15
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
13
Front seat storage
compartments 13Rear door storage
compartment 12
12
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
13

3.24
Front and rear underfloor
storage 18
These compartments can hold road
maps, manuals, cloths, etc.
Special feature of rear storage areas
The storage area covers may be re-
moved: once open, pull up.

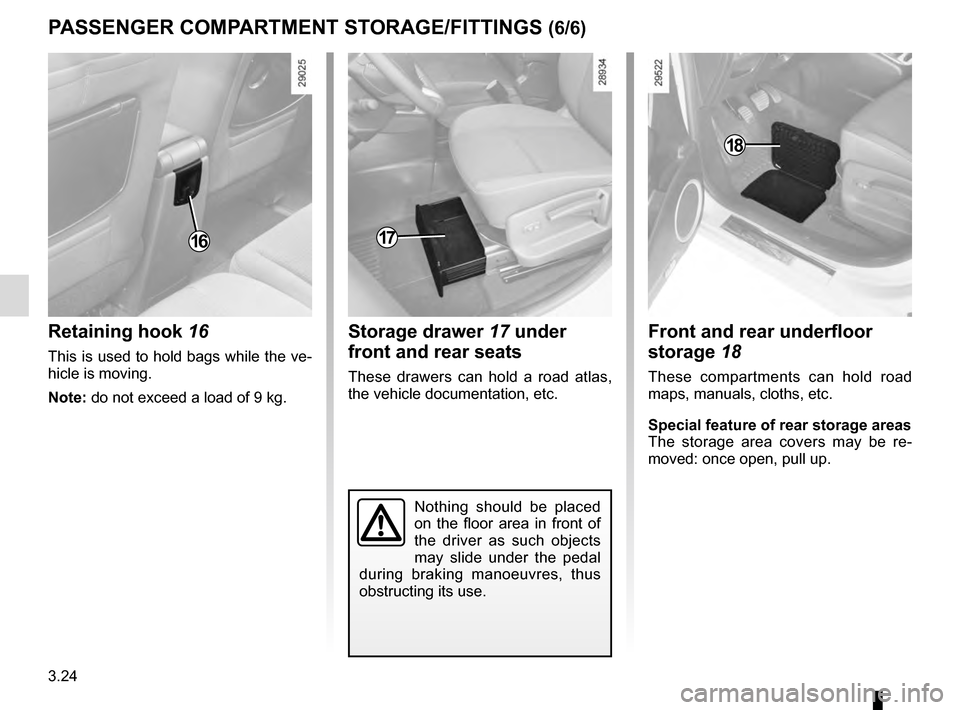

PASSENGER COMPARTMENT STORAGE/FITTINGS (6/6)
17
Storage drawer 17 under
front and rear seats
These drawers can hold a road atlas,
the vehicle documentation, etc.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Retaining hook 16
This is used to hold bags while the ve-
hicle is moving.
Note: do not exceed a load of 9 kg.
16
18

3.25

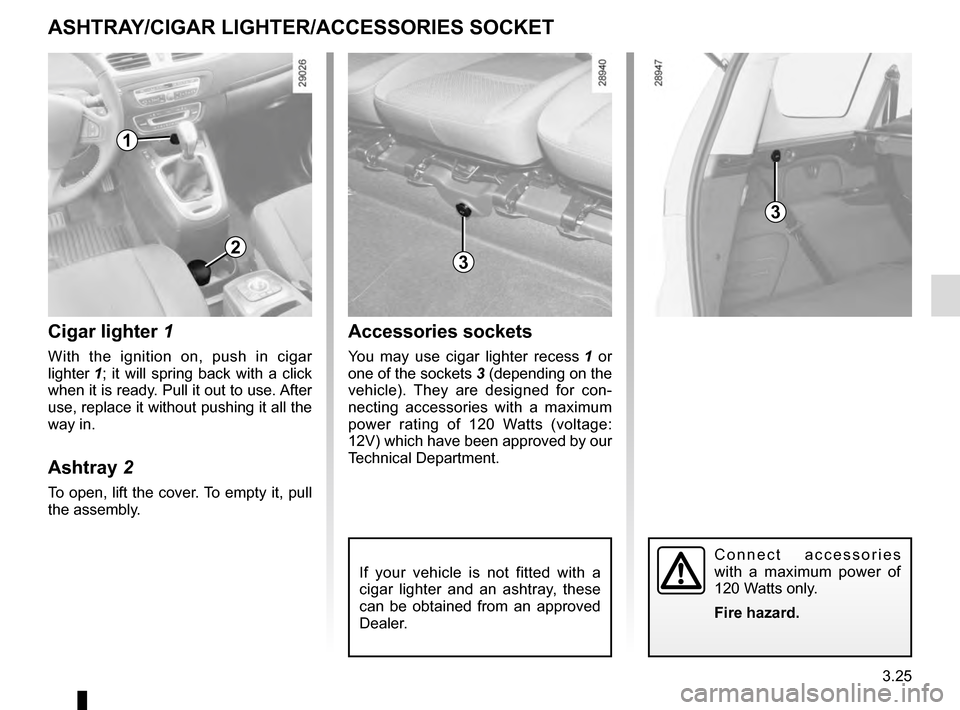

ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET
1
2
Cigar lighter 1
With the ignition on, push in cigar
lighter 1; it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.
Ashtray 2
To open, lift the cover. To empty it, pull
the assembly.
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.
3
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Accessories sockets
You may use cigar lighter recess 1 or
one of the sockets 3 (depending on the
vehicle). They are designed for con-
necting accessories with a maximum
power rating of 120 Watts (voltage:
12V) which have been approved by our
Technical Department.
3

3.26
To adjust side supports A
Depending on the vehicle, sections A
can be adjusted independently to the
desired position.
Storage position B
Press tab 1 and lower the headrest
completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
REAR HEADRESTS
Position for use
Lift the headrest to maximum height,
then lower it until it locks.
To remove the headrest
Press the tab(s) 1 , then remove the
headrest.
To refit the headrest
Insert the rods into the holes, press
tab 1 and lower the headrest.
B
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
A
1

3.27
To fold down a seatback (table posi-
tion)
Lower headrest 3.
Lift handle 4 or, depending on the vehi-
cle, pull tab 1.
An occasional table position can be
created by folding the seatback all the
way down onto the seat cushion.
The seats can hold up to 80 kg in this
position.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The rear seats are separate seats.
To move the seats forwards or
backwards
Lift lever 2 to unlock the seat. Once in
the desired position, release the lever
and check that the seat is correctly
locked.

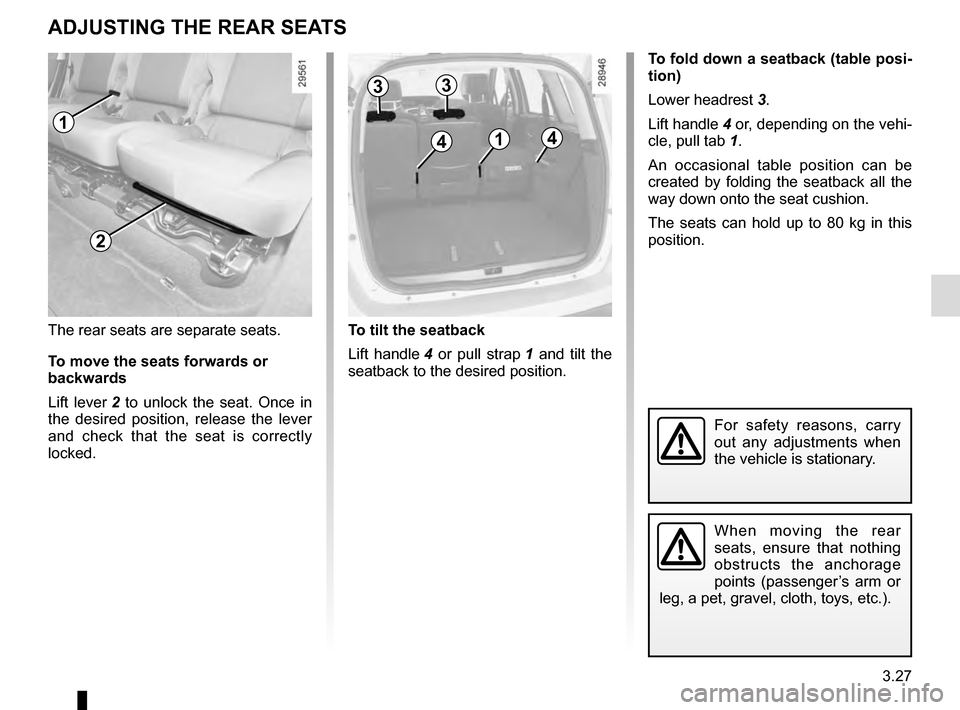

ADJUSTING THE REAR SEATS
33
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
To tilt the seatback
Lift handle 4 or pull strap 1 and tilt the
seatback to the desired position.
2
1
414

3.28
Folding up a seat
Lower the headrest.
Seat with control 2
Lift the control 2, the seatback is lowe-
red and lift the seat as far forwards as
possible.
Seat without control 2
Lift control 1 or pull belt 3 and tilt the
seatback into the table position. Then,
lift control 4 or pull belt 5 and lift the
seat as far forwards as possible.

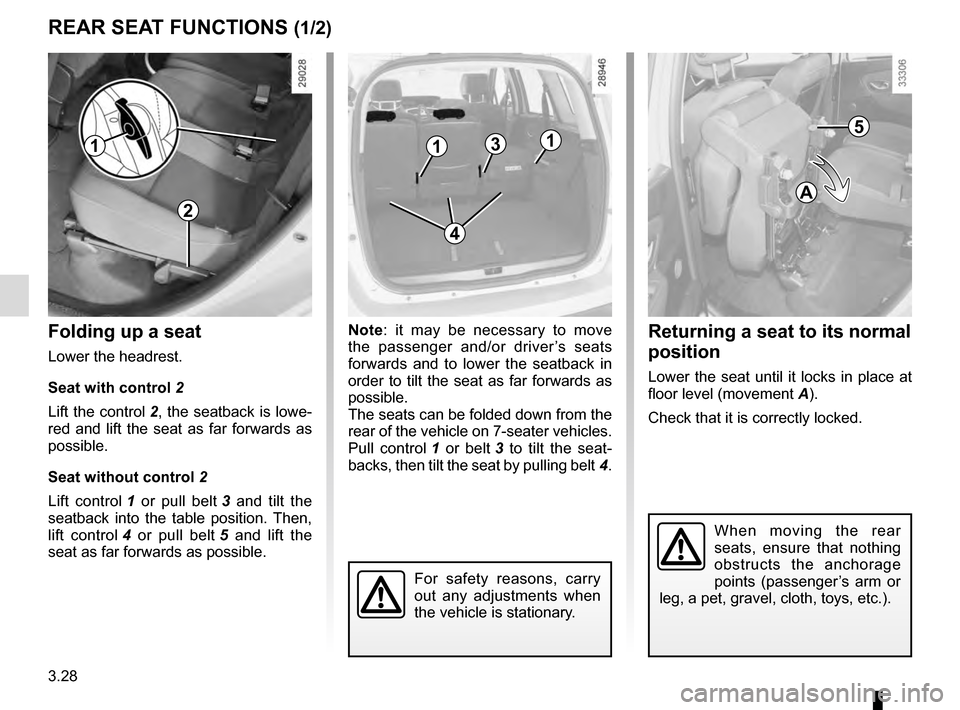

REAR SEAT FUNCTIONS (1/2)
Returning a seat to its normal
position
Lower the seat until it locks in place at
floor level (movement A).
Check that it is correctly locked.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
2
13
4
Note: it may be necessary to move
the passenger and/or driver’s seats
forwards and to lower the seatback in
order to tilt the seat as far forwards as
possible.
The seats can be folded down from the
rear of the vehicle on 7-seater vehicles.
Pull control 1 or belt 3 to tilt the seat-
backs, then tilt the seat by pulling belt 4.
11
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
A
5

3.29

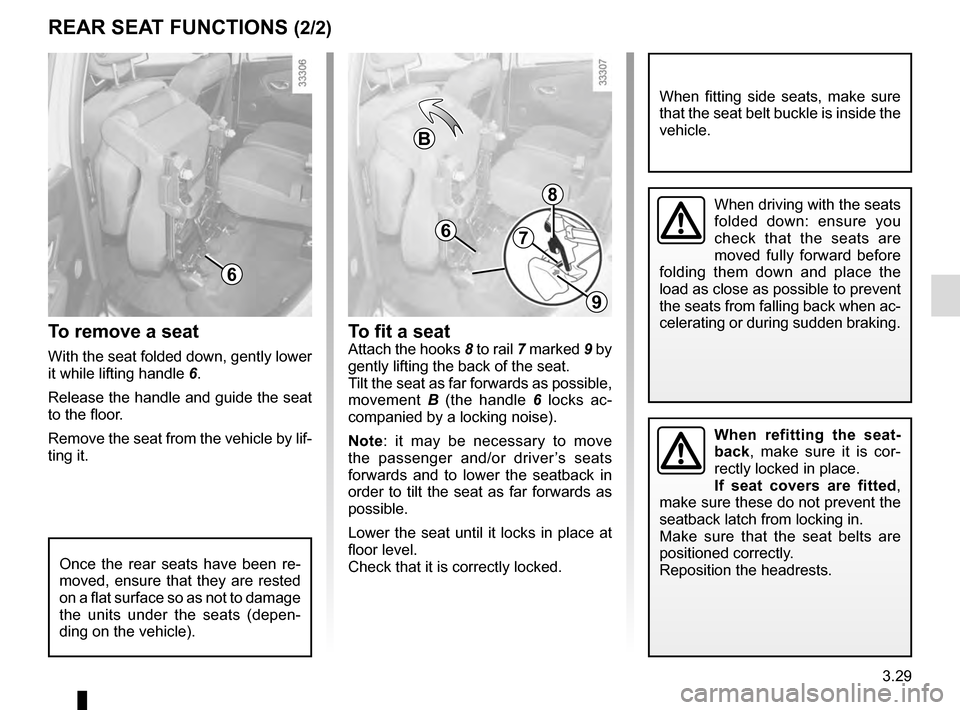

REAR SEAT FUNCTIONS (2/2)To fit a seat
Attach the hooks 8 to rail 7 marked 9 by
gently lifting the back of the seat.
Tilt the seat as far forwards as possible,
movement B (the handle 6 locks ac-
companied by a locking noise).
Note: it may be necessary to move
the passenger and/or driver’s seats
forwards and to lower the seatback in
order to tilt the seat as far forwards as
possible.
Lower the seat until it locks in place at
floor level.
Check that it is correctly locked.
When fitting side seats, make sure
that the seat belt buckle is inside the
vehicle.
To remove a seat
With the seat folded down, gently lower
it while lifting handle 6.
Release the handle and guide the seat
to the floor.
Remove the seat from the vehicle by lif-
ting it.
Once the rear seats have been re-
moved, ensure that they are rested
on a flat surface so as not to damage
the units under the seats (depen-
ding on the vehicle).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
When driving with the seats
folded down: ensure you
check that the seats are
moved fully forward before
folding them down and place the
load as close as possible to prevent
the seats from falling back when ac-
celerating or during sudden braking.
6
B
6
8
7
9

3.30
To unfold a seat
– From the luggage compartment, remove the luggage cover and store
it (refer to the information on the “lug-
gage cover: long chassis versions” in
Section 3);
– pull strap 2, lock the seat by pull-
ing on the top of the seatback and
ensure that it is correctly locked in
place;
– fit the headrest.Third row rear seats
Folding up a seat
– From the luggage compartment, lower the headrest;
– pull strap 2;
– push the seatback (areas A) to lock
the seat, ensuring that it is correctly
locked.
Note: the hooks 1 secure the seat belt
buckles.
REAR SEAT OPERATION: 7-seater version (1/2)
When moving third row rear
seats:
– check that no one is near
to any of the moving parts;
– check that there is sufficient space around the seat;
– check that nothing obstructs the section of the luggage compart-
ment reserved for storing the
seat.
For safety reasons, carry out any
adjustments when the vehicle is sta-
tionary.
2
AA
1
2
AA
1
