stop start RENAULT TRAFIC 2015 X82 / 3.G Service Manual

5.24

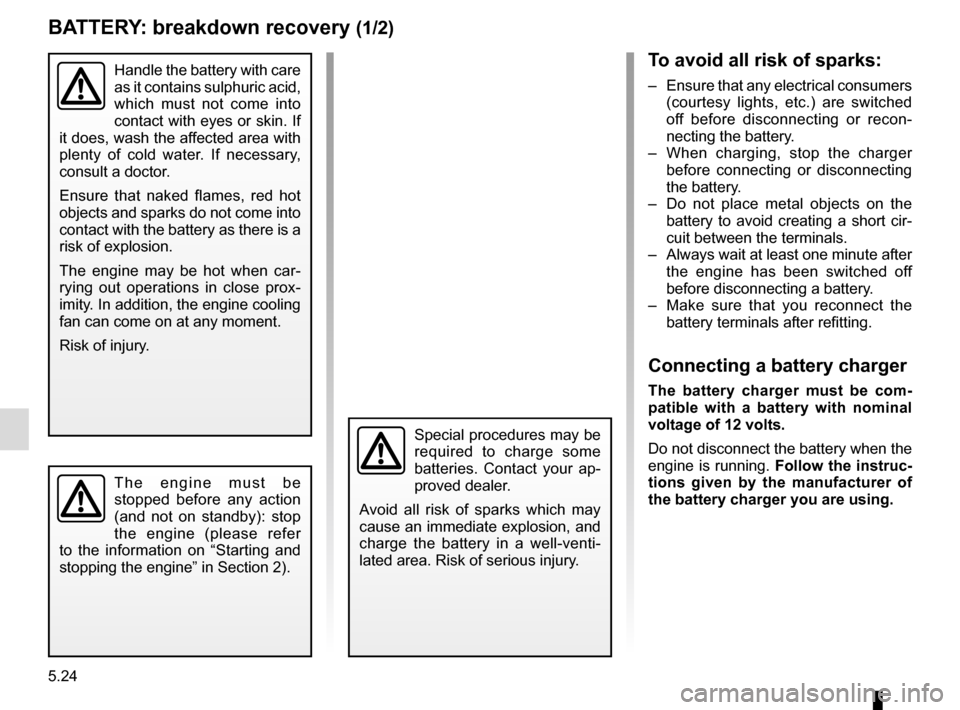

BATTERY: breakdown recovery (1/2)
To avoid all risk of sparks:
– Ensure that any electrical consumers (courtesy lights, etc.) are switched
off before disconnecting or recon-
necting the battery.
– When charging, stop the charger before connecting or disconnecting
the battery.
– Do not place metal objects on the battery to avoid creating a short cir-
cuit between the terminals.
– Always wait at least one minute after the engine has been switched off
before disconnecting a battery.
– Make sure that you reconnect the battery terminals after refitting.
Connecting a battery charger
The battery charger must be com-
patible with a battery with nominal
voltage of 12 volts.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.
Special procedures may be
required to charge some
batteries. Contact your ap-
proved dealer.
Avoid all risk of sparks which may
cause an immediate explosion, and
charge the battery in a well-venti-
lated area. Risk of serious injury.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car-
rying out operations in close prox-
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The engine must be
stopped before any action
(and not on standby): stop
the engine (please refer
to the information on “Starting and
stopping the engine” in Section 2).

5.35

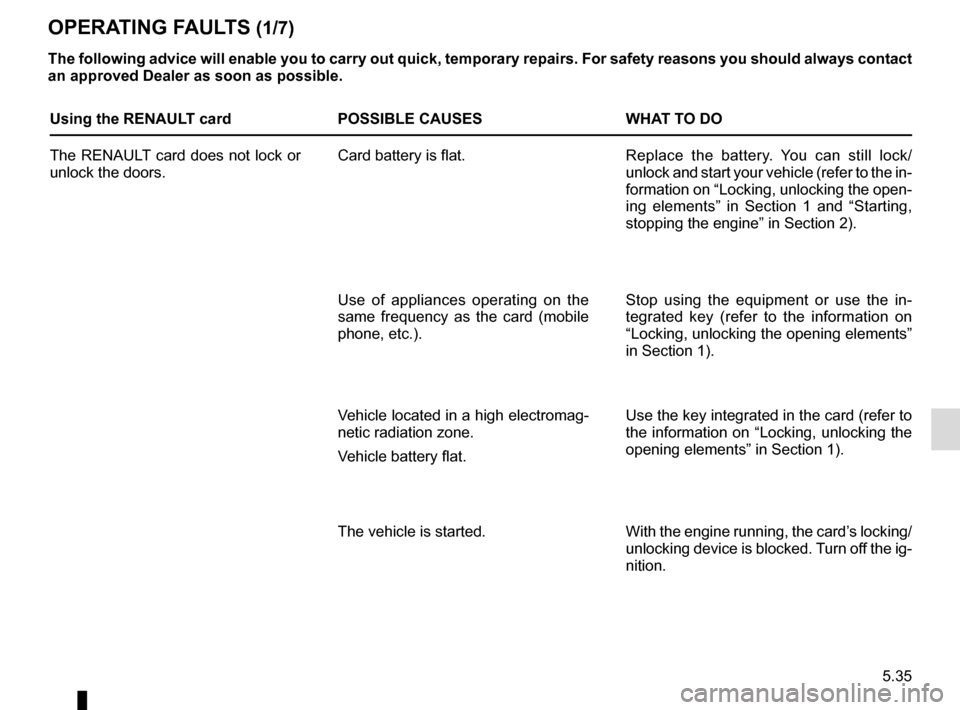

OPERATING FAULTS (1/7)
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved Dealer as soon as possible.
Using the RENAULT cardPOSSIBLE CAUSES WHAT TO DO
The RENAULT card does not lock or
unlock the doors. Card battery is flat.
Replace the battery. You can still lock/
unlock and start your vehicle (refer to the in-
formation on “Locking, unlocking the open-
ing elements” in Section 1 and “Starting,
stopping the engine” in Section 2).
Use of appliances operating on the
same frequency as the card (mobile
phone, etc.). Stop using the equipment or use the in-
tegrated key (refer to the information on
“Locking, unlocking the opening elements”
in Section 1).
Vehicle located in a high electromag-
netic radiation zone.
Vehicle battery flat. Use the key integrated in the card (refer to
the information on “Locking, unlocking the
opening elements” in Section 1).
The vehicle is started. With the engine running, the card’s locking/
unlocking device is blocked. Turn off the ig-
nition.

5.36
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved dealer as soon as possible.
Using the remote controlPOSSIBLE CAUSES ACTION REQUIRED
The remote control does not lock or
unlock the doors. The remote control battery is flat.
Use the emergency key.
Use of appliances operating on the same
frequency as the remote control (mobile
phone, etc.). Stop using the devices or use the key.
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
The vehicle is started. With the engine running, the key’s locking/
unlocking device is blocked. Turn off the
ignition.
OPERATING FAULTS (2/7)

5.37

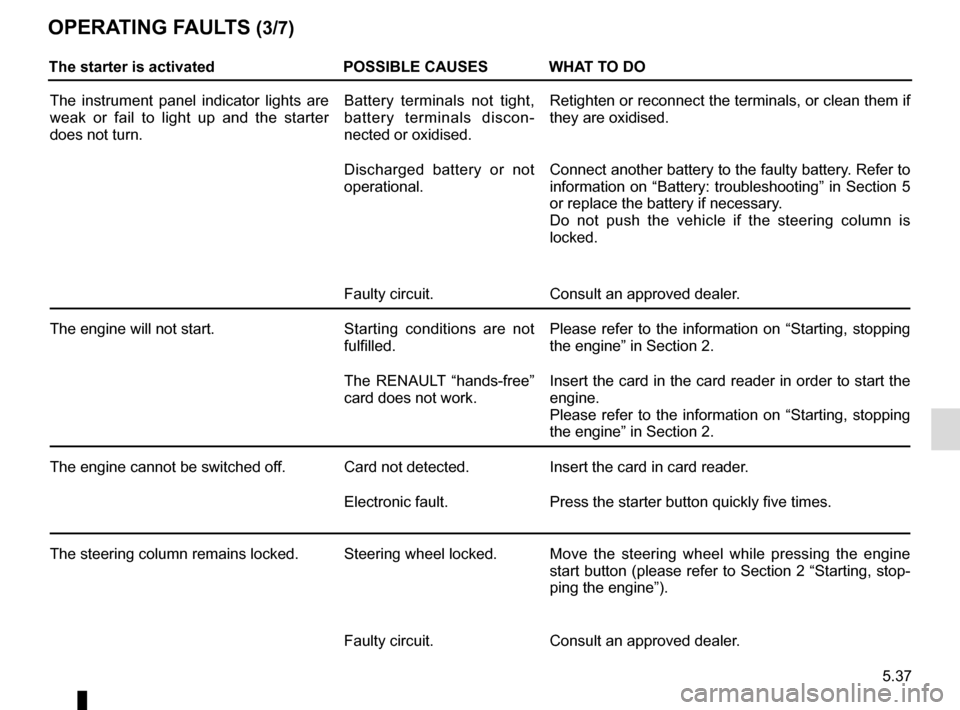

OPERATING FAULTS (3/7)
The starter is activatedPOSSIBLE CAUSES WHAT TO DO
The instrument panel indicator lights are
weak or fail to light up and the starter
does not turn. Battery terminals not tight,
battery terminals discon-
nected or oxidised.Retighten or reconnect the terminals, or clean them if
they are oxidised.
Discharged battery or not
operational. Connect another battery to the faulty battery. Refer to
information on “Battery: troubleshooting” in Section 5
or replace the battery if necessary.
Do not push the vehicle if the steering column is
locked.
Faulty circuit. Consult an approved dealer.
The engine will not start. Starting conditions are not
fulfilled.Please refer to the information on “Starting, stopping
the engine” in Section 2.
The RENAULT “hands-free”
card does not work. Insert the card in the card reader in order to start the
engine.
Please refer to the information on “Starting, stopping
the engine” in Section 2.
The engine cannot be switched off. Card not detected. Insert the card in card reader.
Electronic fault. Press the starter button quickly five times.
The steering column remains locked. Steering wheel locked. Move the steering wheel while pressing the engine
start button (please refer to Section 2 “Starting, stop-
ping the engine”).
Faulty circuit. Consult an approved dealer.

5.38

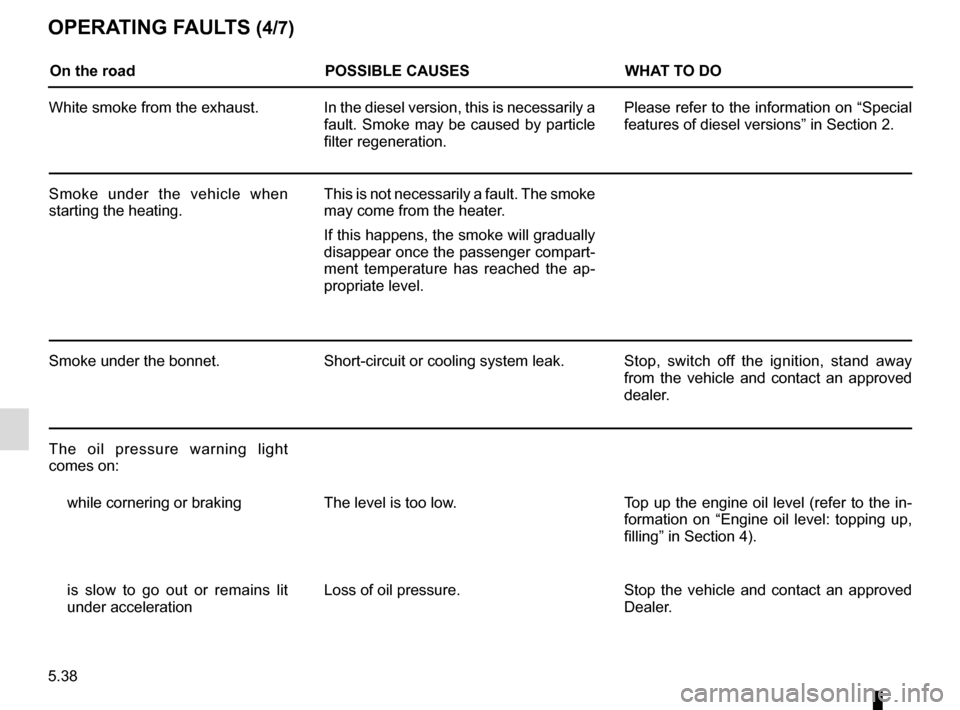

OPERATING FAULTS (4/7)
On the roadPOSSIBLE CAUSES WHAT TO DO
White smoke from the exhaust. In the diesel version, this is necessarily a fault. Smoke may be caused by particle
filter regeneration. Please refer to the information on “Special
features of diesel versions” in Section 2.
Smoke under the vehicle when
starting the heating. This is not necessarily a fault. The smoke
may come from the heater.
If this happens, the smoke will gradually
disappear once the passenger compart-
ment temperature has reached the ap-
propriate level.
Smoke under the bonnet. Short-circuit or cooling system leak. Stop, switch off the ignition, stand away
from the vehicle and contact an approved
dealer.
The oil pressure warning light
comes on: while cornering or braking The level is too low. Top up the engine oil level (refer to the in-
formation on “Engine oil level: topping up,
filling” in Section 4).
is slow to go out or remains lit
under acceleration Loss of oil pressure.
Stop the vehicle and contact an approved
Dealer.

7.2
ALPHABETICAL INDEX (2/5)
E
ECO driving ...........................................................2.12 → 2.15
ECO mode ................................................................ 2.13, 3.10
electric beam height adjustment ......................... 1.106 – 1.107
electric windows ..................................................... 3.14 – 3.15
electronic stability control: ESC .............................2.21 → 2.25
emergency brake assist.........................................2.21 → 2.25
emergency braking ................................................2.21 → 2.25
emergency key ........................................................... 1.7 – 1.8
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.8
engine coolant ..................................................................... 4.7
engine oil ...................................................................4.4 → 4.6
engine oil capacity ...................................................... 4.5 – 4.6
engine oil level ...........................................................4.4 → 4.6
engine specifications .................................................... 6.3, 6.8
engine standby ..........................................................2.7 → 2.9
engine start/stop button .............................................2.3 → 2.6
environment ............................................................\
........... 2.17
ESC: electronic stability control ....................1.86, 2.21 → 2.25
external temperature ....................................................... 1.100
F
faults operating faults ................................................5.35 → 5.41
filter air filter ........................................................................\
... 4.9
oil filter .................................................................. 4.5 – 4.6
passenger compartment filter ........................................ 4.9
fitting a radio ...................................................................... 5.26
fittings ...............................................................\
.....3.19 → 3.27
front passenger air bag deactivation ................................. 1.77
front seat adjustment .............................................. 1.29 – 1.30
front seats adjustment ............................................... 1.28 – 1.30, 1.32 fuel
advice on fuel economy ...................................2.12 → 2.15
consumption ....................................................2.12 → 2.15
filling .................................................... 1.84, 1.112 → 1.114
grade ............................................................ 1.112 → 1.114
fuel consumption ...................................................2.12 → 2.15
fuel filler cap ...................................................... 1.112 → 1.114
fuel level ................................................................1.84 → 1.88
fuel tank capacity ...............................................................\
....... 1.112
fuel tank capacity ............................................... 1.112 → 1.114
fuses ..................................................................\
....5.27 → 5.29
G
gear lever..............................................................\
............. 2.11
grip control ........................................................................\
. 2.24
H
handbrake...............................................................\
........... 2.11
hazard warning lights signal ............................................ 1.108
headlight beam adjustment ................................ 1.106 – 1.107
headrest................................................................\
.... 1.28, 3.30
heated seats ...................................................................... 1.29
heated windscreen .................................................. 3.8 → 3.11
heating and air conditioning system ........................3.4 → 3.13
heating system ........................................................3.4 → 3.12
Hill Start Assist.......................................................2.21 → 2.25
horn ...................................................................\
.............. 1.108
horn: flash ..................................................................\
......... 1.108
hubcap tool ................................................................. 5.7 – 5.8
I
idle speed ........................................................................\
.. 2.34
ignition switch ...................................................................... 2.2
indicator lights........................................................\
............ 5.19

7.4
ALPHABETICAL INDEX (4/5)
puncture...................................................5.2 – 5.3,\
5.7 → 5.10
R
radio...................................................................\
................ 3.41
radio frequency remote control/key use ........................................................................\
1.4 – 1.5
rear bench seat......................................................3.3\
1 → 3.34
rear seats..............................................................\
............. 1.34 functions ..........................................................3.31\
→ 3.34
rear view mirrors ................................................. 1.101 – 1.102
remote control door locking batteries ..............................................................\
......... 5.22
remote control door locking unit ................................. 1.2 – 1.3
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.27
RENAULT card battery ................................................................\
.......... 5.23
use ................................................... 1.7 → 1.13, 2.4 → 2.6
RENAULT card battery ...................................................... 5.23
replacement parts .............................................................. 6.11
reverse gear selecting ..............................................................\
......... 2.11
reversing sensor ..................................................... 2.35 – 2.36
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.37 → 1.40
seat belts ......................................................1.32 → 1.40, 1.43
service sheets........................................................6.\
12 → 6.17
side protection devices ...................................................... 1.42
signals and lights ...............................................1.103 → 1.108
speakers location ...............................................................\
......... 5.26
special features of diesel versions.....................................\
2.10
speed limiter .................................................1.87, 2.26 → 2.28
starting the engine .....................................................2.2 → 2.9steering wheel
adjustment .............................................................\
...... 1.31
Stop & Start ......................................................1.87, 2.7 → 2.9
Stop & Start function..................................................2.7 → 2.9
stopping the engine ...................................................2.3 → 2.6
storage compartment.............................................3.19 → 3.27
storage compartments ...........................................3.19 → 3.27
sun visor ........................................................................\
.... 3.16
switching on the vehicle ignition .........................2.2, 2.4 → 2.6
T
tailgate ...............................................................\
....3.36 → 3.39
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ............................................ 6.4 → 6.11
telephone ..............................................................\
............. 3.41
temperature regulation ............................................3.8 → 3.12
tool kit ........................................................................\
. 5.7 – 5.8
towing driving ................................................................\
.......... 2.23
breakdown ........................................................ 5.33 – 5.34
towing equipment ......................................................... 3.40
towing a caravan ............................................. 3.40, 6.9 – 6.10
towing equipment fitting ................................................................\
............ 3.40
towing hitch............................................. 5.7 – 5.8, 5.33 – 5.34
towing rings ...........................................................3.36 → 3.39
towing weights .......................................................... 6.9 – 6.10
traction control .......................................................2.21 → 2.25
transporting children .................1.44 – 1.45, 1.47 → 1.64, 1.77
transporting objects in the luggage compartment ............................3.36 → 3.39
on the roof ........................................................... 6.9 – 6.10
