1.86
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, it in-
dicates a fault in the anti-lock braking
system.
Braking will then be as normal, without
the ABS. Contact an approved Dealer
as soon as possible.
ÔCoolant temperature warn-
ing light
This comes on when the ignition is
switched on.
If it turns red, stop and let the engine
idle for a minute or two.
The temperature should lower and the
warning light should return to a blue
colour. If not, stop the engine. Let the
engine cool down before checking the
coolant.
Contact an approved Dealer.
WARNING LIGHTS (3/4)
Warning light, additive level
and faults in the exhaust gas
reduction system
Refer to the information on "Additive
tank" in Section 1.
ÄToxic Fume Filter System
Warning Light
For vehicles equipped with this option,
the light comes on when the ignition is
switched on then goes out.
– If it lights up continuously, consult your approved dealer as soon as
possible;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Refer to the information on “Advice:
antipollution, fuel economy and driving”
in Section 2.
Electronic Stability Program
(ESP) and traction control
system warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
There are several reasons for the warn-
ing light to come on: please refer to the
information on “Driver correction de-
vices and aids” in Section 2.
A
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

2.8
STOP AND START function (2/3)
Special cases
– For vehicles using a RENAULT card, while the system is operating and
the engine is stopped (traffic jam,
traffic lights, etc.), if the driver gets
out of their seat or unfastens their
seatbelt and opens the driver’s door,
the ignition will be switched off. To
restart and reactivate the Stop and
Start system, press the start button
(please see “Starting and stopping
the engine”).
– In the event of the engine stalling, if the system is operational, press
down the clutch pedal as far as it will
go to restart.
Conditions preventing the
standby of the engine
Depending on the vehicle, certain
conditions prevent the system from
using the engine standby function, in-
cluding when:
– reverse gear is engaged;
– the bonnet is not locked;
– for vehicles using a RENAULT card, the driver’s side door is not closed;
– for vehicles using a RENAULT card, the driver’s seat belt is not buckled;
– the outdoor temperature is too low or too high (less than around 0 °C or
higher than around 30 °C);
– the battery is not sufficiently char- ged;
– the difference between the vehicle interior temperature and the automa-
tic climate control instruction is too
high; – the “Clear View” function is activated
(please see the information on “Air
conditioning” in Section 3);
– the engine coolant temperature is too low;
– automatic particle filter cleaning is underway;
or
– ...
Warning light
 is displayed on the
instrument panel. This notifies you that
engine standby is not available.
To fill up with fuel, the engine must
be stopped (and not on standby):
stop the engine (please refer to the
information on “Starting and stop-
ping the engine” in Section 2).

4.1
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . 4.4
Engine oil level: topping up/filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . 4.5
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 4.7
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.9
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.13
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.15

4.7
Coolant level
With the engine switched off and on
level ground, the level when cold must
be between the MINI and MAXI marks
on reservoir 1.
Top this level up when cold before it
reaches the MINI mark.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
LEVELS (1/3)
1
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
The engine must be
stopped before any action
(and not on standby): stop
the engine (please refer
to the information on “Starting and
stopping the engine” in Section 2).
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.

4.8
Level 2
It is normal for the level to drop as the
brake shoes become worn, but it must
never drop lower than the “MINI" warn-
ing line.
If you wish to check the disc and drum
wear yourself, you should obtain the
document explaining the checking pro-
cedure from the manufacturer’s net-
work or web site.
Topping up
After any operation on the hydraulic cir-
cuit, a specialist must replace the brake
fluid.
Only use fluids approved by our
Technical Department (and taken from
a sealed container).
Replacement interval
Refer to the Maintenance Document for
your vehicle.

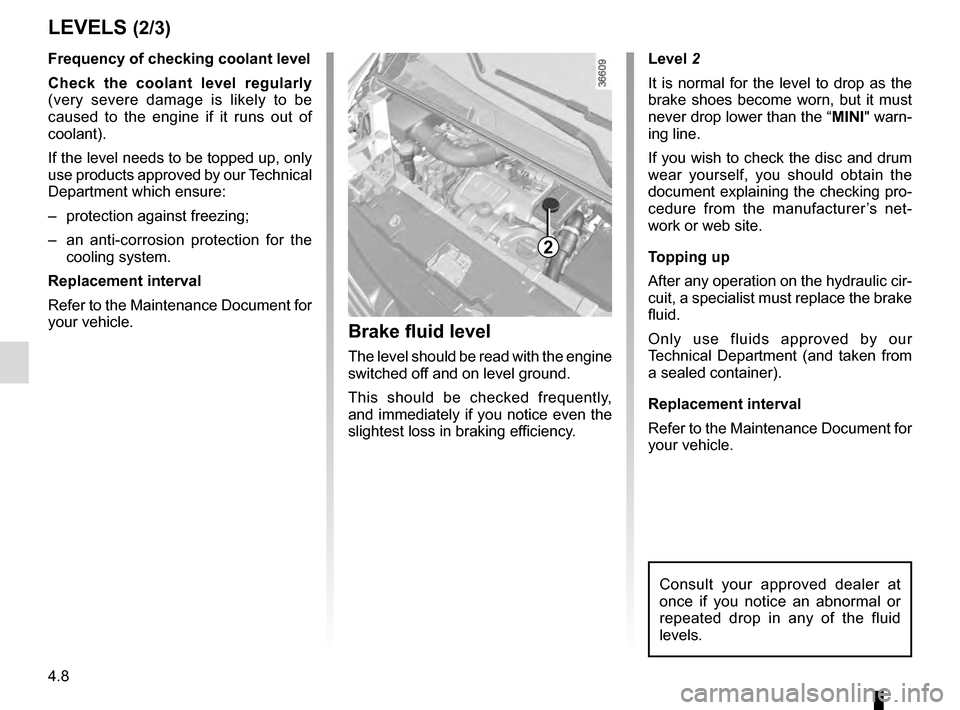

Brake fluid level
The level should be read with the engine
switched off and on level ground.
This should be checked frequently,
and immediately if you notice even the
slightest loss in braking efficiency.
LEVELS (2/3)
2
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
Frequency of checking coolant level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
– protection against freezing;
– an anti-corrosion protection for the cooling system.
Replacement interval
Refer to the Maintenance Document for
your vehicle.

5.39

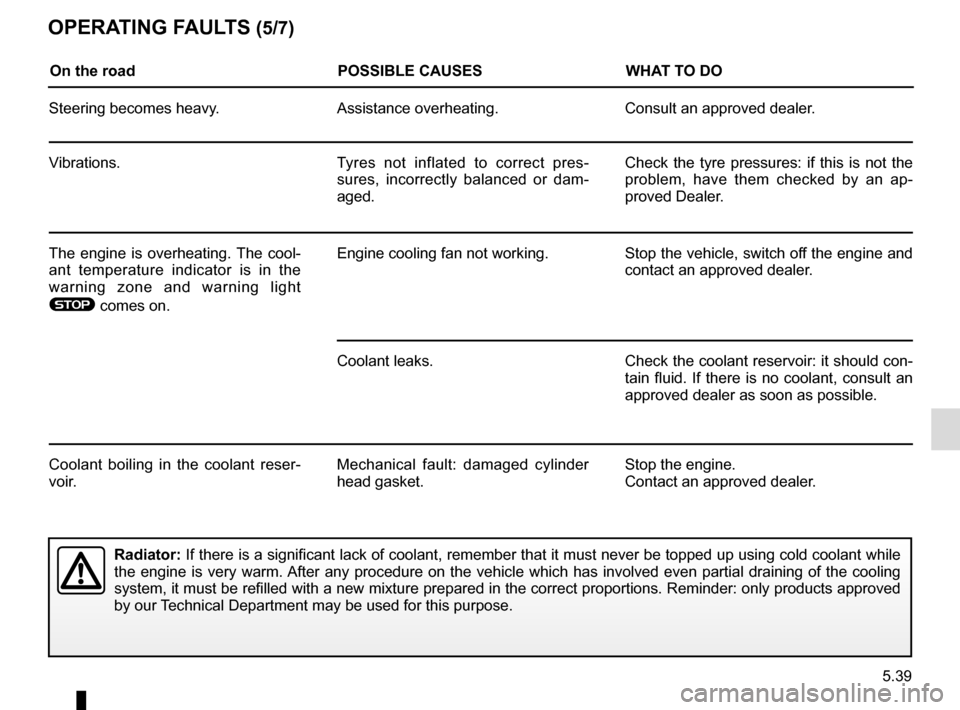

OPERATING FAULTS (5/7)
On the roadPOSSIBLE CAUSESWHAT TO DO
Steering becomes heavy. Assistance overheating.Consult an approved dealer.
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged. Check the tyre pressures: if this is not the
problem, have them checked by an ap-
proved Dealer.
The engine is overheating. The cool-
ant temperature indicator is in the
warning zone and warning light
® comes on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con- tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Coolant boiling in the coolant reser-
voir. Mechanical fault: damaged cylinder
head gasket.Stop the engine.
Contact an approved dealer.
Radiator:
If there is a significant lack of coolant, remember that it must never b\
e topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial drain\
ing of the cooling
system, it must be refilled with a new mixture prepared in the correct p\
roportions. Reminder: only products approved
by our Technical Department may be used for this purpose.

7.2
ALPHABETICAL INDEX (2/5)
driving positionsettings ............................................................1.3\
2 → 1.36
driving recommendations ......................................2.12 → 2.15
E
ECO driving ...........................................................2.12 → 2.15
ECO mode ................................................................ 2.13, 3.10
electric beam height adjustment ......................... 1.106 – 1.107
electric windows ..................................................... 3.14 – 3.15
electronic stability control: ESC .............................2.21 → 2.25
emergency brake assist.........................................2.21 → 2.25
emergency braking ................................................2.21 → 2.25
emergency key ........................................................... 1.7 – 1.8
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.8
engine coolant ..................................................................... 4.7
engine oil ...................................................................4.4 → 4.6
engine oil capacity ...................................................... 4.5 – 4.6
engine oil level ...........................................................4.4 → 4.6
engine specifications .................................................... 6.3, 6.8
engine standby ..........................................................2.7 → 2.9
engine start/stop button .............................................2.3 → 2.6
environment ............................................................\
........... 2.17
ESC: electronic stability control ....................1.86, 2.21 → 2.25
external temperature ....................................................... 1.100
F
faults operating faults ................................................5.35 → 5.41
filter air filter ........................................................................\
... 4.9
oil filter .................................................................. 4.5 – 4.6
passenger compartment filter ........................................ 4.9
fitting a radio ...................................................................... 5.26
fittings ...............................................................\
.....3.19 → 3.27front passenger air bag deactivation ................................. 1.77
front seat adjustment .............................................. 1.29 – 1.30
front seats adjustment ............................................... 1.28 – 1.30, 1.32
fuel advice on fuel economy ...................................2.12 → 2.15
consumption ....................................................2.12 → 2.15
filling .................................................... 1.84, 1.112 → 1.114
grade ............................................................ 1.112 → 1.114
fuel consumption ...................................................2.12 → 2.15
fuel filler cap ...................................................... 1.112 → 1.114
fuel level ................................................................1.84 → 1.88
fuel tank capacity ...............................................................\
....... 1.112
fuel tank capacity ............................................... 1.112 → 1.114
fuses ..................................................................\
....5.27 → 5.29
G
gear lever..............................................................\
............. 2.11
grip control ........................................................................\
. 2.24
H
handbrake...............................................................\
........... 2.11
hazard warning lights signal ............................................ 1.108
headlight beam adjustment ................................ 1.106 – 1.107
headrest................................................................\
.... 1.28, 3.30
heated seats ...................................................................... 1.29
heated windscreen .................................................. 3.8 → 3.11
heating and air conditioning system ........................3.4 → 3.13
heating system ........................................................3.4 → 3.12
Hill Start Assist.......................................................2.21 → 2.25
horn ...................................................................\
.............. 1.108
horn: flash ..................................................................\
......... 1.108
hubcap tool ................................................................. 5.7 – 5.8

7.3

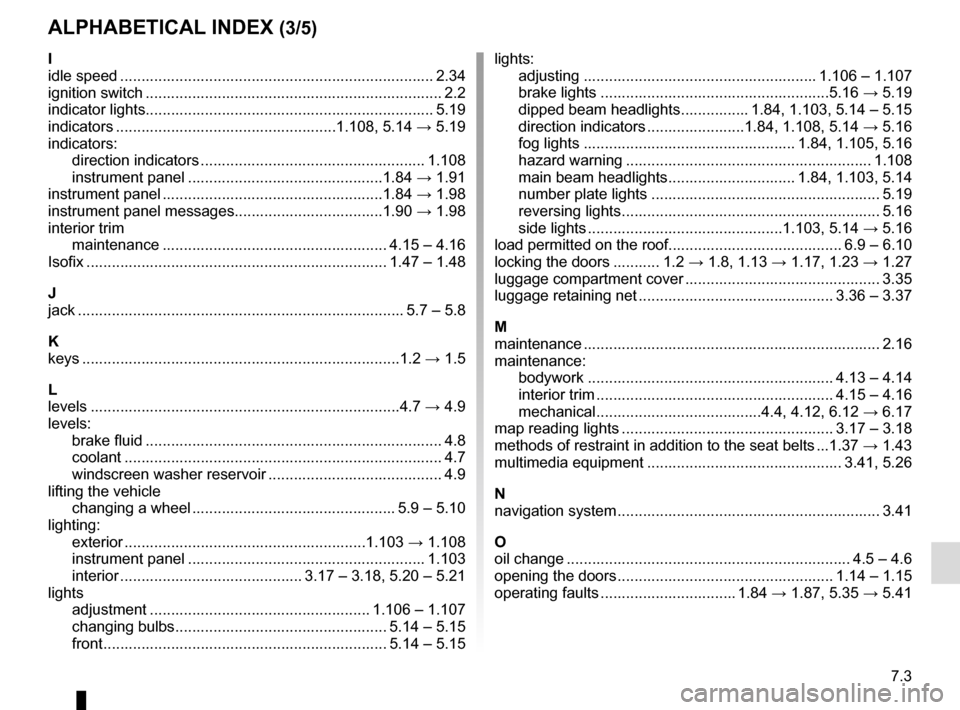

ALPHABETICAL INDEX (3/5)
I
idle speed ........................................................................\
.. 2.34
ignition switch ...................................................................... 2.2
indicator lights........................................................\
............ 5.19
indicators ....................................................1.108, 5.14 → 5.19
indicators: direction indicators ..................................................... 1.108
instrument panel ..............................................1.84 → 1.91
instrument panel ....................................................1.84 → 1.98
instrument panel messages...................................1.90 → 1.98
interior trim maintenance ..................................................... 4.15 – 4.16
Isofix ....................................................................... 1.47 – 1.48
J
jack ........................................................................\
..... 5.7 – 5.8
K
keys ...................................................................\
........1.2 → 1.5
L
levels .................................................................\
........4.7 → 4.9
levels: brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
windscreen washer reservoir ......................................... 4.9
lifting the vehicle changing a wheel ................................................ 5.9 – 5.10
lighting: exterior .........................................................1.103 \
→ 1.108
instrument panel ........................................................ 1.103
interior ........................................... 3.17 – 3.18, 5.20 – 5.21
lights adjustment .................................................... 1.106 – 1.107
changing bulbs .................................................. 5.14 – 5.15
front ................................................................... 5.14 – 5.15 lights:
adjusting ....................................................... 1.106 – 1.107
brake lights ......................................................5.16 → 5.19
dipped beam headlights ................ 1.84, 1.103, 5.14 – 5.15
direction indicators .......................1.84, 1.108, 5.14 → 5.16
fog lights .................................................. 1.84, 1.105, 5.16
hazard warning .......................................................... 1.108
main beam headlights .............................. 1.84, 1.103, 5.14
number plate lights ...................................................... 5.19
reversing lights ............................................................. 5.16
side lights ..............................................1.103, 5.14 → 5.16
load permitted on the roof......................................... 6.9 – 6.10
locking the doors ........... 1.2 → 1.8, 1.13 → 1.17, 1.23 → 1.27
luggage compartment cover .............................................. 3.35
luggage retaining net .............................................. 3.36 – 3.37
M
maintenance ............................................................\
.......... 2.16
maintenance: bodywork .......................................................... 4.13 – 4.14
interior trim ........................................................ 4.15 – 4.16
mechanical .......................................4.4, 4.12, 6.12 → 6.17
map reading lights .................................................. 3.17 – 3.18
methods of restraint in addition to the seat belts ...1.37 → 1.43
multimedia equipment .............................................. 3.41, 5.26
N
navigation system .............................................................. 3.41
O
oil change ................................................................... 4.5 – 4.6
opening the doors ................................................... 1.14 – 1.15
operating faults ................................ 1.84 → 1.87, 5.35 → 5.41

7.4
ALPHABETICAL INDEX (4/5)
P
paintworkmaintenance ..................................................... 4.13 – 4.14
parking distance control.......................................... 2.35 – 2.36
power-assisted steering.................................................\
.... 1.31
pretensioners .........................................................1\
.37 → 1.40
puncture...................................................5.2 – 5.3,\
5.7 → 5.10
R
radio...................................................................\
................ 3.41
radio frequency remote control/key use ........................................................................\
1.4 – 1.5
rear bench seat......................................................3.3\
1 → 3.34
rear seats..............................................................\
............. 1.34 functions ..........................................................3.31\
→ 3.34
rear view mirrors ................................................. 1.101 – 1.102
remote control door locking batteries ..............................................................\
......... 5.22
remote control door locking unit ................................. 1.2 – 1.3
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.27
RENAULT card battery ................................................................\
.......... 5.23
use ................................................... 1.7 → 1.13, 2.4 → 2.6
RENAULT card battery ...................................................... 5.23
replacement parts .............................................................. 6.11
reverse gear selecting ..............................................................\
......... 2.11
reversing sensor ..................................................... 2.35 – 2.36
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.37 → 1.40
seat belts ......................................................1.32 → 1.40, 1.43
service sheets........................................................6.\
12 → 6.17
side protection devices ...................................................... 1.42 signals and lights ...............................................1.103
→ 1.108
speakers location ...............................................................\
......... 5.26
special features of diesel versions.....................................\
2.10
speed limiter .................................................1.87, 2.26 → 2.28
starting the engine .....................................................2.2 → 2.9
steering wheel adjustment .............................................................\
...... 1.31
Stop & Start ......................................................1.87, 2.7 → 2.9
Stop & Start function..................................................2.7 → 2.9
stopping the engine ...................................................2.3 → 2.6
storage compartment.............................................3.19 → 3.27
storage compartments ...........................................3.19 → 3.27
sun visor ........................................................................\
.... 3.16
switching on the vehicle ignition .........................2.2, 2.4 → 2.6
T
tailgate ...............................................................\
....3.36 → 3.39
tank AdBlue ......................................................... 1.115 → 1.118
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ............................................ 6.4 → 6.11
telephone ..............................................................\
............. 3.41
temperature regulation ............................................3.8 → 3.12
tool kit ........................................................................\
. 5.7 – 5.8
towing driving ................................................................\
.......... 2.23
breakdown ........................................................ 5.33 – 5.34
towing equipment ......................................................... 3.40
towing a caravan ............................................. 3.40, 6.9 – 6.10
towing equipment fitting ................................................................\
............ 3.40
