RENAULT TRAFIC 2017 X82 / 3.G Owners Manual

3.17
SUN VISOR
Sun visor
Lower sun visor 1.
The sun visor can be swung round
against the window.
1
1
Courtesy mirror or additional
rear-view mirror 2
(depending on the vehicle)
Lower the sun visor to access the
mirror.
Special feature of the additional
rear-view mirror
Please refer to the information on
“Rear-view mirrors” in Section 1.
2

3.18
Courtesy lights
Switches 1, 2 or 3 provide:– permanent lighting;
– intermittent lighting, which comes on when a door is opened. It goes out
when the doors concerned are prop-
erly closed;
– immediate switching off.
When the doors are unlocked and
opened, the courtesy and footwell
lights come on temporarily.
INTERIOR LIGHTING (1/2)
1
2
3
Map reading light(depending on the vehicle)
Move switch 4.
14

3.19
5
Boot light 5
It comes on when the boot is opened.
With the doors properly shut, lock-
ing or starting the engine make the
interior lights and the courtesy lights
go out.
INTERIOR LIGHTING (2/2)
Glovebox light 4
This lights up when the glovebox is
opened.
4
Rear light 6
Move switch 7 to get:
– permanent lighting;
– intermittent lighting, which comes
on when a rear door is opened. The
light only goes out when the doors
are correctly closed;
– lighting switches off immediately.
7
6

3.20
PASSENGER COMPARTMENT STORAGE/FITTINGS (1/9)
Location 1
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Storage compartment 3
To open, pull the handle 2.
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
2
1
Sun visor storage 4
This can be used for storing motorway
tickets, cards, etc.
4

3.21
PASSENGER COMPARTMENT STORAGE/FITTINGS (2/9)
5
Storage 5
These can hold bank cards, loose
change, etc.
Telephone holder 6
Using a telephone and/or
multimedia tablet
We remind you of the need
to conform to the legislation
in force concerning the use of such
equipment.
6

3.22
PASSENGER COMPARTMENT STORAGE/FITTINGS (3/9)
Holder for multimedia tablet 8
Pull the handle 7 towards you fully.
Swivel the holder 8 and push it in fully.
If necessary, lower the base 9 of the
holder 8 to extend it.
To refit it, pull the holder fully towards
you, lift it up until it is horizontal and
push it in fully.
7
88
9

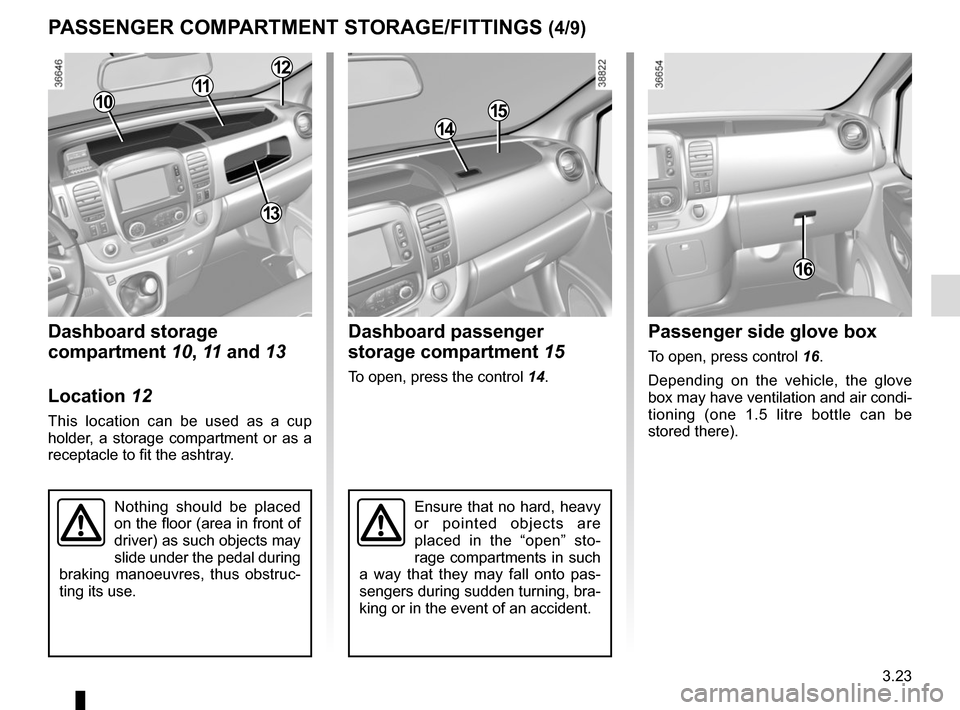

3.23
Dashboard passenger
storage compartment 15
To open, press the control 14.
PASSENGER COMPARTMENT STORAGE/FITTINGS (4/9)
Dashboard storage
compartment 10, 11 and 13
Location 12
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Passenger side glove box
To open, press control 16.
Depending on the vehicle, the glove
box may have ventilation and air condi-
tioning (one 1.5 litre bottle can be
stored there).
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.
16
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
1011
12
13
15
14

3.24
PASSENGER COMPARTMENT STORAGE/FITTINGS (5/9)
Location 17
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Front door storage
compartments 18
When turning corners,
accelerating or braking,
ensure that the recep-
tacle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
Storage compartment 20 under the front seat
To access this, pull the tab 19 and move
the seat A forwards.
Always close the seat base
when driving:
– there is a risk of injury
when braking suddenly or
in the event of an accident;
– there is a risk of objects being hurled through the passenger
compartment.
20
17
18
A
19

3.25
Storage 25
To open, press control 22.
The strap 26 inside can keep an item
in position.
With the storage 25 closed, the pas-
sage 27 allows you to plug in a charg-
ing cord to connect devices to an ac-
cessories socket.Seatback in table position
On equipped vehicles, lower the back
of the centre seat by lifting the con-
trol 24. On the back of the centre seat
you will find:
– a cup holder 21;
– storage 25;
– a shelf 23.
When turning corners,
accelerating or braking,
ensure that the recep-
tacle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
It is forbidden to sit in the
centre seat if its seatback is
folded down.
24
PASSENGER COMPARTMENT STORAGE/FITTINGS (6/9)
23
2526
Note: Make sure the storage 17 is
closed before folding back the centre
seat.
17
21
2227

3.26
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning, bra-
king or in the event of an accident.
You can attach it using the document
grip 32.
To remove the tray, press the con-
trol 33.
NB: Make sure you replace the tray
and remove any item from the cup
holder before raising the centre seat
back. Check that the back of the centre
seat is properly locked.Tray 23
To unlock the tray, press the control 30.
To install the tray, insert the end
pieces 31 of the tray into the slots 28
or 29.
23
28
29
31
PASSENGER COMPARTMENT STORAGE/FITTINGS (7/9)
2330
33
32
