5.15
B
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved dealer.

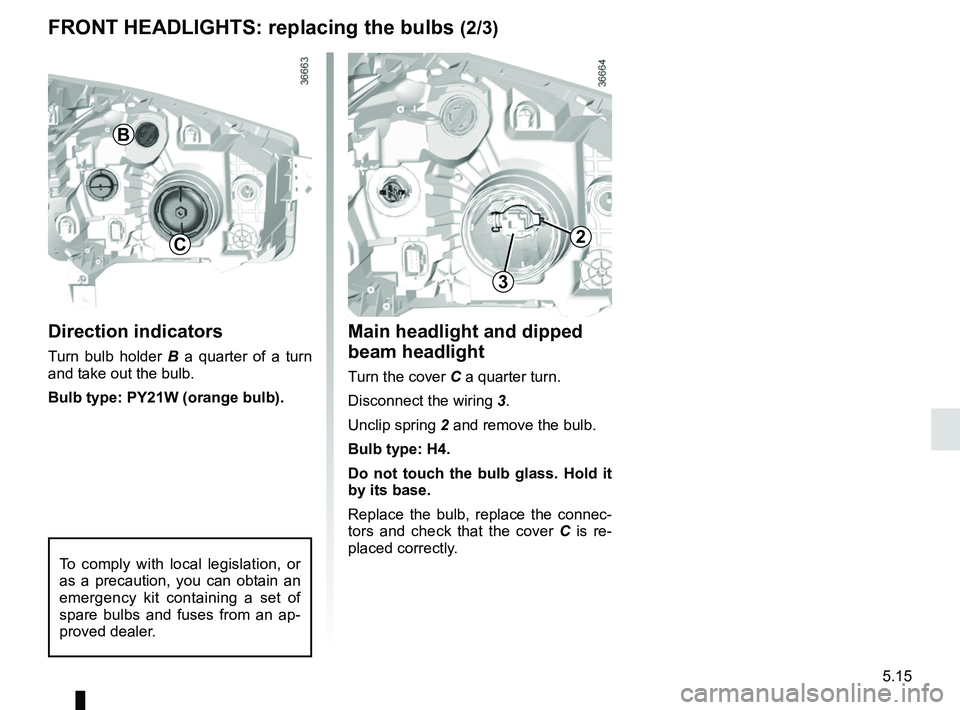

Direction indicators
Turn bulb holder B a quarter of a turn
and take out the bulb.
Bulb type: PY21W (orange bulb).
3
2
Main headlight and dipped
beam headlight
Turn the cover C a quarter turn.
Disconnect the wiring 3.
Unclip spring 2 and remove the bulb.
Bulb type: H4. Do not touch the bulb glass. Hold it
by its base.
Replace the bulb, replace the connec-
tors and check that the cover C is re-
placed correctly.
C
FRONT HEADLIGHTS: replacing the bulbs (2/3)

5.16

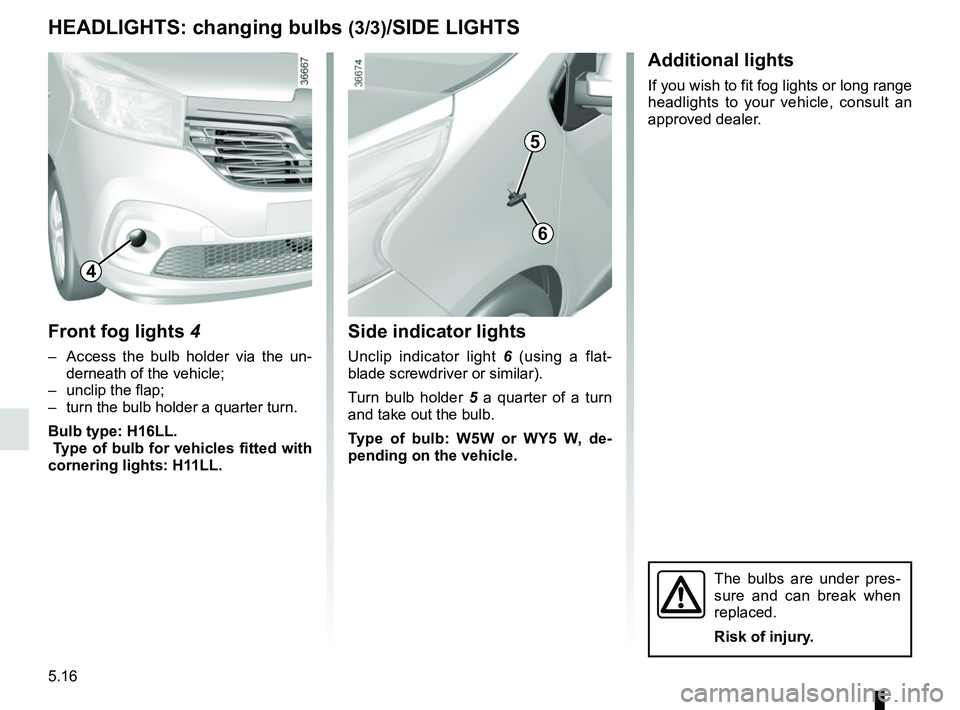

HEADLIGHTS: changing bulbs (3/3)/SIDE LIGHTS
Front fog lights 4
– Access the bulb holder via the un-
derneath of the vehicle;
– unclip the flap;
– turn the bulb holder a quarter turn.
Bulb type: H16LL.
Type of bulb for vehicles fitted with
cornering lights: H11LL.
4
Side indicator lights
Unclip indicator light 6 (using a flat-
blade screwdriver or similar).
Turn bulb holder 5 a quarter of a turn
and take out the bulb.
Type of bulb: W5W or WY5 W, de-
pending on the vehicle.
5
6
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

5.17

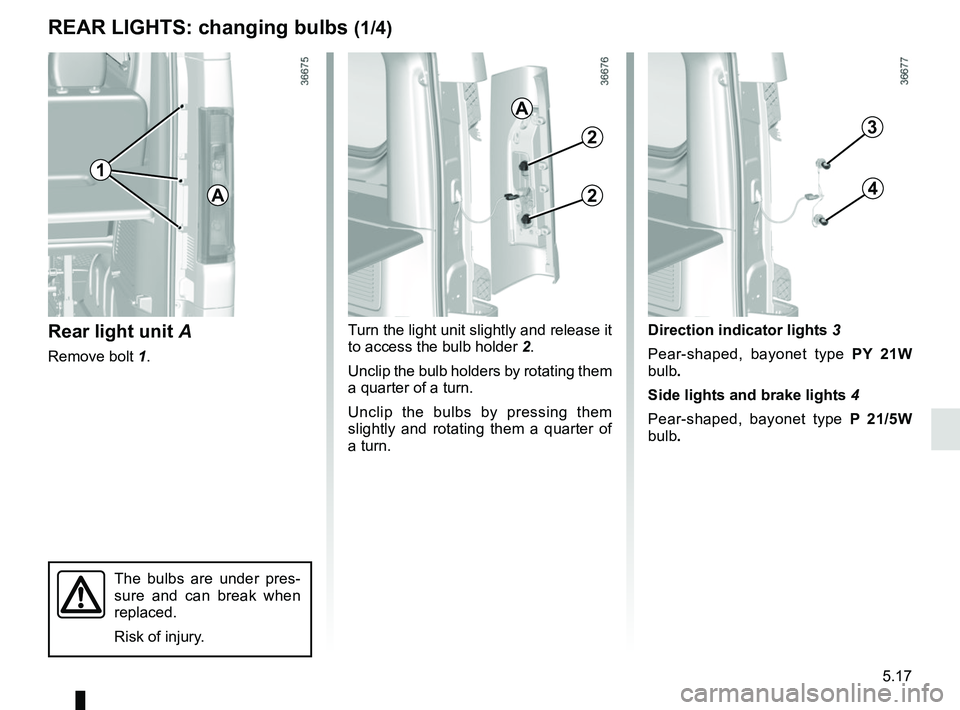

REAR LIGHTS: changing bulbs (1/4)
Rear light unit A
Remove bolt 1.
Turn the light unit slightly and release it
to access the bulb holder 2.
Unclip the bulb holders by rotating them
a quarter of a turn.
Unclip the bulbs by pressing them
slightly and rotating them a quarter of
a turn.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
A
A
2
2
1
3
4
Direction indicator lights 3
Pear-shaped, bayonet type PY 21W
bulb .
Side lights and brake lights 4
Pear-shaped, bayonet type P 21/5W
bulb .

5.18

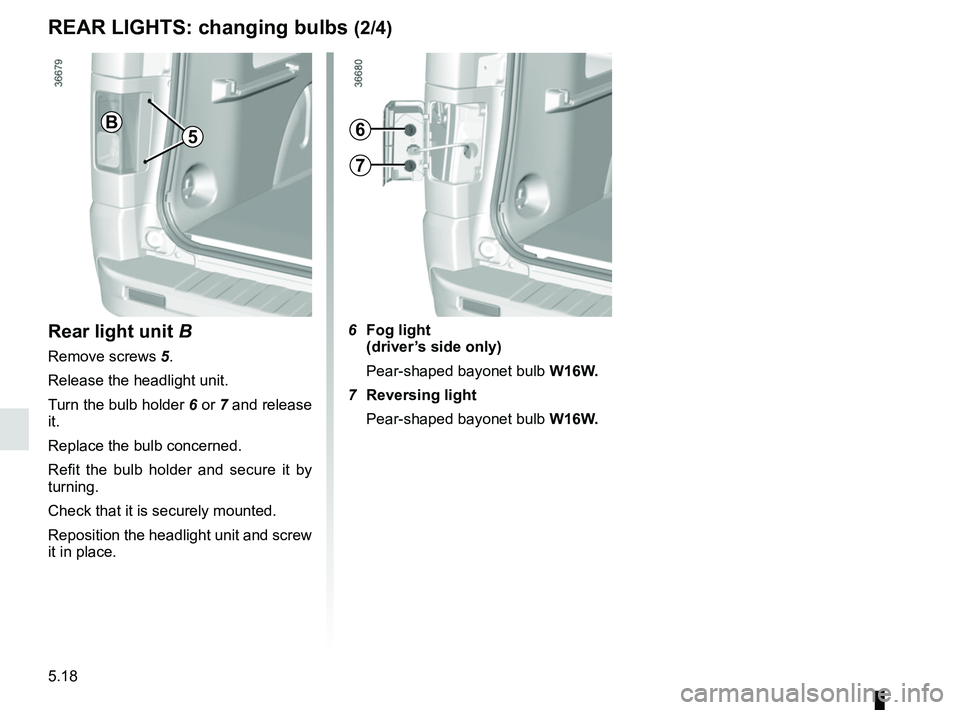

REAR LIGHTS: changing bulbs (2/4)
Rear light unit B
Remove screws 5.
Release the headlight unit.
Turn the bulb holder 6 or 7 and release
it.
Replace the bulb concerned.
Refit the bulb holder and secure it by
turning.
Check that it is securely mounted.
Reposition the headlight unit and screw
it in place.
6 Fog light (driver’s side only)
Pear-shaped bayonet bulb W16W.
7 Reversing light Pear-shaped bayonet bulb W16W.
B56
7

5.19

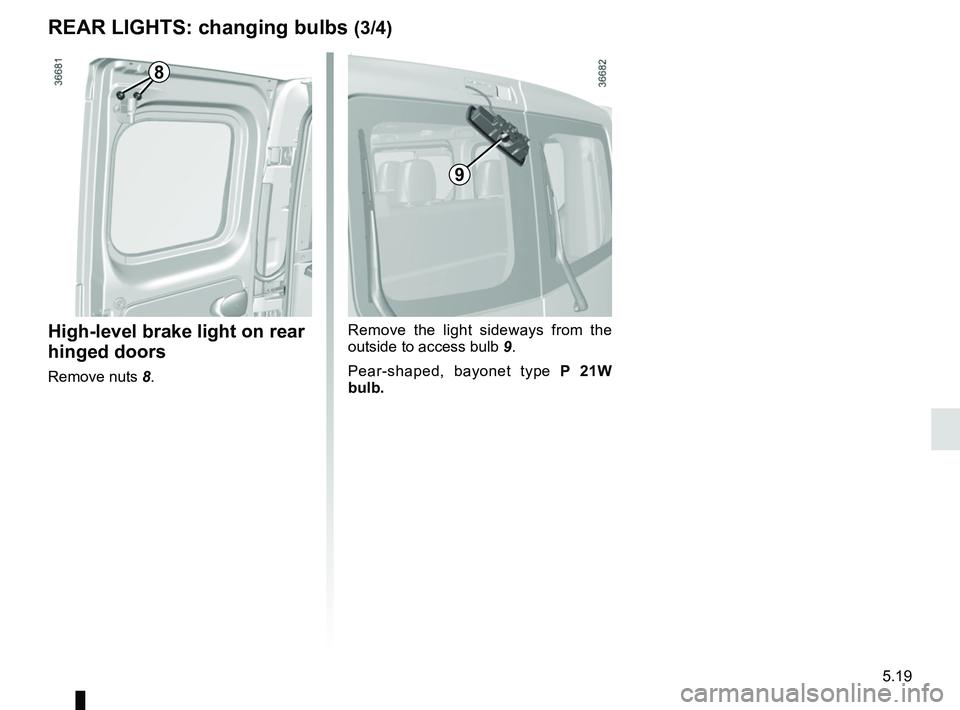

REAR LIGHTS: changing bulbs (3/4)
High-level brake light on rear
hinged doors
Remove nuts 8.Remove the light sideways from the
outside to access bulb
9.
Pear-shaped, bayonet type P 21W
bulb.
9
8

5.20

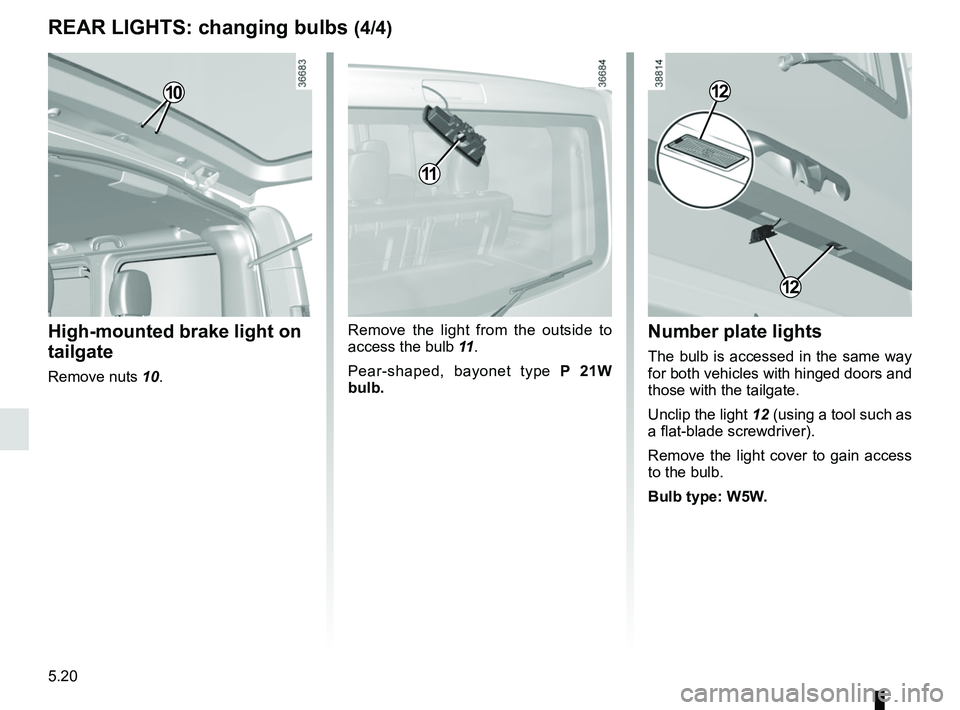

REAR LIGHTS: changing bulbs (4/4)
High-mounted brake light on
tailgate
Remove nuts 10.
Remove the light from the outside to
access the bulb 11.
Pear-shaped, bayonet type P 21W
bulb.Number plate lights
The bulb is accessed in the same way
for both vehicles with hinged doors and
those with the tailgate.
Unclip the light 12 (using a tool such as
a flat-blade screwdriver).
Remove the light cover to gain access
to the bulb.
Bulb type: W5W.
11
10
12
12

5.21
Special features for vehicles fitted
with a reading lamp
Type of bulb 2: W6W
Type of reading lamp 3: W5W

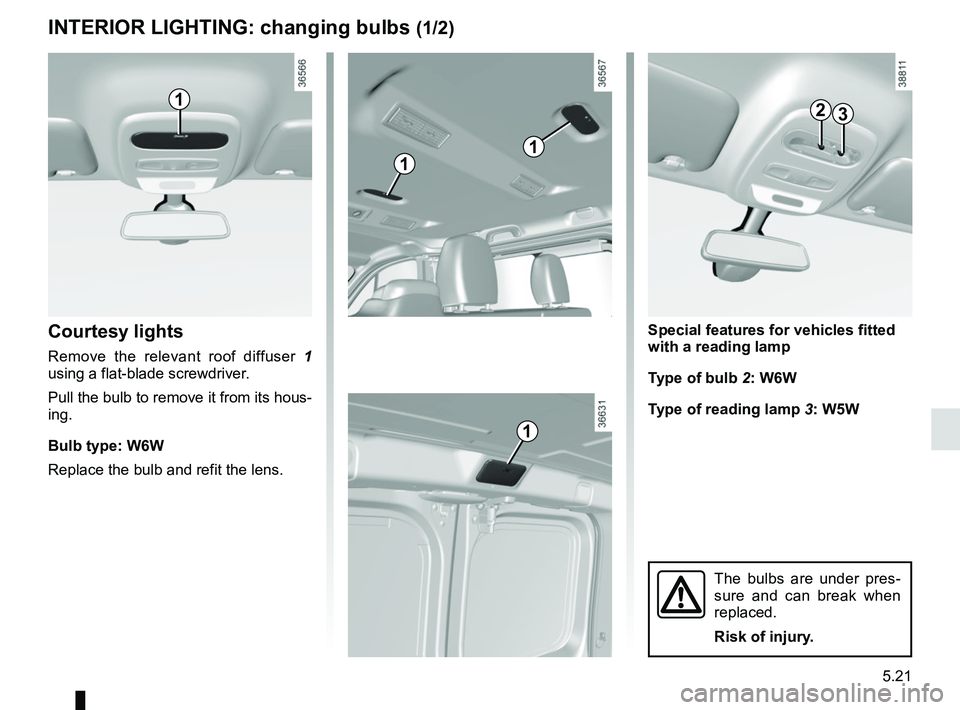

INTERIOR LIGHTING: changing bulbs (1/2)
Courtesy lights
Remove the relevant roof diffuser 1
using a flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type: W6W
Replace the bulb and refit the lens.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
1
1
1
23

5.22

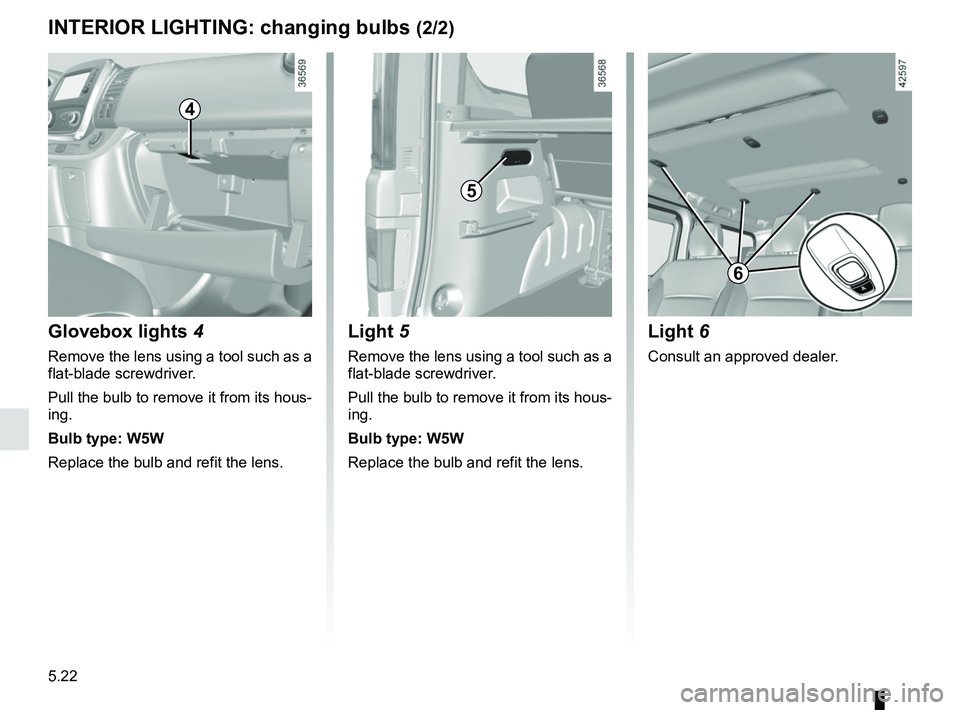

INTERIOR LIGHTING: changing bulbs (2/2)
Glovebox lights 4
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type: W5W
Replace the bulb and refit the lens.
Light 5
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type: W5W
Replace the bulb and refit the lens.
4
5
Light 6
Consult an approved dealer.
6

5.23
RADIO FREQUENCY REMOTE CONTROL: battery
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy-
cles used batteries.
1
Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
2

5.24
Operating faultsIf the battery is too weak to ensure cor-
rect operation, you can still start (insert
the RENAULT card in the card reader)
and lock/unlock the vehicle (refer to the
information on "Locking/unlocking the
doors" in Section 1).

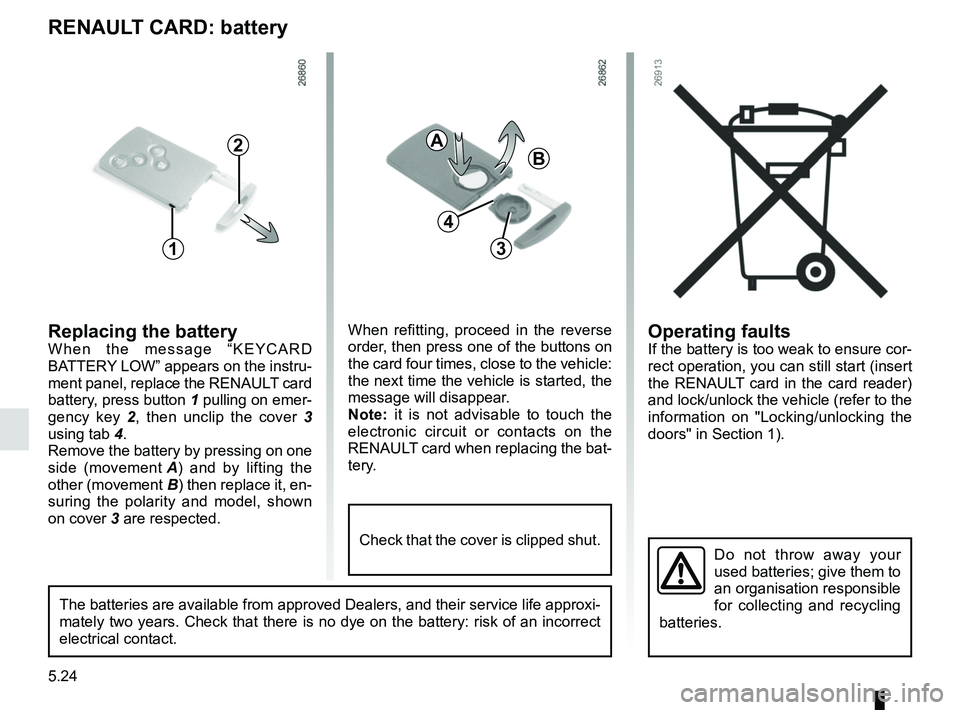

RENAULT CARD: battery
Replacing the batteryWhen the message “KEYCARD
BATTERY LOW” appears on the instru-
ment panel, replace the RENAULT card
battery, press button 1 pulling on emer-
gency key 2, then unclip the cover 3
using tab 4.
Remove the battery by pressing on one
side (movement A) and by lifting the
other (movement B) then replace it, en-
suring the polarity and model, shown
on cover 3 are respected.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
1
2
When refitting, proceed in the reverse
order, then press one of the buttons on
the card four times, close to the vehicle:
the next time the vehicle is started, the
message will disappear.
Note: it is not advisable to touch the
electronic circuit or contacts on the
RENAULT card when replacing the bat-
tery.
A
B
3
The batteries are available from approved Dealers, and their service lif\
e approxi-
mately two years. Check that there is no dye on the battery: risk of an \
incorrect
electrical contact.
4
Check that the cover is clipped shut.
