PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET022
CONTINUED 1
Deal with DF001 Coolant temperature sensor circuit first.
Check the consistency of PR064 Coolant temperature.
If this status is inconsistent:
Disconnect the battery.
Check the condition of the engine management computer connector (component code 120).
For NEW TWINGO and E33:
Check the condition of the air conditioning control unit connector (component code 419).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise change the wiring.
Use the universal bornier to check the insulation and continuity of the following connections:
●133B between components 120 and 419,
●133C between components 120 and 419.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, carry out fault finding on the UCH system (see 87B, Passenger compartment
connection unit).
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
Repeat the conformity check from the start.

17B-185V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET042
CONTINUED 1

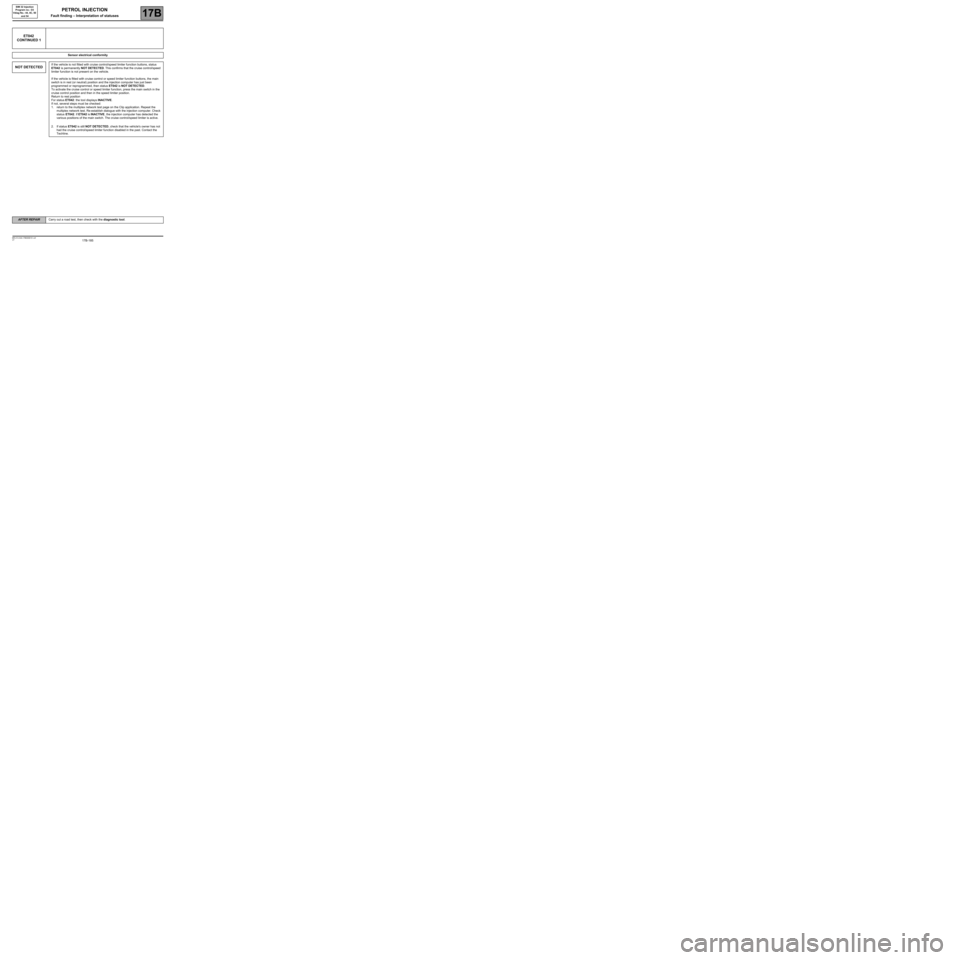

Sensor electrical conformity
NOT DETECTEDIf the vehicle is not fitted with cruise control/speed limiter function buttons, status
ET042 is permanently NOT DETECTED. This confirms that the cruise control/speed
limiter function is not present on the vehicle.
If the vehicle is fitted with cruise control or speed limiter function buttons, the main
switch is in rest (or neutral) position and the injection computer has just been
programmed or reprogrammed, then status ET042 is NOT DETECTED.
To activate the cruise control or speed limiter function, press the main switch in the
cruise control position and then in the speed limiter position.
Return to rest position
For status ET042: the tool displays INACTIVE.
If not, several steps must be checked:
1. return to the multiplex network test page on the Clip application. Repeat the
multiplex network test. Re-establish dialogue with the injection computer. Check
status ET042. If ET042 is INACTIVE, the injection computer has detected the
various positions of the main switch. The cruise control/speed limiter is active.
2. If status ET042 is still NOT DETECTED, check that the vehicle's owner has not
had the cruise control/speed limiter function disabled in the past. Contact the
Techline.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-190V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET048ACTUATOR RELAY CONTROL
STATUS
DEFINITIONACTIVE: The status indicates that the control is active.
INACTIVE: The status indicates that the control is inactive.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check: Engine stopped and ignition on, or engine running at idle speed, and engine coolant
temperature > 80˚C.
"INACTIVE"
or
ACTIVEThis relay supplies the following actuators: the injectors, the throttle valve control,
the oxygen sensor heating, the bleed solenoid valve, the fuel vapour absorber
and connection 3FB of the injection computer.
In the event of a fault, see the interpretation of fault DF084 Actuator relay control
circuit.
SIM32_V44_ET048/SIM32_V4C_ET048/SIM32_V50_ET048/SIM32_V54_ET048
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-193V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET052UPSTREAM O2 SENSOR HEATING
STATUS
DEFINITIONACTIVE: This status indicates that the upstream oxygen sensor heater is active.
INACTIVE: This status indicates that the upstream oxygen sensor heater is inactive.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check: engine stopped and ignition on.
"INACTIVE"The status is inactive when the engine is off.
In the event of a fault, apply interpretation of DF082 Upstream oxygen sensor
heating circuit.
Conformity check: engine running at idle speed, engine coolant temperature > 80˚C.
"ACTIVE"The status becomes active when the engine is started and its operation increases
according to the heating temperature.
In the event of a fault, apply the interpretation of DF082.
SIM32_V44_ET052/SIM32_V4C_ET052/SIM32_V50_ET052/SIM32_V54_ET052
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-194V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET053DOWNSTREAM O2 SENSOR HEATING
STATUS
DEFINITIONACTIVE: This status indicates that the downstream oxygen sensor heater is active.
INACTIVE: This status indicates that the downstream oxygen sensor heater is inactive.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check: engine stopped and ignition on.
"INACTIVE"The status is inactive when the engine is off.
In the event of a fault, apply interpretation of DF083 Downstream oxygen sensor
heating circuit.
Conformity check: engine running at idle speed, engine coolant temperature > 80˚C.
"ACTIVE"The status becomes active when the engine is started and its operation increases
according to the heating temperature.
In the event of a fault, apply the interpretation of DF083.
SIM32_V44_ET053/SIM32_V4C_ET053/SIM32_V50_ET053/SIM32_V54_ET053
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-196V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET054
CONTINUED
IDLING SPEED TOO LOW
Check:
–engine oil level (too high, splashing),
–that the exhaust pipe is not blocked (catalytic converter damaged),
–the cleanliness and conformity of the air filter,
–that the air inlet circuit is not blocked,
–that the throttle valve assembly is not clogged,
–the condition and conformity of the spark plugs,
–the fuel circuit sealing,
–the fuel pressure and the flow (see MR 392 (Clio III), MR 385 (Modus), MR 411 (New Twingo), or MR 442
(E33), Mechanical, 13A, Fuel supply),
–the condition and cleanliness of the injectors,
–the cylinder compression's,
–the timing setting.
Repair or replace the faulty components, if necessary.
IDLING SPEED TOO HIGH
Check:
–engine oil level (too high, splashing),
–for the fittings in the oil vapour rebreathing system,
–the sealing between the throttle valve and inlet manifold,
–the manifold pressure sensor sealing,
–the fuel vapour absorber bleed, which must not be jammed open,
–the fuel vapour absorber bleed system sealing,
–the brake servo system sealing,
–the sealing between the inlet manifold and cylinder head,
–the oil vapour recovery circuit sealing between the inlet manifold and cylinder head,
–the fuel pressure and the flow (see MR 392 (Clio III), MR 385 (Modus), MR 411 (New Twingo), or MR 442
(E33), Mechanical, 13A, Fuel supply),
–the condition and cleanliness of the injectors,
–the cylinder compression's,
–the timing adjustment,
Repair or replace the faulty components, if necessary.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-197V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET056DOUBLE RICHNESS LOOP
STATUS
DEFINITIONACTIVE: The status indicates that the double richness loop is active.
INACTIVE: The status indicates that the double richness loop is inactive.
NOTESThere must be no present or stored faults.
Special notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check: Engine stopped and ignition on, or engine running at idle speed, and engine coolant
temperature > 80˚C.
"INACTIVE"
or
ACTIVEThis status is only inactive if one of the two oxygen sensors is in poor condition.
In the event of a fault, apply the interpretation of faults DF082 Upstream oxygen
sensor heating circuit, DF083 Downstream oxygen sensor heating circuit,
DF092 Upstream oxygen sensor circuit, DF093 Downstream oxygen
sensor circuit.
SIM32_V44_ET056/SIM32_V4C_ET056/SIM32_V50_ET056/SIM32_V54_ET056
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-199V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54

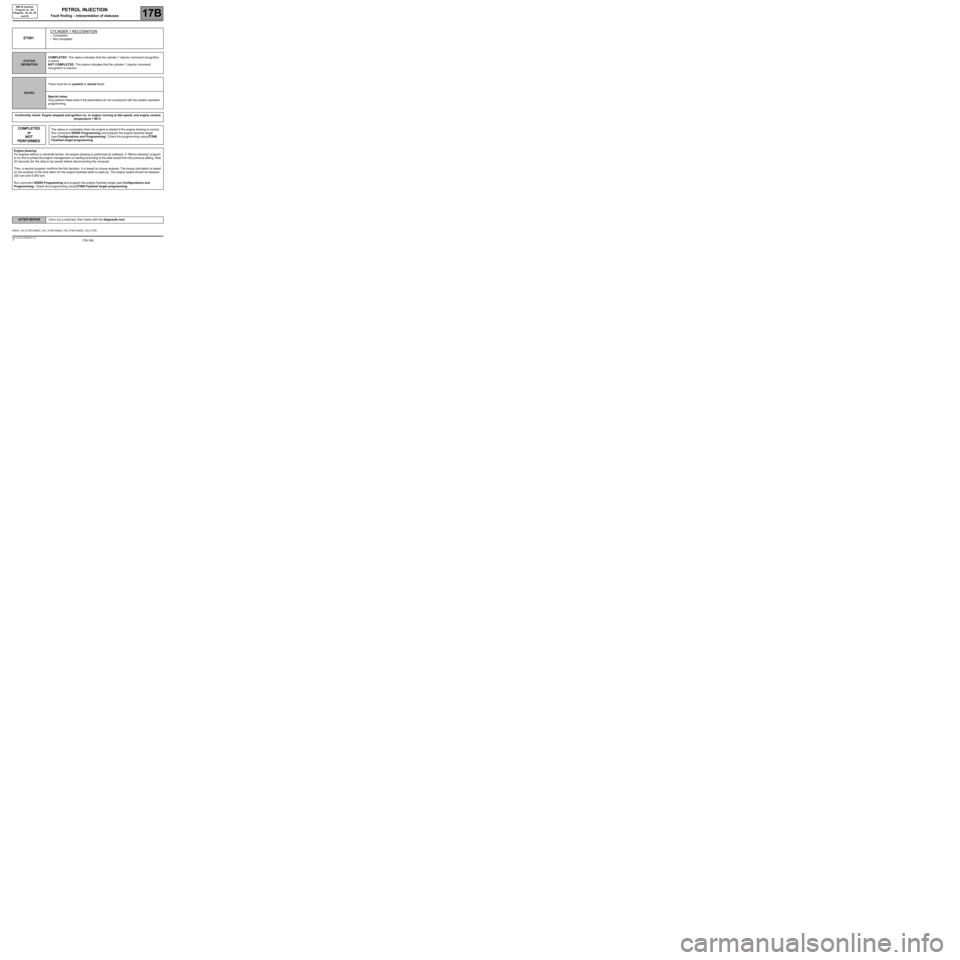

ET061CYLINDER
1 RECOGNITION
–Completed
–Not completed
STATUS
DEFINITIONCOMPLETED: This status indicates that the cylinder 1 injector command recognition
is active.
NOT COMPLETED: This status indicates that the cylinder 1 injector command
recognition is inactive.
NOTESThere must be no present or stored faults.
Special notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check: Engine stopped and ignition on, or engine running at idle speed, and engine coolant
temperature > 80˚C.
COMPLETED
or
NOT
PERFORMEDThe status is completed when the engine is started if the engine phasing is correct.
Run command RZ005 Programming and program the engine flywheel target
(see Configurations and Programming). Check the programming using ET089
Flywheel target programming.
Engine phasing:
On engines without a camshaft sensor, the engine phasing is performed by software. A "Memo-phasing" program
is run first to phase the engine management on starting according to the data saved from the previous setting. Wait
30 seconds (for the data to be saved) before disconnecting the computer.
Then, a second program confirms the first decision. It is based on torque analysis. The torque calculation is based
on the analysis of the time taken for the engine flywheel teeth to pass by. The engine speed should be between
320 rpm and 5,000 rpm.
Run command RZ005 Programming and program the engine flywheel target (see Configurations and
Programming). Check the programming using ET089 Flywheel target programming.
SIM32_V44_ET061/SIM32_V4C_ET061/SIM32_V50_ET061/SIM32_V54_ET061
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-200V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET062FLYWHEEL SIGNAL–detected
–not detected
STATUS
DEFINITIONDETECTED: This status indicates that the engine flywheel signal is detected.
NOT DETECTED: This status indicates that the engine flywheel signal is not detected.
NOTESThere must be no present or stored faults.
Special notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check: engine stopped and ignition on.
NOT DETECTEDThe engine flywheel signal is detected after the engine is started.
In the event of a fault apply the interpretation for DF154 Flywheel signal sensor
circuit.
Conformity check with engine running at idle speed, engine coolant temperature > 80˚C
DETECTED The engine flywheel signal is detected after the engine is started.
In the event of a fault apply the interpretation for DF154 Flywheel signal sensor
circuit.
SIM32_V44_ET062/SIM32_V4C_ET062/SIM32_V50_ET062/SIM32_V54_ET062
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

17B-205V7 MR-413-X44-17B000$151.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET081ACCELERATOR PEDAL POSITION
STATUS
DEFINITIONNO LOAD: This status indicates that there is no load on the accelerator pedal.
FULL LOAD: This status indicates that the accelerator pedal is fully depressed.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
"YES"
or
"NO"YES or NO, depending on the pedal status.
In the event of a fault, apply the interpretation of DF196 Pedal sensor circuit gang 1
and DF198 Pedal sensor circuit gang 2.
SIM32_V44_ET081/SIM32_V4C_ET081/SIM32_V50_ET081/SIM32_V54_ET081
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
