RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-16
AIR BAG AND PRETENSIONERS
Side curtain airbag: Removal - Refitting
FRONT SIDE AIRBAG, and REAR AIRBAG 01
88C
-the curtain side airbag retaining clips (4) using a
small flat-blade screwdriver.
a

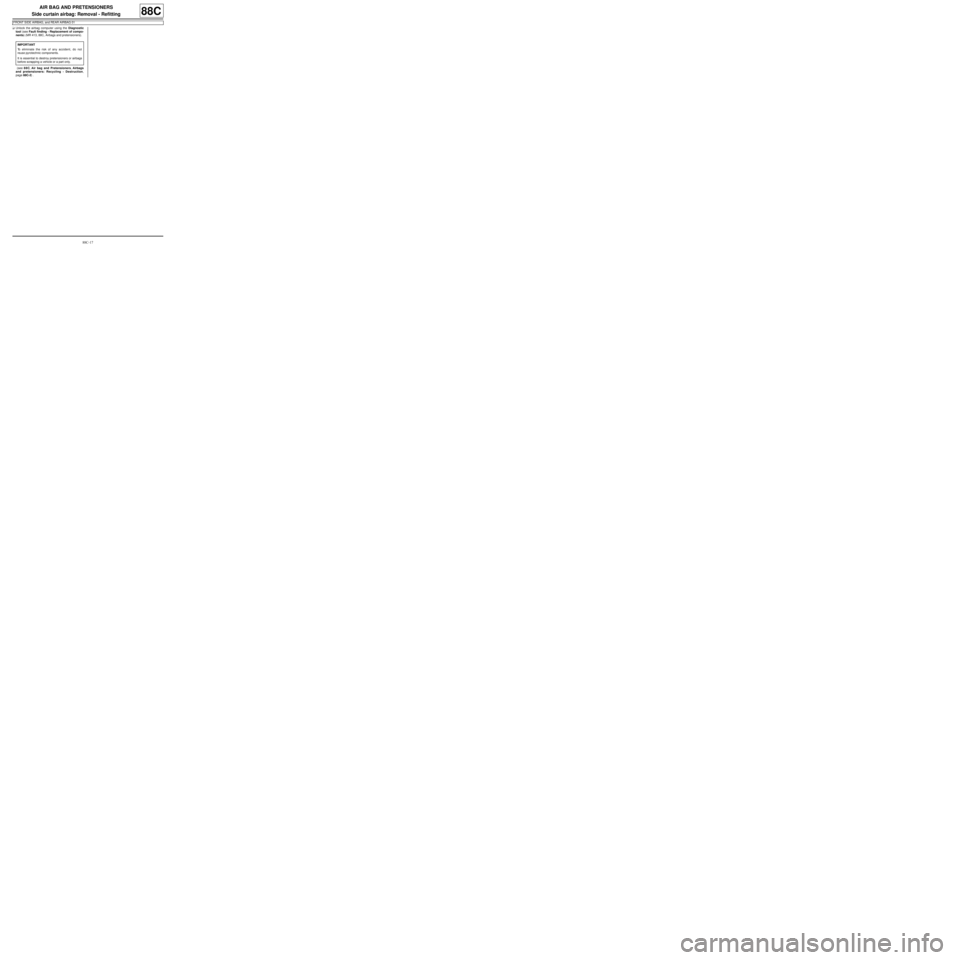

Page 232 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-17
AIR BAG AND PRETENSIONERS
Side curtain airbag: Removal - Refitting
FRONT SIDE AIRBAG, and REAR AIRBAG 01
88C
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replaceme

Page 233 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-18
AIR BAG AND PRETENSIONERS
Side impact sensor: Removal - Refitting
FRONT SIDE AIRBAG, and REAR AIRBAG 01
88C
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (s

Page 234 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-19
AIR BAG AND PRETENSIONERS
Side impact sensor: Removal - Refitting
FRONT SIDE AIRBAG, and REAR AIRBAG 01
88C
II -  OPERATION FOR REMOVAL OF PART
CONCERNED
a
aDisconnect the impact sensor connec

Page 235 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-20
AIR BAG AND PRETENSIONERS
Side impact sensor: Removal - Refitting
FRONT SIDE AIRBAG, and REAR AIRBAG 01
88C
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacemen

Page 236 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-21
AIR BAG AND PRETENSIONERS
Front buckle pretensioner: Removal - Refitting
88C
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting)

Page 237 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-22
AIR BAG AND PRETENSIONERS
Front buckle pretensioner: Removal - Refitting
88C
II -  OPERATION FOR REMOVAL OF PART
CONCERNED
a
aDisconnect the front buckle pretensioner connector
(4) .
aRemove:

Page 238 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-23
AIR BAG AND PRETENSIONERS
Front buckle pretensioner: Removal - Refitting
88C
aConnect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
aUnlock the airbag computer us

Page 239 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-24
AIR BAG AND PRETENSIONERS
Inhibitor switch: Removal - Refitting
88C
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the seal (1) from the front right-hand door.
aUnclip the right-hand

Page 240 of 241

RENAULT TWINGO 2009 2.G Electrical Equipment Workshop Manual 88C-25
AIR BAG AND PRETENSIONERS
Inhibitor switch: Removal - Refitting
88C
II -  FINAL OPERATION.
aCheck:
- the operation of the switch,
- the “airbag off” warning light on the instrument pa-
nel.
