air conditioning RENAULT TWINGO 2009 2.G Engine And Peripherals Service Manual

19A-15
COOLING
Cooling radiator: Removal - Refitting
K9K
19A
aDisconnect the pressostat connector (4) .
aRemove the plastic cover (5) from the condenser.
aUnscrew the condenser connecting pipe unions (6) .aUncouple the connecting pipes from the condenser.
aDrain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) .
aUse the (Mot. 1448) to disconnect:
-the top hose (7) on the radiator,
-the degassing hose (8) on the radiator. K9K, and 740, and AIR CONDITIONING
121174
121312
WARNING
To prevent moisture from entering the system,
place plugs on the cold loop components which
are open to the air.
121431

19A-17
COOLING
Cooling radiator: Removal - Refitting
K9K
19A
-the top hose on the radiator,
-the bottom hose on the radiator.
a
aLubricate the seals with the recommended air condi-
tioning oil to facilitate fitting.
aFit the condenser connecting pipes.
aFit the connecting pipe unions to the condenser.
aRefit the plastic cover on the condenser.
aConnect the pressostat connector.
aRefit:
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protec-
tion),
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres).
aConnect the battery (see ) (80A, Battery).
aFill and bleed the cooling system (see 19A, Cool-
ing, Cooling system: Draining - Refilling, page
19A-9) .aCheck that the system is operating correctly (see Air
conditioning: Check) (62A, Air conditioning).
aFill the refrigerant circuit using a refrigerant charg-
ing station (see Refrigerant circuit: Draining -
Filling) (62A, Air conditioning).
aCheck the refrigerant circuit (see Refrigerant cir-
cuit: Check) (62A, Air conditioning). AIR CONDITIONING
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Also, do not remove the components from their
packaging until they are to be fitted to the vehi-
cle.
WARNING
To avoid any leaks, check that the seal and the
pipe surface are in good condition. The seal and
the surface must be clean and scratch free.
AIR CONDITIONING

19A-20
COOLING
Cooling radiator: Removal - Refitting
K4M
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aDrain the air conditioning circuit using a refrigerant
charging station (see Refrigerant circuit: Drain-
ing - Filling) (62A, Air conditioning).
aRemove:
-the engine undertray bolts,
-the engine undertray,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protec-
tion),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
aDrain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) . Special tooling required
Mot. 1448Remote operation pliers for
hose clips .
Equipment required
refrigerant charging station
safety strap(s)
Tightening torquesm
bolt of the dehydrator
reservoir - « expansion
valve connecting pipe » 8 N.m
compressor - con-
denser « connecting
pipe bolt » 8 N.m
air conditioning connect-
ing pipe bolts8 N.m
IMPORTANT
When working in the engine compartment, take
care as the radiator fan(s) may start up unexpect-
edly (risk of being cut).
To avoid any risk of serious burns when the engine
is hot:
-do not open the expansion bottle cap,
-do not drain the cooling system,
-do not open the bleed screw(s).
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
WARNING
When carr ying out a repair that requires a complete
change, it is essential to flush the circuit with clean
water, blast compressed air through the circuit to
drive out the water, fill and bleed the circuit and
then measure the effective protection.
The cr iteria to be met are:
-protection down to -25˚C ±± ± ±
2 for cold and temper-
ate countries,
-protection down to -40˚C ±± ± ±
2 for "extreme cold"
countries.

19A-21
COOLING
Cooling radiator: Removal - Refitting
K4M
19A
aDisconnect the connector (1) from the air condition-
ing pressure sensor.
aRemove:
-the condenser protector (2) ,
-the « dehydrator reservoir - expansion valve » con-
necting pipe bolt (3) ,
-the « compressor - condenser » connecting pipe
bolt (4) .
aDisconnect:
-the « dehydrator reservoir - expansion valve » con-
necting pipe,
-the « compressor - condenser » connecting pipe.
aFit protective plugs onto the air conditioning pipe
unions.
aRemove using the (Mot. 1448) :
-the cooling radiator top hose clip,
-the cooling radiator degassing hose clip.
aDisconnect:
-the cooling radiator top hose,
-the cooling radiator degassing hose.aDisconnect:
-the engine cooling fan assembly resistor connector
(5) ,
-the engine cooling fan assembly connector (6) .
aUnclip:
-the engine cooling fan assembly wiring at (7) ,
-the cooling radiator top and bottom hose from the
engine cooling fan assembly.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aAttach the « radiator - condenser- fan » assembly to
the upper cross member using a safety strap(s).
aRemove:
-the radiator mounting cross member (see Radiator
mounting cross member: Removal - Refitting)
(41A, Front lower structure),
-the « radiator - condenser- fan » assembly by loos-
ening the safety strap(s).
132335132336

19A-22
COOLING
Cooling radiator: Removal - Refitting
K4M
19A
On the workbench
aUnclip:
-the engine cooling fan assembly from the radiator
at (8) by pushing it upwards to detach the brackets
holding it,
-the cooling radiator protector (9) .
REFITTING
I - REFITTING PREPARATION OPERATION
aAlways replace the seals on the air conditioning
pipes.
On the workbench
aClip:
-the radiator protector,
-the engine cooling fan assembly to the cooling ra-
diator.
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the « radiator - condenser - fan » assembly,
-the radiator mounting cross member (see Radiator
mounting cross member: Removal - Refitting)
(41A, Front lower structure).III - FINAL OPERATION.
aClip:
-the cooling radiator top and bottom hose on the en-
gine cooling fan assembly,
-the engine cooling fan assembly wiring.
aConnect:
-the engine cooling fan assembly connector,
-the engine cooling fan assembly resistor connec-
tor.
aConnect:
-the cooling radiator top hose,
-the cooling radiator degassing hose.
aUsing the (Mot. 1448), fit:
-the cooling radiator top hose clip,
-the cooling radiator degassing hose clip.
aRefit the new seals on the air conditioning pipes.
aConnect:
-the « dehydrator reservoir - expansion valve » con-
necting pipe,
-the « compressor - condenser » connecting pipe.
aTighten to torque:
-the bolt of the dehydrator reservoir -
« expansion valve connecting pipe » (8 N.m),
-the compressor - condenser « connecting pipe
bolt » (8 N.m).
aTorque tighten the air conditioning connecting
pipe bolts (8 N.m).
aRefit the condenser protector.
aConnect the air conditioning pressure sensor con-
nector.
aRefit:
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protec-
tion),
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres).
aConnect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
132336

19A-23
COOLING
Cooling radiator: Removal - Refitting
K4M
19A
aPerform the following operations:
-fill the air conditioning circuit using a refrigerant
charging station (see Refrigerant circuit: Drain-
ing - Filling) (62A, Air conditioning),
-fill and bleed the coolant circuit (see 19A, Cooling,
Cooling system: Draining - Refilling, page 19A-
9) .
aRefit the engine undertray.

19A-24
COOLING
Coolant pump: Removal - Refitting
D4F or D7F
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aDisconnect the battery (see ) (MR 411, 80A, Bat-
tery).
aRemove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 411, 35A, Wheels and tyres),
-the front wheel arch liner (see Front wheel arch
liner: Removal - Refitting) (MR 412, 55A, Exterior
protection),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-3) ,
-the engine tie-bar (see 19D, Engine mounting,
Lower engine tie-bar: Removal - Refitting, page
19D-18) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-13) ,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-27) .
aDrain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) .
aRemove the rigid coolant pipe bolt on the multifunc-
tion support.
aMove the rigid water pump pipe aside.aRemove the coolant pump inlet pipe (see 19A,
Cooling, Coolant pump inlet pipe: Removal - Re-
fitting, page 19A-58) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the coolant pump bolts,
-the coolant pump,
-the coolant pump seal.
aRemove the coolant pump bolts.
aMove the coolant pump 5 mm away from its bearing
face.
aPivot the coolant pump casing in the direction of the
arrows, (1) and then (2) .
aRemove:
-the coolant pump, Tightening torquesm
coolant pump bolts10 N.m
AIR CONDITIONING
D4F, and 780 or 782
STANDARD HEATING
AIR CONDITIONING
120515

19A-25
COOLING
Coolant pump: Removal - Refitting
D4F or D7F
19A
-the coolant pump seal.
REFITTING
I - REFITTING PREPARATION OPERATION
aApply SUPER CLEANER FOR JOINT FACES (see
Vehicle: Parts and consumables for the repair)
(MR 411, 04B, Consumables - Products) to the ar-
eas to be cleaned.
aLeave for approximately ten minutes.
aRemove the residue using a wooden spatula.
aComplete the cleaning of the parts using an abrasive
pad.
aDegrease the joint faces with SURFACE CLEANER
(see Vehicle: Parts and consumables for the re-
pair) (MR 411, 04B, Consumables - Products).
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the water pump fitted with a new seal,
-the coolant pump bolts.aTighten to torque and in order the coolant pump
bolts (10 N.m).
aRefit the coolant pump inlet pipe (see 19A, Cooling,
Coolant pump inlet pipe: Removal - Refitting,
page 19A-58) .
III - FINAL OPERATION
aFit the rigid water pump pipe with a new seal.
aRefit the rigid coolant pipe bolt on the multifunction
support.
aRefit:
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-27) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-13) ,
-the engine tie-bar (see 19D, Engine mounting,
Lower engine tie-bar: Removal - Refitting, page
19D-18) , WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
IMPORTANT
Wear latex gloves during the operation.
WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).
120516
D4F, and 780 or 782
AIR CONDITIONING

19A-51
COOLING
Engine cooling fan assembly: Removal - Refitting
C44, and K9K
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift ( (see Vehicle:
Towing and lifting) )
aDisconnect the battery ( (see Battery: Removal -
Refitting) ).
aRemove:
-the engine undertray bolts,
-the engine undertray,
-the front bumper ( (see Front bumper: Removal -
Refitting) ),
-the left-hand and right-hand headlights (see Halo-
gen headlight: Removal - Refitting) .
aRemove:
-the cooling radiator retaining lug bolt,
-the expansion bottle bolt onto the front upper cross
member,
-the air filter inlet air pipe bolt on the front upper
cross member.
aUnclip and then remove from the front upper cross
member:
-the air filter inlet air pipe,
-the expansion bottle.
aRemove the bonnet lock nuts.
aRemove the « cable - bonnet catch » assembly.
aRemove the front upper cross member ( (see Front
upper cross member: Removal - Refitting) )
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the electrical connectors on the engine
cooling fan assembly.
aUnclip:
-the engine cooling fan assembly wiring,
-the coolant hose at the bottom of the engine cool-
ing fan assembly.aPress on the engine cooling fan assembly locking
tabs (1) on the cooling radiator.
Note:
Do not unclip the bonnet release cable to avoid
damaging the cable clip on the lock.
AIR CONDITIONING
120324
Note:
Be careful not to press too hard on the tabs to
avoid breaking them.

19A-53

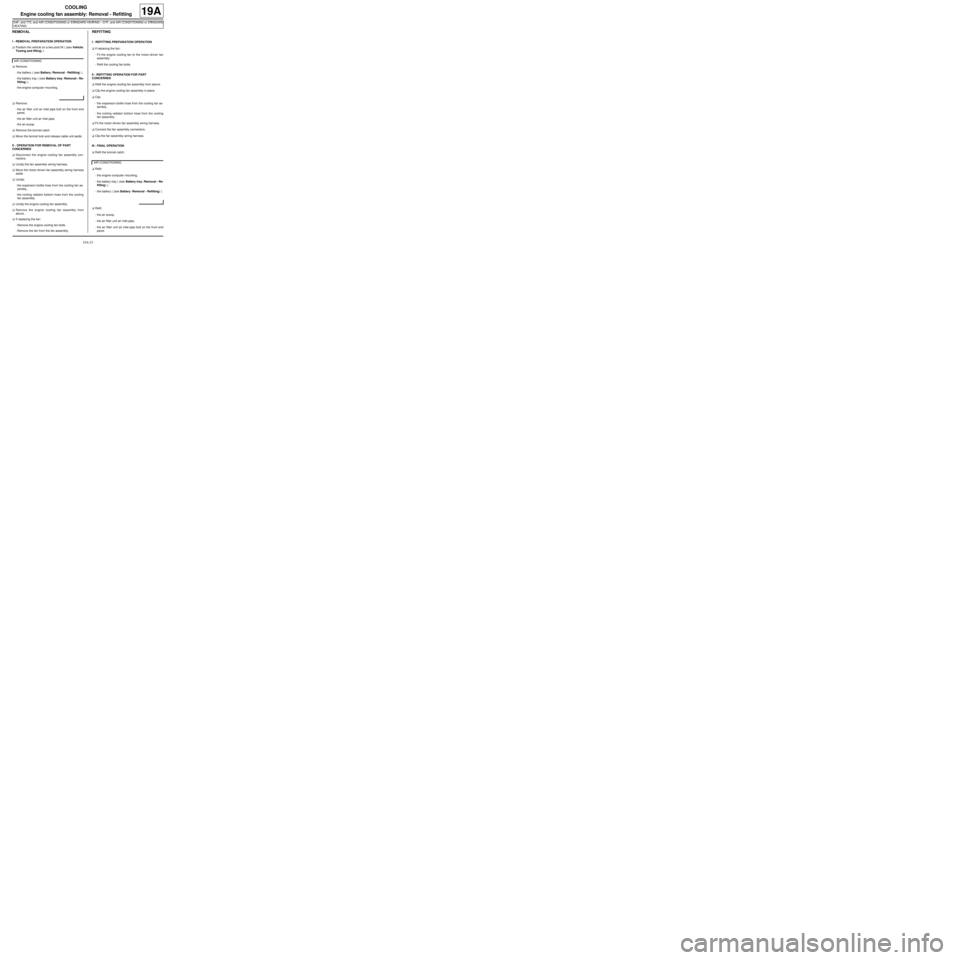

COOLING
Engine cooling fan assembly: Removal - Refitting
D4F, and 772, and AIR CONDITIONING or STANDARD HEATING – D7F, and AIR CONDITIONING or STANDARD
HEATING
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift ( (see Vehicle:
Towing and lifting) ).
aRemove:
-the battery ( (see Battery: Removal - Refitting) ),
-the battery tray ( (see Battery tray: Removal - Re-
fitting) ),
-the engine computer mounting,
aRemove:
-the air filter unit air inlet pipe bolt on the front end
panel,
-the air filter unit air inlet pipe,
-the air scoop.
aRemove the bonnet catch.
aMove the bonnet lock and release cable unit aside.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the engine cooling fan assembly con-
nectors.
aUnclip the fan assembly wiring harness.
aMove the motor-driven fan assembly wiring harness
aside.
aUnclip:
-the expansion bottle hose from the cooling fan as-
sembly,
-the cooling radiator bottom hose from the cooling
fan assembly.
aUnclip the engine cooling fan assembly.
aRemove the engine cooling fan assembly from
above. .
aIf replacing the fan:
-Remove the engine cooling fan bolts.
-Remove the fan from the fan assembly.
REFITTING
I - REFITTING PREPARATION OPERATION
aIf replacing the fan:
-Fit the engine cooling fan to the motor-driven fan
assembly.
-Refit the cooling fan bolts.
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit the engine cooling fan assembly from above.
aClip the engine cooling fan assembly in place.
aClip:
-the expansion bottle hose from the cooling fan as-
sembly,
-the cooling radiator bottom hose from the cooling
fan assembly.
aFit the motor-driven fan assembly wiring harness.
aConnect the fan assembly connectors.
aClip the fan assembly wiring harness.
III - FINAL OPERATION
aRefit the bonnet catch.
aRefit:
-the engine computer mounting,
-the battery tray ( (see Battery tray: Removal - Re-
fitting) ),
-the battery ( (see Battery: Removal - Refitting) ).
aRefit:
-the air scoop,
-the air filter unit air inlet pipe,
-the air filter unit air inlet pipe bolt on the front end
panel. AIR CONDITIONING
AIR CONDITIONING
