DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C

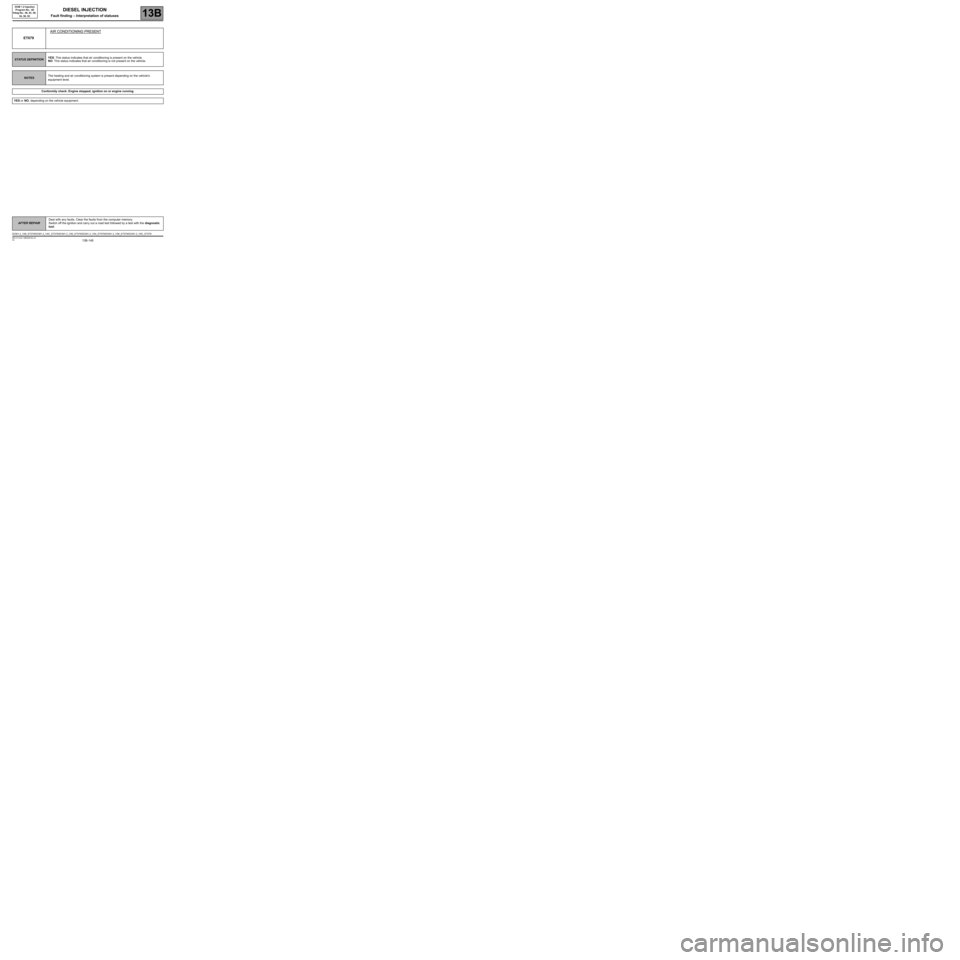

ET079AIR CONDITIONING PRESENT
STATUS DEFINITIONYES: This status indicates that air conditioning is present on the vehicle.
NO: This status indicates that air conditioning is not present on the vehicle.
NOTESThe heating and air conditioning system is present depending on the vehicle's
equipment level.
Conformity check: Engine stopped, ignition on or engine running.
YES or NO, depending on the vehicle equipment.
DCM1.2_V48_ET079/DCM1.2_V4C_ET079/DCM1.2_V50_ET079/DCM1.2_V54_ET079/DCM1.2_V58_ET079/DCM1.2_V5C_ET079

13B-149
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET088REQUEST TO START COMPRESSOR
STATUS DEFINITIONACTIVE: the compressor activation request is active.
INACTIVE: the compressor activation request is not active.
Conformity check: Engine stopped and ignition on, or engine running and engine coolant temperature
> 80
°C
ACTIVEStatus ET088 becomes ACTIVE if there has been a request for air conditioning (press
on AC or AUTO button, with maximum cold request) and status ET004 is YES.
The selection is made on the air conditioning control panel, the request for air
conditioning is transmitted to the UCH which in turn transmits the request to the injection
computer which either authorises or does not authorise compressor activation. If the
injection computer authorises activation of the compressor, it sends the compressor
activation request to the UPC and status ET088 Compressor activation request
becomes ACTIVE (Climate control).
If the vehicle is equipped with manual air conditioning, the air conditioning request is
transmitted from the air conditioning control panel to the UCH which then accepts or does
not accept the air conditioning compressor coming on depending on the operating status
of the passenger compartment fan. When the request has been accepted, the request
to switch on the compressor is transmitted to the injection computer which either
authorises or does not authorise the compressor to start.
If the injection computer authorises compressor activation, it sends the compressor
activation request to the UPC and status ET088 Compressor activation request
becomes ACTIVE.
If there has been no compressor activation request and status ET088 remains ACTIVE,
see 62A, Air conditioning.
Note: Compressor operation is only authorised when the engine is running.
Compressor activation is commanded by the UPC.
INACTIVEStatus ET088 is INACTIVE when no air conditioning request has been made. When
compressor activation is not authorised (ET004 is NO or when the driver switches the
air conditioning off.
If a compressor activation request has been made and status ET088 remains INACTIVE
see 62A, Air conditioning.
Note: Compressor operation is only authorised when the engine is running.
Compressor activation is commanded by the UPC.
DCM1.2_V48_ET088/DCM1.2_V4C_ET088/DCM1.2_V50_ET088/DCM1.2_V54_ET088/DCM1.2_V58_ET088/DCM1.2_V5C_ET088

13B-150
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
*RCH = Passenger Compartment Heating Resistors
ET111SET NUMBER OF PASSENGER COMPARTMENT HEATING RESISTORS
STATUS DEFINITIONThis status indicates that the injection computer is blocking any change to the number
of passenger compartment air heating resistors active (active ones are not cut off, but
no more can be added). This freeze in the number of heating resistors is in response to
vehicle needs (availability of power, need for torque etc.).
Conformity check: Engine stopped and ignition on, or engine running and engine coolant temperature
> 80
°C
YESDepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer sets the number of activated passenger
compartment heating resistors (no more or no fewer than required).
Status ET111 becomes YES when the number of activated passenger compartment
heating resistors is set by the injection computer.
NODepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer sets the number of activated passenger
compartment heating resistors (no more or no fewer than required). Status ET111
becomes NO if the number of passenger compartment heating resistors engaged can
be freely controlled by the UCH.
DCM1.2_V48_ET111/DCM1.2_V4C_ET111/DCM1.2_V50_ET111/DCM1.2_V54_ET111/DCM1.2_V58_ET111/DCM1.2_V5C_ET111

13B-151
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
*RCH = Passenger Compartment Heating Resistors
ET112PASSENGER COMPARTMENT HEATING RESISTOR CUT-OFF
STATUS DEFINITIONThis status indicates that the injection computer is blocking activation of all passenger
compartment air heating resistors due to vehicle needs (availability of power, need for
torque, injection defect mode or heating and ventilation etc.).
Conformity check: Engine stopped and ignition on, or engine running and engine coolant temperature
> 80
°C
YESDepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer cuts off the passenger compartment heating
resistors.
Status ET112 becomes YES when the passenger compartment heating resistors are cut
off by the injection computer.
NODepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer cuts off the passenger compartment heating
resistors.
Status ET112 becomes NO when the passenger compartment heating resistors can be
freely controlled by the UCH.
DCM1.2_V48_ET112/DCM1.2_V4C_ET112/DCM1.2_V50_ET112/DCM1.2_V54_ET112/DCM1.2_V58_ET112/DCM1.2_V5C_ET112

13B-152
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C

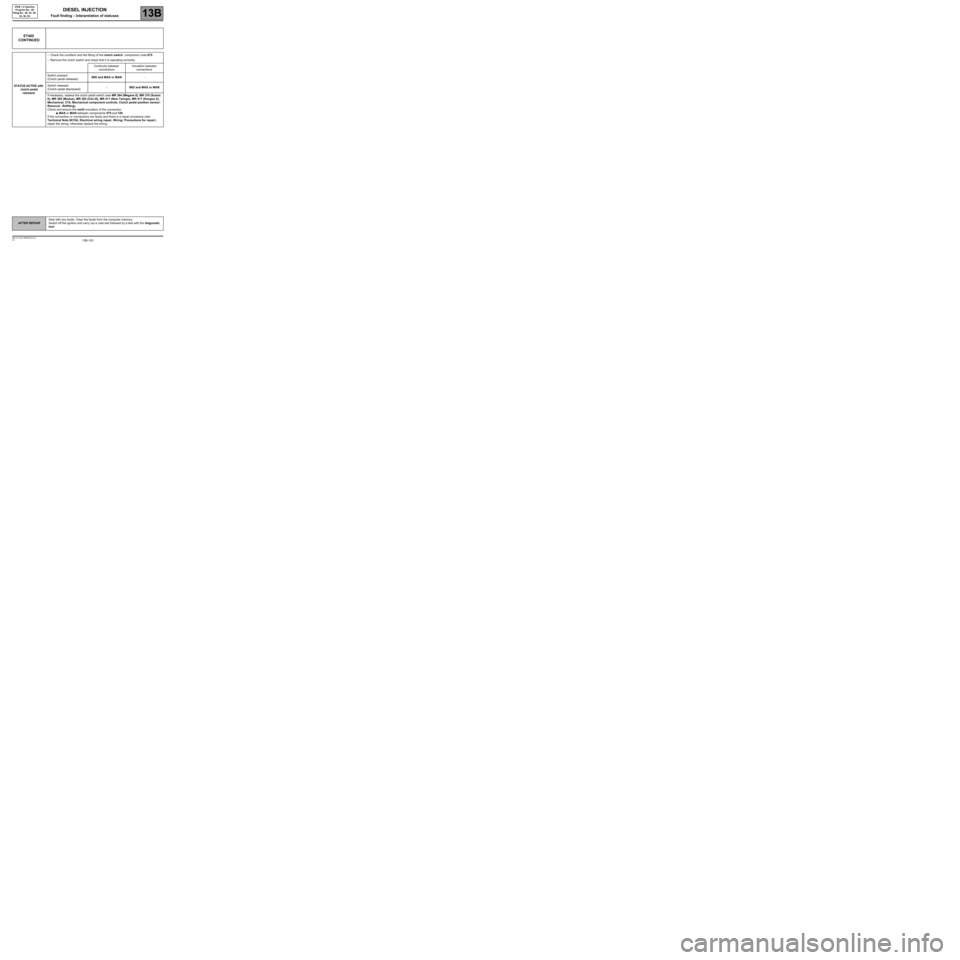

ET405CLUTCH PEDAL SWITCH
STATUS DEFINITIONACTIVE: this status indicates that the clutch pedal is depressed.
INACTIVE: this status indicates that the clutch pedal is released.
NOTESSpecial note:
Only apply the checks if the INACTIVE and ACTIVE statuses are not consistent with
the pedal position.
Conformity check: Engine stopped, ignition on or engine running.
STATUS INACTIVE
with clutch pedal
depressed.–Check the condition and the fitting of the clutch switch, component code 675.
–Check and ensure continuity on connection 86D between components 675 and 120.
–Check and ensure the presence of earth on connection MAS of component 675 (for
Clio III, Modus, New Twingo, Mégane II and Scénic II) and on the connection MAN
of component 675 (for Kangoo 2).
–Repair if necessary.
Remove the clutch switch and test its operation:
Continuity between
connectionsInsulation between
connections
Switch pressed
(Clutch pedal released)86D and MAS or MAN-
Switch released
(Clutch pedal depressed)-86D and MAS or MAN
If necessary, replace the clutch pedal switch, component code 675 (see MR 364
(Mégane II), MR 370 (Scénic II), MR 385 (Modus), MR 392 (Clio III), MR 411 (New
Twingo), MR 417 (Kangoo 2), Mechanical, 37A, Mechanical component controls,
Clutch pedal position sensor: Removal - Refitting).
DCM1.2_V48_ET405/DCM1.2_V4C_ET405/DCM1.2_V50_ET405/DCM1.2_V54_ET405/DCM1.2_V58_ET405/DCM1.2_V5C_ET405

13B-153
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET405
CONTINUED
STATUS ACTIVE with
clutch pedal
released.–Check the condition and the fitting of the clutch switch, component code 675.
–Remove the clutch switch and check that it is operating correctly:
Continuity between
connectionsInsulation between
connections
Switch pressed
(Clutch pedal released)86D and MAS or MAN-
Switch released
(Clutch pedal depressed)-86D and MAS or MAN
If necessary, replace the clutch pedal switch (see MR 364 (Mégane II), MR 370 (Scénic
II), MR 385 (Modus), MR 392 (Clio III), MR 411 (New Twingo), MR 417 (Kangoo 2),
Mechanical, 37A, Mechanical component controls, Clutch pedal position sensor:
Removal - Refitting).
Check and ensure the earth insulation of the connection
●MAS or MAN between components 675 and 120.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.

13B-154
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET415CRUISE CONTROL/SPEED LIMITER DEACTIVATION
STATUS DEFINITIONThis status varies according to engine specifications.
Note:
Cruise control can be activated when the vehicle speed exceeds 18 mph (30 km/h).
Status ET415 shows various reasons for deactivation of the cruise control/speed limiter function, due to a driver
request or the external environment (e.g. STATUS 1).
IMPORTANT
Clear the fault memory by running command RZ001 "Fault memory" to reset this status to "NONE".
Conformity check: Engine stopped, ignition on or engine running.
WITHOUTThis status is present on the diagnostic tool when:
–the computer has been reinitialised.
–the computer has been reprogrammed.
STATUS 1Traction control request
If the vehicle is fitted with a traction control system, the cruise control function is
deactivated every time the ABS computer calls for traction control.
Status ET415 becomes STATUS 1 when driving with the cruise control active (ET042
Cruise control/Speed limiter: CRUISE CONTROL) and traction control is requested.
This deactivates cruise control.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 1 with no traction control request (see 38C, Anti-lock
braking system).
DCM1.2_V48_ET415/DCM1.2_V4C_ET415/DCM1.2_V50_ET415/DCM1.2_V54_ET415/DCM1.2_V58_ET415/DCM1.2_V5C_ET415

13B-155
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET415
CONTINUED 1
STATUS 2Brake pedal depressed
The cruise control function is deactivated when the brake pedal is depressed.
Status ET415 becomes STATUS 2 when driving with cruise control active (ET042
Cruise control / Speed limiter: CRUISE CONTROL) and the brake pedal is depressed.
This deactivates cruise control.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 2 without pressing the brake pedal, consult the
interpretation of statuses ET704 and ET705 Brake contact No. 1 and No. 2.
STATUS 3Clutch pedal depressed
Manual gearbox ONLY.
The cruise control function is deactivated when the gearbox is not coupled to the engine
(clutch pedal depressed).
Status ET415 becomes STATUS 3 when driving with cruise control active (ET042
Cruise control/speed limiter: CRUISE CONTROL) and the clutch pedal is depressed.
This deactivates cruise control.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 3 without the clutch pedal being depressed, consult
the interpretation of status ET405 Clutch pedal.
If the vehicle is fitted with automatic transmission:
Test the multiplex network: check the configuration of the multiplex network in relation to
the vehicle's technical specification, especially the configuration of the automatic
transmission computer (see 88B, Multiplexing).

13B-156
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET415
CONTINUED 2
STATUS 4Cancel button pressed
The cruise control/speed limiter function is deactivated each time the suspend button is
pressed.
Status ET415 becomes STATUS 4, when driving if:
–either the cruise control is active or
–the speed limiter is active,
–and the driver presses the 0 button.
This action deactivates the Cruise control/Speed limiter.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 4 without pressing the 0 button, consult the
interpretation of status ET703 Cruise control / speed limiter buttons and run fault
finding on the R/0 control button located on the right-hand side of the steering wheel.
STATUS 5Cruise control or speed limiter monitoring
This status appears when the vehicle brakes or decelerates sharply without the injection
computer receiving a signal indicating that the brake pedal switch has been pressed.
If status ET415 is STATUS 5, consult the interpretation:
–of status ET042 Cruise control/Speed limiter
–of status ET703 Cruise control/Speed limiter buttons,
–of status ET704 Brake switch no. 1,
–and status ET705 Brake switch no. 2,
to test the cruise control/speed limiter system components and find the defective
component.
Also check the operation of the accelerator pedal, and check for any faults on the
diagnostic tool relating to this component. Deal with them if necessary.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 5, deal with the present or stored faults in the injection
computer.
If the fault is still present, contact the Techline.

13B-157
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V6 MR-413-X44-13B000$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET415
CONTINUED 3
STATUS 6Gear lever in neutral (manual gearbox) or the neutral position (automatic gearbox)
Status ET415 becomes STATUS 6 when driving with cruise control active (ET042
Cruise control / speed limiter: CRUISE CONTROL) and:
–if the driver puts the gear lever in neutral position on a manual gearbox without
declutching or,
–if the gear lever is put in neutral on an automatic transmission.
This deactivates cruise control.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 6 without shifting the gear lever into neutral on a
manual gearbox without declutching, or into the neutral position on an automatic
transmission, run fault finding on the ABS computer and check the configuration of the
tyre size stored in the computer. If the configuration is correct, contact the Techline.
STATUS 7Lack of correlation between the request and the vehicle speed
Status ET415 becomes STATUS 7 if the computer detects too great a difference
between the speed requested by the driver and the vehicle speed.
This could occur when driving with cruise control active (ET042 Cruise control/ speed
limiter: CRUISE CONTROL) and when there is a significant difference.
This inconsistency deactivates cruise control.
Reinitialise status ET415 on the injection computer by running command RZ001
"Fault memory".
If status ET415 becomes STATUS 7 on flat terrain, contact the Techline.
